Summary of Contents for VTech FS6414-A

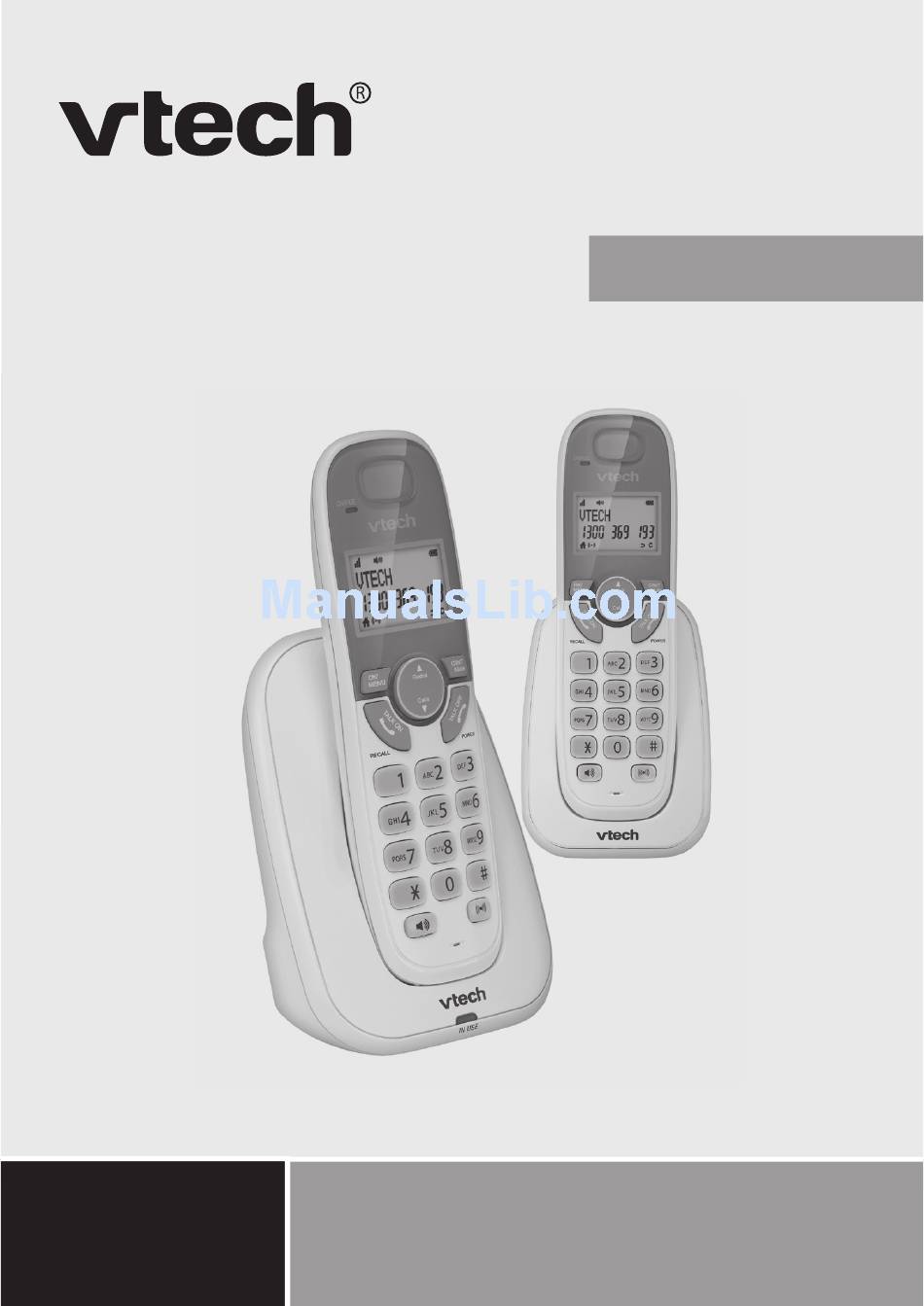

- Page 1 User’s manual Models: FS6414-A/ http://hkp hon es.vtech.com FS6414-2A/ FS6414-3A...
-
Page 2: Table Of Contents
TABLE OF CONTENTS IMPORTANT SAFETY INSTRUCTIONS ..........1 SET UP THE TELEPHONE ..............3 Package Contents..................3 Location......................3 Connect the Base Station ................4 Connect the Charger..................5 Install and Charge the Handset Battery .............6 Wall Mounting.....................7 GET TO KNOW YOUR PHONE.............. 8 Overview of the Handset................8 Overview of the Base Station..............10 Handset LCD Display Icons and Symbols ..........11... - Page 3 4.15.2 Call All Handsets.................19 4.15.3 Transfer an External Call to Another Handset......20 4.15.4 Make a 3-way Conference Call...........20 PRIVATE PHONEBOOK............... 21 Store a Number Entry in the Phonebok ...........21 5.1.1 Entering Names ................21 5.1.2 Writing Tips .................21 Review an Entry ..................21 Dial an Entry.....................22 5.3.1 To Search Alphabetically.............22...
- Page 4 TROUBLESHOOTING ................31 TECHNICAL SPECIFICATIONS............34 10. CARE AND MAINTENANCE INSTRUCTIONS ........35...
-
Page 5: Important Safety Instructions
Do not expose the telephone to direct sunlight or extreme cold environment. Do not put the telephone close to heating sources such as radiators, cookers, etc. or electric shock. Unplug this product from the wall outlet and refer servicing to VTech under the following conditions: •... - Page 6 The correct disposal of your old appliance/battery will help prevent potential negative consequences for the environment and human health. For more detailed information about disposal of your old appliance/battery, please product. please contact our customer support team.
-
Page 7: Set Up The Telephone
SET UP THE TELEPHONE Package Contents The package contains the following items: • Handset (1 for FS6414-A, 2 for FS6414-2A, 3 for FS6414-2A) • 1 Base station • 1 AC power adapter • Charger (1 for FS6414-2A, 2 for FS6414-3A) •... -
Page 8: Connect The Base Station
Connect the Base Station Telephone wall jack Power wall outlet If you have DSL high speed Internet service, Power adapter included) is required. cable Line Cord Plug the power cable into the base station, plug the other end of the power adapter into the wall outlet not controlled by a wall switch. -
Page 9: Connect The Charger
Connect the Charger Power adapter cable • Plug the power cable into the power wall socket and switch the power on. NOTE... -
Page 10: Install And Charge The Handset Battery
Install and Charge the Handset Battery Slide open the battery compartment cover. Place the 2 AAA batteries as indicated following the polarity signs. Slide the battery compartment cover back in position. time. A beep sounds when the handset is properly placed on the base or charger. NOTES •... -
Page 11: Wall Mounting
Wall Mounting Your FS6414-A/FS6414-2A/FS6414-3A is designed to mount on a standard wall mounting plate. Refer to the steps below to wall mount your FS6414-A/FS6414-2A/ FS6414-3A cordless phone: Plug the provided line cord and the power cable to the socket at the bottom of the base respectively. -
Page 12: Get To Know Your Phone

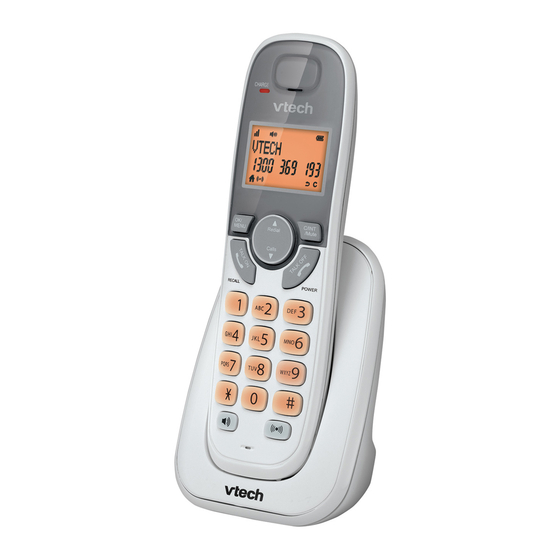

GET TO KNOW YOUR PHONE Overview of the Handset CHARGE light • On when the handset is charging in the telephone base or charger. OK/MENU • Press to show the menu. • Press to choose an item, or save an entry or setting while in a menu. C/INT/Mute •... - Page 13 • Press to move the cursor to the left while entering numbers or names in the phonebook. • Press to review the call list when the phone is not in use. • Press to decrease the listening volume during a call or message playback. •...
-
Page 14: Overview Of The Base Station
Overview of the Base Station IN USE LIGHT Steadily on: When the handset is in use. Flashes: When there is an incoming call. Or when the base is in registration mode. /HANDSET LOCATOR CHARGING CRADLE... -
Page 15: Handset Lcd Display Icons And Symbols
Handset LCD Display Icons and Symbols The LCD display gives you information on the current status of the telephone. Display icons Icons can be Steadily on (visible), Flashing or Off (not visible) More blocks indicate a stronger reception signal. Less blocks indicate a weaker reception signal. Steadily on when a home call is in progress. -
Page 16: Menu Structure
Menu Structure When the handset is switched on and in idle mode: Press MENU when the phone is not in use. Press until the handset displays the desired feature menu. Press OK to enter that menu. • To return to the previous menu, press C/INT/Mute or •... -
Page 17: Text And Digit Entry Table
Text and Digit Entry Table The following table shows you where each letter and punctuation character can be found. Respective character table will be used when corresponding menu language is selected. This will be helpful when storing a name in the phonebook and renaming your handset. -
Page 18: Use Your Phone
USE YOUR PHONE Switch ON/OFF the Handset When the handset is in idle mode, press and hold to switch the handset off. To switch the handset on, press and hold Make a Call 4.2.1 Preparatory Dialling Enter the phone number. If you make a mistake, press C/INT/Mute to delete the last digit. -
Page 19: Volume Boost
Volume Boost Use the feature to enhance the clarity and loudness of the voice on handset earpiece. To turn on VOLUME BOOSTER on the handset: • While you are on a call using the handset earpiece, press on the handset. “BOOSTER ON”... -
Page 20: Call Timer
Call Timer Your handset automatically times the duration of each call. The call timer will display for a few seconds after the call has been ended. It is shown in hours, minutes and seconds format (HH:MM:SS). 4.10 Set the Silent Mode In idle mode, press and hold to turn off the handset ringer. -
Page 21: Delete A Redial Number
4.12.3 Delete a Redial Number Follow Steps 1 and 2 in the section of Redial a Number from the Redial List. Press OK then to select DELETE. Press OK. The display shows “CONFIRM?”. Press OK 4.12.4 Delete the Entire Redial List Follow Steps 1 and 2 in the section of Redial a number from the Redial List. -
Page 22: Make A Call Using Power Fail Back-Up Mode
NOTES • If OFF is selected, Power Fail Back-Up mode will not be enabled. • If AUTO is selected, the registered handset(s) will display “TO POWER UP BS PUT IN CRADLE battery power (not lower than level 2) onto the main base unit to activate Power Fail Back-Up and start up the base. -
Page 23: Answer A Call Using Power Fail Back-Up Mode
4.14.3 Answer a Call Using Power Fail Back-Up Mode If there is only one handset registered to the base When the phone rings, keep the handset on the main base unit and press to answer the call. The speakerphone will be turned on automatically and call is answered. -
Page 24: Transfer An External Call To Another Handset
4.15.3 Transfer an External Call to Another Handset During an external call: Press MENU then to select INTERCOM. Press OK If you have only one other handset, it will ring. If you have extra handsets, press to select the other handset you want to transfer to, then press OK The external call is put on hold automatically and the called handset rings. -
Page 25: Private Phonebook
PRIVATE PHONEBOOK Your phone can store up to 70 private phonebook entries with names and numbers. Each phonebook entry can have a maximum of 24 digits for the phone number and 14 characters for the name. You can also select different ringtones for your phonebook entries. -
Page 26: Dial An Entry
Dial an Entry While in the phonebook list, press to select the entry you want, or search alphabetically using the alphanumeric keypad. Press to dial out. 5.3.1 To Search Alphabetically Press the relevant keypad button, e. g. for the entries beginning with T press 8 once then press to scroll through the entries. -
Page 27: Phone Settings
PHONE SETTINGS Date and Time Settings You will need to set the correct date and time so that you can get to know when you received call list entries. If you have subscribed to Calling Number Display service, the you have not subscribed to Calling Number Display Service you can set the date and time manually. -
Page 28: Direct Call
Direct Call You can turn on the direct call function and set a number for direct call. If this function is turned on, you can press any key in idle mode except MENU to dial the direct call number. To turn on/off the direct call function Press MENU then to select HS SETTINGS. -
Page 29: Set The Ringer Melody For External Calls
6.3.2 Set the Ringer Melody for External Calls You can set the melody to personalize your external ringer. A total of 10 melodies are provided for your selection. Press MENU then to select HS SETTINGS. Press OK then to select RING SETUP. Press OK then to select EXT. -
Page 30: Set Alert Tones
6.3.5 Set Alert Tones A single beep is emitted when you press a key. You can turn on or off the key tone. You can also turn on the alert tones when low battery and out of range are detected. Low battery tone will be emitted while you are talking with the phone to alert you that you need to charge up your battery. -
Page 31: Base Settings
Base Settings 6.4.1 Set the Flash Time unlikely that you should need to change this setting unless advised to do so. Press MENU then to select BS SETTINGS. Press OK then to select DIAL MODE. Press OK then to select SHORT, MEDIUM or LONG. Press OK 6.4.2 Change the System PIN Code... -
Page 32: Registration
Registration Your handset and base station is pre-registered. If for some reason, the handset is not registered to the base station, “REGISTER” will be displayed on the handset screen, register your handset according to the following procedure. Press and hold /HANDSET LOCATOR on the base station for about six seconds. The base station has entered into registration mode. -
Page 33: Caller Display (Network Dependent)
CALLER DISPLAY (NETWORK DEPENDENT) Call List from your telephone company. Your phone can store up to 10 received calls with date/ time information in the Call List. The number will be shown on the LCD when the phone is ringing. If the number matches with one of the entries in your Private Phonebook, the caller’s name stored in the private phonebook will be displayed with the number. -
Page 34: Store A Call List Number Into The Phonebook
Store a Call List Number into the Phonebook While in the call list, press to select the desired entry. Press MENU then to select ADD TO PB. Press OK then use the keypad to enter the name. (See Entering Names on page Press OK then use the keypad to edit the number if necessary. -
Page 35: Troubleshooting
TROUBLESHOOTING Problem Solutions My telephone does • Make sure the batteries are installed and charged not work at all. correctly. For optimum daily performance, return the handset to the telephone base after use. • Make sure the power adapter is securely plugged into an outlet not controlled by a wall switch. - Page 36 There is interference • The handset may be out of range. Move it closer to the during a telephone telephone base. conversation. My • If you subscribe to high-speed Internet service (digital calls fade out when I subscriber line - DSL) through your telephone line, you am using the handset.
- Page 37 Common cure for If the telephone is not responding normally, put the electronic equipment. handset in the telephone base. If it does not respond, try the following (in the order listed): • Disconnect the power to the telephone base. • Disconnect the batteries on the handset.
-
Page 38: Technical Specifications
TECHNICAL SPECIFICATIONS BASIC INFORMATION Valid range Indoor: 50m Outdoor: 300m Handset Operating Standby time: 100Hours approx. Time Talk time: 10Hours approx. RF Parameter Frequency 1.88GHz to 1.9GHz Number of Channels Power Supply Base Input 100-240V 50/60Hz; output 6V 450mA adapter Charger Input 100-240V 50/60Hz;... -
Page 39: Care And Maintenance
10. CARE AND MAINTENANCE INSTRUCTIONS Take care of your telephone • Your cordless telephone contains sophisticated electronic parts, so you must treat it with care. • Avoid rough treatment. • Place the handset down gently. • Save the original packing materials to protect your telephone if you ever need to ship it. - Page 40 VTECH TELECOMMUNICATIONS LTD. A member of THE VTECH GROUP OF COMPANIES. © 2016 VTech Telecommunications Ltd. All Rights Reserved. V1.0. 03/16.
