User Interface - DeFelsko PosiTector 6000 Instruction Manual

The user interface was designed to combine the proven simplicity of
PosiTector gages and the advanced functionality of a smart device's
features including touch, swipe, keyboard, camera and more. The
interface will be instantly recognizable to those familiar with PosiTector
instruments.

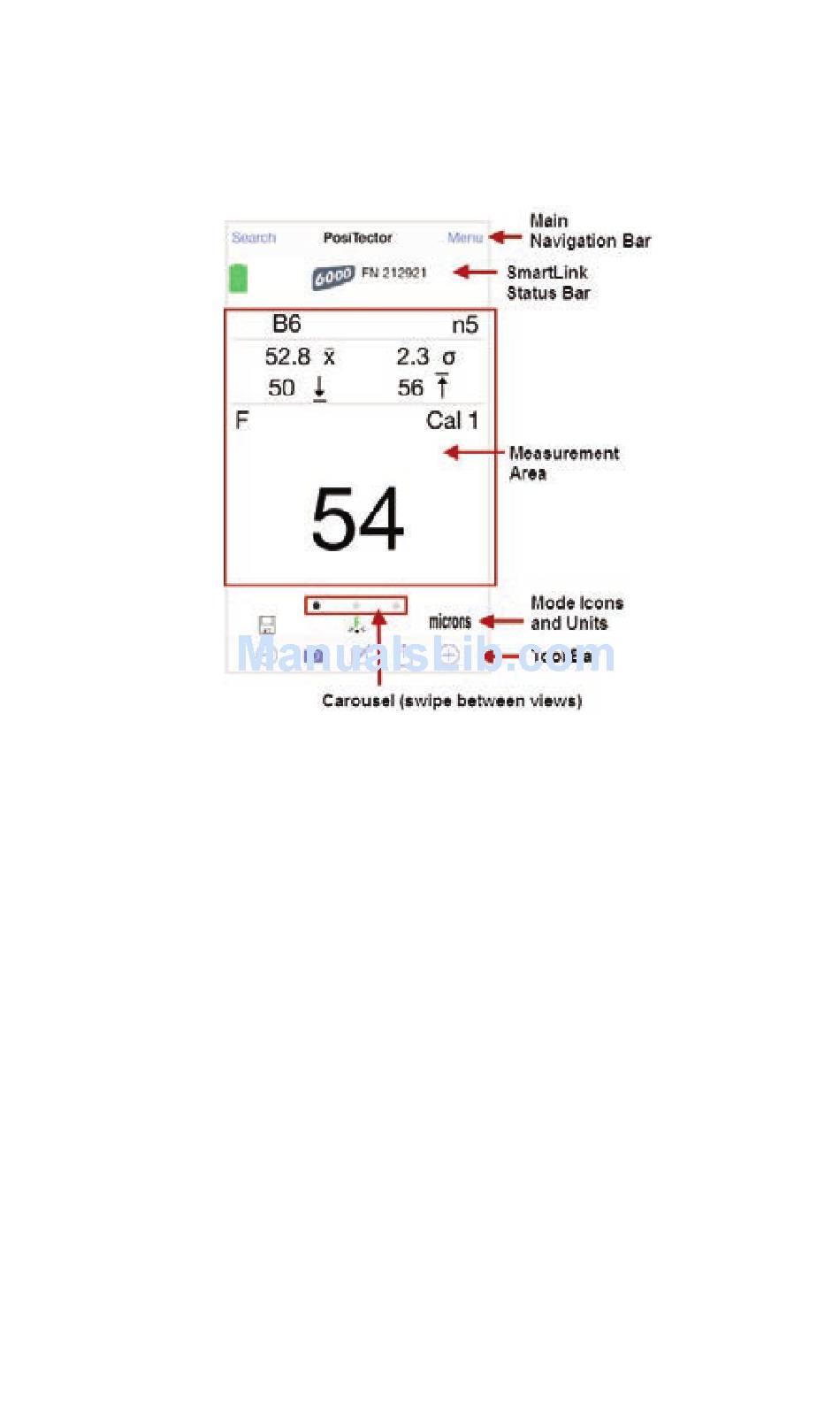

Main Navigation Bar
The Main Navigation section is dynamic and may change from one
screen to another.
In the example above, Search and Menu navigation options are
available.
Search returns back to the list of available PosiTector SmartLink
devices. Menu accesses the Main Menu.
SmartLink Status Bar
Displays information about the connected PosiTector SmartLink and
associated probe.
The example indicates that the PosiTector SmartLink battery status is
full and connected to a PosiTector 6000 FN probe (serial number:
212921).
