The PosiTector App connects a PosiTector SmartLink to your smart
device enabling you to use PosiTector 6000, DPM, SPG or RTR-H
probes on your device without the need for a conventional gage body.
Screen fonts, brightness and displayed language are inherited from
your smart device settings. Currently, the PosiTector App has language
support for English, Spanish, French, German, Chinese and Korean.
Screen orientation is fixed to portrait only, rotation to landscape is not
supported.
Stored batch readings, images and notes are all stored in the
PosiTector App (on your smart device). The number of stored batch
readings is only limited by the memory available on your smart device.
If the application is removed or a menu Reset (pg 30) is performed, all
stored measurements and associated data is permanently erased.
Wirelessly Connecting the PosiTector App
Wirelessly Connecting the PosiTector App
1 Power-up the PosiTector SmartLink and connected 6000 probe
by pressing the LED button. The button will blink blue.
2 Select the PosiTector SmartLink App icon on your smart device.
3 Select Continue. A list of available PosiTector probes (listed by
connected probe type and serial number) will be displayed. Select
the desired PosiTector SmartLink to connect. The LED button on
the PosiTector SmartLink will illuminate solid blue when
successfully connected.

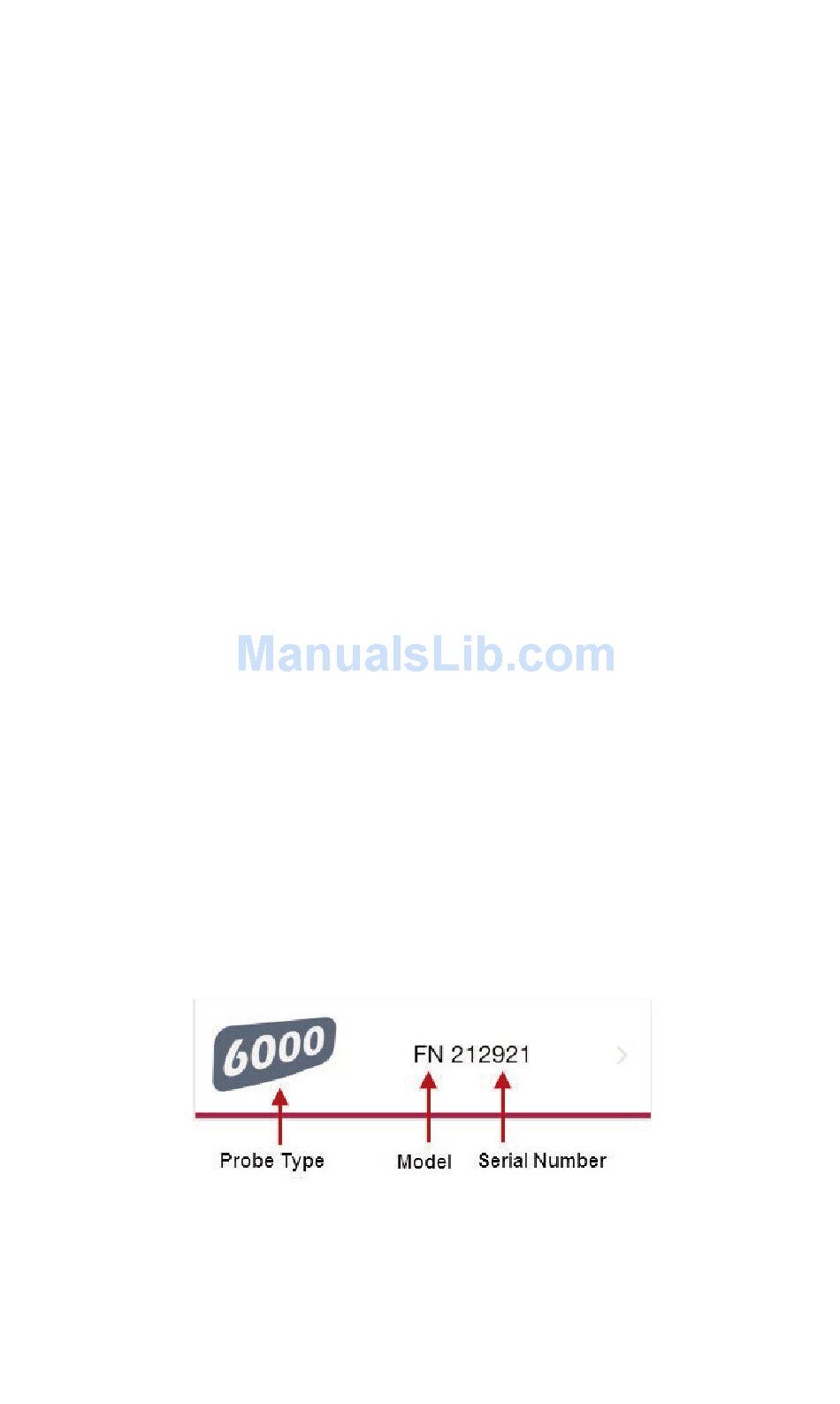

The probe model and serial number is engraved on the backside of the
plastic probe connector (i.e. FN 212921).

PosiTector App

PosiTector App
to a PosiTector
to a PosiTector
probe
probe
6000
6000
4
