VLT Series 2000
Parameter Numbering
Moving through the Program
After the first power up, the drive is in DISPLAY MODE. To
program the VLT's various Groups, use the MENU key to
enter the MENU GROUP MODE.
Changing a Parameter number in a Group
Parameters in each group can be entered in the selected
group by also using the
key.
Menu
Changing a Numerical Data Value
The Data Value can be a continuous (numerical) value of
figures within a specified range (i.e., volts, Hz, etc.), or it
can be a discrete value represented by the text.
The new data value will be stored in the software when
leaving the DATA MODE.
Please Note: It is necessary to press
motor before changing the data value of some parameters.
If the data value of the chosen parameter is a discrete value,
a text will appear in the display. The text shown represents
the chosen parameter. In order to change it, press
Time-out
If the VLT is left in DATA MODE, a 20 second time-out will
prevent unwanted change of data.
The software leaves DATA MODE after 20 seconds if no
operation is recorded.
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
+ key followed by
–
Stop
to stop the
Reset

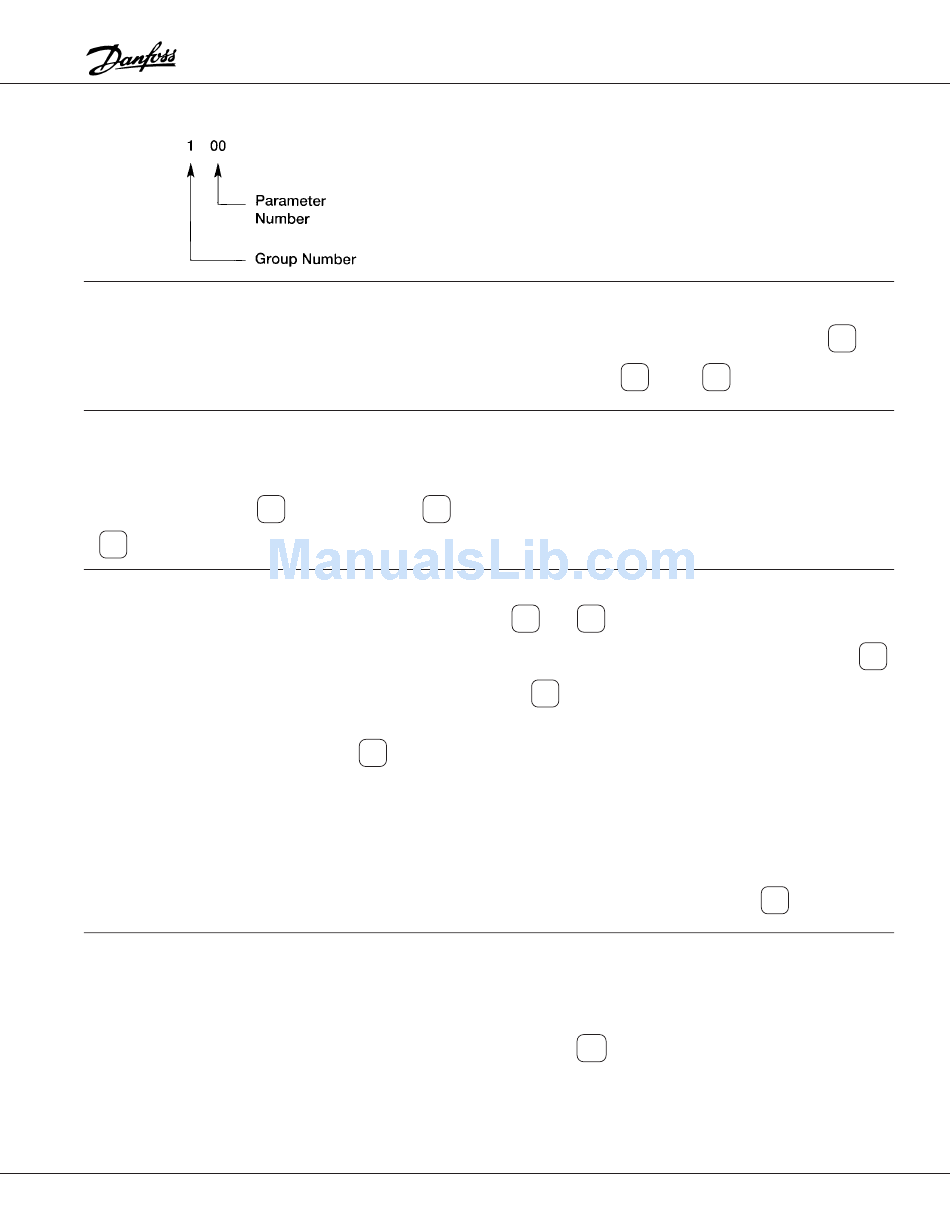

The parameter number consists of three digits as shown.
