Color-screen Expansion Module
EXP50
Quick Start Guide (V1.1)
www.yealink.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EXP50 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Yealink EXP50

Summary of Contents for Yealink EXP50

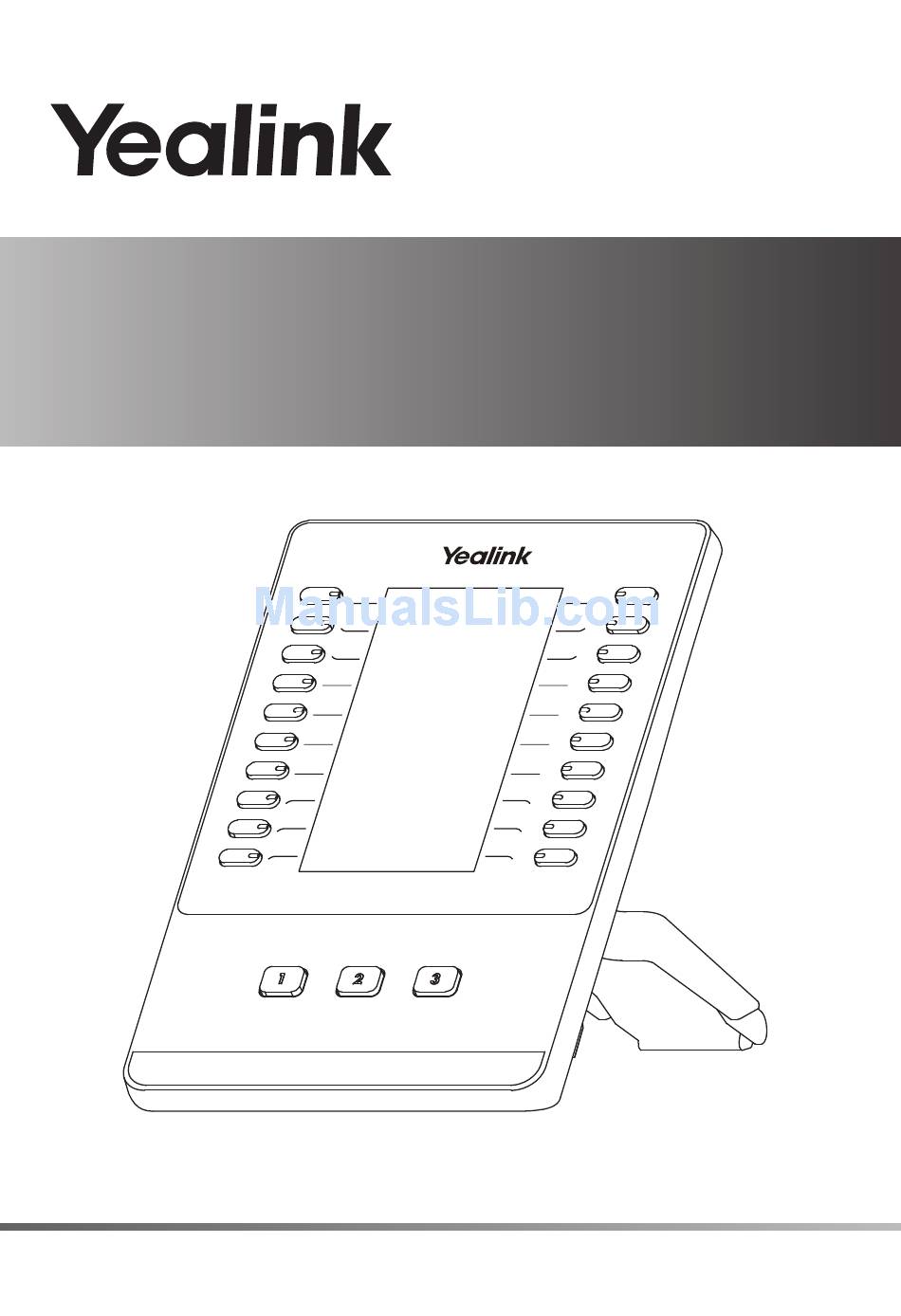

  • Page 1 Color-screen Expansion Module EXP50 Quick Start Guide (V1.1) www.yealink.com...
  • Page 2 Screw Expansion Module Connecting to the Phone 1. Connect the EXP50 and the phone using the supplied screw and connecting sheet, as shown below: You may need to pull out the silica gel on the phone when connecting expansion module.
  • Page 3 IP phone can support 3 expansion modules at most. But if you use more than one expansion module, you need to connect an additional Yealink power adapter (5V/2A) to any one of the expansion modules. The power adapter should be purchased separately.
  • Page 4 You can assign a feature to a DSS key via phone user interface. Press the desired DSS key of EXP50 for about 5 seconds, the phone LCD screen will prompt the setting of this key. The following sections provide you with detailed instruction of assigning some frequently used features to the DSS keys via web user interface.
  • Page 5 Forward When there is an incoming call, you can press the forward key to forward the incoming call to the pre-defined destination number. 1. Click on Dsskey->Ext Key. 2. In the desired DSS key field, select Forward from the pull-down list of Type. 3.
  • Page 6 Direct Pickup If you press the direct pickup key when the specific phone number receives an incoming call, the call is answered on your phone. 1. Click on Dsskey->Ext Key. 2. In the desired DSS key field, select Direct Pickup from the pull-down list of Type. 3.
  • Page 7 1. Click on Dsskey->Ext Key. 2. In the desired DSS key field, select SpeedDial from the pull-down list of Type. 3. Enter the desired number you want to dial out directly in the Value field. 4. (Optional.) Enter the string that will appear on the LCD screen in the Label field. 5.
  • Page 8 About us Founded in 2001, Yealink, a leading provider of VoIP Phone and IP communication solutions, has been focusing on VoIP products characterized by reliable quality, easy deployment and affordable price for more than a decade. Today, customers from over 140 countries rely on Yealink as the backbone of global collaboration to extend the value of network communications.
