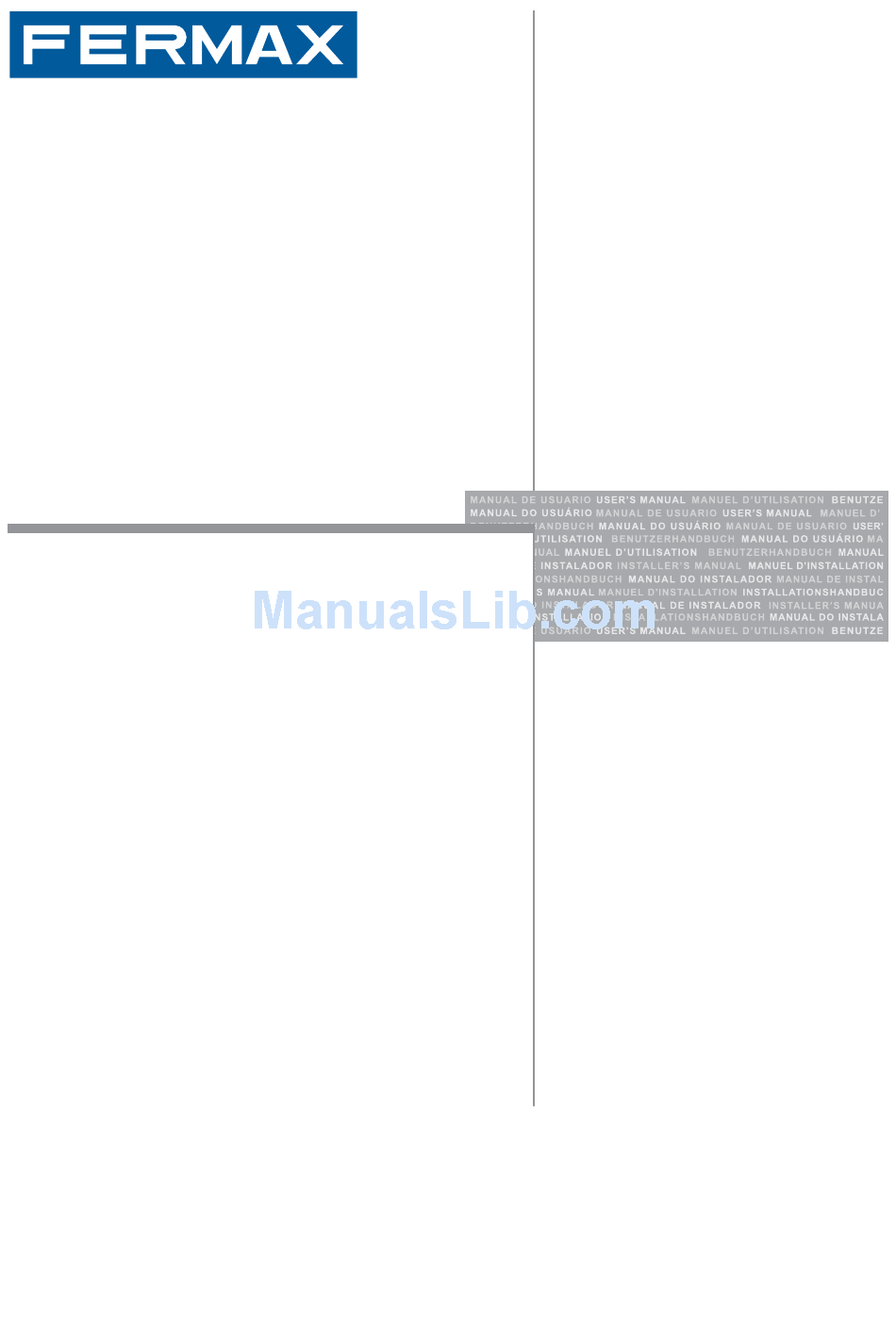

- Page 1 BASIC SMILE VDS MONITOR INSTALLATION AND USER MANUAL E N G L I S H...
- Page 2 Fermax electronics develops and manufactures renown systems that meet the highest design and technology standards. Your FERMAX video door entry system will allow you to communicate with the entry panel, see who is calling you and open the front door if you wish.
-
Page 3: Table Of Contents
SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS INDICE - INDEX SMILE MONITOR ......................4 Measurements: built-in/surface monitor ............4 Installing the Monitor ..................5 Wiring ........................ 8 Available Functions .................. -

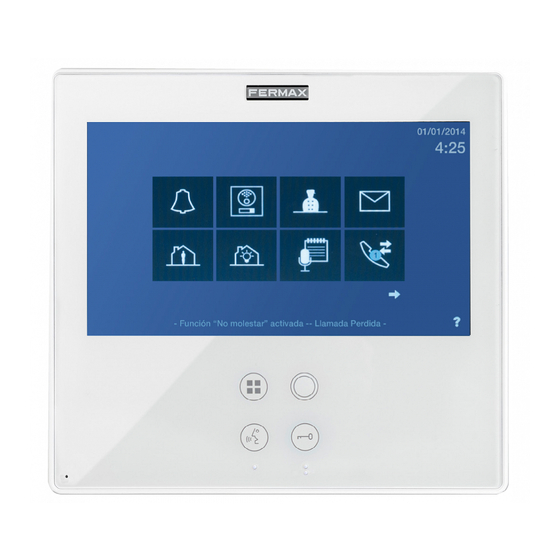

Page 4: Smile Monitor
MONITOR MEASUREMENTS: BUILT-IN Measurements in mm. SMILE 3.5” Monitor SMILE 7” Monitor Fermax built-in 3.5” monitor ref. 6546 (Height x Width x Depth.) 186 x 116 x 46 mm Fermax built-in 7” monitor ref. 6551 (Height x Width x Depth.) -
Page 5: Installing The Monitor
SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS INSTALLING THE BUILT-IN MONITOR SMILE 3.5” Monitor Page 5... - Page 6 SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE 7” Monitor Page 6...
- Page 7 SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS INSTALLING THE SURFACE MONITOR SMILE 3.5” Monitor 3,5" SMILE 7” Monitor 7" Page 7...
-
Page 8: Wiring
SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS Connection • • Video terminals: Connection Terminals: V: live +, -: 18 Vdc power supply. M: mesh L: data bus. CT: camera Activation (12 Vdc). - Page 9 SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS DISTRIBUIDOR VIDEO 2 SALIDAS REF.2448 2 OUTPUTS VIDEO DISTRIBUTOR 75 Ohm COAX DISTRIBUIDOR VIDEO 2 SALIDAS REF.2448 2 OUTPUTS VIDEO DISTRIBUTOR 75 Ohm 75 Ohm Page 9...
-
Page 10: Available Functions
SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS DISTRIBUIDOR VIDEO 2 SALIDAS REF.2448 2 OUTPUTS VIDEO DISTRIBUTOR 75 Ohm Auxiliary video input 75 Ohm COAX Available functions The functions available on the Smile VDS Basic Monitor are summarised in the following list: - It has capacitive buttons. -
Page 11: Buttons
SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE MONITOR wildcard menu. audio lock- releases Label of induction loop Buttons Audio and Hang-up Activation Button · On receiving a call (the user has 30"... - Page 12 SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS There is a function configured by the installer to activate the audio channel automatically upon receiving the call. See chapter b) Configuring conversation mode.
-
Page 13: Technical Characteristics
SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS Lock Release / Call Guard Unit Button. · Pressing this button whilst communicating with the Entry Panel will activate the lock release. -
Page 14: Programming The Monitor
SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS PROGRAMMING THE SMILE MONITOR The monitor will not function until it has been programmed! There are two monitor programming options: Option 1: from Panel + Monitor Option 2: from the Monitor. - Page 15 SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS 4. The selected option is displayed on the white line under the icon. Press , and a screen appears confirming the selected option: programming from the panel and you hear a beep on the monitor.
-
Page 16: Option 2: From The Monitor
SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS Notice: wildcard button will continue blinking (red) until having exited programming. 6. Exit Programming: When you press you exit to the previous programming menu. ... -
Page 17: Programming: Administrator Menu
SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS - : Decrease button selected with the cursor. + : Increase button selected with the cursor. : This moves to the following digit. : It restarts with the first digit. -
Page 18: A) Code Options
SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS To access the ADMINISTRATOR menu 2. Enter the administrator code, which by default is 4444 (it may be changed). The first number is blinking, each time you press + or - it increases or decreases this 0 0 0 0 number. - Page 19 SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS a.1) Programming the monitor from the 0 2 8 monitor itself. Explained in previous pages, see _ _ _ "Programming the smile monitor", option 2222 a.2) Programming the monitor from the panel.
- Page 20 SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS 0 2 8 0 7 1 0 7 1 2222 4444 3rd. Exit Programming: When you press you exit to the previous programming menu. ...
- Page 21 SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS Notes: - The time between steps 4 and 5 must be less than 2 and half minutes. - Programming is always done from the panel activated as the main panel. Panel icon A different calling tone is produced, confirming the monitor´s programming, continuing...
- Page 22 SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS 2. Pressing , select the desired access 1. In order to enable the call forward option, go to the corresponding icon with the mode, in this case the menu M has been cursors.
- Page 23 SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS 2. By pressing , you select the call forward, 1. In order to enable the call forward option, and confirm the selection, since it is go to the corresponding icon with the indicated by the white point on the screen cursors, (white line under the icon).
-
Page 24: B) Configuring Conversation Mode
SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS 2. Enter the administrator code you wish to change. The first number is blinking, each time you press + or - it increases or decreases this 0 0 0 0 number. -
Page 25: C) Images
SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS 3. With the cursors, select the icon of the desired conversation mode. Press , to select the conversation mode. On the selected mode you will see a. - Page 26 SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS 2. By default the functions are enabled as the screen shows. The functions that appear with: - x: are enabled with a shortcut button and also appear in the menu.
- Page 27 SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS 4. In order to configure the function´s access mode, go to the corresponding icon with the cursors, (white line under the icon). Pressing , you select the desired access mode, in this case the menu M has been selected.
- Page 28 SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS 9. These are the default programmed functions in the monitor as shortcuts and that therefore appear as both shortcuts and in the menu.
- Page 29 SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS 3. For example, we enter 03:15, so the function will be activated for 3 hours and 15 minutes. Going to the previous screen you will view the red led bell, indicating 0 3 : 1 5 that the function is activated.
- Page 30 SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS Just as previously stated, we exit the do not disturb mode: - When the programmed time has passed. - by pressing the shortcut button or - by selecting the do not disturb icon on the menu.
- Page 31 SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS For example, Call the Guard Unit as a shortcut button (x). This function is enabled as a shortcut button and also appears in the menu.
- Page 32 SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS The auto-start function is enabled as a shortcut button and also appears in the menu. Via the MENU. For Shortcut buttons. (Pressing "Menu"...
- Page 33 SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS The F1 terminal acts as an input connecting a button on it for the Panic call to the MDS Guard Unit function (input). In combination with a MDS/VDS decoder version V10.26 or above, you can make a panic call to the MDS guard unit.
- Page 34 SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS e7) Auxiliary function F2 The F2 function mainly acts as an output and sends a negative. This output remains active while pressing the button.
- Page 35 SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS e8) Auxiliary video input (CCTV) There is the option to connect an external analogic camera to the monitor and use it as a CCTV image.
- Page 36 SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS Notes: - If you have a motion detector, this can be connected to the doorbell so that anytime the camera detects a person it generates a ringtone and activates the video. - We suggest deactivating the Auxiliary video with door bell function during long absences (vacations), in order to avoid the monitor screen permanently remaining on when a call is made from the panel.
-
Page 37: F) Parameters
SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS When you press the relevant button from the monitor: Lift Control, the corresponding command is transmitted by the bus, and it appears on the monitor. - Page 38 SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS f1) Activation F2 with door opening The F2 terminal can also be configured, giving a negative when the lock-release command is sent, while the lock-release button is down, during a call or conversation. See Details: e5) Auxiliary function F2.
-
Page 39: G) Resetting Parameters
SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS CCTV icon on the screen when the auxiliary video is activated Notes: - If you have a motion detector, this can be connected to the doorbell so that anytime the camera detects a person it generates a ringtone and activates the video. - Page 40 SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS 1. Select the default parameters option via the cursors (white line under the icon) and press. The monitor exits the menu and starts to save the selected option.
-
Page 41: Adjustments: Video And Audio
SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS 2. When all capacitive buttons have been lit, this option is saved. Since it deletes the programmed monitor´s address, wildcard button blinks red, indicating that the monitor is not programmed. - Page 42 SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS 2. Select the desired option and increase or decrease the video adjustments according to the selected option. contrast brightness colour - : Button to decrease.
-
Page 43: Audio
SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS Audio Adjustments While the audio channel is open the audio´s volume can be regulated via a contextual menu on the screen. Short-press the "MENU" button and a menu appears on the screen to adjust the audio. -
Page 44: Programming: User Menu
SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS PROGRAMMING: USER Menu Access the user menu Notice: - Navigation buttons and capacitive buttons navigation buttons The icons viewed on the screen (navigation buttons: , , ... -
Page 45: A) Tone
SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS a) Ringtones Within the menu, the monitor allows you to select an independent ringtone for the call from: - a1) Main street panel - a2) Secondary street panel - a3) Doorbell You can select that the ringtone rings three times (continuous mode). - Page 46 SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS 5. Having selected continuous mode, Press, to select it. In order to remove the selection you also press . To go to the next options press . continuos mode is selected: the ringtone is placed 3 times Audio Adjustments...
-
Page 47: B) Configuring Alarms
SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS b) Configuring alarms This function is not available in the basic model. c) Date and Time This function is not available in the basic model. d) Administrator Menu Menu for the installer to configure the monitor according the the installation´s needs. -
Page 48: 2. Doorbell
SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS The same operation can also be performed via the menu´s icon. Via the MENU. (Pressing "Menu" for 3 seconds. If you want to select this mode indefinitely (- - : - -), upon entering in this screen the first number is blinking, press + until you view the cursor - , press , the remaining... -
Page 49: Smile Monitor
SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE MONITOR wildcard menu. audio lock- releases Label of induction loop Buttons Audio and Hang-up Activation Button. · Upon receiving a call (the user has 30"... - Page 50 SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS There is a function configured by the installer to activate the audio channel automatically upon receiving the call. In this mode the conversation will finish as usual by pressing the AUDIO button or after 90’’.
- Page 51 SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS Lock Releases / Call Guard Unit Button. · Pressing this button whilst communicating with the Entry Panel will activate the lock release.
-
Page 52: Operation
SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS Operation Answering a call: "Handsfree" Mode: When the call button on the Entry Panel is pressed a call tone is produced both on the panel and on the monitor, causing the screen to start up. - Page 53 SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS Manual Monitor Activation (Auto-Start) With the monitor on standby, press and hold the wildcard for 1 second to switch the monitor on manually.
- Page 54 SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS Opening the Door When a call is received from the entry panel, you can open the door at any time, by pressing the button Page 54...
- Page 55 SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS SMILE VDS Page 55...
