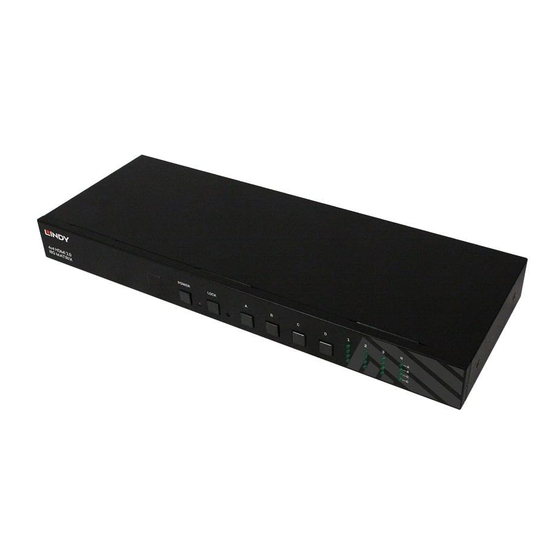

- Page 1 4x4 4K60 18G Matrix User Manual Eng li sh Benutzerhandbuch Deutsch Manuel Utilisateur Français Manuale Italiano No. 38245 lindy.com Tested to Comply with FCC Standards For Home and Office Use! © LINDY Group - FIRST EDITION (APRIL 2017)
- Page 3 English Introduction Thank you for purchasing the LINDY 4x4 4K60 UHD HDR HDMI 18G 2.0 Matrix, this product has been designed to provide trouble free, reliable operation. It benefits from both a LINDY 2 year warranty and free lifetime technical support. To ensure correct use, please read this manual carefully and retain it for future reference.
- Page 4 User Manual English Front panel 1. IR WINDOW: The remote control will need to be pointed at this window to control switching 2. POWER BUTTON: Press the button to power the Matrix on/off 3. LOCK: Press the button to lock all the buttons on the panel; press again to unlock 4.
- Page 5 User Manual English 5. OUTPUT D: Press buttons 1-4 to select the input port to display on output D RS232 Protocols Matrix Remote Controller Definition Definition Baud Rate: 115200bps Data bit: 8 bits Parity: None Flow Control: None Stop Bit: Telnet and RS232 Commands Command Name Description...
- Page 6 User Manual English Power On NONE STOREN Store Current I/O to Position N N=1~4 SHOWN Show Current Port N I/O N=1~4 Position PRESETN Preset the store I/O Position N N=1~4 NameN N1 Name port N as N1 N=1~4 N1=ABCDEFGH(Max Length=8) Show Unit Firmware Version NONE Setting EDID Mode N...
- Page 7 User Manual English WebGUI Control On a PC/Laptop which is connected to an active network system, open a web browser and type device’s IP address (available from LCM monitor or OSD menu) on the web address entry bar. The browser will display the device’s Switch, EDID settings and system Settings.
- Page 8 User Manual English Clicking preset set button (marked in red), and click any one set could save current setting as preset set, press the edit button on preset (marked in blue) to edit preset name. Clicking preset recall button (marked in red), and click any one set could recall pre-setting set.
- Page 9 User Manual English On the EDID setting page, users can setup the EDID mode to upload/download custom EDID or to download EDID from sink. EDID setting can be selected from the EDID mode list, it also allows four custom EDID bin file to be uploaded.
- Page 10 User Manual English To upload a custom EDID, first click the highlighted button in red, then select the file from your PC/Laptop and click update. Click the edit button (marked in red) to edit the name of USER mode. You can also select from four outputs to download EDID from sink.
- Page 11 User Manual English System setting page allows you to power on/off, edit basic info, such as user name or password and set up WebGUI timeout and network setting. Press Routing Reset to reset routing to default setting; press Fadefault to set to factory default. Note: It will need to click on save button once you finished network parameters...
- Page 12 LINDY Herstellergarantie – Hinweis für Kunden in Deutschland LINDY gewährt für dieses Produkt über die gesetzliche Regelung in Deutschland hinaus eine zweijährige Herstellergarantie ab Kaufdatum. Die detaillierten Bedingungen dieser Garantie finden Sie auf der LINDY Website aufgelistet bei den AGBs.
-
Page 13: Recycling Information
Batterien und Akkus den Produkten vor der Rückgabe an das Rücknahmesystem entnommen werden müssen und über die Sammel- und Rückgabesysteme für Batterien separat entsorgt werden müssen. Ausführliche Informationen zu diesen Themen finden Sie stets aktuell auf der LINDY Webseite im Fußbereich. France En 2006, l'union Européenne a introduit la nouvelle réglementation (DEEE) pour le recyclage de tout équipement...
