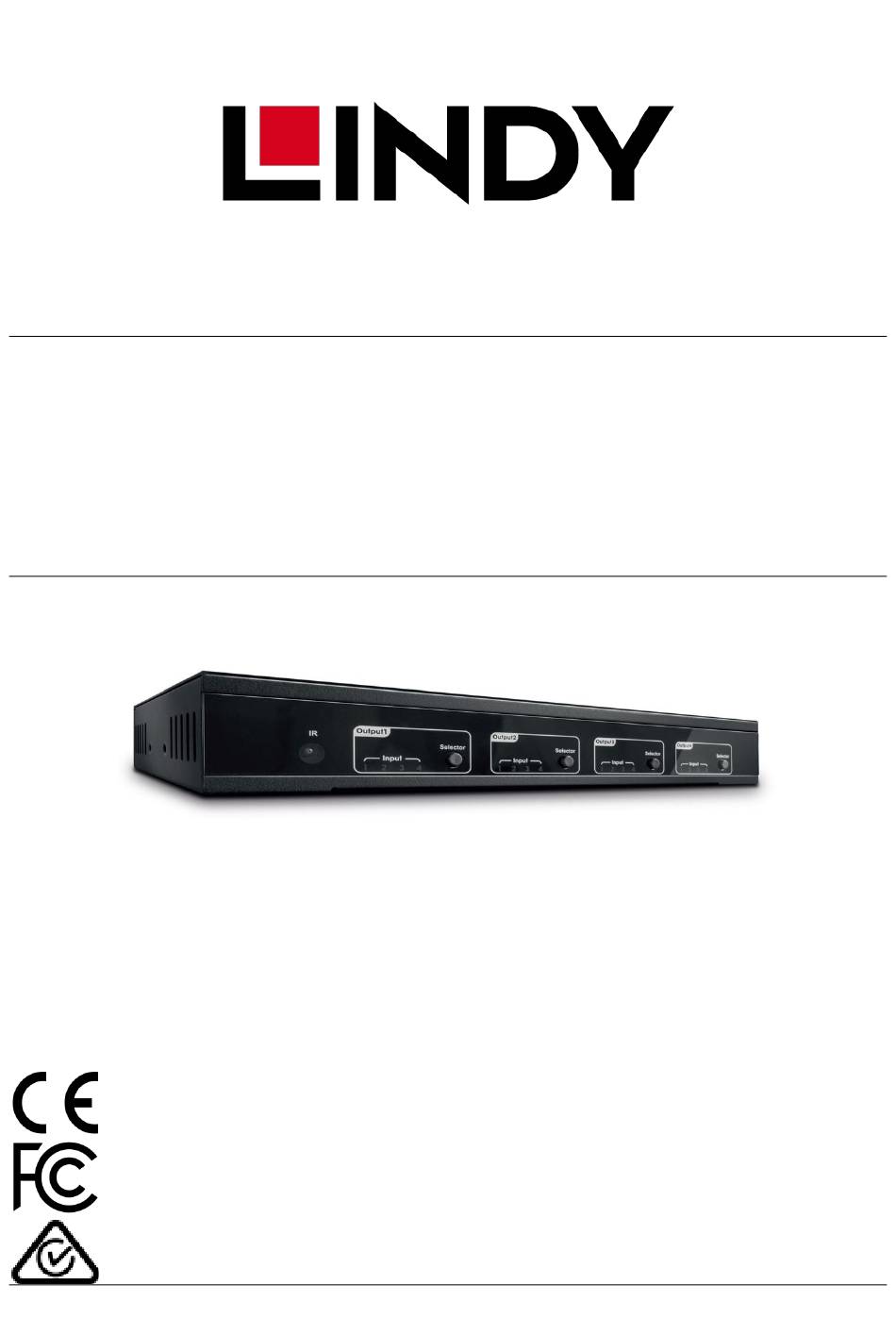

- Page 1 4x4 HDMI 18G Matrix with Audio User Manual Eng lis h Benutzerhandbuch Deutsch Manuel Utilisateur Français Manuale Italiano No. 38247 lindy.com Tested to comply with FCC Standards For Home and Office Use! © LINDY Group – FIFTH EDITION (September 2020)
- Page 3 To ensure correct use, please read this manual carefully and retain it for future reference. The Lindy 4x4 HDMI Matrix Switch Pro supports HDMI 2.0 18G signals, allowing for the transmission of clear 4K Ultra HD 60Hz resolutions. Additional support for High Dynamic Range ensures video content is...
- Page 4 User Manual English Features ▪ HDMI 2.0 18Gbps, HDCP 2.2, DVI 1.0 complaint ▪ HDCP 2.2 Support ▪ Supports resolutions up to 4096x2160@60Hz 4:4:4 8bit, with additional support for 10-bit HDR ▪ Full 18G bandwidth ▪ Supports 7.1 channel of LPCM, Dolby TrueHD and DTS-HD Master Audio digital audio signals ▪...

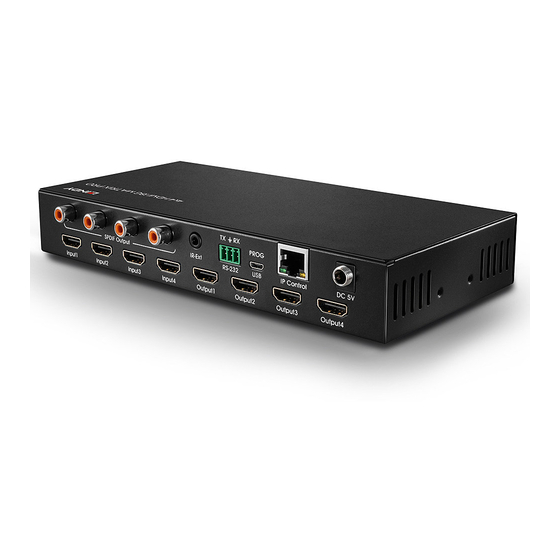

- Page 5 User Manual English Operation Front Panel 1. IR receiver window 2. Output Selector – Press the selector button to scroll through inputs 1-4 Rear Panel 1. SPDIF Audio output ports 2. IR Extension port 3. RS-232 connection port for control or upgrading the firmware 4.
- Page 6 Assignment Software Control Download the latest version of the control software from the Lindy website. Using either a RS232 cable or a USB cable, connect the matrix to a PC or laptop. COM Setting – select and connect to the COM port on your PC Device Name –...
- Page 7 User Manual English IP Config – You can manually set the IP address and the MAC address, or you can set the router to assign the IP automatically by clicking DHCP Net Config – Allows you to configure the PC and the Matrix to be in the same LAN.
- Page 8 User Manual English Command Control Open the application CommUart Assistant Comport Setting Baud Rate: 115200 bps Parity: None Data Bits: 8 bit Stop Bits: 1 bit Enter the Command in the send options Command Function Note Mirror all inputs and outputs @W 04 00 01 02 03 # PTP Function (Ex.
- Page 9 User Manual English E.g.: @W 00 00 #: Output 1 display Input1 Output 1 Input1 EDID Setting @W XX AA BB # Parameter Description: XX for configuration of “INPUT EDID” Command Description Input1 Input2 Input3 Input4 AA for selecting “Video Mode” Command Description 1080P...
- Page 10 User Manual English Web Control The default IP address of the Matrix is 192.168.1.168. Your PC must be in the same IP range to allow you access to it. For TCP/IP4 you can use and IP address in the range 192.168.1.2 to 192.168.1.254 excluding 192.168.1.168.
- Page 11 User Manual English IP/Telnet Command List Telnet: 192.168.1.168 ID: Admin Password: Admin Command: Action: help Receive all command information exit Disconnect Telnet reset Reset system set-swp Set switch port. i.e.: set-swp 2,1 (In1 to 0ut2) set-net-ip Set host ip i.e.: set-net-ip 192.168.1.168 set-net-mask Set mask address i.e.: set-net-mask 255.255.255.0...
- Page 12 LINDY Herstellergarantie – Hinweis für Kunden in Deutschland LINDY gewährt für dieses Produkt über die gesetzliche Regelung in Deutschland hinaus eine zweijährige Hersteller- garantie ab Kaufdatum. Die detaillierten Bedingungen dieser Garantie finden Sie auf der LINDY Website aufgelistet bei den AGBs.
-
Page 13: Recycling Information
Geräte müssen den Sammel- und Rückgabesystemen zugeführt werden! Dort werden sie kostenlos entgegen genommen. Die Kosten für den weiteren Recyclingprozess übernehmen die Gerätehersteller. LINDY bietet deutschen Endverbrauchern ein kostenloses Rücknahmesystem an, beachten Sie bitte, dass Batterien und Akkus den Produkten vor der Rückgabe an das Rücknahmesystem entnommen werden müssen und über die Sammel- und Rückgabesysteme für Batterien separat entsorgt werden müssen.
