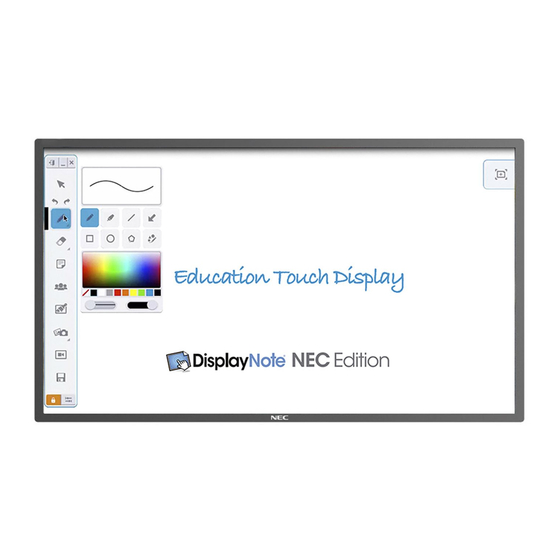

- Page 1 Large Format Display User’s Manual E651-T Please find your model name in the label on the backside of monitor.
-
Page 2: Table Of Contents
Initial Setting ........................... English-19 System Information ......................... English-20 Features ............................... English-21 Troubleshooting ............................English-22 Specifications - E651-T ..........................English-24 Appendix - Supported Media ........................English-25 Manufacturer’s Recycling and Energy Information ..................English-26 [IMPORTANT] Regarding the MPEG AVC Licenses Used with This Product..........English-28... -
Page 3: Declaration Of Conformity
NEC is a registered trademark of NEC Corporation. OmniColor is a registered trademark of NEC Display Solutions Europe GmbH in the countries of EU and Switzerland. All other brands and product names are trademarks or registered trademarks of their respective owners. -
Page 4: Important Information
Important Information WARNING TO PREVENT FIRE OR SHOCK HAZARDS, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE. ALSO, DO NOT USE THIS UNIT’S POLARIZED PLUG WITH AN EXTENSION CORD RECEPTACLE OR OTHER OUTLETS UNLESS THE PRONGS CAN BE FULLY INSERTED. REFRAIN FROM OPENING THE CABINET AS THERE ARE HIGH VOLTAGE COMPONENTS INSIDE. -
Page 5: Safety Precautions, Maintenance & Recommended Use
• Cable distribution system should be grounded (earthed) in accordance with ANSI/NFPA 70, the National Electrical Code (NEC), in particular Section 820.93, Grounding of Outer Conductive Shield of a Coaxial Cable. • The screen of the coaxial cable is intended to be connected to earth in the building installation. -
Page 6: Contents
Contents Your new monitor box* should contain the following: • LCD monitor • Wireless Remote Control and AAA Batteries x 2 • Power cord* • Setup Manual • Stylus pen* Setup Manual Power Cord* Setup Manual Wireless Remote Control Stylus pen* and AAA Batteries x 2 Remember to save your original box and packing material to transport or ship the monitor. -
Page 7: Installation
When using mounting accessories other than those that • Periodically check for loose screws, gaps, distortions, are NEC approved, they must comply with the VESA- or other problems that may occur with the mounting compatible (FDMlv1) mounting method. apparatus. If a problem is detected, please refer to •... -
Page 8: Attaching Mounting Accessories
LCD in the original packaging. Make sure there is nothing on the table that can damage the monitor. When using mounting accessories other than NEC compliant and approved, they must comply with the VESA-compatible mounting method. -
Page 9: Parts Name And Functions
Parts Name and Functions Control Panel MENU button (MENU) UP button ( ) Turns on/off the OSD menu. Acts as UP button to move the highlighted area up to select adjustment items within OSD menu. SOURCE button (SOURCE) DOWN button ( ) Acts as INPUT button within OSD menu. -
Page 10: Terminal Panel
Terminal Panel D-sub Audio In HDMI1 HDMI2 HDMI3 Audio Out AC IN connector AUDIO OUT Connects with the supplied power cord. To output the audio signal from the AUDIO IN, HDMI to an external device (stereo receiver, amplifier, etc.). Main Power Switch Remote control sensor and Power Indicator On/Off switch to turn main power ON/OFF. -
Page 11: Wireless Remote Control
Wireless Remote Control POWER button PICTURE button Switches the power on/standby. Selects picture mode, [Dynamic], [Standard], [Cinema], [Custom]. INPUT button Dynamic: for moving images such as DVD. Selects input signal. Standard: for images. HDMI: HDMI, HDMI2, HDMI3 Cinema: for Cinema. VGA: VGA Custom: activate auto dimming function. -
Page 12: Operating Range For The Remote Control
Operating Range for the Remote Handling the remote control • Do not subject to strong shock. Control • Do not allow water or other liquid to splash the remote Points the top of the remote control toward the LCD monitor’s control. -
Page 13: Setup
Setup 1. Determine the installation location NEC recommends the following battery use: • Place “AAA” size batteries matching the (+) and (-) signs CAUTION: Installing your LCD monitor must be done by a on each battery to the (+) and (-) signs of the battery qualified technician. -
Page 14: External Equipment
5. Switch on the power of all the attached external equipment When connected with a computer, switch on the power of the computer first. 6. Operate the attached external equipment Display the signal from the desired input source. 7. Adjust the sound Make volume adjustments when required. -
Page 15: Connections
Connections NOTE: Do not connect/disconnect cables when turning on the monitor or other external equipment as this may result in a loss of the monitor image. NOTE: Use an audio cable without a built-in resistor. Using an audio cable with a built-in resistor turns down the sound. Before making connections: First turn off the power of all the attached equipment and make connections. -
Page 16: Connecting A Personal Computer
2. Install the equipment.* • Connect the A type connector to the downstream port on the external computer (Figure 1). 3. Turn on the monitor. *1: Please contact your NEC customer support for more detailed information. Monitor Setting Select the input signal. -
Page 17: Basic Operation
Basic Operation Power ON and OFF Modes The LCD monitor power indicator will turn green while powered on and will turn red or amber while powered off. NOTE: The Main Power Switch must be in the ON position in order to power up the monitor using the remote control or the Power Button. -
Page 18: Power Indicator
Power Indicator Mode Status Indicator Light Power ON Green* Power OFF and Power Save “AUTO STANDBY” Power consumption under 0.5 W* Power Save “Power Save” Amber Power consumption under 0.5 W* Power Standby when “Scheduler” Green and Amber blink alternately enabled Diagnosis (Detecting failure) Red Blinking... -
Page 19: Osd (On-Screen-Display) Controls
OSD (On-Screen-Display) Controls For this monitor, an OSD (on-screen display) function is used to allow you to easily adjust settings. You can use the OSD function to control the menu displayed on the screen and adjust the brightness and other settings. Basic Operations on the OSD Screen Make sure that the power indicator lights in green and the power to the monitor is on. - Page 20 Step Wireless Remote Control Keypad Operation Press the [OK] button to determine the selected item in the Press the [SOURCE] button to determine the selected item sub menu. in the sub menu. Press the left ( )/right ( ) button to select a setting and Press the plus (+)/minus (-) button to select a setting and press the [OK] button to determine the setting.
-
Page 21: Picture
PICTURE Picture Mode Select [Dynamic], [Cinema], [Custom], or [Standard]. Adjust Contrast, Brightness, Sharpness, Tint, and Color. Backlight Adjust the Backlight setting. Color Temperature Adjust Color Temperature and Gain. Gamma Select a Gamma setting. Noise Reduction Adjust Noise Reduction. Adaptive Contrast Select On or Off for Adaptive Contrast. -
Page 22: System Information
As with all personal display devices, NEC DISPLAY SOLUTIONS recommends displaying moving images and using a moving “Anti-Image Retention”... -
Page 23: Features
FullScan Capability: Allows you to use the entire screen area in most resolutions, significantly expanding image size. VESA Standard (FDMIv1) Mounting Interface: Allows you to connect your LCD monitor to any VESA standard (FDMIv1) third party mounting arm or bracket. NEC recommends using mounting interface that comply with TÜV-GS and/or UL1678 standard in North America. -
Page 24: Troubleshooting
Check if the Remote Control is pointing at the monitor’s off for one hour to erase the image. remote sensor. NOTE: As with all personal display devices, NEC DISPLAY • Check the Remote Operation SETTING status. SOLUTIONS recommends displaying moving images •... - Page 25 The response of the touch screen is not correct • Avoid direct sunlight or strong light on the screen. • If there are some obstacles near the TOUCH screen, it may malfunction. • Sensor bar module may be dusty or dirty (see page 14, Figure 1), wipe gently with a soft cloth.
-
Page 26: Specifications - E651-T
Specifications - E651-T Product Specifications LCD Module 65” / 1639.0 mm diagonal Pixel Pitch: 0.744 mm Resolution: 1920 x 1080 Color: Over 1073 million colors Brightness: 400 cd/m (with cover glass) Contrast Ratio: 4000:1 Viewing Angle: Left/Right: 170° (typ) @ CR>10, Up/Down: 170° (typ) @ CR>10... -
Page 27: Appendix - Supported Media
Appendix - Supported Media Video specification File Container Video codec Maximum Maximum Maximum bit MPEG-1 L-PCM extension resolution frame rate rate Audio Layer2 and 3 ○ ○ ○ ○ .mpg − MPEG-2 1080P 30fps 20Mbps .mpeg Video ○ ○ ○ MPEG2-TS MPEG-2 1080P... -
Page 28: Manufacturer's Recycling And Energy Information
Manufacturer’s Recycling and Energy Information NEC DISPLAY SOLUTIONS is strongly committed to environmental protection and sees recycling as one of the company’s top priorities in trying to minimize the burden placed on the environment. We are engaged in developing environmentally-friendly products, and always strive to help define and comply with the latest independent standards from agencies such as ISO (International Organisation for Standardization) and TCO (Swedish Trades Union). - Page 29 For EU: The crossed-out wheeled bin implies that used batteries should not be put to the general household waste! There is a separate collection system for used batteries, to allow proper treatment and recycling in accordance with legislation. According the EU directive 2006/66/EC, the battery can’t be disposed improperly. The battery shall be separated to collect by local service.
-
Page 30: [Important] Regarding The Mpeg Avc Licenses Used With This Product
[IMPORTANT] Regarding the MPEG AVC Licenses Used with This Product 1. MPEG AVC THIS PRODUCT IS LICENSED UNDER THE AVC PATENT PORTFOLIO LICENSE. SUCH LICENSE EXTENDS TO THIS PRODUCT ONLY AND ONLY TO THE EXTENT OF OTHER NOTICES WHICH MAY BE INCLUDED HEREIN.
