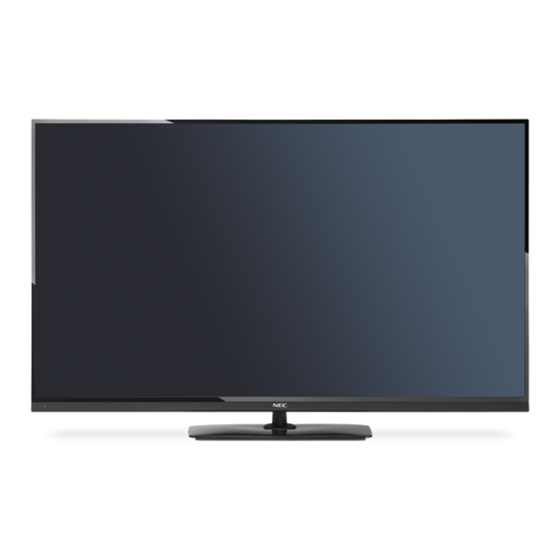

NEC E654 Installation Manual

E654 Installation Guide
65" LCD Display
Contents
Product Description and Notes
Ventilation Recommendations
Display Dimensions
With Stand
Front, Top, Right, Left, Bottom
Rear
Optional Wall Mount Dimensions (WMK-3257)
Input Panels
Control Codes

Product Description

Type:
Resolution:
Aspect Ratio:
FCC:
Power Consumption:
BTU's:
NOTES:

This document is intended to be used as a reference guide to supply useful information for a design or installation. It is not
intended to be a step-by step procedure for installation.

Any ceilings or walls must be strong enough to support the monitor and the installation must be in accordance with any local
building codes. All mounts should make secure contact to wood studs.

This unit is built to sustain Landscape orientation only.

Distances are in inches, for millimeters multiply by 25.4.

Distances may vary ±5%.
www.necdisplay.com
LCD Display
1920 x 1080
16:9
Class B
260W (typ)
887.16 BTU/hour
NEC Display Solutions of America, Inc.
Page 1
Page 2
Page 3
Page 4
Page 5
Page 6
Page 7
Page 8
Screen Surface:
Dimensions without stand: 57.78"(W) x 34.34"(H) x 3.92"(D)
Dimensions with stand:
Weight without stand:
Weight with stand:
Rev 1.0
Anti-Reflective
57.78"(W) x 36.39"(H) x 14.2"(D)
66.3 lbs
77.1 lbs
E654 Page 1 of 8
