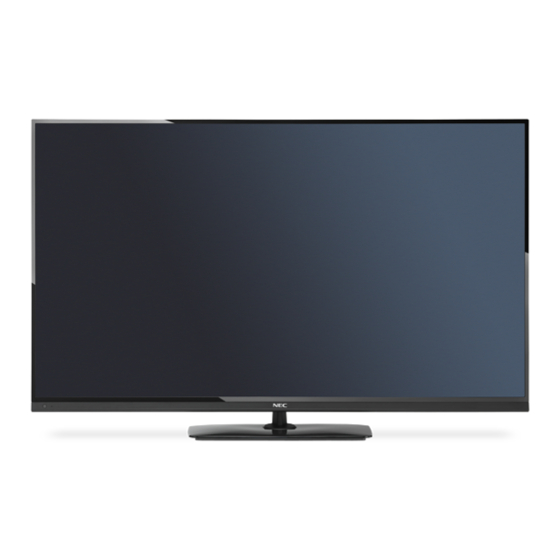

User's Manual
E654
E554
E464
E424
E324

Advertisement

   Also See for NEC E654

   Related Manuals for NEC E654

   Summary of Contents for NEC E654

  • Page 1

    User’s Manual E654 E554 E464 E424 E324...

  • Page 2: Table Of Contents

    Mobile Telephone Warning ������������������������������������������������������ English-26 End Of Life Directives�������������������������������������������������������������� English-26 Italian Homologation declaration ��������������������������������������������� English-26 Manufacturer’s Recycling and Energy Information ���������������������������� English-27 Disposing of your old NEC product ����������������������������������������� English-27 Energy Saving ������������������������������������������������������������������������� English-27 WEEE Mark (European Directive 2002/96/EC) ����������������������� English-28 Specification �������������������������������������������������������������������������������������� English-30 Product Specifications �������������������������������������������������������������...

  • Page 3: Precautions And Reminders

    Precautions And Reminders Do not place the display Do not open the display Call a NEC certified in confined spaces or in a cabinet� service personnel for any box when in use� Maintain internal service needed for ample ventilation for the your display�...

  • Page 4: Important Safety Instructions

    Important Safety Instructions Read before operating equipment Follow all warnings and instructions marked on this display� 1� Read these instructions� 2� Keep these instructions� 3� Heed all warnings� 4� Follow all instructions� 5� Do not use this apparatus near water� 6�...

  • Page 5

    15� The display complies with the recommended safety standards for stability� Do not put excessive force on the front or top of the cabinet� This could cause the product to tip over and cause damage and/or personal injury� 16� If monitor or glass is broken, do not come in contact with the liquid crystal and handle with care�...

  • Page 6: Important Information

    Important Information WARNING TO PREVENT FIRE OR SHOCK HAZARDS, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE� ALSO, DO NOT USE THIS UNIT’S POLARIZED PLUG WITH AN EXTENSION CORD RECEPTACLE OR OTHER OUTLETS UNLESS THE PRONGS CAN BE FULLY INSERTED� REFRAIN FROM OPENING THE CABINET AS THERE ARE HIGH VOLTAGE COMPONENTS INSIDE�...

  • Page 7

    LCD display and call your authorized dealer or service center� Adjust only those controls that are covered in the instructions, as improper changes or modifications not expressly approved by NEC could void the user’s warranty� Batteries installed warning Incorrect usage of batteries can result in leaks or bursting�...

  • Page 8

    CAUTION: These servicing instructions are for use by qualified service personnel only. To reduce the risk of electric shock, do not perform any servicing other than that contained in the operating instructions unless you are qualified to do so. Ventilation The slots and openings in the display are provided for necessary ventilation�...

  • Page 9

    For use only with UL Listed Wall Mount Bracket with minimum weight/load: Please refer to the Specification on page 30. Unit without base weight: The equipment and its associated mounting means still remain secure during the test� Used wall mounting kit, VESA-compatible wall bracket distance, diameter of Screw dimension: Please refer to the Specification on page 30.

  • Page 10: License Notice And Trademark Acknowledgement

    License Notice and Trademark Acknowledgement Windows is a registered trademark of Microsoft Corporation� NEC is a registered trademark of NEC Corporation� All other brands and product names are trademarks or registered trademarks of their respective owners� ® HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries�...

  • Page 11: Declaration Of Conformity

    CAN/CSA C22�2 No� 60065-03� FCC information 1� Use the attached specified cables with the E654/E554/E464/E424/E324 color monitor so as not to interfere with radio and television reception� (1) Please use the supplied power cord or equivalent to ensure FCC compliance�...

  • Page 12: Contents

    Contents Your new NEC monitor box* should contain the following: • Display • Power cord* • D-sub Cable • Stand Base • Remote Control • 1�5V AAA Size Batteries x2 • Stand Screws x4 • Neck Screw x4 (only E324) (Only E324) •...

  • Page 13: Preparation

    The manufacturer’s warranty does not cover user abuse or improper installations� Attaching the Base E654 Stand Screw x 4 E654: M6 (16 mm) E554/E464/E424 Stand Screw x 4 E554/E464/E424: M4 (10 mm) E324 Neck Screw x 4...

  • Page 14: Using Cable Clamper

    For your safety, only mount with a UL listed wall mount bracket that supports the weight of the display� (Please see page 30�) To attach a wall mount bracket to your display: E654 VESA Hole Neck Screw 1�...

  • Page 15: Prohibit Portrait Condition Use

    4 x M4 (22 mm) NOTE: Wall mounting solution is not included with the unit and is sold separately� Contact your NEC representative for details� It is necessary to provide screw of appropriate length (Wall mount bracket thickness + VESA hole depth)�...

  • Page 16: Place The Display On A Solid Surface

    Place The Display On A Solid Surface Ensure that the LCD display is placed in a position to allow free flow of air� Do not cover the ventilation openings on the back cover� Do not place the display near any open flames.

  • Page 17: Connect To The Power Source

    Connect To The Power Source The display should be installed close to an easily accessible power outlet� Fully insert the prongs into the power outlet socket� A loose connection may cause image degradation� If there is power to the display, the front LED at the bottom of the display will be either none or red�...

  • Page 18: Source Connection Guide

    Source Connection Guide E654 AC POWER AC POWER ❶ ❸ ❷ ❹ ❺ ❻ E554 AC POWER AC POWER ❶ ❸ ❷ ❹ ❺ ❻ English-16...

  • Page 19

    E464 / E424 / E324 ❶ AC POWER AC POWER E324 E464/E424 ❷ ❸ ❹ ❸ ❻ ❺ RS-232C – Input from external equipment such as a PC in order to control 1� RS-232C functions� 2� USB PORT – Used for accessing JPEG photo files. 3�...

  • Page 20: Operating Instructions

    Operating Instructions Using The Side Panel Controls Press to increase the volume� 1� VOL + Press this button to shift Right in the OSD menu� Press to decrease the volume� 2� VOL - Press this button to shift Left in the OSD menu� 3�...

  • Page 21: Using The Remote Control

    Using The Remote Control Power Press to turn On/Off (standby) the power� (NOTE: To completely turn off the power, unplug the power cord from the power outlet�) No function� Press to choose Composite source mode� COMP PRE CH Press to choose Component source mode�...

  • Page 22: Operating Range For The Remote Control

    Use the remote control within a distance of about 7 m (23 ft�) from remote control sensor or at a horizontal and vertical angle of within 30° within a distance of about 3�5 m (10 ft�)� E654 E554 / E464 / E424 / E324 CAUTION: Important, the remote control system may not function when direct sunlight or strong illumination strikes the remote control sensor or when there is an object in the path�...

  • Page 23: Timing Table

    Timing Table E424/E464/ E324 Horizontal Vertical E554/E654 Nominal Resolution Pixel Nominal Nominal Sync Sync Clock (MHz) Freq. Freq. Polarity Polarity (KHz) (Hz) 640x480@60Hz 31.469 59.940 25.175 720x400@70Hz 31.469 70.087 28.322 800x600@60Hz 37.879 60.317 40.000 1024x768@60Hz 48.363 60.004 65.000 1280x720@60Hz 45.000 60.000...

  • Page 24: Navigating The On-screen Menu

    “OFF”� 5� Advanced Video [Backlight] Set the backlight brightness� Select advanced video settings� [Motion 120Hz] (Only for E654/ [Dynamic Backlight] E554 model) Enhance the contrasts between Eliminate motion blur with clear darkness and brightness to detail and smooth motion�...

  • Page 25: Audio Menu

    Audio Menu Setup Menu The Audio menu provides an audio According to various requirements in adjustment for user to modify the audio different source modes, certain features setting� could be hidden (disabled) on the menu� Video Menu Language English Sound Mode Standard Video Sleep Timer...

  • Page 26: Photos Menu

    Photos Menu 5� System Info Indicate the display information� You could easily browse images from 6� Energy Options USB device� Select the power saving modes� Home mode is intended for Video Photos home use, and will save much Audio energy� Setup Retail mode sets the display to a Photos...

  • Page 27

    To control while in full-screen Data Format for USB Photo Viewer photo show: Data format JPEG, JPG, JPE Max. folder layer • Press to go to the next image� Press to go to the previous Max. number of image� photos •...

  • Page 28: Maintenance And Recycling

    Maintenance and Recycling Care Of The Screen Do not rub or strike the screen with anything hard as this may scratch, mar, or even damage the screen permanently� Unplug the power cord before cleaning the screen� Dust the display by wiping the screen and the cabinet with a soft, clean cloth�...

  • Page 29: Manufacturer's Recycling And Energy Information

    Dedicated recycling sites ensure that environmentally harmful components are properly handled and securely disposed� To ensure the best recycling of our products, NEC DISPLAY SOLUTIONS offers a variety of recycling procedures and gives advice on how to handle the product in an environmentally sensitive way, once it has reached the end of its life�...

  • Page 30: Weee Mark (european Directive 2002/96/ec)

    This includes monitors and electrical accessories, such as signal cables or power cords� When you need to dispose of your NEC display products, please follow the guidance of your local authority, or ask the shop where you purchased the product, or if applicable, follow any agreements made between yourself and NEC�...

  • Page 31

    English-29...

  • Page 32: Specification

    Specification Product Specifications E654 LCD Module 65”/ 1,651 mm diagonal Resolution: 1,920 x 1,080 Color: Over 16 million colors (depending on video card used) Frequency Horizontal: 31 – 83KHz (Analog input) 15�625/15�734KHz, 31 – 83KHz (HDMI input) Vertical: 60Hz – 75Hz (Analog input) 24Hz, 30Hz, 50Hz, 60Hz –...

  • Page 33

    E554 LCD Module 55”/ 1,397 mm diagonal Resolution: 1,920 x 1,080 Color: Over 16 million colors (depending on video card used) Frequency Horizontal: 31 – 83KHz (Analog input) 15�625/15�734KHz, 31 – 83KHz (HDMI input) Vertical: 60Hz – 75Hz (Analog input) 24Hz, 30Hz, 50Hz, 60Hz –...

  • Page 34

    E464 LCD Module 46”/ 1,168 mm diagonal Resolution: 1,920 x 1,080 Color: Over 16 million colors (depending on video card used) Frequency Horizontal: 31 – 83KHz (Analog input) 15�625/15�734KHz, 31 – 83KHz (HDMI input) Vertical: 60Hz – 75Hz (Analog input) 24Hz, 30Hz, 50Hz, 60Hz –...

  • Page 35

    E424 LCD Module 42”/ 1,067 mm diagonal Resolution: 1,920 x 1,080 Color: Over 16 million colors (depending on video card used) Frequency Horizontal: 31 – 83KHz (Analog input) 15�625/15�734KHz, 31 – 83KHz (HDMI input) Vertical: 60Hz – 75Hz (Analog input) 24Hz, 30Hz, 50Hz, 60Hz –...

  • Page 36

    E324 LCD Module 32”/ 813 mm diagonal Resolution: 1,366 x 7,68 Color: Over 16 million colors (depending on video card used) Frequency Horizontal: 31 – 83KHz (Analog input) 15�625/15�734KHz, 31 – 83KHz (HDMI input) Vertical: 60Hz – 75Hz (Analog input) 24Hz, 30Hz, 50Hz, 60Hz –...

  • Page 37: Rs-232c Port Specifications

    RS-232C Port Specifications PC control of the Display Attach an RS-232C cable cross-type (commercially available) to the supplied RS-232C for the connections� NOTE: This operation system should be used by a person who is accustomed to using computers� Communication procedure Send the control commands from the PC via the RS- 232C connector�...

  • Page 38: Before Calling Service

    Before Calling Service Please make these simple checks before calling service� These tips may save you time and money as charges for receiver installation and adjustments of customer controls are not covered under your warranty� Symptoms Items To Check And Actions To Follow •...

  • Page 39: Glossary

    Glossary HDMI Inputs High-Definition Multimedia Interface Audio / Video Inputs are located on the receiver� These connectors are used for the input of audio and video signals� Designed to receive higher picture resolution and offer sound connection options� Menu An on-screen listing of features shown on the display screen is made available for user adjustments�...
