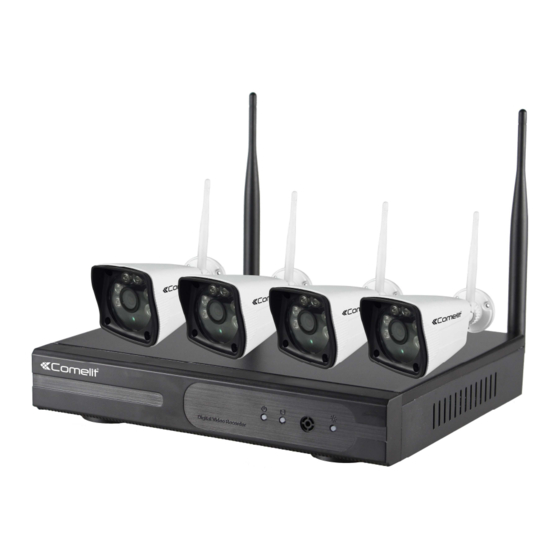

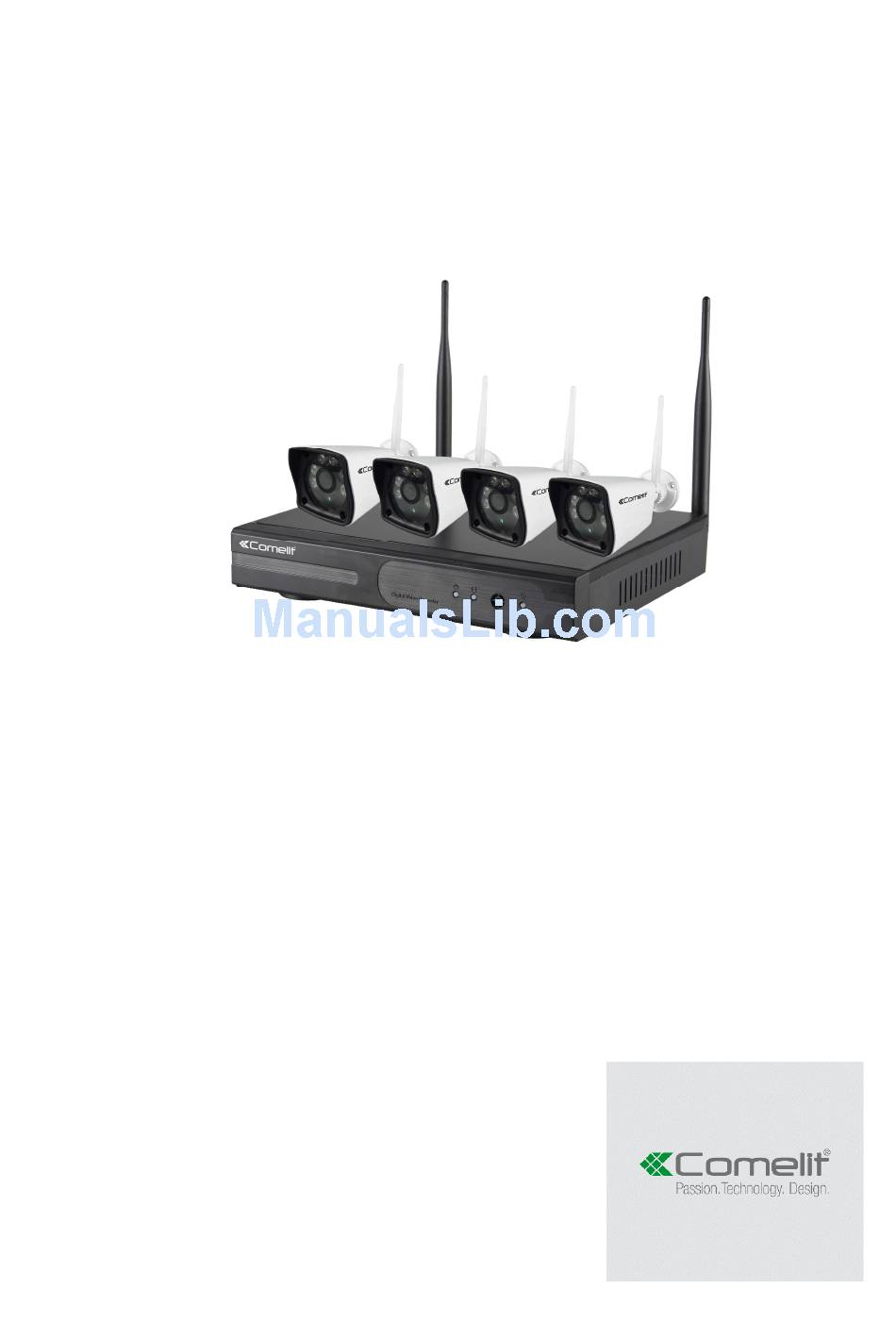

- Page 1 4 IP INPUTS WI-FI KIT ART. WIKIT040A Please read this manual thoroughly before use and keep it for future reference...
- Page 2 • In the Network menu, after clicking on the "Show QR code" button, you can find the QR code to use in the app Comelit View S (available for iOS and Android) • Once logged in, the wizard mode start and will assist you in basic configuration •...
-
Page 3: Front Panel Description
Front Panel Description 1. Power led 2. HDD led 3. Status led Rear Panel Description WAN: 10/100 Mbit/sec., standard Ethernet port DC12V: 12 VDC power supply connector VGA: VGA video output connector HDMI video output USB: USB connector Operating System Description Turn ON / OFF Confirm that AC voltage matches with NVR .Ensure that the NVR power outlet connect with a good middle ground grounding. -
Page 4: Menu Composition
Menu operation instructions Menu composition Menu component units as following: （1）Check box: two kinds of status available, "√" means enabled, "□" means disabled. Click the left mouse button to choose. For example: "channel" and "video mode" check box in the video search. （2）Selection box: select the target content according to the drop-down box options. -
Page 5: Video Playback
Video Playback Channel：to choose the target channel by clicking the check box means non-selected. Record mode：to choose the recode mode by clicking the check box Search time：input the starting and finishing time into edit box Search：after setup the above search condition, click "search" to begin the corresponding video file searching and show the files. -
Page 6: Ptz Control
All off: disable all the channel. OK: confirm an exit Cancel: click cancel can exit the manual record interface and back to main menu. PTZ control Choose the "PTZ control" from shortcut menu . PTZ control menu including: direction control; auto pan scan; zoom; focus; Iris; speed. Video backup Choose the channel, and record mode;... -
Page 7: General Setup
General setup Choose the "General setup" and turn into it's setup interface. Time Setup： the real time when preview, click ”Refresh” after setting, make sure saving when it shows ”the recording will stop once you modify the time” and save the setting. Auto Logout: the present user will be logged off if there is no operation within 10 minutes, and it needs login again. -
Page 8: Record Setup
How to add the camera: • Connect the camera to the same NVR switch • Right click with the mouse to popup the NVR main menu, then click Device Manage. Click “Refresh” on upper right and wait a moment, you’ll see the camera showed in upper box. •... -
Page 9: Network Setup
After the page setup is completed, click '"Ok" to save the changes; click "Cancel ", non-save. DDNS Automatic analytical function of dynamic domain name, supported Comelit DNS, etc. To use Comelit DNS see the last page of this manual. In the "network setup" menu, click " DDNS "... -
Page 10: Screen Setup
Screen Setup Select “screen setup” OSD Alpha：OSD menu transparency can be adjusted as needed. VGA Resolution: choose the desired resolution Auto Switch: user can setup the time of auto switching for preview image, it switch in single screen or 4 channels screen. Enable：“☑”start using, “□”... -
Page 11: Ptz Setup
E-Mail notice: “☑” means sent E-Mail enabled, “□” means sent E-Mail disabled. Copy to： click "copy to", select the target channels and ''Ok" to set the current channel setup informations to other target video channel. By clicking the button "Cancel", the setup informations are non-saved. -
Page 12: Hdd Setup
Delete user: delete the selected user (except Admin, other user has no the right to set up or delete other users) Edit user: modify the selected user (Admin, other users has no right to set up other user permissions) Set password: set password of logging in user After the setting, click "OK"... -
Page 13: Factory Setting
Factory setting Select "Factory setting". Select the items which need factory setting, click "Ok" to save and exit or click "Cancel" to exit without saving. Notes: after factory setting, all the settings will be the initial one, please use carefully. HDD info The listbox shows the HDD status information... -
Page 14: System Version
System version Device name, device model, H/W version, S/W version could be checked here. System log Choose the log type which need to check from list box, and input the time period in the edit box, then click "Search", the related log information will showed below, you can turn the page by click "previous"... -
Page 15: Lan Connection
LAN connection 1. Connect NVR with network, make sure network working fine 2. For local view in computer (LAN), open the browser and enter the NVR IP address and the port (if different from 80) Note: Internet Explorer setting. If use it for the first time and the software can't load, then need to make the following setting: Internet options Safety-Internet Custom options... - Page 16 WAN connection (Esee service) 1. Connect NVR with network, make sure network working fine 2. For remote view in computer (WAN), go to www.dvrskype.com www.e-seenet.com Note: Internet Explorer setting. If use it for the first time and the software can't load, then need to make the following setting: Internet options Safety-Internet Custom options...
- Page 17 "Comelit View S" which is freely downloadable from the relative stores (Apple Store and Google Play Store). The same app for smartphones has to be used for tablet devices. 1. Download and install the app Comelit View S from Apple Store or Google Play Store 2. Type the icon to open the application 3.
- Page 18 7. In the field "Descriptions" enter the name You want 8. In the field "User Name" enter the username (default: admin) 9. In the field "Password" enter the password (default: blank) 10. On the bar select the number 4...
- Page 19 11. Type "Submit" to save the configuration 12. To connect to the device, type on the area highlighted in the image below 13. Type on the OK button on the window that appear 14. Now You can see and manage the camera images...
- Page 20 1 – check the firmware version of the device. If necessary, update the firmware 2 – verify that, on the device, nearby the label showing the model, is present the label with the univocal code for the DNS service registration. In case it was not present, contact Comelit Technical support 3 –...
