Anybus Configuration Manager (MAPS)
5.4.2 Modbus Signal Parameters
The following parameters can be configured for Modbus communication:
Device
Read Function
Write Function
#bit
Format
ByteOrder
Address
Bit

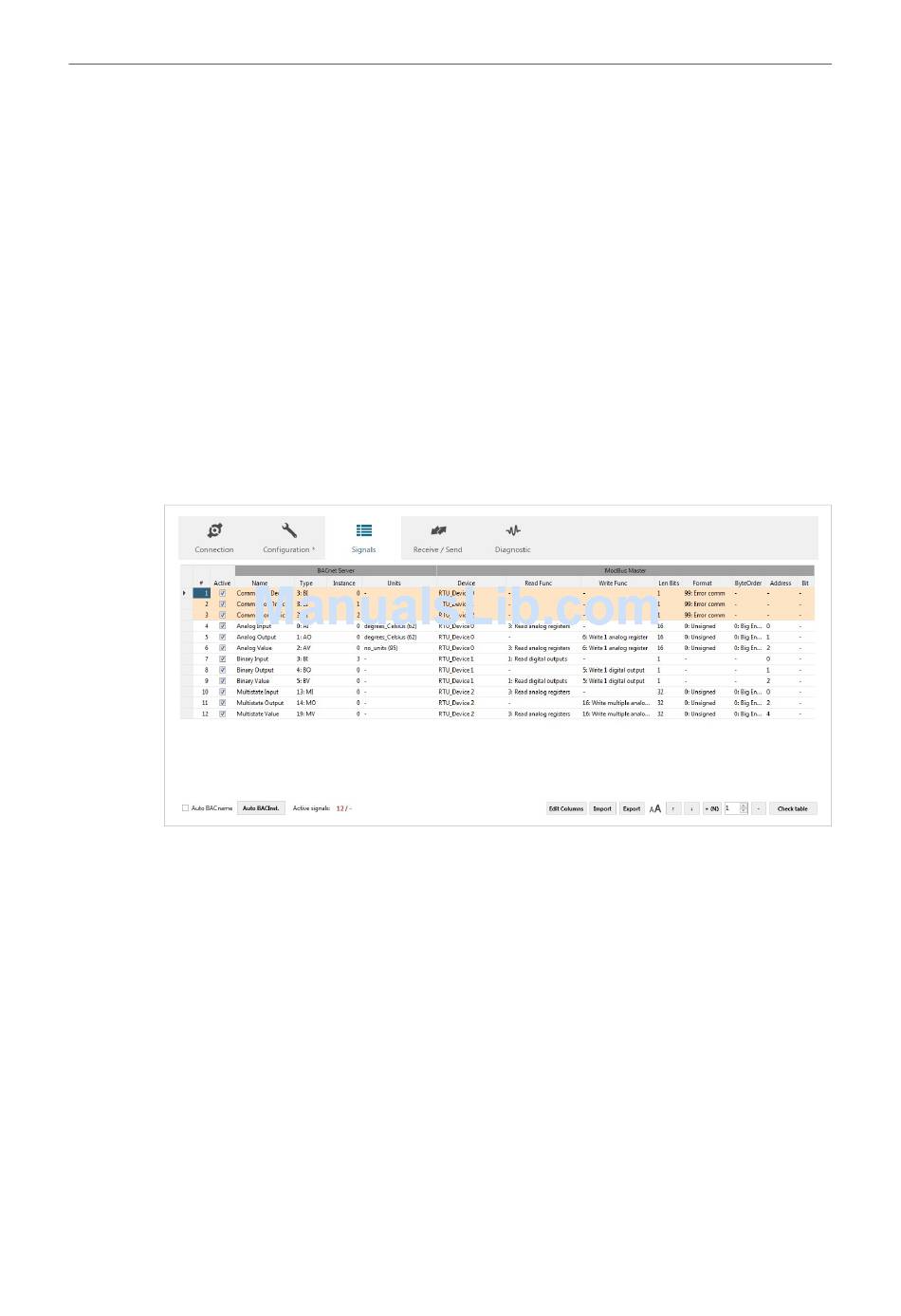

Fig. 30 Modbus signals
Modbus to BACnet Gateway User Manual
The name of the Modbus device.
The Modbus function used to read, if allowed or required.
Modbus functions 1, 2, 3 and 4 supported.
The Modbus function used to write, if allowed or required
Modbus functions 5, 6, 15 and 16 supported.
Signal size expressed in bits.
Register information format.
Unsigned, Signed C2, Signed C1 and
The byte order used
Register signal starting address
If using multiple bit (bit fields), indicate the bit you want to read
