Anybus Configuration Manager (MAPS)
Calendars
In this section the user can create calendars to be applied on the BACnet side. Up to 10 calen-
dars can be created.

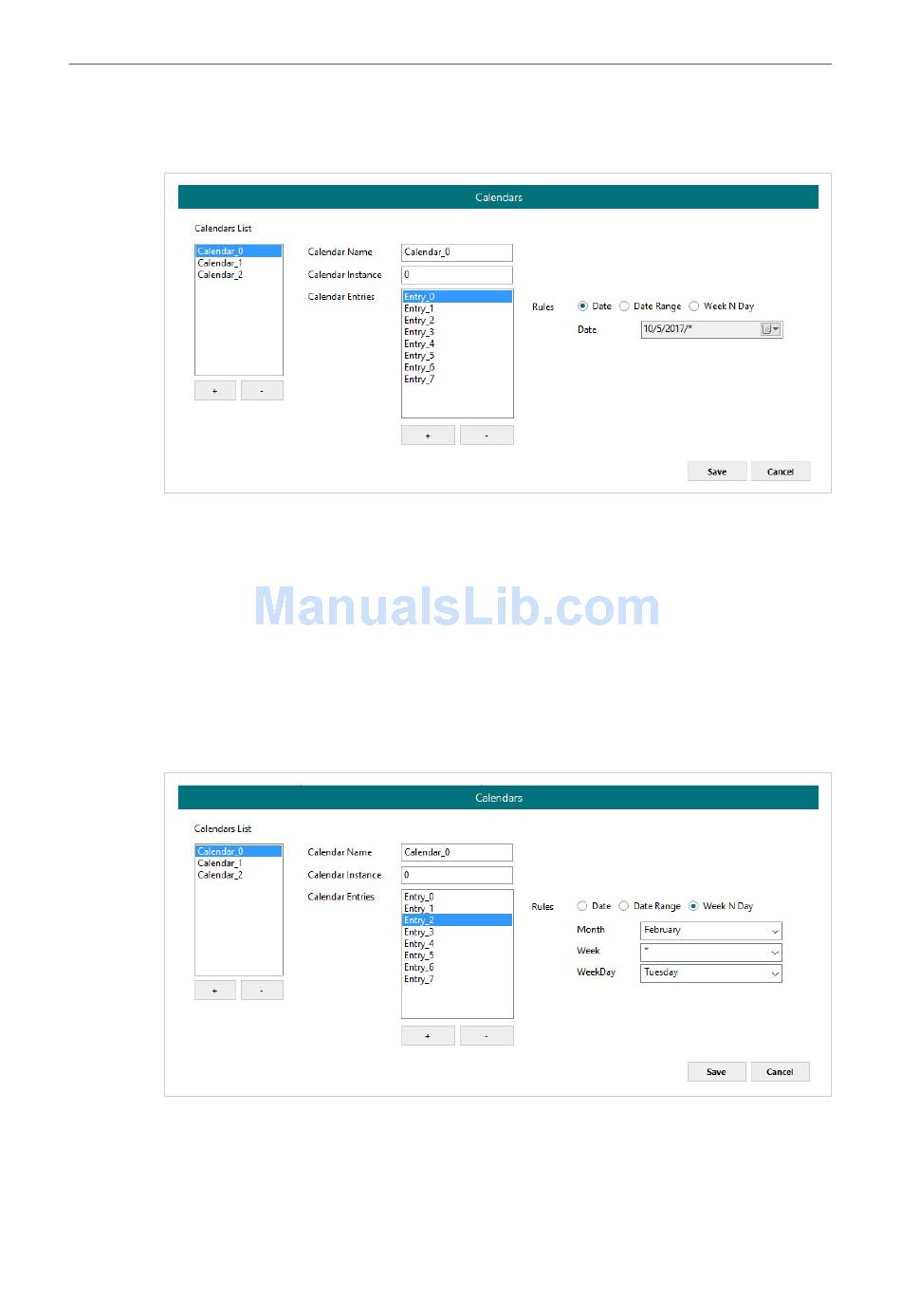

Fig. 16
Calendars
Calendar Name
Calendar Instance
Calendar Entries
Rules
Fig. 17
Calendars (week and day rule)
Modbus to BACnet Gateway User Manual
The name of the calendar
BACnet Object Instance for the Calendar
Determines the number of calendar entries (patterns). Up to 32 different entries
can be created for each calendar.
For each entry, different rules can be applied:
•
Date: The rule is applied only on a specific date.
•
Date Range: The rule is applied inside a date range.
•
Week N Day: The rule is applied on specific months, weeks and/or week
days. If an * is selected, the rule will apply for all cases.
22 (56)
SCM-1202-049 1.0
