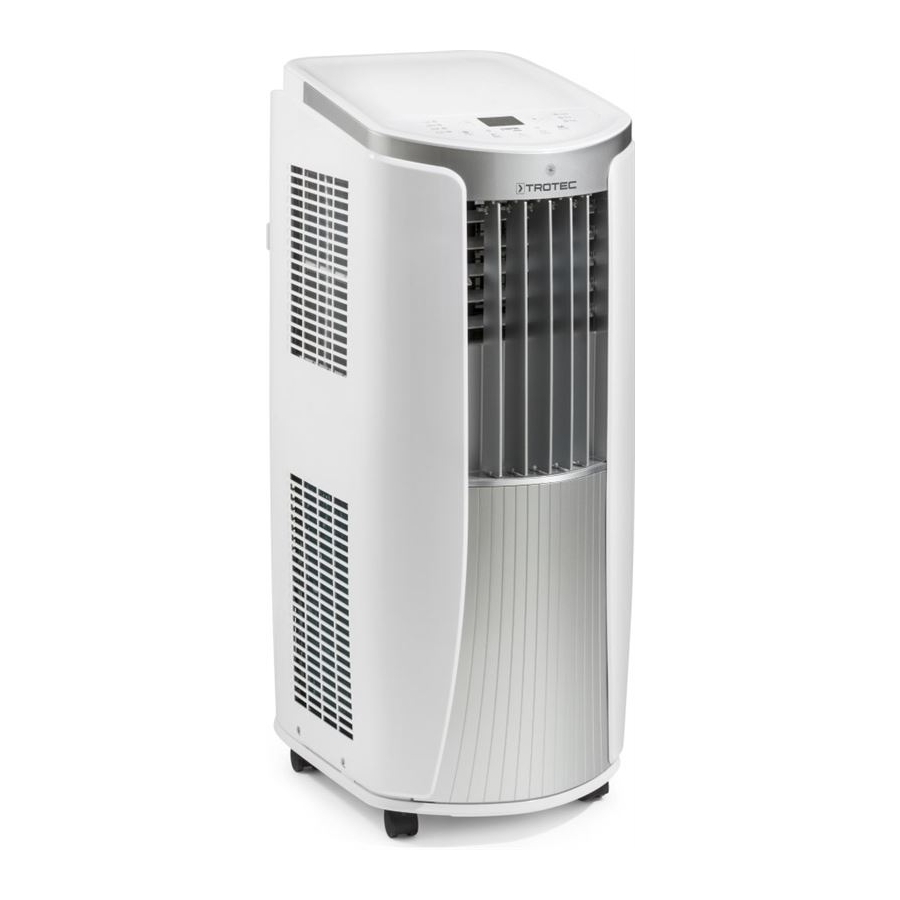

- Page 1 PAC 2010 E / PAC 2610 E OPERATING MANUAL LOCAL AIR CONDITIONER...
-
Page 2: Table Of Contents
Information marked with this symbol helps you to carry out your tasks quickly and safely. Follow the manual Information marked with this symbol indicates that the operating manual must be observed. Operating manual – local air conditioner PAC 2010 E / PAC 2610 E... -
Page 3: Safety
• Before carrying out maintenance, care or repair work on the device, remove the mains plug from the mains socket. Hold onto the mains plug while doing so. Operating manual – local air conditioner PAC 2010 E / PAC 2610 E... - Page 4 Safety chapter. Maintenance tasks which require the housing to be opened must only be carried out by specialist companies for cooling and air-conditioning or by Trotec. Operating manual – local air conditioner PAC 2010 E / PAC 2610 E...
-
Page 5: Information About The Device
Exhaust air hose connection Remote control Condensate outlet with rubber cap Power cable holder Hose connector with sealing cap and rubber stopper Handle Compartment for remote control Operating manual – local air conditioner PAC 2010 E / PAC 2610 E... -
Page 6: Transport And Storage
• with a cover to protect it from invasive dust if necessary • Place no further devices or objects on top of the device to prevent it from being damaged. • Remote batteries from the remote control. Operating manual – local air conditioner PAC 2010 E / PAC 2610 E... - Page 7 ü The device is switched off. ü The device is disconnected from the mains. 1. Remove the rubber cap from the condensate outlet. Operating manual – local air conditioner PAC 2010 E / PAC 2610 E...
- Page 8 Prior to initial start-up, insert the batteries in the remote control. Start-up When positioning the device, observe the minimum distance from walls or other objects as described in the Technical data chapter. Operating manual – local air conditioner PAC 2010 E / PAC 2610 E...
- Page 9 4. Insert the hose adapter with exhaust air hose into the air conditioner's exhaust air hose connection. The side labelled TOP must face upwards. Operating manual – local air conditioner PAC 2010 E / PAC 2610 E...
- Page 10 • The dimensions of the exhaust air hose were especially made to fit the device. Do not replace or extend the hose, for it could cause a malfunction. Operating manual – local air conditioner PAC 2010 E / PAC 2610 E...
-
Page 11: Operation
High = highest level Auto = automatic speed regulation Fan stage LED Indicates the current fan stage Info An acoustic signal is emitted each time a setting is activated. Operating manual – local air conditioner PAC 2010 E / PAC 2610 E... - Page 12 Dry (15) is illuminated. Info If the device is operated in a very humid environment, the accumulating condensate must be discharged at regular intervals (see chapter Condensate discharge). Operating manual – local air conditioner PAC 2010 E / PAC 2610 E...
- Page 13 To ensure that the condensate can run off, the hose must not be kinked, nor should it have to overcome an uphill incline towards the drain. 6. Connect the condensation drain hose. Operating manual – local air conditioner PAC 2010 E / PAC 2610 E...
- Page 14 1. Press the Mode button (16) until the operating mode LED Fan (15) is illuminated. 2. Press the Fan button (22) to set the fan stage. ð The fan stage LED (23) for the selected fan stage will be illuminated. Operating manual – local air conditioner PAC 2010 E / PAC 2610 E...
- Page 15 Setting the number of hours for the timer function ON/OFF button On/Off button: Switching the device on and off Info An acoustic signal is emitted each time a setting is activated. Operating manual – local air conditioner PAC 2010 E / PAC 2610 E...
- Page 16 This function can be activated via the remote control during cooling and dehumidification. The fan continues to run at low speed for a while after the device has been switched off. Operating manual – local air conditioner PAC 2010 E / PAC 2610 E...
-
Page 17: Errors And Faults
Please contact the customer service. If necessary, bring the • Check the device for leaks. device to a specialist company for cooling and air-conditioning or to Trotec for repair. Operating manual – local air conditioner PAC 2010 E / PAC 2610 E... -
Page 18: Error Codes
Should the error still be displayed, please contact the customer service. Condensation tank full Discharge condensate (manual draining) according to the Maintenance chapter. Operating manual – local air conditioner PAC 2010 E / PAC 2610 E... -
Page 19: Maintenance
Signature: ......Signature: ......Signature: ......Signature: ......13. Date: ......14. Date: ......15. Date: ......16. Date: ......Signature: ......Signature: ......Signature: ......Signature: ......Operating manual – local air conditioner PAC 2010 E / PAC 2610 E... - Page 20 Protect electrical components from moisture. Do not use any aggressive cleaning agents such as cleaning sprays, solvents, alcohol-based or abrasive cleaners to dampen the cloth. Operating manual – local air conditioner PAC 2010 E / PAC 2610 E...
- Page 21 The corners and edges of the air filters must not be deformed or rounded. Before reinserting the air filters, make sure that they are undamaged and dry! 1. Remove the air filters from the device. Operating manual – local air conditioner PAC 2010 E / PAC 2610 E...
- Page 22 If you do not intend to use the device for a considerable time: • Store the device according to the Storage chapter. 4. Let the condensate run, until the condensation drain hose is completely drained. Operating manual – local air conditioner PAC 2010 E / PAC 2610 E...
-
Page 23: Technical Annex
AC-L WATER K201 DISP2 COMP. YEGN COMP DISP2 COMP R(M) MAIN BOARD DISP1 DISP1 HIGH-WP WIFI DISPLAY CAP. BOARD WIFI MODULE YEGN WATER LEVEL MOTOR SWITCH CAP. Operating manual – local air conditioner PAC 2010 E / PAC 2610 E... - Page 24 The position numbers of the spare parts differ from those PAC 2010 E / PAC 2610 E describing the positions of other parts mentioned in this operating manual. Operating manual – local air conditioner PAC 2010 E / PAC 2610 E...
- Page 25 Rear Clip (lower) Capacitor Box Swing Lever Rear Clip (upper) Capacitor CBB65 Guide Louver 2 Pipe Right Side Plate Guide Louver 1 Joint Supporting Board 1 Guide Blade Lever Operating manual – local air conditioner PAC 2010 E / PAC 2610 E...
-
Page 26: Disposal
Directive 2006/66/EC of the European Parliament and of the Council of 6 September 2006 on batteries and accumulators. Please dispose of batteries and accumulators according to the relevant legal requirements. Operating manual – local air conditioner PAC 2010 E / PAC 2610 E... - Page 28 Trotec GmbH & Co. KG Grebbener Str. 7 D-52525 Heinsberg +49 2452 962-400 +49 2452 962-200 info@trotec.com www.trotec.com...
Need help?
Do you have a question about the PAC 2010 E and is the answer not in the manual?
Questions and answers

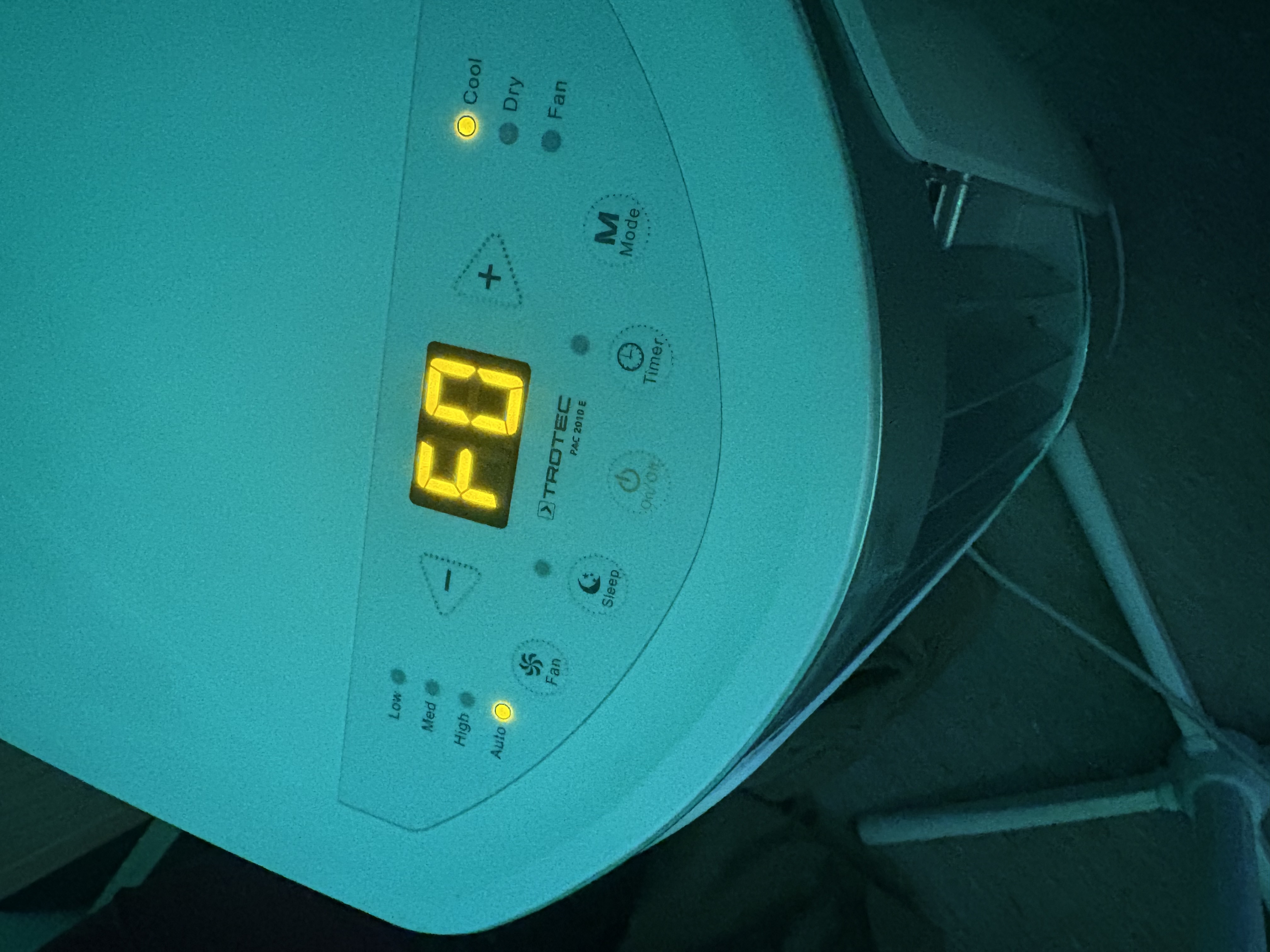

The air conditioner stays on for about 30 minutes, then says F0 then it doesn’t blow cold air anymore. I unplugged it for about 15 minutes and F0 goes away, but then it comes back on 30 minutes later.
