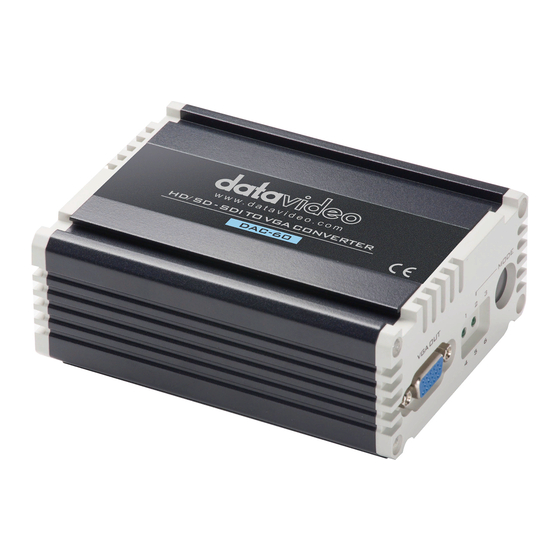

Summary of Contents for Datavideo DAC-60

  • Page 2: Standard Warranty

    All Datavideo products purchased after 01-Oct.-2008 qualify for a free one year extension to the standard Warranty, providing the product is registered with Datavideo within 30 days of purchase. For information on how to register please visit www.datavideo.com or contact your local Datavideo office or...

  • Page 3: Front Panel

    1. Front Panel HD/SD - SDI IN / OUT HD/SD - SDI input and pass-through output connectors. Power Switch Switches the power On / Off. DC In Socket Connects the supplied 12V PSU to this socket. The connection can be secured by screwing the outer fastening ring of the DC In plug to the socket.

  • Page 4: Rear Panel

    2. Rear Panel VGA Output Connects your VGA equipment to this connector The LEDs indicate VGA output format Mode Select Selects VGA Output Format (Please see Page 9 for more details). Press and hold the MODE button for 3 second to enter TV SCREEN MODE, and then press this button again to switch screen ratio mode.
  • Page 5 3. Aspect Ratio Modes The DAC-60 has three aspect ratio modes, which are Full Screen, Dot by Dot and Optimal Ratio. Source = 1920x1080 (16:9) Full Screen Mode Source = 1920x1080 (16:9) Output = 800x600 (4:3)
  • Page 6 Dot by Dot Mode A. Source = 1920 x 1080 (16:9) Output = 800 x 600 (4:3) B. Source = 720 x 480i 60 Output = 800 x 600 (4:3)

  • Page 7: Dac-60 Installation

    Optimal Ratio Mode Source = 1920 x 1080 (16:9) Output = 800 x 600 (4:3) 4. DAC-60 installation 1. First make sure your equipment is not connected to power or disconnect all power connectors before connecting the video equipment. 2. Connect Video Source (SDI) to the BNC input connector.

  • Page 8: Led Indication

    5. LED Indication The DAC-60 works with nine presets, which can be selected by pressing the menu button. Resolution LED Indication ●○○ 800 x 600 60Hz ○○○ ○●○ 1024 x 768 60Hz ○○○ ○○● 1280 x 800 60Hz ○○○ ○○○...

  • Page 9: Firmware Upgrade

    6. Firmware Upgrade Firmware is upgradable in the field using the integrated USB port. Step 1- Connect the DAC-60 to PC by USB cable. Connect the supplied 12V PSU to DC IN socket and turn off the power. Step 2- Open the “Datavideo Upload Firmware” program and turn on the DAC-60 power.
  • Page 10 Step 6 – Close the “Datavideo Upload Firmware” program Note: The latest Firmware updates and Software applications for the DAC- 60 can be obtained by contacting your local Datavideo office or dealer. A list of regional Datavideo offices is provided at the rear of this manual.
  • Page 11 7. DAC-60 Center Utility Features Please copy the DAC-60 Center.exe utility software from the supplied CD to your Windows computer. Now connect the DAC-60 by USB cable to the same computer. Switch on the DAC-60 and then launch the DAC-60 Center utility software.
  • Page 12 Click on the Video tab to enter the video setup. Set the aspect ratio and output format then click Apply. Click the Proc AMP tab to adjust the picture settings. Set the Brightness, Contrast, Hue and Saturation values.
  • Page 13 Click the Setting tab to access the restore factory defaults window. Set the OSD Hide Function Enable/ Disable. Click the Factory Default button to reset the DAC-60 to factory defaults.

  • Page 14: Specifications

    8. Specifications SD - 720 x 480 i / 720 x 576 i HD - 1280 x 720 50p/60p/59.94p Supported Input Video 1920 x 1080 50i/60i/59.94i Formats 1920 x 1080 24p/25p/30p 3G - 1920 x 1080 50p/60p/59.94p SD-SDI (SMPTE 259M) SDI Formats HD-SDI (SMPTE 292M) 3G-SDI (SMPTE 494M/495M)

  • Page 15: Service And Support

    Service and Support...
