HD/SD-SDI to Component-YUV Converter
DAC-50

Quick Start Guide

Rev 100510
www.datavideo-tek.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DAC-50 and is the answer not in the manual?

Questions and answers

Related Manuals for Datavideo DAC-50

Summary of Contents for Datavideo DAC-50

  • Page 1: Quick Start Guide

    HD/SD-SDI to Component-YUV Converter DAC-50 Quick Start Guide Rev 100510 www.datavideo-tek.com...

  • Page 2: Table Of Contents

    Table of Contents Warnings and Precautions ......... 3   Warranty ............. 4   Standard Warranty ..........4   Two Year Warranty ..........4   Disposal .............. 5   Packing List ............5   Introduction ............5   Features ............. 6  ...

  • Page 3: Warnings And Precautions

    This product should only be operated from the type of power source indicated on the marking label of the AC adapter. If you are not sure of the type of power available, consult your Datavideo dealer or your local power company.
  • Page 4 Warnings and Precautions Except as specifically explained elsewhere in this manual, do not attempt to service this product yourself. Opening or removing covers that are marked “Do Not Remove” may expose you to dangerous voltage points or other risks, and will void your warranty. Refer all service issues to qualified service personnel.

  • Page 5: Warranty

     Your statutory rights are not affected.   Two Year Warranty All Datavideo products purchased after 01-Oct.-2008 qualify for a free one year extension to the standard Warranty, providing the product is registered with Datavideo within 30 days of purchase. For information on how to register please visit www.datavideo-tek.com...

  • Page 6: Disposal

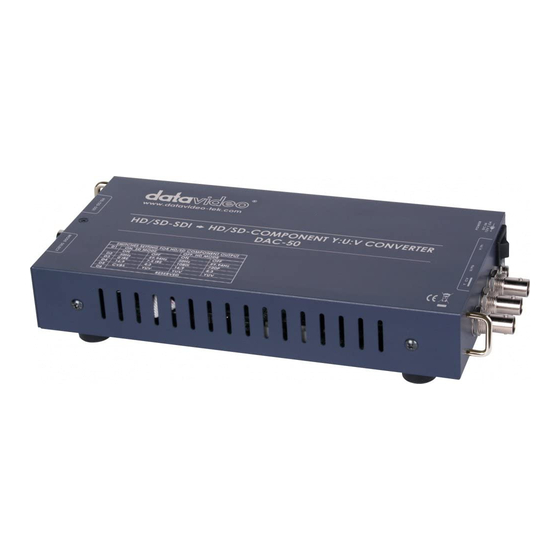

    Switching Adaptor 12V/1.5A DAC-50 Instruction Manual Introduction The Datavideo DAC-50 is stand alone SDI or HD-SDI to YUV or HD-YUV video converter. The format of the component output is chosen based on the supplied SDI input and a combination of dip switch choices. This unit...

  • Page 7: Features

    Features  6 Mode Resolutions  DC 12V input  1x HD/SD-SDI Video Input (BNC x1)  1x HD/SD YUV component output (BNC x3)  Accepted HD/SD-SDI Input Resolutions:  720x480 Interlace 720x576 Interlace   1280x720 / 59.94Hz Progressive 1280x720 / 50Hz Progressive ...

  • Page 8: Functions

    Functions Front Panel HD/SD - SDI Input 4:2:2 SDI Video data supports SMPTE 292M standard at 1.5G Mbps. SDI delivers professional level video signals over long distances when using the correct cabling and repeaters. DIP Switch Use the dip switches to select the required output format.
  • Page 9 Rear Panel DC In Socket Connect the supplied 12V 1.5A PSU to this socket. The connection can be secured by screwing the outer fastening ring of the DC In plug to this socket. Power Switch Switches the power On / Off. HD/SD YUV HD/SD YUV component analogue output connectors Alternatively the Y BNC connector can be used as a...
  • Page 10 Up Conversion SDI Input YUV Output DIP Switch Setup (D6 reserved) 480i 720/59.94p 16:9 480i 720/59.94p 480i 720/50p 16:9 480i 720/50p 480i 1080/59.94i 16:9 480i 1080/59.94i 480i 1080/50i 16:9 480i 1080/50i SDI Input YUV Output DIP Switch Setup (D6 reserved) 576i 720/59.94p 16:9...
  • Page 11 Up Conversion continued SDI Input YUV Output DIP Switch Setup (D6 reserved) 720/59.94p 1080/59.94i 16:9 16:9 720/59.94p 1080/59.94i 16:9 720/59.94p 1080/50i 16:9 16:9 720/59.94p 1080/50i 16:9 SDI Input YUV Output DIP Switch Setup (D6 reserved) 720/50p 1080/59.94i 16:9 16:9 720/50p 1080/59.94i 16:9 720/50p...
  • Page 12 Down Conversion continued SDI Input YUV Output DIP Switch Setup (D6 reserved) 720/50p 480i 16:9 16:9 , 0 IRE 720/50p 16:9 4:3 , 0 IRE 720/50p 576i 16:9 16:9 720/50p 576i 16:9 SDI Input CVBS Output DIP Switch Setup (D6 reserved) 720/50p 480i 16:9...
  • Page 13 Down Conversion continued SDI Input YUV Output DIP Switch Setup (D6 reserved) 720/50p 480i 16:9 16:9 , 7.5 IRE 720/50p 16:9 4:3 , 7.5 IRE SDI Input CVBS Output DIP Switch Setup (D6 reserved) 720/50p 480i 16:9 16:9 , 7.5 IRE 720/50p 16:9 4:3 , 7.5 IRE...
  • Page 14 Down Conversion continued SDI Input YUV Output DIP Switch Setup (D6 reserved) 1080/59.94i 480i 16:9 16:9 , 0 IRE 1080/59.94i 16:9 4:3 , 0 IRE 1080/59.94i 576i 16:9 16:9 1080/59.94i 576i 16:9 SDI Input CVBS Output DIP Switch Setup (D6 reserved) 1080/59.94i 480i 16:9...
  • Page 15 Down Conversion continued SDI Input YUV Output DIP Switch Setup (D6 reserved) 1080/59.94i 480i 16:9 16:9 ,7.5 IRE 1080/59.94i 16:9 4:3 , 7.5 IRE SDI Input CVBS Output DIP Switch Setup (D6 reserved) 1080/59.94i 480i 16:9 16:9 , 7.5 IRE 1080/59.94i 16:9 4:3 , .5 IRE...
  • Page 16 Standard / Format Conversion SDI Input YUV Output DIP Switch Setup (D6 reserved) 480i 480i 16:9 , 0 IRE 480i 16:9 4:3 , 0 IRE 480i 576i 16:9 480i 576i 16:9 SDI Input CVBS Output DIP Switch Setup (D6 reserved) 480i 480i 16:9 , 0 IRE...
  • Page 17 Standard / Format Conversion SDI Input YUV Output DIP Switch Setup (D6 reserved) 480i 480i 16:9 , 7.5 IRE 480i 16:9 4:3 , 7.5 IRE SDI Input CVBS Output DIP Switch Setup (D6 reserved) 480i 480i 16:9 , 7.5 IRE 480i 16:9 4:3 , 7.5 IRE...
  • Page 18 Standard / Format Conversion SDI Input YUV Output DIP Switch Setup (D6 reserved) 720/59.94p 720/59.94p 16:9 720/59.94p 720/50p 16:9 16:9 720/59.94p 720/50p 16:9 720/50p 720/59.94p 16:9 16:9 720/50p 720/59.94p 16:9 720/50p 720/50p 16:9 1080/59.94i 1080/59.94i 16:9 1080/59.94i 1080/50i 16:9 16:9 1080/59.94i 1080/50i 16:9...

  • Page 19: Specification

    Specification • 1x HD/SD-SDI input Input 4:2:2 SDI Video data supports SMPTE 292M Interface standard at 1.5G Mbps. • 1 X CVBS, BNC connector 75Ohms Output • 1 X YUV, 3 x BNC connectors, 75Ohms Interface • Bandwidth 30MHz < +/- 3dB HD-YUV •...

  • Page 20: Service & Support
