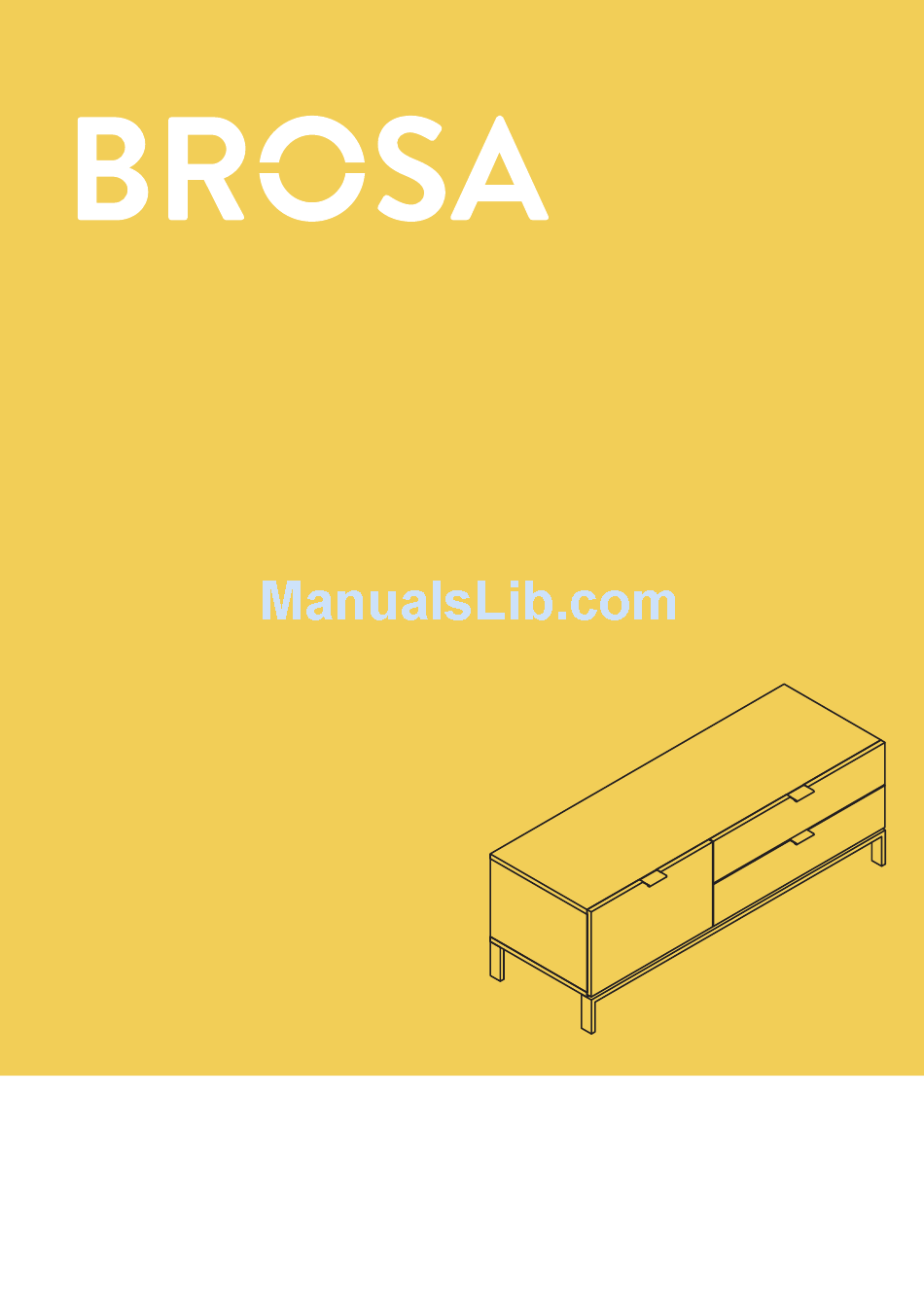

- Page 1 ASSEMBLY GUIDE Josie TV Unit...
- Page 2 Components Upon unpacking your TV unit from it’s delivery box, you should have the separate pieces shown below. Follow the steps on the next pages to assemble your new TV unit. TV unit x 1 Leg x 2 Hardware A x 12 B x 12 C x 3 D x 6...
- Page 3 Align leg to the underside of the TV unit Step 1 that the screw holes are overlapping. Fit a washer to a bolt and screw into each hole using a phillips head screwdriver to tighten. Repeat for other leg (3). A x 12 B x 12 With another person, lift the TV unit o the ground...
- Page 4 Align a handle to its corresponding spot on the Step 3 TV unit and use screws to secure it into place. Repeat for the remaining handles (C). C x 3 D x 6 e TV unit is 120cm wide by 43cm high and 41.6cm Step 4 deep and can take up to 60kg maximum weight on top and 5kg inside each draw.
