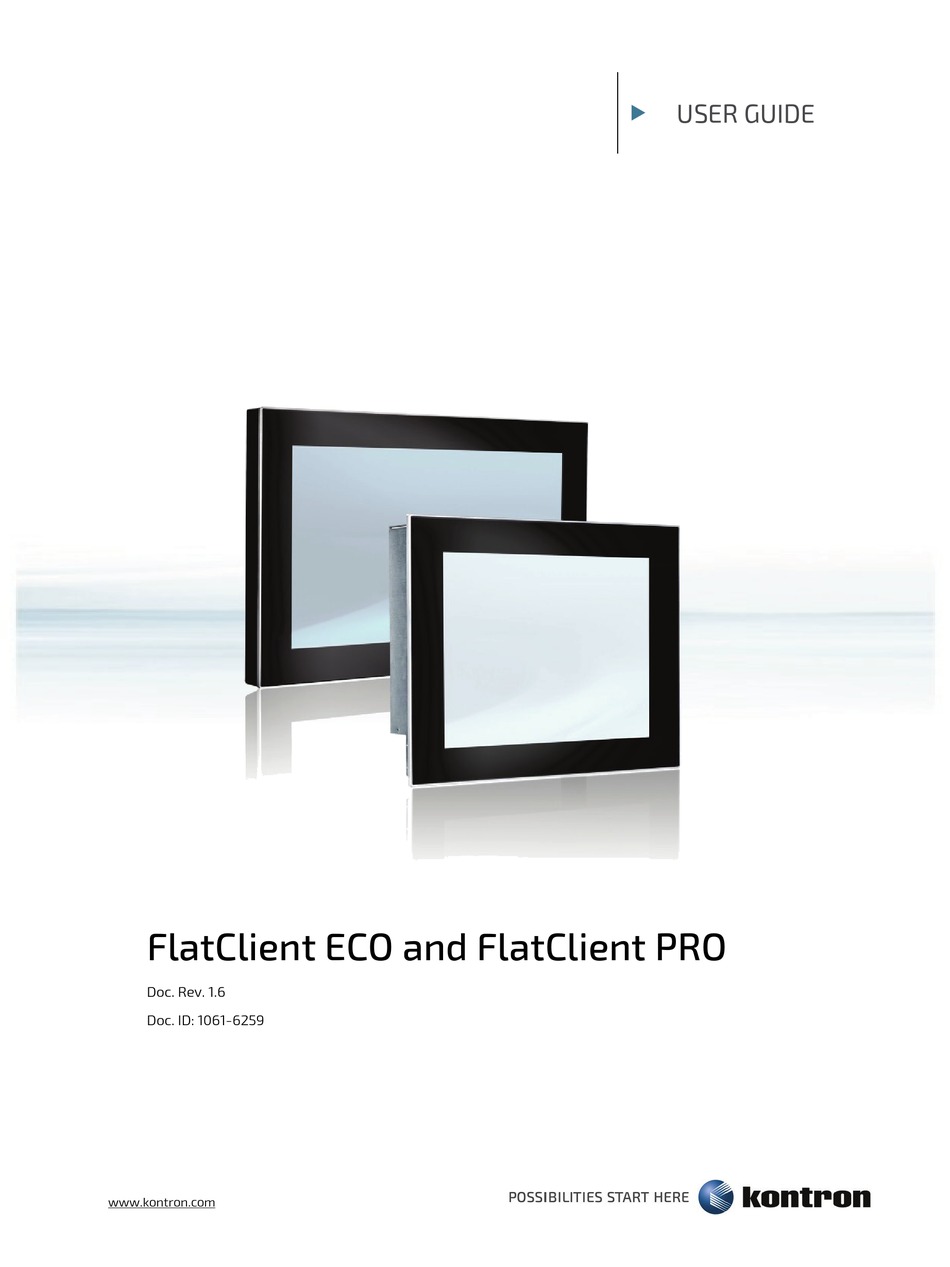

- Page 1 USER GUIDE FlatClient ECO and FlatClient PRO Doc. Rev. 1.6 Doc. ID: 1061-6259 www.kontron.com // 1...
- Page 2 FlatClient ECO and FlatClient PRO – Rev. 1.6 This page has been intentionally left blank www.kontron.com // 2...
- Page 3 In cases of doubt, please contact Kontron. This user guide is protected by copyright. All rights are reserved by Kontron. No part of this document may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in any form or by any means (electronic, mechanical, photocopying, recording, or otherwise), without the express written permission of Kontron.
- Page 4 ENVIRONMENTAL DAMAGE (COLLECTIVELY, "HIGH RISK APPLICATIONS"). You understand and agree that your use of Kontron devices as a component in High Risk Applications is entirely at your risk. To minimize the risks associated with your products and applications, you should provide adequate design and operating safeguards.
- Page 5 If you have any difficulties using this user guide, discover an error, or just want to provide some feedback, contact Kontron support. Detail any errors you find. We will correct the errors or problems as soon as possible and post the revised user guide on our website.
-
Page 6: Symbols
FlatClient ECO and FlatClient PRO – Rev. 1.6 Symbols The following symbols may be used in this user guide DANGER indicates a hazardous situation which, if not avoided, will result in death or serious injury. WARNING indicates a hazardous situation which, if not avoided, could result in death or serious injury. -
Page 7: For Your Safety
Therefore, in the interest of your own safety and of the correct operation of your new Kontron product, you are requested to conform with the following guidelines. -
Page 8: Lithium Battery Precautions
General Instructions on Usage In order to maintain Kontron’s product warranty, this product must not be altered or modified in any way. Changes or modifications to the product, that are not explicitly approved by Kontron and described in this user guide or received from Kontron Support as a special handling instruction, will void your warranty. -
Page 9: Table Of Contents
6.17. 23.8“ Built-in Variant ..................................... 31 6.18. 23.8“ Full Metal Variant ..................................31 Connectors ......................................32 7.1. Panel PC FlatClient ECO full metal variant ............................32 7.1.1. Input Power Connector ..................................32 7.1.2. Power-Switch and LEDs ..................................33 7.1.3. USB2.0 Type-A Connector .................................. 33 7.1.4. -
Page 10: List Of Tables
Figure 1: FlatClient ECO and PRO ................................. 12 Figure 2: Type Label ......................................15 Figure 3: Front View Description FlatClient ECO full metal ........................ 16 Figure 4: Bottom View Description – FlatClient ECO full metal variant ..................17 www.kontron.com // 10... - Page 11 FlatClient ECO and FlatClient PRO – Rev. 1.6 Figure 5: Bottom View Description – FlatClient PRO built-in variant ..................... 17 Figure 6: Interfaces for Panel PC FlatClient ECO variant ........................32 Figure 7: Input Power ..................................... 32 Figure 8: Mating Connector ..................................32 Figure 9: Power-Switch and LEDs ................................
-
Page 12: 1/ Introduction
1/ Introduction With its FlatClient Monitor series, Kontron offers high mechanical flexibility with respect to the design. It can be used both as a full-metal solution with VESA 75/75 respectively 100/100 as well as a built-in solution. The front comes with standard IP65 protection, with the full-metal variant offering a standard IP54. -
Page 13: 2/ Scope Of Delivery
Please check that your delivery is complete and contains the items below (according to the ordered unit configuration). If you discover damaged or missing items, please contact your dealer. Table 1: FlatClient ECO and PRO Scope of Delivery Part Number Part Description s. - Page 14 FlatClient ECO and FlatClient PRO – Rev. 1.6 Part Number Part Description PR22-100008-01 Adapter DVI-I – HDMI, Delock: 65467 840-0758 Display-Port cable 1,8m 840-0759 DP cable 3m 840-0760 DP cable 5m 840-0598 Adapter VGA / DVI 840-0039 VGA/SVGA cable 1,8m/2,0m 840-0273 USB-cable 1,8m, Type A –...
-
Page 15: Type Label And Product Identification
FlatClient ECO and FlatClient PRO – Rev. 1.6 2.1.1. Type Label and Product Identification Product and Package Label, size 85 x 35mm, polyester matt silver. Figure 2: Type Label Short Description Barcode Part-Number Part-Number Technical data Barcode Series# Series# with 11 numeric digits... -
Page 16: 3/ Product Description
FlatClient ECO and FlatClient PRO – Rev. 1.6 3/ Product Description 3.1. Product View Figure 3: Front View Description FlatClient ECO full metal RFID sign (option) TFT Display with resistive touch Front plate www.kontron.com // 16... -
Page 17: Figure 4: Bottom View Description - Flatclient Eco Full Metal Variant
FlatClient ECO and FlatClient PRO – Rev. 1.6 Figure 4: Bottom View Description – FlatClient ECO full metal variant VGA connector USB 2.0 2x HDMI port VESA Mounting holes LAN interface 2x Power connector USB 3.0 Figure 5: Bottom View Description – FlatClient PRO built-in variant... -
Page 18: 4/ Technical Data And Environmental Specification
FlatClient ECO and FlatClient PRO – Rev. 1.6 4/ Technical Data and Environmental Specification Table 3: Technical Data FlatClient ECO and FlatClient PRO Line Display Size 10.4“ 12.1“ 12.1“ XGA 15.0“ 15.6“ Display Manufacturer Innolux Innolux Innolux Innolux Innolux (*) -
Page 19: Table 6: Technical Data Flatclient Eco Line
FlatClient ECO and FlatClient PRO – Rev. 1.6 Display Size 23.8“ Colors 16.7 million LED Lifetime (> 50%, 25°C) > 30.000h Dimensions (WxHxD-mm) 569 x 357 x 69 Weight ~ 11,8 kg Fastening VESA 75/75 or 100/100 (full metal housing only); fastening clips (built-in-variant only) -
Page 20: Table 7: Technical Data Flatclient Pro Line
SSD 32GB, 64GB, 128GB 2x COM (RS232, RS422, RS485) Audio with amplifier (2x 3W) RFID, WiFi (on demand) Table 8: Environmental Specification FlatClient ECO and FlatClient PRO Line Operating Altitude Up to 3000 m (9900 ft) Storage Altitude Up to 5000 m (16500 ft) Humidity 10%-90% @ 39°C, non condensing... -
Page 21: 5/ Order Information
5/ Order Information Example: Order-Number: EN00-Z11100-01 FlatClient ECO 10.4“ with Intel® BayTrail Celeron Quad Core J1900 resistive touch in full metal housing with 4GB RAM, 32GB mSATA, no any other options E N 0 0 - y y y y y y - x x... - Page 22 FlatClient ECO and FlatClient PRO – Rev. 1.6 Mounting Variant: 1 = PPC Full metal 2 = PPC built-in-mounting Options: counted on demand, possible options are: 8GB RAM CF/SD Card Adapter SD Card 8GB – 16GB – 32GB – 64GB CF Card 8GB –...
-
Page 23: 6/ Mechanical Specification
FlatClient ECO and FlatClient PRO – Rev. 1.6 6/ Mechanical specification 6.1. 10.4“ Built-in Variant 6.2. 10.4“ Full Metal Variant www.kontron.com // 23... -
Page 24: Built-In Variant
FlatClient ECO and FlatClient PRO – Rev. 1.6 6.3. 12.1“ Built-in Variant 6.4. 12.1“ Full Metal Variant www.kontron.com // 24... -
Page 25: Built-In Variant
FlatClient ECO and FlatClient PRO – Rev. 1.6 6.5. 15.0“ Built-in Variant 6.6. 15.0“ Full Metal Variant www.kontron.com // 25... -
Page 26: Built-In Variant
FlatClient ECO and FlatClient PRO – Rev. 1.6 6.7. 15.6“ Built-in Variant 6.8. 15.6“ Full Metal Variant www.kontron.com // 26... -
Page 27: Built-In Variant
FlatClient ECO and FlatClient PRO – Rev. 1.6 6.9. 17.0“ Built-in Variant 6.10. 17.0“ Full Metal Variant www.kontron.com // 27... -
Page 28: Built-In Variant
FlatClient ECO and FlatClient PRO – Rev. 1.6 6.11. 18.5“ Built-in Variant 6.12. 18.5“ Full Metal Variant www.kontron.com // 28... -
Page 29: Built-In Variant
FlatClient ECO and FlatClient PRO – Rev. 1.6 6.13. 19.0“ Built-in Variant 6.14. 19.0“ Full Metal Variant www.kontron.com // 29... -
Page 30: Built-In Variant
FlatClient ECO and FlatClient PRO – Rev. 1.6 6.15. 21.5“ Built-in Variant 6.16. 21.5“ Full Metal Variant www.kontron.com // 30... -
Page 31: Built-In Variant
FlatClient ECO and FlatClient PRO – Rev. 1.6 6.17. 23.8“ Built-in Variant 6.18. 23.8“ Full Metal Variant www.kontron.com // 31... -
Page 32: 7/ Connectors
FlatClient ECO and FlatClient PRO – Rev. 1.6 7/ Connectors 7.1. Panel PC FlatClient ECO full metal variant Figure 6: Interfaces for Panel PC FlatClient ECO variant Earth stud USB 2.0 2x VGA connector Power/LEDs HDMI port Power connector LAN interface 2x USB 3.0... -
Page 33: Power-Switch And Leds
FlatClient ECO and FlatClient PRO – Rev. 1.6 7.1.2. Power-Switch and LEDs Figure 9: Power-Switch and LEDs Power on LED Power LED Drive Activity Table 10: Power LED Signal No Power Green Active Green blinking Standby Table 11: Drive Activity... -
Page 34: Gbe Rj-45 Connector
FlatClient ECO and FlatClient PRO – Rev. 1.6 7.1.5. GbE RJ-45 Connector Table 14: Pinout GbE RJ-45 Connector Signal Name Signal Name TX1+ TX3- TX1- TX2- TX2+ TX4+ TX3+ TX4- 7.1.6. LED Diagram of LAN Connectors Table 8: Status of LEDs from GbE RJ-45 Connector... -
Page 35: Db15 Vga Connector
FlatClient ECO and FlatClient PRO – Rev. 1.6 7.1.8. DB15 VGA Connector Table 16: Pinout VGA Connector Signal Name Signal Name Green Blue n.c. n.c. DDC Data Hsync Vsync DDC Clock 7.1.9. COM2 RS-232/422/485 (via internal cable connection to CN16, Option) -
Page 36: Panel Pc Flatclient Pro Built-In Variant
FlatClient ECO and FlatClient PRO – Rev. 1.6 7.2. Panel PC FlatClient PRO built-in variant Figure 10: Interfaces for Panel PC PRO variant LAN interface 3x Earth stud DisplayPort 2x Power connector USB 3.0 4x Power/LEDs 7.2.1. Input Power Connector... -
Page 37: Power-Switch And Leds
FlatClient ECO and FlatClient PRO – Rev. 1.6 7.2.2. Power-Switch and LEDs Figure 13: Power-Switch and LEDs Power on LED Power LED Drive Activity Table 18: Power LED Signal No Power Green Active Green blinking Standby Table 19: Drive Activity... -
Page 38: Led Diagram Of Lan Connectors
FlatClient ECO and FlatClient PRO – Rev. 1.6 7.2.5. LED Diagram of LAN Connectors Table 8: Status of LEDs from GbE RJ-45 Connector left LED: activity/link right LED: 10/100/1000 right left No LAN connectivity 10 Mbit yellow link green 100 Mbit... -
Page 39: 8/ Installation And Start
FlatClient ECO and FlatClient PRO – Rev. 1.6 8/ Installation and Start 8.1. Mounting Instructions (built-in-variant only) Step Installation Description Use mounting set with screws and clamping brackets Lens head Screw Philips M4x12 DIN 7985 - ISO 7045 ... -
Page 40: Startup Procedure
FlatClient ECO and FlatClient PRO – Rev. 1.6 Step Installation Description Fix the bracket with the screw to the housing Repeat step 4 for all positions of clamping bracket 8.2. Startup Procedure To activate your FlatClient Panel PC connect the power supply to power connector on the FlatClient back side. -
Page 41: 9/ Technical Support
FlatClient ECO and FlatClient PRO – Rev. 1.6 9/ Technical Support For technical support, please contact Kontron http://www.kontron.com/support To request support via e-mail, report documentation errors, or general customer feedback, use Kontron’s Contact Support form by visiting: http://www.kontron.com/about-kontron/company-overview/contact-us/forms/contact-support. In case the request form does not work or you do not get a response within 48 hours, follow up with support@kontron.com... -
Page 42: Returning Defective Merchandise
RMA number. The Buyer accepts responsibility for all freight charges for the return of goods to Kontron's designated facility. Kontron will pay return freight charges back to the Buyer's location in the event that the equipment is repaired or replaced within the warranty period stipulated herewith. - Page 43 Fax: +49 (0) 821 4086 111 Email: service@kontron.com After Kontron Europe GmbH receives the product, a confirmation of the order is sent via email to the address named on the RMA sheet. This order number is your RMA number. www.kontron.com...
-
Page 44: Appendix A: List Of Acronyms
FlatClient ECO and FlatClient PRO – Rev. 1.6 Appendix A: List of Acronyms Application Programming Interface Base Management Controller Command-Line Interface Computer-on-Module Error Checking and Correction Field Replaceable Unit Graphics Processing Unit HD/HDD Hard Disk /Drive PICMG Hardware Platform Management... -
