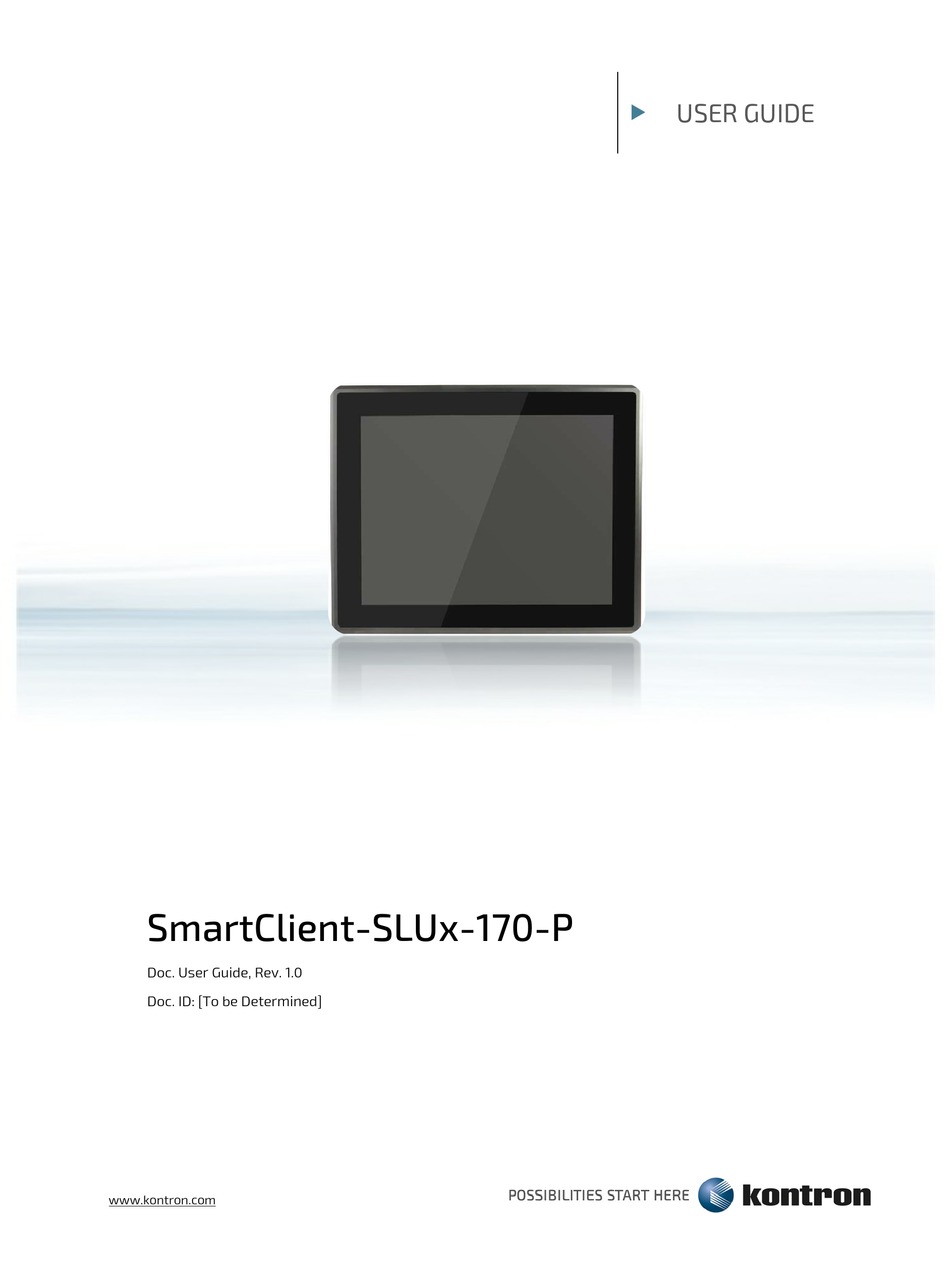

- Page 1 USER GUIDE SmartClient-SLUx-170-P Doc. User Guide, Rev. 1.0 Doc. ID: [To be Determined] www.kontron.com // 1...
- Page 2 SmartClient-SLUx-170-P - User Guide, Rev. 1.0 This page has been intentionally left blank www.kontron.com // 2...
- Page 3 In cases of doubt, please contact Kontron. This user guide is protected by copyright. All rights are reserved by Kontron. No part of this document may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in any form or by any means (electronic, mechanical, photocopying, recording, or otherwise), without the express written permission of Kontron.
- Page 4 ENVIRONMENTAL DAMAGE (COLLECTIVELY, "HIGH RISK APPLICATIONS"). You understand and agree that your use of Kontron devices as a component in High Risk Applications is entirely at your risk. To minimize the risks associated with your products and applications, you should provide adequate design and operating safeguards.
- Page 5 If you have any difficulties using this user guide, discover an error, or just want to provide some feedback, contact Kontron support. Detail any errors you find. We will correct the errors or problems as soon as possible and post the revised user guide on our website.
-
Page 6: Symbols
Eye protection per manufacturer notice shall review before servicing. This symbol indicates general information about the product and the user guide. This symbol also indicates detail information about the specific product configuration. This symbol precedes helpful hints and tips for daily use. www.kontron.com // 6... -
Page 7: For Your Safety
Therefore, in the interest of your own safety and of the correct operation of your new Kontron product, you are requested to conform with the following guidelines. -
Page 8: Lithium Battery Precautions
General Instructions on Usage In order to maintain Kontron’s product warranty, this product must not be altered or modified in any way. Changes or modifications to the product, that are not explicitly approved by Kontron and described in this user guide or received from Kontron Support as a special handling instruction, will void your warranty. -
Page 9: Table Of Contents
Thermal Considerations .................................. 21 4.1. Available Processors ....................................21 4.2. Convection Cooling ....................................21 4.3. System Clearance..................................... 21 4.4. Maximum Temperatures ..................................21 4.5. Third Party Components ..................................21 Installation Instructions ................................. 22 5.1. System Mounting ..................................... 23 www.kontron.com // 9... -
Page 10: List Of Tables
10.2.5.1. Remember the password ................................61 10.2.6. Save & Exit Setup Menu ................................... 62 Appendix A: List of Acronyms ..................................63 About Kontron ........................................64 List of Tables Table 1: Specification for mounting by use of the mounting clamps ..................... 23 Table 2: Technical Specifications ................................ -
Page 11: List Of Figures
Figure 28: BIOS Power Setup Menu - WatchDog Timer Configuration ..................57 Figure 29: BIOS Boot Setup Menu ................................59 Figure 30: BIOS Security Setup Menu................................ 60 Figure 31: BIOS Save & Exit Setup Menu ..............................62 www.kontron.com // 11... -
Page 12: 1/ General Safety Instructions For It Equipment
Kontron is exempt from accident liability, this also applies during the warranty period. The product has been built and tested according to the basic safety requirements for low voltage (LVD) applications and has left the manufacturer in safety-related, flawless condition. - Page 13 – as stipulated by EN60950-1 or VDE0100 or EN60204 or UL508 regulations. The devices do not generally fulfill the requirements for "centralized DC power systems“ (UL 60950-1, Annex NAB; D2) and therefore may not be connected to such devices! www.kontron.com // 13...
-
Page 14: Electrostatic Discharge (Esd)
UL recognized. Do not dispose of lithium batteries in general trash collection. Dispose of the battery according to the local regulations dealing with the disposal of these special materials, (e.g. to the collecting points for dispose of batteries). www.kontron.com // 14... -
Page 15: 2/ Shipment And Unpacking
Please keep the associated paperwork. It contains important information for handling the unit. Check the contents for visible shipping damage. If you notice any shipping damage or inconsistencies between the contents and your order, please contact Kontron for help and information. 2.2. Scope of Delivery ... -
Page 16: 3/ System Overview
SmartClient-SLUx-170-P - User Guide, Rev. 1.0 3/ System Overview Kontron SmartClient-SLUx-170-P integrates an industrial PC with an integrated touch screen display. The rugged design offers excellent mechanical stability for operation in harsh industrial environments. Users may choose the implementation of a 2.5" SATA HDD / SSD and / or an M.2 (Key B) SSD card as storage media. -
Page 17: System Expansion Via M.2 Card Interface
SmartClient-SLUx-170-P - User Guide, Rev. 1.0 3.1.3. System Expansion via M.2 Card Interface The baseboard comes with an onboard M.2 interface connector with Key B Type 2242 support. The connector is intended to be used to install an M.2 SSD card drive. www.kontron.com // 17... -
Page 18: Rear I/O Panel
PC. To prevent damage to the PC, always use a power adapter with correct output voltage. 3.2.2. Power Switch Press this switch to turn the system on or off. Even when the system is turned off via the power switch there is still a standby voltage on www.kontron.com // 18... -
Page 19: Hdmi 2.0
Steady Green - Link is up, no activity Off - 10 Mbit/s link established 3.2.9. USB 3.0 The SmartClient-SLUx-170-P provides four USB 3.0 / 2.0 interface. These connectors allow connection of USB 3.0 or USB 2.0 compatible device to the system. www.kontron.com // 19... -
Page 20: Rs232/422/485
Prerequisite: The system must be attached by means of the power cord to an appropriate mains (DC). 3.2.13. Storage LED The Storage LED blinks red when the data is being written into or read from the HDD / SSD. www.kontron.com // 20... -
Page 21: 4/ Thermal Considerations
When the SmartClient-SLUx-170-P is extended and configured with third party components like mPCIe expansion card and hard drives (HDD or SSD), it has to be taken into account that the air temperature inside the system is higher than the ambient temperature. An approximately internal temperature rise is given for assistance. www.kontron.com // 21... -
Page 22: 5/ Installation Instructions
Do not operate the SmartClient-SLUx-170-P with foreign objects inside the chassis. Further do not insert any retrieval device into the device while it is connected to power. Kontron rejects all liability for any and all damages resulting from operation of the unit with foreign objects inside the chassis. -
Page 23: System Mounting
SmartClient-SLUx-170-P - User Guide, Rev. 1.0 5.1. System Mounting In order to adapt the SmartClient-SLUx-170-P for mounting Kontron offers different mounting solution such as: Panel mount: SmartClient-SLUx-170-P configuration with the corresponding supplied mounting clamps for vertical installation into an instrument / wall / other cabinet ... -
Page 24: Figure 4: Insert The System Into The Cutout
(Table 1) varies depending on the ordered SmartClient-SLUx-170-P configuration. Hook the mounting clamps with screws (Figure 3) from the rear side of the wall / panel into the corresponding mounting openings as shown in Figure 5. Figure 5: Hook mounting clamps into mounting openings www.kontron.com // 24... -
Page 25: System Mounting By Use Of A Vesa Mounting Kit
(Figure 7). The kit consists of two parts: a base bracket (Figure 7, pos. 1) to be fixed permanently on the mounting surface and another hooked bracket to hold the SmartClient-SLUx-170-P with a hand-screw knob (Figure 7, pos. 2) to secure two brackets. Figure 7: Optional VESA mounting kit www.kontron.com // 25... -
Page 26: Figure 8: Secure The Base Mounting Bracket
Secure the base mounting bracket to the mounting surface with screws (Figure 8). Figure 8: Secure the base mounting bracket Secure the hooked mounting bracket onto the rear side of the SmartClient-SLUx-170-P (Figure 9). Figure 9: Secure the hooked mounting bracket onto the SmartClient-SLUx-170-P www.kontron.com // 26... -
Page 27: Figure 10: Secure The Smartclient-Slux-170-P Onto The Mounting Surface
Place the SmartClient-SLUx-170-P onto the mounting surface by sliding the hooked mounting bracket into the based mounting bracket (Figure 10). Secure the hand-screw knob located on the hooked mounting bracket to fix two brackets (Figure 10). Figure 10: Secure the SmartClient-SLUx-170-P onto the mounting surface www.kontron.com // 27... -
Page 28: Dc Power Connection
Insert the wires into the corresponding clamp of the Phoenix plug terminal. Make sure that you have the right polarity of the connection [refer to Figure 11 or subsection 9.1.1 "Power Input Connector"]. Fasten the screws to secure the wires into the clamps of the plug terminal. www.kontron.com // 28... -
Page 29: 6/ Starting Up
Connect the power adapter cable with Phoenix power plus terminal to the Phoenix connector (DC IN, Figure 1, pos. 1) of the SmartClient-SLUx-170-P. Connect the power cable to the power adapter. Connect the power cable to a power outlet. For connection to DC main power supply: www.kontron.com // 29... - Page 30 Switch on the disconnecting device (circuit breaker) in order to apply voltage to the terminals of the power wires. Press the power switch (Figure 1, pos. 2) on the rear panel to turn on the system. www.kontron.com // 30...
-
Page 31: Operating System And Hardware Component Drivers
The terms and conditions for the use of the pre-installed operating systems are specified in the document “MICROSOFT SOFTWARE LICENSE TERMS”. You can download this document from our web site www.kontron.com by selecting Product/ Downloads tab/Windows. If you have ordered the SmartClient-SLUx-170-P without a pre-installed operating system, you will need to install the operating system and the appropriate drivers for the system configuration you have ordered (optional hardware components) yourself. -
Page 32: 7/ Maintenance And Cleaning
SmartClient-SLUx-170-P - User Guide, Rev. 1.0 7/ Maintenance and Cleaning Kontron systems require minimal maintenance and care to keep operation correctly. Occasionally wipe the SmartClient-SLUx-170-P with a soft dry microfiber cloth. You should only remove persistent dirt by use of a soft, slightly damp cloth and mild detergent. -
Page 33: 8/ Technical Specifications
Processor integrated RTC TPM 1.2 support for Core™ i7 / i5 (Infineon SLB 9660) System Control & Monitoring Button, Switch & 1x Power Switch (on rear) Indicator 1x Power LED (on rear) 1x Storage LED (on rear) www.kontron.com // 33... -
Page 34: Mechanical Specifications
Dimensions (W x H x D) 413.0 mm x 343.9 mm x 70.3 mm (16.26” x 13.54” x 2.77”) Weight 5,700 g (12.57 lb) Mounting Panel Mount, VESA Mount 8.1.1. Mechanical Drawing Figure 12: Mechanical Drawing (unit: mm) www.kontron.com // 34... -
Page 35: Environmental Conditions
8.2. Environmental Conditions Table 4: Environmental Conditions Operating Temperature 0 °C ~ 50 °C / 32 °F ~ 122 °F Storage Temperature -20 °C ~ 70 °C / -4 °F ~ 158 °F Humidity 0 % ~ 95 % www.kontron.com // 35... -
Page 36: 9/ Standard Interfaces - Pin Assignments
Table 7: USB 3.0 Port (see Figure 1, pos. 9) USB 2.0 Contact Pins USB 3.0 Contact Pins 9-pin USB Connector Type A Version 3.0 / 2.0 Signal Name Signal Name +USBVCC USB_RX- USB_D- USB_RX+ USB_D+ USB_TX- USB_TX+ www.kontron.com // 36... -
Page 37: Hdmi Connector
TMD_Data2– TMD_Data1+ TMD_Data1– TMD_Data0+ TMD_Data0– TMD_CLK+ TMD_CLK– Reserved DDC_CLK DDC_DATA HPET 9.1.5. DP Connector Table 9: DP Connector (see Figure 1, pos. 4) Signal Name 20-pin DP Connector TX0+ TX0- TX1+ TX1- TX2+ TX2- TX3+ TX3- AUX+ www.kontron.com // 37... -
Page 38: Rs232/422/485 Serial Port
DIO (9-pin D-SUB Female Connector) Digital Output 0 Digital Input 0 Digital Output 1 Digital Input 1 Digital Output 2 Digital Input 2 Digital Output 3 Digital Input 3 9.1.8. Line-In Connector Table 12: Line-In Connector (see Figure 1, pos. 5) www.kontron.com // 38... -
Page 39: Line-Out Connector
Table 13: Line-Out Connector (see Figure 1, pos. 6) Signal Name Line-Out Connector & Corresponding Audio Jack Line-Out_L Ring Line-Out_R Sleeve 9.1.10. Mic-In Connector Table 14: Mic-In Connector (see Figure 1, pos. 7) Signal Name Mic-In Connector & Corresponding Audio Jack Mic-In_L Ring Mic-In_R Sleeve www.kontron.com // 39... -
Page 40: 10/ Uefi Bios
BIOS 10.1. Starting the uEFI BIOS The SmartClient-SLUx-170-P is provided with a Kontron-customized, pre-installed and configured version of AMI Aptio® V uEFI BIOS. AMI BIOS firmware is based on the Unified Extensible Firmware Interface (uEFI) specification and the Intel® Platform Innovation Framework for EFI. This uEFI BIOS provides a variety of new and enhanced functions specifically tailored to the hardware features of the SmartClient-SLUx-170-P. -
Page 41: Setup Menus
Read only field. Displays information about total memory ME Information Read only field. Displays information about Intel Management Engine (ME) version Firmware Information Code version and firmware information System Date Set System Date System Time Set System Time www.kontron.com // 41... -
Page 42: Figure 13: Bios Main Menu Screen System Data And Time
Version 2.18.1263. Copyright (C) 2017, American Megatrends, Inc. Feature Option Description System Date [dd/mm/yyyy] Set the Date. Use Tab to switch between Data elements. System Time [hh:mm:ss] Set the Time. Use Tab to switch between Time elements. www.kontron.com // 42... -
Page 43: Advanced Setup Menu
CPU Chipset Configuration SATA Configuration USB Configuration AMT Configuration Trusted Computing Network Stack DIO Configuration H/W Monitor Setting items on this screen to incorrect values may cause the system to malfunction. www.kontron.com // 43... -
Page 44: Figure 14: Bios Advanced Menu
Select whether to enable or disable Onboard LAN2 Controller. Controller Onboard LAN2 Boot [Disabled], [Enabled] Select whether to enable or disable load onboard PXE (Preboot Execution Environment). Audio Controller [Disabled], [Enabled] Select whether to enable or disable Audio Controller. www.kontron.com // 44... -
Page 45: Figure 15: Bios Advanced Menu - Display Configuration
[800x600 1CH], Select the appropriate setup item for LVDS panel. [1024x768 1CH], [1280x1024 2CH], [1366x768 1CH], [1366x768 2CH], [1600x1200 2CH], [1920x1080 2CH] LVDS Panel Color [18Bit], [24Bit] Select the appropriate setup item for LVDS panel color depth. www.kontron.com // 45... - Page 46 SmartClient-SLUx-170-P - User Guide, Rev. 1.0 Feature Option Description Depth PWM Backlight [By External], [By Select the PWM backlight controller. Control Internal] [By External]: Control by external HW circuit. [By Internal]: Control by LBKLT_CTL on the Intel Chipset. www.kontron.com // 46...
-
Page 47: Figure 16: Bios Advanced Menu - Super Io Configuration
IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12;], [IO=2F8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12;], [IO=3E8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12;], [IO=2E8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12;] www.kontron.com // 47... -
Page 48: Figure 18: Bios Advanced Menu - Super Io Configuration - Serial Port 2 Configuration
Select an appropriate type for Serial Port 2. [RS485] RS485 Duplex Mode [Half Duplex], [Full Select an appropriate RS485 Duplex Mode. Duplex] RS485 Auto Flow [Disabled], [Enabled] Select whether to enable or disable RS485 Auto Flow Control Control www.kontron.com // 48... -
Page 49: Figure 19: Bios Advanced Menu - Cpu Chipset Configuration
Select the number of cores to enable in each processor package. Cores Intel (VMX) [Disabled], [Enabled] Select whether to enable or disable Intel (VMX) Virtualization Virtualization Technology. Technology Intel Trusted [Disabled], [Enabled] Select whether to enable or disable Intel Trusted Execution Execution Technology Technology. www.kontron.com // 49... -
Page 50: Figure 20: Bios Advanced Menu - Sata Configuration
Select whether to enable or disable SATA Device. SATA Mode Selection [AHCI], [Intel RST Determine how SATA controller(s) operate. Premium] Port 1..2 [Disabled], [Enabled] Select whether to enable or disable SATA Port 1..2 / M.2 SATA Port 1. www.kontron.com // 50... -
Page 51: Figure 21: Bios Advanced Menu - Usb Configuration
This is a workaround for OSes without XHCI hand-off support. The XHCI ownership change should be claimed by XHCI driver. USB Mass Storage [Disabled], [Enabled] Select whether to enable or disable USB Mass Storage Driver Driver Support Support. www.kontron.com // 51... -
Page 52: Figure 22: Bios Advanced Menu - Amt Configuration
Version 2.18.1263. Copyright (C) 2017, American Megatrends, Inc. Feature Option Description AMT BIOS Features [Disabled], [Enabled] Select whether to enable or disable Intel AMT (Active Management Technology) BIOS Features. Unconfigure ME [Disabled], [Enabled] Select whether to enable or disable unconfigure ME (Management Engine). www.kontron.com // 52... -
Page 53: Figure 23: Bios Advanced Menu - Trusted Computing
F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit Version 2.18.1263. Copyright (C) 2017, American Megatrends, Inc. Feature Option Description Security Device [Disabled], [Enabled] Select whether to enable or disable security device support. Support www.kontron.com // 53... -
Page 54: Figure 24: Bios Advanced Menu - Network Stack
F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit Version 2.18.1263. Copyright (C) 2017, American Megatrends, Inc. Feature Option Description Network Stack [Disabled], [Enabled] Select whether to enable or disable network stack. www.kontron.com // 54... -
Page 55: Figure 25: Bios Advanced Menu - Dio Configuration
* These items appear only when enbling User Configuration. Feature Option Description User Configuration [Enabled], [Disabled] Select whether or not to allow user to set the DO pin output value. DO_1..4 [Output Low], [Output Set up the DO pin output value. High] www.kontron.com // 55... -
Page 56: Figure 26: Bios Advanced Menu - H/W Monitor
F1: General Help +3VSB : +3.360 V F2: Previous Values +VBAT : +3.120 V F3: Optimized Defaults +5VA : +5.160 V F4: Save & Exit +3VA : +3.296 V ESC: Exit Version 2.18.1263. Copyright (C) 2017, American Megatrends, Inc. www.kontron.com // 56... -
Page 57: Power Setup Menu
Resume By RTC Alarm [Disabled], [Enabled] Select whether to enable or disable Wake Up on Alarm, to turn on your system on a special day of the month. Figure 28: BIOS Power Setup Menu - WatchDog Timer Configuration www.kontron.com // 57... - Page 58 F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit Version 2.18.1263. Copyright (C) 2017, American Megatrends, Inc. Feature Option Description WDT Function [Disabled], [Enabled] Select whether to enable or disable WatchDog Timer function. www.kontron.com // 58...
-
Page 59: Boot Setup Menu
[Off]: The keys on the keypad will act as cursor keys. CSM Support [Enabled], [Disabled] Select whether to enable or disable CSM support. Boot Option Filter [UEFI and Legacy], Control Legacy / UEFI ROMs priority. [Legacy only], [UEFI only] www.kontron.com // 59... -
Page 60: Security Setup Menu
If only the user’s password is set, then the password is a power on password and must be entered to boot or enter setup. Within the setup menu the user has administrator rights. Password length requirements are maximum 20 characters and minimum 3 characters. www.kontron.com // 60... -
Page 61: Remember The Password
It is highly recommended to keep a record of all passwords in a safe place. Forgotten passwords results in being locked out of the system. If the system cannot be booted because the User Password or the Supervisor Password are not know, contact Kontron Support for further assistance. HDD security passwords cannot be cleared using the above method. www.kontron.com... -
Page 62: Save & Exit Setup Menu
Restore Default values for all the setup values. This option allows you to load optimal default values for each of the parameters on the Setup menus, which will provide the best performance settings for your system. The F9 key can be used for this operation. www.kontron.com // 62... -
Page 63: Appendix A: List Of Acronyms
Waste Electrical and Electronic Equipment Light Emitting Device LVDS Low-Voltage Differential Signaling ME F/W Management Engine Firmware mPCIe mini Peripheral Component Interconnect express PC-AT Personal Computer - Advanced Technology Printed Circuit Board Power Supply Unit PolyViny Chloride Pulse Width Modulation www.kontron.com // 63... -
Page 64: About Kontron
Kontron is a listed company. Its shares are traded in the Prime Standard segment of the Frankfurt Stock Exchange and on other exchanges under the symbol "KBC". For more information, please visit: www.kontron.com...
