Summary of Contents for Contec PT-S959SDHX

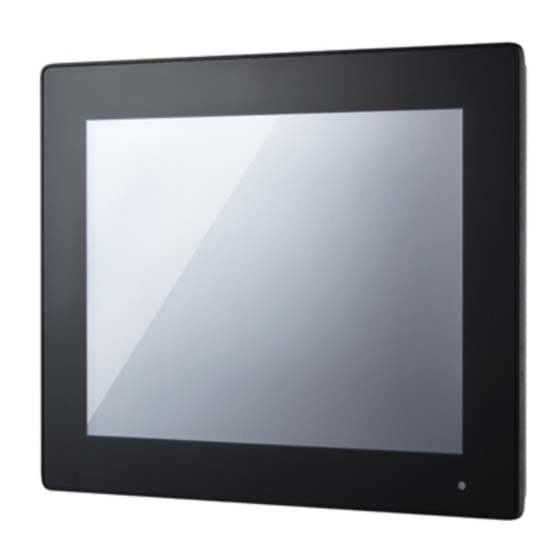

- Page 1 PANEL-PC for S Series PT-S959SDHX & PT-S959SDHXC Series User’s Manual CONTEC CO., LTD.
-
Page 2: Check Your Package
Thank you for purchasing the CONTEC product. The product consists of the items listed below. Check, with the following list, that your package is complete. If you discover damaged or missing items, contact your retailer or the general CONTEC information. ◆Product Configuration List<1/2> PT-S959SDHXF2... -
Page 3: Product Configuration List <2/2
*2 When installing the SSD, it's must using to outfit with SSD thermal solution pack, and the installation method please see below pic A. The user's manual for this product is available as a PDF file through CONTEC’s Web site. The user's manual provides such information as hardware settings, functions for each component, and BIOS settings. -
Page 4: Product Configuration Image
No part of this document may be copied or reproduced in any form by any means without prior written consent of CONTEC CO., LTD. CONTEC CO., LTD. makes no commitment to update or keep current the information contained in this document. -
Page 5: Table Of Contents
Limited One-Year Warranty ........................4 How to Obtain Service ..........................4 Liability ................................ 5 Safety precaution ............................5 ◆Safety infomation ..........................5 ◆Caution on the PT-S959SDHX Series.................... 5 2．SYSTEM REFERENCE Specification ..............................8 Power Management Features ........................ 12 Power Requirements ..........................12 ◆Power Consumption........................ - Page 6 ◆PPM Configuration ........................44 ◆SATA Configuration........................45 ◆CSM Configuration........................46 Chipset................................47 ◆North Bridge ........................... 48 ◆Intel IGD Configuration......................... 49 ◆LCD Control ........................... 50 ◆South Bridge Configuration......................52 ◆Azalia HD Audio Configuration ....................53 ◆USB Configuration.........................54 ◆LAN Configuration ........................55 PT-S959SDHX / PT-S959SDHXC Series User’s Manual...
- Page 7 Security............................... 56 Boot Configuration ............................ 57 Save & Exit ..............................58 6．APPENDIX POST Codes............................... 59 SERIAL I/O Address and Register Function................... 62 Watch-Dog-Timer ............................. 68 Battery ................................ 71 7．LIST OF OPTIONAL PRODUCT PT-S959SDHX / PT-S959SDHXC Series User’s Manual...
-
Page 8: Introduction
CFast card for storage and is fanless to ensure a totally spindleless design that simplifies maintenance. Embedded-type CPU have been adopted. The use of readily available parts ensures the ease of the use of the product. In addition, the use of Contec-customized BIOS allows support to be provided at the BIOS level. -
Page 9: Features
- Slim design faclitates design of compact equipment This product employs a fanless construction (design does not use fan motors as these components have a finite lifetime) with CONTEC's unique heat dissipation technology and features a compact case that is only 72mm deep, which facilitates the design of compact equipment. -
Page 10: Supported Os
These products have analog touch panel enabling mouse emulation using driver software. ◆Supported OS - Windows 7 32-bit. - Windows 7 64-bit. - Windows 8.1 32-bit. - Windows 8.1 64-bit. - Windows 10 32-bit. - Windows 10 64-bit. PT-S959SDHX / PT-S959SDHXC Series User’s Manual... -
Page 11: Customer Support
You can download updated driver software and differential files as well as sample programs available in several languages. ■Note! For product information Contact your retailer if you have any technical question about a CONTEC product or need its price, delivery time, or estimate information. Limited One-Year Warranty CONTEC products are warranted by CONTEC CO., LTD. -
Page 12: Liability
For battery replacement, contact your retailer as it must be performed as a process of repair. When disposing of a used battery, follow the disposal procedures stipulated under the relevant laws and municipal ordinances. For details on replacing the battery, refer to the appendix. PT-S959SDHX / PT-S959SDHXC Series User’s Manual... - Page 13 To prevent corruption of files, always shutdown the OS before turning off this product. CONTEC reserves the right to refuse to service a product modified by the user. In the event of failure or abnormality (foul smells or excessive heat generation), unplug the power cord immediately and contact your retailer.
- Page 14 Operation of this equipment in a residential area is likely to cause harmful interference at his own expense. WARNING TO USER Change or modifications not expressly approved the manufacturer can void the user's authority to operate this equipment. PT-S959SDHX / PT-S959SDHXC Series User’s Manual...
-
Page 15: System Reference
2.5 inch HDD / SSD slot 1 slot, 2.5 inch HDD / SSD slot, bootable PT-S959SDHX-DC7100: One 2.5 inch HDD is attached to the HDD slot. PT-S959SDHX-DC7200 / 7300: One SSD is attached to the HDD slot. PT-S959SDHXC-DC7100: One 2.5 inch HDD is attached to the HDD slot. - Page 16 4.5kg (W/ Storage device) *2: If you use the 1000BASE-T, be careful of the operating temperature. For more details on this, refer to chapter3, Installation Requirements. *3: Use a power cable shorter than 3m. PT-S959SDHX / PT-S959SDHXC Series User’s Manual...
- Page 17 100G, half-sine shock for 6 ms in x, y, and z directions (JIS C0041-compliant, IEC68-2-27-compliant) Grounding Class D grounding, SG-FG / continuity *4 : For more details on this, please refer to chapter 3, “Installation Requirements”. *5 : When AC adapter “ACAP19-01” is used. PT-S959SDHX / PT-S959SDHXC Series User’s Manual...
- Page 18 Figure 2.1. Definition of viewing angle The above optical specification data shows optical characteristics of the liquid crystal in the display; the data does not represent the actual view on the display or its viewing angles. PT-S959SDHX / PT-S959SDHXC Series User’s Manual...
-
Page 19: Power Management Features
- Rise time for power supply: 2 ms - 30 ms The following table lists the power supply’s tolerances for DC voltages: Table 2.4. DC voltage tolerance DC Voltage Acceptable Tolerance + 12V - 24V + 10.8V - 31.2VDC PT-S959SDHX / PT-S959SDHXC Series User’s Manual... -
Page 20: Physical Dimensions
Physical dimensions PT-S959SDHX-DC7xxx /PT-S959SDHXC Series Figure 2.2. Physical Dimensions (PT-S959SDHX / PT-S959SDHXC series) PT-S959SDHX / PT-S959SDHXC Series User’s Manual... -
Page 21: Hardware Setup
※ Before using this product, be sure to execute “Restore Defaults” to initialize the BIOS settings to their default values. (See Chapter 5, “Save & Exit tab”.) Be sure to connect the keyboard and mouse to it before turning the power on for the first time. PT-S959SDHX / PT-S959SDHXC Series User’s Manual... -
Page 22: Hardware Setup
Be careful not to mistake the orientation of the CFast card when inserting it. Also, do not use excessive force when inserting the CFast card. Doing so may damage the connector. Do not drop or otherwise subject the CFast card to strong impacts before insertion. Doing so may damage the card. PT-S959SDHX / PT-S959SDHXC Series User’s Manual... -
Page 23: Attaching The Hdd And Ssd
Figure 3.2. Attaching the HDD and SSD Insert the Hard disk face up. Screw holes may be damaged if screws are tightened with a torque greater than the specified torque. The specified tightening torque is 3 – 3.5kgf ･ cm. PT-S959SDHX / PT-S959SDHXC Series User’s Manual... -
Page 24: Attaching The Fg
The FG pin of this product is connected to the GND signal of the DC power connector (DC-IN). Note that the connection cannot be cut off. Screw holes may be damaged if screws are tightened with a torque greater than the specified torque. The specified tightening torque is 5 - 6kgf･cm. PT-S959SDHX / PT-S959SDHXC Series User’s Manual... -
Page 25: Fastening The Cable
Figure 3.4. Attaching the cable clamp (2) The photo below shows an example of using a cable clamp. Fix the cable with a clamp without applying stress to the connector. Figure 3.5. Using example of cable clamp PT-S959SDHX / PT-S959SDHXC Series User’s Manual... -
Page 26: Hardware Setup
(3) Hold the attachment fitting from the inside of the panel. Figure 3.8. Hardware Setup screw holes may be damaged if screws are tightened with a torque greater than the specified torque. The specified tightening torque is 5 - 6 kgf ･ cm. PT-S959SDHX / PT-S959SDHXC Series User’s Manual... -
Page 27: Installation Requirements
Note that even though the ambient temperature is within the specified range, an operational malfunction may occur if there is other device generating high heat; the radiation will influence the product to increase its temperature. PT-S959SDHX / PT-S959SDHXC Series User’s Manual... - Page 28 When making use of the product, the air current should be adjusted to prevent that all the temperatures measured at the measurement points exceed the specified temperature. Figure 3.12. Measurement points of ambient temperature PT-S959SDHX / PT-S959SDHXC Series User’s Manual...
-
Page 29: Each Component Function
SERIAL A, B, D RS232C connector (9pin D-SUB/male) x 3 SERIAL C RS232C / 422 /485 connector (9pin D-SUB/male) x 1 DVI-I Display (29pin female) CFast 1, 2 CFast card slot x 2 2.5” SATA HDD slot PT-S959SDHX / PT-S959SDHXC Series User’s Manual... -
Page 30: System Configuration
System Configuration Figure 4.2. System Configuration PT-S959SDHX / PT-S959SDHXC Series User’s Manual... -
Page 31: Component Function
ON (Red) You can control the behavior of LED from the user application. API that controls STATUS LED is available. For more information, visit the CONTEC's Web site. ◆DC Power Input Connector: DC-IN To supply the power, always use the power supply listed below. -
Page 32: Power Sw
The product is equipped with a connector for line output. As such, headphones or an amplified speaker can be connected. ◆MIC IN Interface: MIC The product is equipped with a connector for microphone input. As such, a microphone can be connected for voice input. PT-S959SDHX / PT-S959SDHXC Series User’s Manual... -
Page 33: Dvi-I Interface: Dvi-I
◆DVI-I interface: DVI-I A DVI-I interface is provided. A CRT display (or a 15-pin D-SUB CRT when the included DVI–Analog RGB conversion adapter is used) or a flat-panel display from CONTEC can be connected. The connector name is DVI (DVI-I 29 pin). - Page 34 This will not affect how the digital display appears. However, change the multi-display settings as necessary. To change the settings from digital output to analog output, change the settings from the standard Windows properties screen. PT-S959SDHX / PT-S959SDHXC Series User’s Manual...
-
Page 35: Usb3.0 Port: Usb3.0
USB_GND SSRX- SSRX+ USB_GND SSTX- SSTX+ ◆USB2.0 Port: USB2.0 This product is equipped with 6 channel for USB 2.0 TYPE-A interface. Table 4.7. USB2.0 Connector Signal name Pin No. USB2.0 USB_VCC DATA- DATA+ USB_GND PT-S959SDHX / PT-S959SDHXC Series User’s Manual... -
Page 36: Giga Bit-Ethernet: Lan A, B
Attention should to be paid to the guaranteed operating range of temperature in using 1000BASE-T. For more details on this, refer to chapter3, Installation Requirements. Note that the Ethernet should be configured as 100BASE-TX or 10BASE-T in using under the temperature 0 - 50°C. PT-S959SDHX / PT-S959SDHXC Series User’s Manual... -
Page 37: Cfast Card Connector: Cfast1, 2
The CFast card is not hotpluggable. While this product is turned on, do not insert or remove the CFast card or touch the CFast card connector on the product. Doing so may lead to a malfunction or failure. PT-S959SDHX / PT-S959SDHXC Series User’s Manual... -
Page 38: Serial Port Interface: Serial A, B, C, D
Signal name Meaning Direction Carrier detect Input Received data Input Transmitted data Output Data terminal ready Output Signal ground ----- Data set ready Input Request to send Output Clear to send Input Ring indicator Input PT-S959SDHX / PT-S959SDHXC Series User’s Manual... -
Page 39: Dio Port: Dio
Input section Non-isolated 5VTTL level Input format (positive logic; with internal 3.3 V, 1 kΩ pull- up) Output section Non-isolated open drain Output format (positive logic; with internal 3.3 V, 1 kΩ pull- up) PT-S959SDHX / PT-S959SDHXC Series User’s Manual... - Page 40 Example 1 : To set GPIO4 to input mode and all the other GPIO ports to output mode, specify "0001 0000" ("10h"). Example 2 : To set GPIO2 and GPIO5 to input mode and all the other GPIO ports to output mode, specify "0010 0100" ("24h"). PT-S959SDHX / PT-S959SDHXC Series User’s Manual...
-
Page 41: Bios Setup
If the message disappears before you respond and you still wish to enter Setup, restart the system to try again by turning it OFF then ON on the system case. You may also restart by simultaneously pressing <Ctrl>, <Alt>, and <Delete> keys. PT-S959SDHX / PT-S959SDHXC Series User’s Manual... -
Page 42: Using Setup
Even changing the chipset settings slightly can result in an unavoidable need for repairs. ◆A Final Note About Setup The information in this chapter is subject to change without notice. PT-S959SDHX / PT-S959SDHXC Series User’s Manual... -
Page 43: Main Menu
Set the password to be used to protect the security of the system. - Boot Configure the settings related to how the system will boot. - Save & Exit Load/save setup items and exit the setup menu. PT-S959SDHX / PT-S959SDHXC Series User’s Manual... -
Page 44: Main
Administrator Displays the access rights level. *1 When the model is PT-S959SDHX/PT-S959SDHXC series, the project version is “B959C000”. in contrast, when the model is PT-S959SDHXF2/PT-S959SDHXF2C series, the project version is “B959F000”. This table shows the selections that you can make on the Main Menu. -
Page 45: Advanced
- CPU Configuration Configure the CPU settings. - PPM Configuration Configure the power saving function settings. - SATA Configuration Configure the SATA controller settings. - CSM Configuration Configure such settings as the boot options. PT-S959SDHX / PT-S959SDHXC Series User’s Manual... -
Page 46: Acpi Settings
Sets the time the system will automatically turn on. RTC Wake up Minute 0-59 Sets the minute the system will automatically turn on. RTC Wake up Second 0-59 Sets the second the system will automatically turn on. PT-S959SDHX / PT-S959SDHXC Series User’s Manual... -
Page 47: Super Io Configuration
Refer to Table 5.8. Configuration T.P. Serial Refer to Table 5.9. Configuration RS-485 Port Refer to Table 5.10 Configuration Ext-Serial Port A Refer to Table 5.11 Configuration Ext-Serial Port B Refer to Table 5.12 Configuration PT-S959SDHX / PT-S959SDHXC Series User’s Manual... - Page 48 Input : GPIO 2 Output High Use as a general-purpose input. GPIO 3 Output Low Output High : GPIO 4 Use as a general-purpose output. GPIO 5 Output Low : Use as a general-purpose output. PT-S959SDHX / PT-S959SDHXC Series User’s Manual...
-
Page 49: H/W Monitor
+/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit Version x.xx.xxxx. Copyright (C) 20xx American Megatrends, Inc. Figure 5.5. H/W Monitor (Actual Display May Vary.) PT-S959SDHX / PT-S959SDHXC Series User’s Manual... -
Page 50: Cpu Configuration
Version x.xx.xxxx. Copyright (C) 20xx American Megatrends, Inc. Figure 5.6. CPU Configuration Table 5.13. CPU Configuration Item Option Description Disabled Execute Disable Bit Do not change this setting. Enabled Disabled Intel Virtualization Do not change this setting. Technology Enabled PT-S959SDHX / PT-S959SDHXC Series User’s Manual... -
Page 51: Ppm Configuration
Figure 5.7. PPM Configuration Table 5.14. PPM Configuration Item Option Description Disabled EIST Do not change this setting. Enabled Disabled CPU C-State Report Do not change this setting. Enabled Disabled SOix Do not change this setting. Enabled PT-S959SDHX / PT-S959SDHXC Series User’s Manual... -
Page 52: Sata Configuration
Configure the operation settings for SATA Serial-ATA Port 0 port0. Disabled Enabled Configure the operation settings for SATA Serial-ATA Port 1 port1. Disabled *1 PT-S959SDHX or PT-S959SDHXC product, setting “2.5 inch SATA HDD/SSD”； PT-S959SDHXF2 or PT-S959SDHXF2C product, setting “CFAST1” PT-S959SDHX / PT-S959SDHXC Series User’s Manual... -
Page 53: Csm Configuration
Do not launch Storage Do not change this setting. UEFI Legacy Do not launch Video Do not change this setting. UEFI Legacy Do not launch Other PCI devices UEFI Do not change this setting. Legacy PT-S959SDHX / PT-S959SDHXC Series User’s Manual... -
Page 54: Chipset
Version x.xx.xxxx. Copyright (C) 20xx American Megatrends, Inc. Figure 5.10. Chipset The following items are available. North Bridge Configure the operation settings for North Bridge. South Bridge Configure the operation settings for South Bridge. PT-S959SDHX / PT-S959SDHXC Series User’s Manual... -
Page 55: North Bridge
Refer to Table 5.15. LCD Control Refer to Table 5.16. 2 GB 2.25 GB Max TOLUD Do not change this setting. 2.5 GB 2.75 GB 3 GB Enabled Bypass SPD Detect Do not change this setting. Disabled PT-S959SDHX / PT-S959SDHXC Series User’s Manual... -
Page 56: Intel Igd Configuration
Do not change this setting. Disabled Disabled PAVC LITE Mode Do not change this setting. SERPENT Mode 128M 160M 192M 224M 256M DVMT Pre-Allocated Do not change this setting. 288M 320M 352M 416M 448M 480M 512M PT-S959SDHX / PT-S959SDHXC Series User’s Manual... -
Page 57: Lcd Control
Configure the settings for the port that will Secondary IGFX be output as the auxiliary display at start-up. Boot Display This will make it possible to use an auxiliary display after the OS boots. PT-S959SDHX / PT-S959SDHXC Series User’s Manual... - Page 58 LCD Panel Type Do not change this setting. 1680x1050 LVDS 1920x1200 LVDS 1440x900 LVDS 1600x900 LVDS 1024x768 LVDS2 1280x800 LVDS 1920x1080 LVDS 2048x1536 LVDS Auto Panel Scaling Do not change this setting. Force Scaling PT-S959SDHX / PT-S959SDHXC Series User’s Manual...
-
Page 59: South Bridge Configuration
Last State: If the power is turned off while the system is on, the system will start the next time the power supply starts. Quiet Serial IRQ Mode Do not change this setting. Continuous PT-S959SDHX / PT-S959SDHXC Series User’s Manual... -
Page 60: Azalia Hd Audio Configuration
ESC: Exit Version x.xx.xxxx. Copyright (C) 20xx American Megatrends, Inc. Figure 5.15. Azalia HD Audio Configuration Table 5.21. Azalia HD Audio Configuration Item Option Description Disabled Audio Controller Configure the Audio Controller settings. Enabled PT-S959SDHX / PT-S959SDHXC Series User’s Manual... -
Page 61: Usb Configuration
This should normally be set to Enabled. USB3.0 (XHCI) Support Disabled Set to Smart Auto to set up a USB 3.0 driver Smart Auto in Windows 7. Enabled USB2.0 Link Power Management Do not change this setting. Disabled PT-S959SDHX / PT-S959SDHXC Series User’s Manual... -
Page 62: Lan Configuration
Description Enabled Onboard LAN A Controller Can not change this setting. Disabled Enabled Onboard LAN B Controller Configure the LAN B Controller settings. Disabled Do not launch Configure the PXE boot settings. UEFI Legacy PT-S959SDHX / PT-S959SDHXC Series User’s Manual... -
Page 63: Security
To disable the password, enter the Administrator Password entry screen again. Be careful to not forget the password. If you forget the password, the product will have to be repaired at an extra cost. PT-S959SDHX / PT-S959SDHXC Series User’s Manual... -
Page 64: Boot Configuration
Set the start order of the connected Priorities HDD/CFast/USB removable drives. (Specify any device) XXXXXXXX Floppy Drive BBS Set the start order of the connected Priorities USB floppy drives. (Specify any device) *1 : Appears when the device is connected. PT-S959SDHX / PT-S959SDHXC Series User’s Manual... -
Page 65: Save & Exit
F3: Optimized Defaults Launch EFI Shell from filesystem device F4: Save & Exit ▶ Reset System with ME disable ModeMEUD000 ESC: Exit Version x.xx.xxxx. Copyright (C) 20xx American Megatrends, Inc. Figure 5.20. Save&Exit menu PT-S959SDHX / PT-S959SDHXC Series User’s Manual... -
Page 66: Appendix
3Ch - 3Eh Post memory, South Bridge initialization (Specific South Bridge module) 3Fh - 4Eh OEM post memory initialization code DXE IPL startup < Driver Execution Environment (DXE) phase > DXE core startup NVRAM initialization PT-S959SDHX / PT-S959SDHXC Series User’s Manual... - Page 67 ASL for reserved (Refer to ACPI/ASL Checkpoints) Boot preparation events Legacy boot event Boot Service event ends Virtual address maps run-time settings begin. Virtual address maps of runtime configuration exit Legacy option ROM initialization PT-S959SDHX / PT-S959SDHXC Series User’s Manual...
- Page 68 From S3 sleep state during system restoration From S4 sleep state during system restoration Move to system ACPI mode. The interrupt controller PIC mode. Move to system ACPI mode. The interrupt controller APIC mode. PT-S959SDHX / PT-S959SDHXC Series User’s Manual...
-
Page 69: Serial I/O Address And Register Function
Line control register 03FCH Modem control register 03FDH Line status register 03FEH Modem status register 03FFH Scratch register DLAB (Divisor Latch Access Bit) : The value in bit 7 of the line control register. PT-S959SDHX / PT-S959SDHXC Series User’s Manual... - Page 70 Register dedicated to read received data from 03F8H DLL: Divisor Latch (LSB) [DLAB=1] Baud rate setting register (LSB) 03F9H DLH: Divisor Latch (MSB) [DLAB=1] Baud rate setting register (MSB) 03F9H IER: Interrupt Enable Register [DLAB=0] PT-S959SDHX / PT-S959SDHXC Series User’s Manual...
- Page 71 Table 6.3. Function of Each Register < 2 / 4 > I/O address Description 03FAH IIR : Interrupt Identification Register 03FBH LCR : Line Contror Regester PT-S959SDHX / PT-S959SDHXC Series User’s Manual...
- Page 72 Table 6.3. Function of Each Register < 3 / 4 > I/O address Description 03FCH MCR: Modem Control Register 03FDH LSR: Line Status Regester PT-S959SDHX / PT-S959SDHXC Series User’s Manual...
- Page 73 Table 6.3. Function of Each Register < 4 / 4 > I/O address Description 03FEH MSR : Modem Status Register 03FFH SCR : Scratchpad Register This is an 8-bit, readable/writable register which is available to the user to allow data to be saved temporarily. PT-S959SDHX / PT-S959SDHXC Series User’s Manual...
- Page 74 7200 9600 14400 19200 28800 38400 57600 76800 115200 153600 230400 Example : To set 9,600 bps, write "00" to the (MSB) divisor latch register and "12 (decimal)" to the (LSB) divisor latch register. PT-S959SDHX / PT-S959SDHXC Series User’s Manual...
-
Page 75: Watch-Dog-Timer
It is also possible not to perform [WDT Stop] instead of performing [WDT Stop] to [WDT Start], but to perform [WDT Start] continuously at the time of a re-start. (2) Example programming The following example is written in Intel8086 assembly language. PT-S959SDHX / PT-S959SDHXC Series User’s Manual... - Page 76 ;--- Set WDT Timer --- ch,0F1h cl,WDTT call Set_IO ;--- Close NCT610xD IO --- dx,IO_Port al,0AAh dx,al ;--- End Program --- ah,4ch ; ---------------------------------------- ch = Index cl = Data ; ---------------------------------------- Get_IO Proc Near dx,IO_Port PT-S959SDHX / PT-S959SDHXC Series User’s Manual...
- Page 77 Get_IO Endp Set_IO Proc Near dx,IO_Port al,ch dx,al dx,IO_Port+1 al,cl dx,al Set_IO Endp END BEGIN The timer’s intervals have a tolerance of ± 2 seconds PT-S959SDHX / PT-S959SDHXC Series User’s Manual...
-
Page 78: Battery
1g or less Removing the battery Remove the battery according to the following figure. * Be sure the power is turned off. Disposing the battery Dispose the removed battery properly as instructed by local government. PT-S959SDHX / PT-S959SDHXC Series User’s Manual... -
Page 79: List Of Optional Product
If a product other than our option is used, need to used below 40℃surroundings, or the normal operation may be impaired or the functions may be limited. *Visit Contec website regading information on the optional products. PT-S959SDHX / PT-S959SDHXC Series User’s Manual... - Page 80 Japanese http://www.contec.co.jp/ English http://www.contec.com/ Chinese http://www.contec.com.cn/ All rights reserved. This product and this document are protected by copyright law. Unauthorized copying, duplication, reproduction, and tampering are prohibited. [02092017] Management No NA05484 Part No. LYUT081 PT-S959SDHX / PT-S959SDHXC Series User’s Manual...
