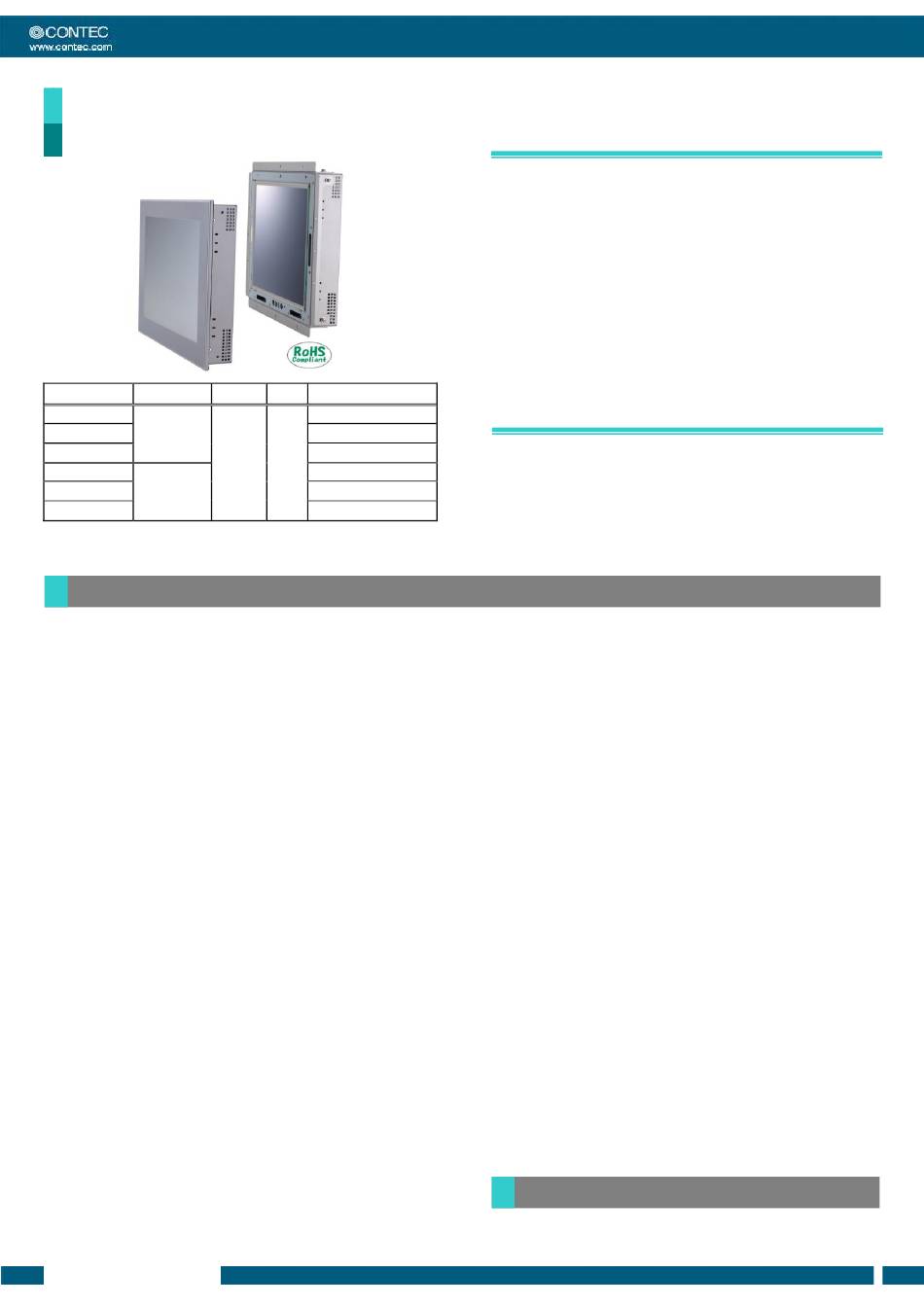

Contec PANEL-PC 955 Series Hardware Setup

Intel Atom Processor N270 1.60GHz
Fanless PC 15 inch Model
PANEL-PC 955 Series
Model Shape
PT-955HX-DC5000
PT-955HX-DC5311
Panel mount type
PT-955HX-DC5312
PT-955HXF-DC5000
PT-955HXF-DC5311
Open frame type
PT-955HXF-DC5312
Please contact us for using OS in English or other languages.
https://www.contec.com/contact/
* Specifications, color and design of the products are subject to change without
notice.
Features
Contributing to reduction of running cost and promotion
energy efficiency
Power consumption is about 30% less compared to the
conventional standard model (IPC-PT700HX-AC426). Due to
adoption of the low power consumption LED backlight and Intel (R)
Atom processor N270, low power consumption, approximately
41W*1 even at a high load condition, is achieved at the same time
sufficient performance is ensured, contributing to the lesser
cost.
*1 Median value of power consumption of a standard model PT-955HX-DC5311 with input
power of 24VDC under unloaded and fully-loaded conditions.
Contributing to smaller device size. Small footprint with
depth of 47.8mm*2.
Depth is reduced by approximately 40% compared to the
conventional standard model (IPC-PT700HX-AC426). With our
original heat release technology, the slim case with depth of
47.8mm is made offering fanless design (no use of a fan motor
which has a finite life). This contributes to downsizing of the
equipment. The mounting structure conforms to VESA standard
100 x 100 mm and can be mounted on a LCD arm.
*2 Dimension of PT-955HX-DC5311 not including the mounting bracket.
Slitless/fanless design that reduces maintenance work
This product's spindleless design eliminates the heat dissipating
and CPU fan and adopts CF card for the storage. It is free from
dusts and foreign objects, and the use the parts that degrades over
the years is avoided in most case, resulting in drastic alleviation of
the maintenance burden.
High definition supported DVI external display output
This product has the up to 1920 x 1080 pixels DVI external display
output as standard feature. A stand-alone two-display application
which, for example, displays the screen on a big LCD TV
from the main LCD, can be built. Also, with the accompanying
analog RGB (15 pin HD-SUB) conversion adapter, connecting to
analog RGB display is supported.
Remote power management function to reduce operation
tasks
This product supports timed/automated system start-up (Resume
By Alarm). For example, it enables unattended operation, such as
starting to show information of an establishment in unison at
PT-955HX, PT-955HXF

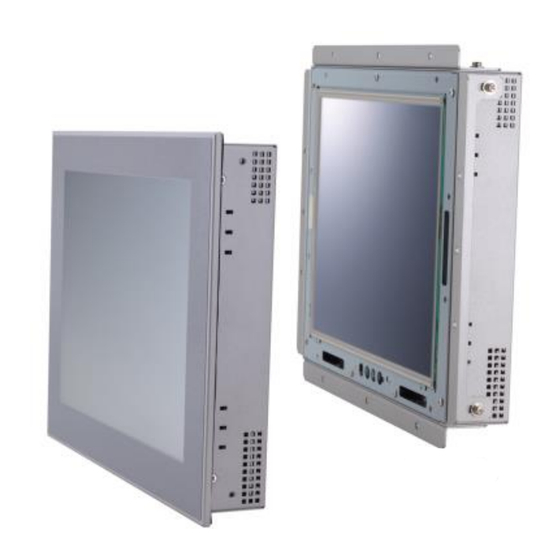

Left : Panel mount Type Right : Open frame type
Pre-installed OS
CPU Memory
(storage device)
None
Windows Embedded Standard 2009
(Japanese version version)(CF 2GB)
Intel Atom
Windows Embedded Standard 7
Processor
(Japanese version)(CF 4GB)
1GB
None
N270
Windows Embedded Standard 2009
(1.60GHz)
(Japanese version)(CF 2GB)
Windows Embedded Standard 7
(Japanese version)(CF 4GB)
This product is a fanless PANEL-PC for embedded use based
on Intel (R) Atom processor N270 and a 945GSE (GMA950
incorporated) chipset. Adoption of the long life power saving
LED and Intel (R) Atom processor offers low power
consumption while ensuring sufficient performance.
The "resource-saving PC" contributes downsizing and
power-saving of equipment to reduce your running cost and to
promote energy efficiency.
It has extended interfaces such as 1000BASE-T, USB2.0, and
serial. It adopts CF card for the storage and is fanless, which
demonstrate the totally spindleless design that simplifies the
maintenance.
Embedded-type CPU and chip set have been adopted. The
use of readily available parts ensures the ease of the use of the
product. In addition, the use of CONTEC-customized BIOS
allows support to be provided at the BIOS level.
Intel, Intel Atom, Intel Core and Celeron are registered trademarks of
Intel Corporation. MS, Microsoft and Windows are trademarks of
Microsoft Corporation. Other brand and product names are
trademarks of their respective holder.
opening time. Also, it supports system start-up externally via
network (Wake On LAN) and modem (Power On by Ring). It
encourages significant labor saving in operation.
Major types of peripherals are supported with rich
interfaces including the two CF card slots
It has a variety of extended interface such as 1000BASE-T x 2,
USB2.0 x 4, serial (RS-232C) x 2. It has 2 CF card slots that can
use for OS and data. They are very useful because you can use
one slot for system start-up and the other for maintenance, system
log, or taking away the collected data.
Falling-off prevention tools and cable clamps provided to
avoid trouble caused by disconnected cable
This product stays trouble-free, being equipped with USB removal
prevention fitting and cable clamp for connectors with no locking
mechanism, such as USB cable, and with hardware to properly
mount and avoid falling out of CF card.
Safety design required for embedded applications
Retention of CMOS data by EEPROM allows the system to start up
even when the battery has run out. For Windows Embedded
Standard installed model, it is possible to use the EWF*3 function
of OS. It is designed for safety required for embedding purpose, for
example, prohibiting unwanted writing to the CF card with EWF
function will relieve the concern about the writing limits to the CF
card and prevent an unintentional system alteration.
*3 EWF (Enhanced Write Filter) is a function specific to Windows Embedded Standard that
protects the disk from being actually written by redirecting the writing to RAM.
A wide range of power supplies (10.8 - 31.2VDC) supported
As the product supports a wide range of power (10.8 - 31.2VDC), it
can be used in a variety of power environments. The separately
available AC adapter adds support for 100VAC power.
Touch panel enables keyboard-less operation
These products have analog touch panel enabling mouse
emulation using driver software.
Supported OS
Windows Embedded Standard 2009
Windows Embedded Standard 7
Ver.1.01
1
