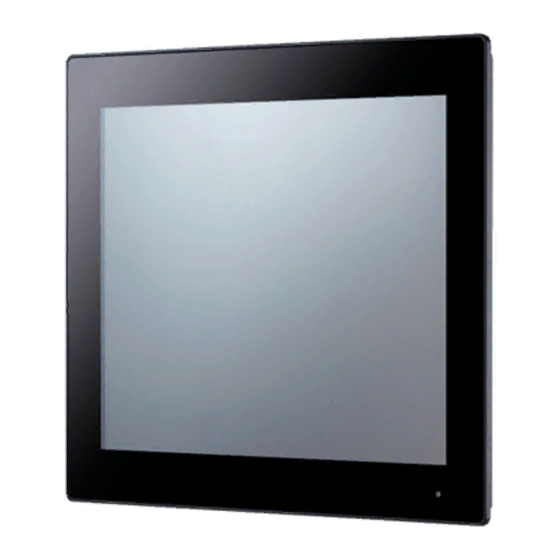

  • Page 1 Panel-PC / S Series PT-S3000HX-DC Series User’s Manual CONTEC CO., LTD.

  • Page 2: Check Your Package

    The product consists of the items listed below. Check, with the following list, that your package is complete . If you discover damaged or missing items, contact your retailer or the general CONTEC information. ◆Product Configuration List PT-S3000HX-DCxxxxxxx [Base / SSD / HDD] Name Pcs.

  • Page 3: Product Configuration Image

    ◆Product Configuration Image * See the Product Configuration List to check if all the components are included for the specified number of units.

  • Page 4: Copyright

    All relevant issues have been considered in the preparation of this document. Should you notice an omission or any questionable item in this document, please feel free to notify CONTEC Co., Ltd. Regardless of the foregoing statement, CONTEC assumes no responsibility for any errors that may appear in this document or for results obtained by the user as a result of using this product.

  • Page 5: Table Of Contents

    Table of Contents Check Your Package ........................... 2 ◆Product Configuration List ....................... 2 ◆Product Configuration Image ....................3 Copyright ............................. 4 Trademarks ............................4 Table of Contents ..........................5 1. INTRODUCTION About the Product ..........................8 ◆Features ............................. 8 ◆Supported OS ..........................8 Customer support ..........................
  • Page 6 Component Function ......................... 30 ◆LED: POWER, ACCESS, STATUS ..................30 ◆DC Power Input Connector: DC-IN..................30 ◆POWER SW ........................... 31 ◆LINE OUT Interface: LINE OUT..................31 ◆MIC IN Interface: MIC ......................31 ◆DVI-I interface: DVI-I ......................32 ◆Display Port Interface: Display Port ..................34 ◆USB3.0 Port: USB3.0 ......................
  • Page 7 ◆SERIAL I/O Address and Register Function ................74 Watch-Dog-Timer ..........................79 Battery ............................... 82 7．LIST OF OPTIONAL PRODUCT...

  • Page 8: Introduction

    1. Introduction About the Product This product is a high-performance embedded-type personal computer equipped with the 6th- generation Intel ® Core ™ processor. Embedded-type chipset and CPU have been adopted. The use of readily available parts ensures the ease of the use of the product. PT-S3000HX [without expansion slot model] ◆Features ®...

  • Page 9: Customer Support

    You can download updated driver software and differential files as well as sample programs available in several languages. ■Note! For product information Contact your retailer if you have any technical question about a CONTEC product or need its price, delivery time, or estimate information. Limited One-Year Warranty CONTEC products are warranted by CONTEC CO., LTD.

  • Page 10: Liability

    Liability The obligation of the warrantor is solely to repair or replace the product. In no event will the warrantor be liable for any incidental or consequential damages due to such defect or consequences that arise from inexperienced usage, misuse, or malfunction of this device. Safety precaution Understand the following definitions and precautions to use the product safely.

  • Page 11: Caution On The Pt-S3000Hx Series

    To prevent corruption of files, always shutdown the OS before turning off this product. CONTEC reserves the right to refuse to service a product modified by the user. In the event of failure or abnormality (foul smells or excessive heat generation), unplug the power cord immediately and contact your retailer.
  • Page 12 years or more. (2) HDD --- HDD models use the HDD to store the operating system. (3) SSD --- SSD models use the SSD to store the operating system. * Replacement of expendables is handled as a repair (there will be a charge). * The service life for consumable parts are reference values and are not guaranteed values.

  • Page 13: 2．System Reference

    2 ． System Reference Specification Table 2.1. Functional specification Model PT-S3000 Series Generation Skylake Intel Core™ i7-6700TE Processor System ® Generation Skylake Intel Core™ i5-6500TE Processor ® Generation Skylake Intel Celeron G3900TE Processor ® ® Intel Q170 Controller Hub CHIPSET ®...
  • Page 14 Table 2.2. Installation Environment Requirements Model PT-S3000HX Series 0°C~50°C with Air Flow: 0.5 m/s (w/ Standard Temp. SSD) (w/ Extended Temp. Operating temperature mSATA) 0°C~40°C with Air Flow: 0.6 m/s (w/ Standard Temp. HDD) -10 - 60°C Storage temperature 10% - 90%RH (No condensation) Humidity Not to be excessive Floating dust...
  • Page 15 Display Optical Specifications Table 2.3. Display Optical Specifications Parameter Condition Min. Typ. θx =90∘ 80deg 88deg Viewing Angle (Horizontal) θx =90∘ 80deg 88deg Display CR≧10 Monochrome θy =90∘ 80deg 88deg Viewing Angle (Vertical) θy =90∘ 80deg 88deg Luminance of gray level 255 Contrast Ratio (CR)= Luminance of gray level 0 Figure 2.1.

  • Page 16: Power Management Features

    Power Management Features Support both ACPI (Advanced Configuration and Power Interface) and legacy (APM) power management. ACPI v2.0 compliant APM v1.2 compliant Support hardware automatic wake-up Power Requirements Your system requires a clean, steady power source for reliable performance of the high frequency CPU on the product, the quality of the power supply is even more important.

  • Page 17: Physical Dimensions

    Physical dimensions PT-S3000HX Figure 2.2. Physical Dimensions (PT-S3000HX)

  • Page 18: 3．Hardware Setup

    3 ． Hardware setup Before Using the Product for the First Time Follow the next steps to set up this product. STEP1 By referring to the information in this chapter, install, connect and set this product. STEP2 Connect cables. Connect the cable of necessary external devices, such as keyboard and a mouse, to this product using appropriate cables.

  • Page 19: Hardware Setup

    Hardware setup ・ Before you start, be sure that the power is turned off. ・ Remove only those screws that are explained. Do not move any other screw. ◆Attaching the HDD and SSD (1) Remove the hard disk bracket from the main body. (2) Attach the hard disk to the hard disk bracket and secure it by tightening the four screws.
  • Page 20 Insert the Hard disk face up. Screw holes may be damaged if screws are tightened with a torque greater than the specified torque. The specified tightening torque is 3 – 3.5kgf ･ cm.

  • Page 21: Attaching The Fg

    ◆Attaching the FG (1) Use screws to attach the FG. Figure 3.3. Attaching the FG The FG pin of this product is connected to the GND signal of the DC power connector (DC-IN). Note that the connection cannot be cut off. Screw holes may be damaged if screws are tightened with a torque greater than the specified torque.

  • Page 22: Fastening The Cable

    ◆Fastening the Cable This product comes with clamps for fixing cables. Fastening the LINEOUT, USB Cable (1) The system unit has a hole for attaching cable clamp to USB removal prevention fitting. Using a cable clamp for a cable with lock-less connector, such as the LINEOUT and USB Cable, prevents the connector from being unplugged.

  • Page 23: Installation

    (2) The photo below shows an example of using a cable clamp. Fix the cable with a clamp without applying stress to the connector. Figure 3.5. Using example of cable clamp ◆Installation (1) Cut out a panel according to the following dimensions to mount the main unit. Figure 3.6.
  • Page 24 Figure 3.7. Confirm the waterproof rubber (3) Hold the attachment fitting from the inside of the panel. Figure 3.8. Hardware Setup Screw holes may be damaged if screws are tightened with a torque greater than the specified torque. The specified tightening torque is 5 - 6 kgf ･ cm.
  • Page 25 Examples are as follows: When use VESA standard 75mm mounting holes The main body has mounting holes according to VESA standard 75mm. When using a VESA standard 75mm stand or the like, attach it as shown the following figure. The VESA Mounting kit Pattern sizes 75x75 /100 x100 (mm).

  • Page 26: Installation Requirements

    ◆Installation Requirements Be sure that the operating temperature is within the range specified in the installation environment requirement by making space between the product and device that generates heat or exhaust air. Installable angle which is recommended 45 ∘ Installed angle of this product which is recommended is 0 -45 ∘ . Except for that, the temperature specification of this product might not be filled.
  • Page 27 Figure 3.11. Distances between this product and its vicinity Do not install this product into the fully-sealed space except the case in which the internal temperature is adjustable by equipment such as air conditioner. Troubles such as operational malfunctions could be occurred by the temperature increase caused by long-term usage.
  • Page 28 Ambient temperature In this product, the ambient temperature is decided from the multiple measurement points as shown below. When making use of the product, the air current should be adjusted to prevent that all the temperatures measured at the measurement points exceed the specified temperature. Figure 3.12.

  • Page 29: 4．Each Component Function

    4 ． Each Component Function Component Name Figure 4.1. Component Name Table 4.1. Component Function Name Function POWER LED Power ON indicator LED STATUS LED Status LED DISK ACCESS LED Disk access indicator LED DC-IN DC power input connector POWER SW Power switch MIC IN Mic in (∅3.5 PHONE JACK)

  • Page 30: Component Function

    ON (Red) You can control the behavior of LED from the user application. API that controls STATUS LED is available. For more information, visit the CONTEC's Web site. ◆DC Power Input Connector: DC-IN To supply the power, always use the power supply listed below.

  • Page 31: Power Sw

    Table 4.3. DC Power Input Connector Connector type 9360-04P (mfd. by ALEX) Pin No. Signal name 12 - 24V 12 - 24V Applicable connector on the connector side Housing : 9357-04 (mfd. by ALEX) or 5557-04R (mfd. by MOLEX) Contact : 4256T2-LF (AWG18-24) (mfd. by ALEX) or 5556 (AWG18-24) (mfd. by MOLEX) Rise time of power supply Voltage 2 –...

  • Page 32: Dvi-I Interface: Dvi-I

    A DVI-I interface is provided. A CRT display (or a 15-pin D-SUB CRT when the included DVI– Analog RGB conversion adapter is used) or a flat-panel display from CONTEC can be connected. The connector name is DVI (DVI-I 29 pin).
  • Page 33 Table 4.5. DVI–analog RGB conversion adapter DVI-I 29 pin Connector type Analog RGB signals Pin No. Signal name Pin No. Signal name GREEN BLUE N.C. N.C. DDC DATA HSYNC VSYNC DDC CLK If the OS is booted without connecting the display cable to the DVI interface, and then the display is connected after the OS boots, the display may not be shown properly.

  • Page 34: Display Port Interface: Display Port

    ◆Display Port Interface: Display Port A Display Port interface is provided. As such, a display equipped with a Display Port can be connected. Table 4.6. Display Port Connector When using a digital display, an analog display may be detected even though no analog display is connected.

  • Page 35: Usb3.0 Port: Usb3.0

    ◆USB3.0 Port: USB3.0 This product is equipped with 4 channel for USB 3.0 TYPE-A interface. Table 4.7. USB3.0 Connector Signal name Pin No. USB3.0 USB_VCC DATA- DATA+ USB_GND SSRX- SSRX+ USB_GND SSTX- SSTX+ ◆USB2.0 Port: USB2.0 This product is equipped with 2 channel for USB 2.0 TYPE-A interface. Table 4.8.

  • Page 36: Giga Bit-Ethernet: Lan A, B

    ◆Giga bit-Ethernet: LAN A, B This product is equipped with 2 ports for giga bit. - Network type : 1000BASE-T/100BASE-TX/10BASE-T - Transmission speed : 1000M/100M/10M bps - Max. network path length : 100m/segment - Controller : LAN-A: Intel® Ethernet Connection I219-LM LAN-B: Intel®...

  • Page 37: Serial Port Interface: Serial 1, 2

    ◆Serial Port Interface: SERIAL A, B The product has 2 channels of RS-232C compliant serial ports supporting up to a baud rate of 115,200bps with a 16-byte transmission-dedicated data buffer and a 16-byte reception-dedicated data buffer. You can use “Chapter 4 BIOS Setup” to configure an I/O address, interrupt and unused state for each of the ports independently.

  • Page 38: 5．Bios Setup

    5 ． BIOS setup Introduction This chapter discusses American Megatrends’ (AMI) Setup program built into the FLASH ROM BIOS. The Setup program allows users to modify the basic system configuration. This special information is then stored in FLASH ROM so that it retains the Setup information when the power is turned off. The rest of this chapter is intended to guide you through the process of configuring your system using Setup.

  • Page 39: Using Setup

    Using Setup In general, you use the arrow keys to highlight items, press <Enter> to select, use the PageUp and PageDown keys to change entries, press <F1> for help and press <Esc> to quit. The following table provides more detail about how to navigate in the Setup program using the keyboard. Table 5.1.

  • Page 40: Main Menu

    Main Menu When the setup program (Aptio Startup Utility) is started, the main menu will be displayed. Navigate through the various tabs by pressing the right and left arrow keys. Figure 5.1. Main Manu < 1 / 2 > Figure 5.2. Main Manu < 2 / 2 >...

  • Page 41: Setup Items

    ◆Setup Items The selectable tabs are as follows. - Main View the basic system structure and configure the language settings and the date and time settings. - Advanced Specify the detailed functions that can be set on the system used. - Chipset Specify the detailed functions that can be set on the system used.

  • Page 42: Main

    Main View the basic system structure. The following items are displayed. Table 5.2. Indication item of the main menu Item Indication example Explanation Project Name PT-S3000 Displays the BIOS core version. Project Version PT3KC x.xx x64 Displays the BIOS version. Build Date and Time xx/xx/xxxx xx:xx:xx Displays the BIOS creation date and time.

  • Page 43: Advanced

    Advanced Specify the detailed system functions. The following items are available. Figure 5.3. Advanced Manu The following sub items are available: - CPU Configuration Configure the CPU settings. - SATA Configuration Configure the SATA controller settings. - RAID Setting Configure the RAID settings. - PCH-FW Configuration Configure the management engine technology parameters.

  • Page 44: Cpu Configuration

    ◆CPU Configuration Configure the operation settings for CPU. Figure 5.4. CPU Configuration Table 5.4. CPU Configuration Item Option Description Disabled Intel (VMX) Virtualization Technology Do not change this setting. Enabled Active Processor Cores Do not change this setting. Disabled Hyper-Threading Do not change this setting.

  • Page 45: Sata Configuration

    ◆SATA Configuration Configure the SATA device options settings. Figure 5.5. SATA Configuration Table 5.5. SATA Configuration Item Option Description Enabled SATA Controller(s) Configure the SATA device. Disabled AHCI Determines how SATA controller(s) SATA Mode Selection operate. Intel RST Premium Enabled SATA Test Mode Do not change this setting.
  • Page 46 Table 5.6. Serial ATA Port 1 Configuration Item Option Description Disabled Port 1 Configure the SATA Port 1 device. Enabled Disabled Hot Plug Designates this port as Hot Pluggable. Enabled Table 5.7. Serial ATA Port 2 Configuration Item Option Description Disabled Port 2 Configure the SATA Port 2 device.
  • Page 47 ◆RAID Settings ® ® Windows 10 & Windows 8.1: UEFI Figure 5.6. UEFI setting (1) Figure 5.7. UEFI setting_default (2-1) SATA Mode Selection default setting : AHCI...
  • Page 48 Figure 5.8. UEFI setting (2-2) SATA Mode Selection change to Intel RST Premium...
  • Page 49 Figure 5.9. UEFI setting (3) Figure 5.10. UEFI setting (4) Please set RAID...
  • Page 50 ® Windows 7: Legacy Figure 5.11. Legancy setting (1) Figure 5.12. Legancy setting_default (2-1) SATA Mode Selection default setting : AHCI...
  • Page 51 Figure 5.13. Legancy setting (2-2) SATA Mode Selection change to Intel RST Premium After setting, please save and reboot. Figure 5.14. Legancy setting (3)
  • Page 52 Press <CTRL-I> Figure 5.15. Legancy setting (4)

  • Page 53: Pch-Fw Configuration

    ◆PCH-FW Configuration Configure the management engine technology settings. Figure 5.16. PCH-FW Configuration Table 5.9. PCH-FW Configuration Item Option Description Disabled ME State Do not change this setting. Enabled Disabled Manageability Features State Do not change this setting. Enabled Disabled AMT BIOS Features Do not change this setting.

  • Page 54: Trusted Configuration

    ◆TRUSTED Configuration Configure the trusted computing settings. Figure 5.17. TRUSTED Configuration Table 5.10. TRUSTED Configuration Item Option Description Disabled TPM 2.0 Support Do not change this setting. Enabled...

  • Page 55: Acpi Settings

    ◆ACPI Settings Configure the settings for ACPI power management. Figure 5.18. ACPI Settings Table 5.11. ACPI Settings Item Option Description Disabled Enables or Disables BIOS ACPI Enable ACPI Auto Configuration auto configuration. Enabled Disabled Configure Hibernation Enable Hibernation settings. Enabled Suspend Disabled ACPI Sleep State Configure the Sleep State settings.

  • Page 56: Super Io Configuration

    ◆Super IO Configuration Configure the operation settings for Super IO. Figure 5.19. Super IO Configuration Table 5.13. Super IO Configuration Item Option Description Serial Port 1 Configuration Refer to Table 5.14. Serial Port 2 Configuration Refer to Table 5.15. Refer to Table 5.16. T.P.
  • Page 57 Table 5.16. T.P. Serial Configuration Item Option Description Disabled Serial Port Enable or Disable Serial Port (COM). Enabled...

  • Page 58: H/W Monitor

    ◆H/W Monitor View hardware monitor information such as the CPU temperature. Figure 5.20. H/W Monitor (Actual Display May Vary.) Table 5.17. Smart Fan Mode Configuration Item Option Description PWM Manual Mode Thermal Cruise Mode Do not change this setting. CPU Smart Fan Mode Smart Fan IV Mode PWM Manual Mode Do not change this setting.

  • Page 59: Csm Configuration

    ◆CSM Configuration Configure settings associated with the CSM (Compatibility Support Module), such as Option ROM execution. Figure 5.21. CSM Configuration Table 5.18. CSM Configuration Item Option Description Disabled CSM Support Do not change this setting. Enabled...

  • Page 60: Usb Configuration

    ◆USB Configuration Configure USB settings. Figure 5.22. USB Configuration Table 5.19. USB Configuration Item Option Description Enabled Legacy USB Support Do not change this setting. Disabled Auto Enabled XHCI Hand-off Do not change this setting. Disabled Disabled USB Mass Storage Driver Do not change this setting.

  • Page 61: Chipset

    Chipset Specify the detailed chipset functions. Figure 5.23. Chipset The following items are available. - System Agent (SA) Configuration Configure system agent (SA) settings. - PCH-IO Configuration Configure the HD Audio subsystem.

  • Page 62: System Agent (Sa) Configuration

    ◆System Agent (SA) configuration Configure the system agent (SA) settings. Figure 5.24. System Agent (SA) Configuration...
  • Page 63 Table 5.20. Graphics Configuration Item Option Description IGFX Primary Display Do not change this setting. Auto Disabled Internal Graphics Do not change this setting. Enabled GTT Size Do not change this setting. 128MB 256MB Aperture Size Do not change this setting. 512MB 1024MB 2048MB...

  • Page 64: Pch-Io Configuration

    ◆PCH-IO Configuration Configure how memory will be used when using the graphic function. Leave these settings as configured before shipment. Figure 5.25. PCH-IO Configuration Table 5.21. PCH-IO Configuration <1/2> Item Option Description Disabled HD Audio Do not change this setting. Enabled Enabled Onboard LAN A Controller...
  • Page 65 Set whether to start the system at the same time the power supply starts. Power OFF: Press the power button to start the system. The system Power on does not start at the same time the power supply starts. Restore AC Power Loss Power ON: Power off The system will start at the same time the power...

  • Page 66: Security

    Security ◆ Configure the security of the system settings. Figure 5.26. Security Administrator Password Set the Administrator Password. Press Enter to display the following screen for entering the password. Administrator Password Create New Password [ **** Confirm New Password [ **** Enter a password at least 3 characters long twice.
  • Page 67 Table 5.22. Secure Boot Item Option Description Disabled Secure Boot Enable Do not change this setting. Enabled Standard Secure Boot Mode Do not change this setting. Custom...

  • Page 68: Boot Configuration

    Boot Configuration ◆ Configure the settings boot devices and other devices. Figure 5.27. Boot Configuration Table 5.23. Boot Configuration Item Opti Description Set the standby time for BIOS Setup Prompt Timeout Setup <DEL> or <F2> input. Unit : [second] Set the NumLock status Bootup NumLock State when the system starts.
  • Page 69 In the Boot Option #x device list, the same device may be displayed as follows. (1) USB Disk (2) UEFI: USB Disk In such cases, if (1) is selected, a legacy boot is performed under the assumption the disk is MBR-formatted.

  • Page 70: Save & Exit

    Save & Exit ◆ Load/save setup items and exit the setup menu. Figure 5.28 Save & Exit menu...

  • Page 71: 6．Appendix

    6 ． Appendix POST Codes ◆ Table 6.1. POST Codes < 1 / 3 > POST (hex) Description < Security (SEC) phase > Power ON. The detection of the reset kind (Hard/Soft) Initialize the microcode load previous AP Initialize the microcode load previous North Bridge Initialize the microcode load previous South Bridge Initialize the microcode load previous OEM Microcode load...
  • Page 72 Table 6.2. POST Codes < 2 / 3 > Description POST (hex) South Bridge runtime services installation CPU DXE installation start 64h - 67h CPU DXE installation start (Specific CPU module) PCI host bridge installation North Bridge DXE initialization starts North Bridge DXE SMM initialization starts 6Bh - 6Fh North Bridge DXE initialization (Specific North Bridge module)
  • Page 73 Table 6.3. POST code < 3 / 3 > Description POST (hex) System reset USB hotplug PCI bus hot plug NVRAM cleanup Configuration reset (Reset the NVRAM settings) B8h - BFh For future AMI codes reserved C0h - CFh OEM BDS initialization code ACPI/ASL Checkpoints S1 sleep system during migration.
  • Page 74 SERIAL I/O Address and Register Function ◆ The following table lists the I/O addresses in case of SERIAL Port A, B. Table 6.4. I/O Port Addresses I/O address DLAB Read/Write Register 03F8H Transmitter holding register Receive buffer register Divisor latch register (LSB) 03F9H Divisor latch register (MSB) Interrupt enable register...
  • Page 75 03F9H IER: Interrupt Enable Register [DLAB=0] Table 6.6. Function of Each Register < 2 / 4 > I/O address Description 03FAH IIR : Interrupt Identification Register...
  • Page 76 03FBH LCR : Line Control Register Table 6.7. Function of Each Register < 3 / 4 > I/O address Description 03FCH MCR: Modem Control Register...
  • Page 77 03FDH LSR: Line Status Register Table 6.8. Function of Each Register < 4 / 4 > I/O address Description 03FEH MSR : Modem Status Register 03FFH SCR : Scratchpad Register This is an 8-bit, readable/writable register which is available to the user to allow data to be saved temporarily.
  • Page 78 1536 1047 0.026 134.5 0.058 1200 1800 2000 0.69 2400 3600 4800 7200 9600 14400 19200 28800 38400 57600 76800 115200 153600 230400 Example: To set 9,600 bps, write "00" to the (MSB) divisor latch register and "12 (decimal)" to the (LSB) divisor latch register.
  • Page 79 Watch-Dog-Timer The watchdog timer serves as a safeguard against possible system lock-up in your industrial computer system. In most industrial environments, there are heavy equipment, generators, high-voltage power lines, or power drops that have adverse effects on your computer system. For instance, when a power drop occurs, it could cause the CPU to come to a halt state or enter into an infinite loop, resulting in a system lock-up.
  • Page 80 <WDT Initial> =============== .MODEL SMALL .STACK 100h .386p .Code IO_Port ;--- The WDTT value of an example is 5 seconds ;--- If the WDTT value is 0, the WDT is stop. WDTT BEGIN: ;--- Init NCT610xD IO --- dx,IO_Port al,087h dx,al dx,al ;--- Set Logical Device 8 ---...
  • Page 81 dx,al dx,IO_Port+1 al,dx cl,al Get_IO Endp Set_IO Proc Near dx,IO_Port al,ch dx,al dx,IO_Port+1 al,cl dx,al Set_IO Endp END BEGIN The timer’s intervals have a tolerance of ± 2 seconds...
  • Page 82 Battery Battery Specification This product uses the following battery. - Type Lithium primary battery - Model : BR-2032/BN - Maker : Panasonic - Nominal voltage - Nominal capacity : 190 mAh - Lithium content : 1g or less Removing the battery Remove the battery according to the following figure.
  • Page 83 Disposing the battery Dispose the removed battery properly as instructed by local government.
  • Page 84 Precautions when using products other than our options If a product other than our option is used, need to use below 40℃surroundings, or the normal operation may be impaired or the functions may be limited. *Visit Contec website regarding information on the optional products.
  • Page 85 PT-S3000HX Series User’s Manual CONTEC CO., LTD August 2019 Edition 9F, No.738, Zhongzheng Road., Zhonghe Dist., New Taipei City 23511, Taiwan (R.O.C.) Japanese http://www.contec.co.jp/ English http://www.contec.com/ Chinese http://www.contec.com.cn/ All rights reserved. This product and this document are protected by copyright law. Unauthorized copying, duplication, reproduction, and tampering are prohibited.
