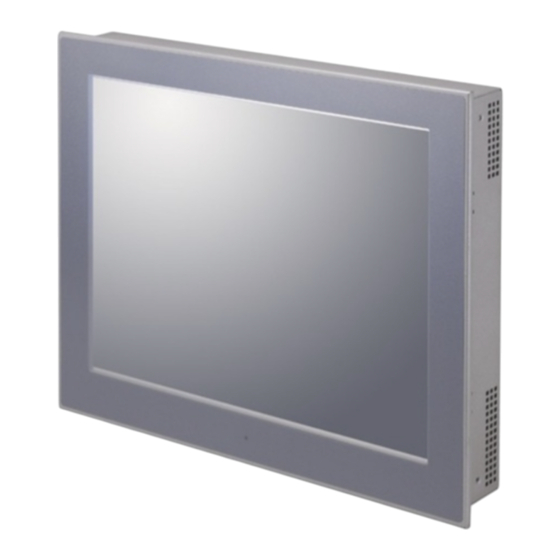

Contec PT-S959SDLX Series User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
PANEL-PC for S Series
PT-S959SDLX &
PT-S959SDLXC Series
User's Manual
CONTEC CO., LTD.

Advertisement

Table of Contents
loading

Related Manuals for Contec PT-S959SDLX Series

Summary of Contents for Contec PT-S959SDLX Series

  • Page 1 PANEL-PC for S Series PT-S959SDLX & PT-S959SDLXC Series User’s Manual CONTEC CO., LTD.

  • Page 2: Check Your Package

    The product consists of the items listed below. Check, with the following list, that your package is complete . If you discover damaged or missing items, contact your retailer or the general CONTEC information. ◆Product Configuration List < 1 / 2 > PT-S959SDLXF2...

  • Page 3: Product Configuration Image

    Washer assembled screw (M3x6) Screws for attachment None None None HDD (or SSD) (M3x4) Power supply connector complete set Power connector Contact Cable clamp DVI-analog RGB conversion adapter Product guide Please confirm User Manual in a website. Please using the HDD (Operation Temperature -30 ℃ to 85 ℃ ), If using others, For 40 ℃ / 24hrs surroundings. ◆Product Configuration Image * See the Product Configuration List to check if all the components are included for the specified number of units.

  • Page 4: Copyright

    No part of this document may be copied or reproduced in any form by any means without prior written consent of CONTEC CO., LTD. CONTEC CO., LTD. makes no commitment to update or keep current the information contained in this document.

  • Page 5: Table Of Contents

    Limited One-Year Warranty ........................ 3 How to Obtain Service......................... 3 Liability ............................... 4 Safety precaution ..........................4 ◆Safety information ........................4 ◆Caution on the PT-S959SDLX Series ..................4 2．SYSTEM REFERENCE Specification ............................7 Power Management Features ......................11 Power Requirements .......................... 11 ◆Power Consumption ........................
  • Page 6 4．EACH COMPONENT FUNCTION Component Name ..........................22 System Configuration ........................23 Component Function ......................... 24 ◆LED: POWER, ACCESS, STATUS ..................24 ◆DC Power Input Connector: DC-IN ..................24 ◆POWER SW ........................... 25 ◆LINE OUT Interface: LINE OUT ................... 25 ◆MIC IN Interface: MIC ......................25 ◆DVI-I interface: DVI-I ......................
  • Page 7 ◆LAN Configuration ......................... 59 Security.............................. 60 Boot Configuration ..........................61 Save & Exit ............................63 6．APPENDIX POST Codes ............................64 SERIAL I/O Address and Register Function ..................67 Watch-Dog-Timer ..........................73 Battery ............................... 76 7．LIST OF OPTIONAL PRODUCT PT-S959SDLX / PT-S959SDLXC Series User’s Manual...

  • Page 9: Introduction

    CFast card for storage and is fanless to ensure a totally spindleless design that simplifies maintenance. Embedded-type CPU have been adopted. The use of readily available parts ensures the ease of the use of the product. In addition, the use of Contec-customized BIOS allows support to be provided at the BIOS level. ◆Features - Contributing to reduction of running cost and promotion of energy efficiency.

  • Page 10: Supported Os

    - Major types of peripherals are supported with rich interfaces including the two CFast card slots It has a variety of extended interface such as DVI-I x 1, 1000BASE-T x 2, USB3.0 x 1, USB2.0 x 6, serial (RS-232C) x 3, serial (RS-232C/422/485) x 1, DIO x 1. It has two CFast card slots, providing the ability to separate data from the operating system, as well as the convenience of being able to use one slot for system startup and the other for maintenance or for taking home system logs or collected data.

  • Page 11: Customer Support

    You can download updated driver software and differential files as well as sample programs available in several languages. ■Note! For product information Contact your retailer if you have any technical question about a CONTEC product or need its price, delivery time, or estimate information. Limited One-Year Warranty CONTEC products are warranted by CONTEC CO., LTD.

  • Page 12: Liability

    CAUTION indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury or in property damage. ◆Caution on the PT-S959SDLX Series Handling Precautions WARNING Always check that the power supply is turned off before connecting or disconnecting power cables.
  • Page 13 To prevent corruption of files, always shutdown the OS before turning off this product. CONTEC reserves the right to refuse to service a product modified by the user. In the event of failure or abnormality (foul smells or excessive heat generation), unplug the power cord immediately and contact your retailer.
  • Page 14 The CFast card connector, 2.5-inch HDD and SSD slot do not support hot plugging. CFast cards, 2.5-inch HDD and SSD cannot be removed or inserted while the power is on. Do not remove or install CFast cards or 2.5-inch HDD or SSD, or connect to CFast cards or 2.5-inch HDD or SSD while the unit is turned on.

  • Page 15: 2．System Reference

    2 ． System Reference Specification Table 2.1. Functional specification< 1 / 2 > PT-S959SDLX & PT-S959SDLXC Series Model Assembly type Panel mounted Intel® Atom™ E3845 1.91GHz Quad Core Chipset Intel® Baytrail BIOS AMI SPI BIOS Memory 4GB (One 204Pin SO-DIMM socket x1), support DDR3L 1333 up to 8GB/ECC Graphic Integrated Intel®...
  • Page 16 Serial I/F RS-232C (general-purpose) : 3port (SERIAL PORT A, B. C), 9pin D-SUB connector (male)；RS-232C/422/485 (general-purpose) : 1port (SERIAL PORT D), 9pin D-SUB connector (male)。Baud rate : 50 - 115,200bps General-purpose I/O Non-isolated type : I/O 6 channels, Power switch signal Hardware monitoring Monitoring CPU temperature, power voltage *1: PT-S959SDLX &...
  • Page 17 Table 2.2. Installation Environment Requirements PT-S959SDLX& PT-S959SDLXC Series Model Operating temperature 0 - 50°C (When using 1000BASE-T : 0 - 45°C) Storage temperature -10 - 60°C Humidity 10 - 90%RH (No condensation) Floating dust Not to be excessive particles Corrosive gases None Line-noise AC line /±...
  • Page 18 Display Optical Specifications Table 2.3. Display Optical Specifications Parameter Condition Min. Typ. θx =90∘ 70deg 80deg Viewing Angle (Horizontal) θx =90∘ 70deg 80deg Display CR≧10 Monochrome θy =90∘ 60deg 70deg Viewing Angle (Vertical) θy =90∘ 60deg 70deg Luminance of gray level 63 Contrast Ratio (CR)= Luminance of gray level 0 Figure 2.1.

  • Page 19: Power Management Features

    Power Management Features Support both ACPI (Advanced Configuration and Power Interface) and legacy (APM) power management. ACPI v2.0 compliant APM v1.2 compliant Support hardware automatic wake-up Power Requirements Your system requires a clean, steady power source for reliable performance of the high frequency CPU on the product, the quality of the power supply is even more important.

  • Page 20: Physical Dimensions

    Physical dimensions PT-S959SDLX / PT-S959SDLXC Series Figure 2.2. Physical Dimensions (PT-S959SDLX / PT-S959SDLXC series) PT-S959SDLX / PT-S959SDLXC Series User’s Manual...

  • Page 21: 3．Hardware Setup

    3 ． Hardware setup Before Using the Product for the First Time Follow the next steps to set up this product. STEP1 By referring to the information in this chapter, install, connect and set this product. STEP2 Connect cables. Connect the cable of necessary external devices, such as keyboard and a mouse, to this product using appropriate cables.

  • Page 22: Hardware Setup

    Hardware setup ・ Before you start, be sure that the power is turned off. ・ Remove only those screws that are explained. Do not move any other screw. ◆Attaching the CFast Attachment Fittings (1) After inserting the CFast Card, fasten the bundled CFast attachment fittings with a screw. Figure 3.1.

  • Page 23: Attaching The Hdd And Ssd

    ◆Attaching the HDD and SSD (1) Remove the hard disk bracket from the main body. (2) Attach the hard disk to the hard disk bracket and secure it by tightening the four screws. (3) Insert the hard disk bracket with the hard disk attached into the main body, and secure it by tightening the screw.

  • Page 24: Attaching The Fg

    ◆Attaching the FG (1) Use screws to attach the FG. Figure 3.3. Attaching the FG The FG pin of this product is connected to the GND signal of the DC power connector (DC-IN). Note that the connection cannot be cut off. Screw holes may be damaged if screws are tightened with a torque greater than the specified torque.

  • Page 25: Fastening The Cable

    ◆Fastening the Cable This product comes with clamps for fixing cables. Fastening the LINEOUT, USB Cable (1) The system unit has a hole for attaching cable clamp to USB removal prevention fitting. Using a cable clamp for a cable with lock-less connector, such as the LINEOUT and USB Cable, prevents the connector from being unplugged.

  • Page 26: Hardware Setup

    ◆Hardware Setup (1) Cut out a panel according to the following dimensions to mount the main unit. Figure 3.6. Dimension of Panel Opening (2) Confirm the waterproof rubber is setup in the groove of the panel back of the main body and insert the main body into the panel from the external side.
  • Page 27 When use VESA standard 75mm mounting holes The main body has mounting holes according to VESA standard 75mm. When using a VESA standard 75mm stand or the like, attach it as shown the following figure. Figure 3.9. Installation of VESA metal fittings PT-S959SDLX / PT-S959SDLXC Series User’s Manual...

  • Page 28: Installation Requirements

    ◆Installation Requirements Be sure that the operating temperature is within the range specified in the installation environment requirement by making space between the product and device that generates heat or exhaust air. Installable angle which is recommended 45 ∘ Installed angle of this product which is recommended is 0 -45 ∘ . Except for that, the temperature specification of this product might not be filled.
  • Page 29 Figure 3.11. Distances between this product and its vicinity Do not install this product into the fully-sealed space except the case in which the internal temperature is adjustable by equipment such as air conditioner. Troubles such as operational malfunctions could be occurred by the temperature increase caused by long-term usage. Ambient temperature In this product, the ambient temperature is decided from the multiple measurement points as shown below.

  • Page 30: 4．Each Component Function

    4 ． Each Component Function Component Name - Front view - Bottom view - Side view Figure 4.1. Component Name Table 4.1. Component Function Name Function POWER SW Power switch Power ON LED POWER LED ACCESS LED CFast disk access display LED STATUS LED Status LED DC-IN...

  • Page 31: System Configuration

    System Configuration Figure 4.2. System Configuration PT-S959SDLX / PT-S959SDLXC Series User’s Manual...

  • Page 32: Component Function

    ON (Red) You can control the behavior of LED from the user application. API that controls STATUS LED is available. For more information, visit the CONTEC's Web site. ◆DC Power Input Connector: DC-IN To supply the power, always use the power adapter listed below.

  • Page 33: Power Sw

    ◆POWER SW POWER SW is provided. ◆LINE OUT Interface: LINE OUT The product is equipped with a connector for line output. As such, headphones or an amplified speaker can be connected. ◆MIC IN Interface: MIC The product is equipped with a connector for microphone input. As such, a microphone can be connected for voice input.

  • Page 34: Dvi-I Interface: Dvi-I

    A DVI-I interface is provided. A CRT display (or a 15-pin D-SUB CRT when the included DVI– Analog RGB conversion adapter is used) or a flat-panel display from CONTEC can be connected. The connector name is DVI (DVI-I 29 pin).
  • Page 35 Table 4.5. DVI–analog RGB conversion adapter Connector type DVI-I 29 pin 15.00 6.20 30.00 5.80 [mm] Analog RGB signals Pin No. Signal name Pin No. Signal name GREEN BLUE N.C. [mm] N.C. DDC DATA HSYNC VSYNC DDC CLK If the OS is booted without connecting the display cable to the DVI interface, and then the display is connected after the OS boots, the display may not be shown properly.

  • Page 36: Usb3.0 Port: Usb3.0

    ◆USB3.0 Port: USB3.0 This product is equipped with 1 channel for USB 3.0 TYPE-A interface. Table 4.6. USB3.0 Connector Signal name Pin No. USB3.0 USB_VCC DATA- DATA+ USB_GND SSRX- SSRX+ USB_GND SSTX- SSTX+ ◆USB2.0 Port: USB2.0 This product is equipped with 6 channel for USB 2.0 TYPE-A interface. Table 4.7.

  • Page 37: Giga Bit-Ethernet: Lan A, B

    ◆Giga bit-Ethernet: LAN A, B This product is equipped with 2 ports for giga bit. - Network type : 1000BASE-T/100BASE-TX/10BASE-T - Transmission speed : 1000M/100M/10M bps - Max. network path length : 100m/segment - Controller : Intel I210IT controller *1 Use a category 5e cable for 1000 Mbps operation. Table 4.8.

  • Page 38: Cfast Card Connector: Cfast1, 2

    ◆CFast Card Connector: CFast1, 2 The CF Card (Type I: dedicated to the memory card) can be connected. Table 4.9. CFast Card Connector Connector type CFast Card Connector Pin No. Signal name Pin No. Signal name N.C. N.C. N.C. N.C. N.C.

  • Page 39: Serial Port Interface: Serial A, B, C, D

    ◆Serial Port Interface: SERIAL A, B, C, D The product has 3 channels of RS-232C and 1 channel of RS-232C/422/485 compliant serial ports supporting up to a baud rate of 115,200bps with a 16-byte transmission-dedicated data buffer and a 16-byte reception-dedicated data buffer. You can use “Chapter 4 BIOS Setup” to configure an I/O address, interrupt and unused state for each of the ports independently.
  • Page 40 Table 4.12. RS-232C/422/485 SERIAL Port Connector 9-pin D-SUB (MALE) Connector type Pin No. RS-232C RS-422 RS-485 TX-/RX- TX+/RX+ RTS- RTS+ CTS+ CTS- PT-S959SDLX / PT-S959SDLXC Series User’s Manual...

  • Page 41: Dio Port: Dio

    ◆DIO Port: DIO The product is equipped with an interface to which you can connect a remote switch and a GPIO device. GPIO is not isolated. Table 4.13 Digital I/O connector Connector type 9-pin D-SUB (FEMALE) Pin No Signal name Meaning POWER SW(+) Remote power switch.
  • Page 42 Usage method When controlling the general purpose I/O ports GPIO0 to GPIO5 and when using I/O, set the data to I/O port addresses 02A8h to 02AAh. Usage procedure … (1) GPIO selection Set port 02A8h to "04h" in order to enable the control of GPIO0 to GPIO5 with port 02A9h.

  • Page 43: 5．Bios Setup

    5 ． BIOS setup Introduction This chapter discusses American Megatrends’ (AMI) Setup program built into the FLASH ROM BIOS. The Setup program allows users to modify the basic system configuration. This special information is then stored in FLASH ROM so that it retains the Setup information when the power is turned off. The rest of this chapter is intended to guide you through the process of configuring your system using Setup.

  • Page 44: Using Setup

    Using Setup In general, you use the arrow keys to highlight items, press <Enter> to select, use the PageUp and PageDown keys to change entries, press <F1> for help and press <Esc> to quit. The following table provides more detail about how to navigate in the Setup program using the keyboard. Table 5.1.

  • Page 45: Main Menu

    Main Menu When the setup program (Aptio Startup Utility) is started, the main menu will be displayed. Navigate through the various tabs by pressing the right and left arrow keys. Figure 5.1. Main Manu< 1 / 2 > Figure 5.1. Main Manu < 2 / 2 > PT-S959SDLX / PT-S959SDLXC Series User’s Manual...

  • Page 46: Setup Items

    Administrator Displays the access rights level. *1 When the model is PT-S959SDLX series, the project version is “B959C000”. in contrast, when the model is PT- S959SDLXF2 series, the project version is “B959F000”. This table shows the selections that you can make on the Main Menu.

  • Page 47: Advanced

    Advanced Specify the detailed system functions. The following items are available. Figure 5.2. Advanced Manu The following sub items are available: - ACPI Settings Configure the ACPI settings. - Super IO Configuration Configure the Super IO settings. - H/W Monitor View such information as the CPU temperature.

  • Page 48: Acpi Settings

    ◆ACPI Settings Configure the settings for ACPI power management. Figure 5.3. ACPI Settings Table 5.4. ACPI Settings Item Option Description Disabled Enable Hibernation Configure the Hibernation settings. Enabled Suspend Disabled ACPI Sleep State Configure the Sleep State settings. S3 (Suspend to RAM) Disabled Wake on LAN/RI Control on Configure the Wake on LAN settings and...

  • Page 49: Super Io Configuration

    ◆Super IO Configuration Configure the operation settings for Super IO. Figure 5.4. Super IO Configuration Table 5.6. Super IO Configuration Item Option Description Serial Port A Refer to Table 5.7. Configuration Serial Port B Refer to Table 5.8. Configuration T.P. Serial Refer to Table 5.9.
  • Page 50 Table 5.7. Serial Port A Configuration Item Option Description Disabled Configure the operation settings for Serial Port serial port A. Enabled IO=3F8h; IRQ=4; IO=2A0h; IRQ=3,4,5,6; IO=2E8h; IRQ=3,4,5,6; Change Settings Do not change this setting. IO=2F8h; IRQ=3,4,5,6; IO=3E8h; IRQ=3,4,5,6; IO=3F8h; IRQ=3,4,5,6; IO=2D0-2F8h;...
  • Page 51 Table 5.11. Ext-Serial Port A Configuration Item Option Description Disabled Serial Port Enable or Disable Serial Port (COM). Enabled Device Settings IO=2D0h; IRQ=10; Table 5.12. Ext-Serial Port B Configuration Item Option Description Disabled Serial Port Enable or Disable Serial Port (COM). Enabled Device Settings IO=2E0h;...

  • Page 52: H/W Monitor

    ◆H/W Monitor View hardware monitor information such as the CPU temperature. Figure 5.5. H/W Monitor (Actual Display May Vary.) PT-S959SDLX / PT-S959SDLXC Series User’s Manual...

  • Page 53: Cpu Configuration

    ◆CPU Configuration Configure the operation settings for CPU. Figure 5.6. CPU Configuration Table 5.13. CPU Configuration Item Option Description Disabled Execute Disable Bit Do not change this setting. Enabled Disabled Intel Virtualization Do not change this setting. Technology Enabled PT-S959SDLX / PT-S959SDLXC Series User’s Manual...

  • Page 54: Ppm Configuration

    ◆PPM Configuration Configure the power saving function settings. Figure 5.7. PPM Configuration Table 5.14. PPM Configuration Item Option Description Disabled EIST Do not change this setting. Enabled Disabled CPU C state Report Do not change this setting. Enabled Disabled SOix Do not change this setting.

  • Page 55: Sata Configuration

    ◆SATA Configuration Configure the SATA controller settings. Figure 5.8. SATA Configuration Table 5.15. SATA Configuration Item Option Description Configure the SATA controller operation Enabled settings. Changing this setting will cause Serial-ATA (SATA) Disabled the CFast drive to become unrecognized. Enabled SATA Test Mode Do not change this setting.

  • Page 56: Csm Configuration

    ◆CSM Configuration Configure settings associated with the CSM (Compatibility Support Module), such as Option ROM execution. Figure 5.9. CSM Configuration Table 5.16. CSM Configuration Item Option Description Disabled CSM Support Do not change this setting. Enabled Upon Request GateA20 Active Do not change this setting.

  • Page 57: Chipset

    Chipset Specify the detailed chipset functions. Figure 5.10. Chipset The following items are available. - North Bridge Configure the operation settings for North Bridge. - South Bridge Configure the operation settings for South Bridge. PT-S959SDLX / PT-S959SDLXC Series User’s Manual...

  • Page 58: North Bridge

    ◆North Bridge Configure the operation settings for North Bridge. Figure 5.11. North Bridge Table 5.17. North Bridge Item Option Description Intel IGD Configuration Refer to Table 5.18. LCD Control Refer to Table 5.19. 2 GB 2.25 GB Max TOLUD Do not change this setting. 2.5 GB 2.75 GB 3 GB...

  • Page 59: Intel Igd Configuration

    ◆Intel IGD Configuration Configure how memory will be used when using the graphic function. Leave these settings as configured before shipment. Figure 5.12. Intel GOP Configuration Table 5.18. Intel GOP Configuration <1/2> Item Option Description Enabled GOP Driver Do not change this setting. Disabled Disabled PAVC...
  • Page 60 Table 5.18. Intel GOP Configuration <2/2> Item Option Description 128MB DVMT Total Gfx Mem 256MB Do not change this setting. 128MB 256MB Aperture Size Do not change this setting. 512MB GTT Size Do not change this setting PT-S959SDLX / PT-S959SDLXC Series User’s Manual...

  • Page 61: Lcd Control

    ◆LCD Control Configure the LCD settings. Figure 5.13. LCD Control Table 5.19. LCD Control <1/2> Item Option Description Configure the settings for the port that will be output as the main display at start-up. Primary IGFX Boot Only the main display is displayed during Display OS recovery.
  • Page 62 Table 5.19. LCD Control <2/2> Item Option Description 640x480 LVDS 800x600 LVDS 1024x768 LVDS1 1280x1024 LVDS 1400x1050(RB) LVDS1 1400x1050 LVDS2 1600x1200 LVDS 1366x768 LVDS LCD Panel Type Do not change this setting. 1680x1050 LVDS 1920x1200 LVDS 1440x900 LVDS 1600x900 LVDS 1024x768 LVDS2 1280x800...

  • Page 63: South Bridge Configuration

    ◆South Bridge Configuration Configure the South Bridge settings. Figure 5.14. South Bridge Configuration Table 5.20. South Bridge Configuration Item Option Description Refer to Azalia HD Audio Table 5.21. Refer to USB Configuration Table 5.22. Refer to LAN Configuration Table 5.23. Enabled High Precision Timer Configure the high-precision event timer settings.

  • Page 64: Azalia Hd Audio Configuration

    ◆Azalia HD Audio Configuration Configure the Azalia HD Audio settings. Figure 5.15. Azalia HD Audio Configuration Table 5.21. Azalia HD Audio Configuration Item Option Description Disabled Audio Controller Configure the Audio Controller settings. Enabled PT-S959SDLX / PT-S959SDLXC Series User’s Manual...

  • Page 65: Usb Configuration

    ◆USB Configuration Configure the USB settings. Figure 5.16. USB Configuration PT-S959SDLX / PT-S959SDLXC Series User’s Manual...
  • Page 66 Table 5.22. USB Configuration <1/2> Item Option Description Enabled Configure whether USB keyboards and Legacy USB Support similar devices will be usable with legacy Disabled operating systems (such as MS-DOS). Auto Enabled XHCI Hand-off Do not change this setting. Disabled Disabled EHCI Hand-off Do not change this setting.

  • Page 67: Lan Configuration

    ◆LAN Configuration Configure the LAN settings Figure 5.17. LAN Configuration Table 5.23. LAN Configuration Item Option Description Enabled Onboard LAN A Controller Can not change this setting. Disabled Enabled Onboard LAN B Controller Configure the LAN B Controller settings. Disabled Do not launch PXE Boot...

  • Page 68: Security

    Security ◆ Configure the security of the system settings. Figure 5.18. Security Administrator Password Set the Administrator Password. Press Enter to display the following screen for entering the password. Administrator Password Create New Password [ **** Confirm New Password [ **** Enter a password at least 3 characters long twice.

  • Page 69: Boot Configuration

    Boot Configuration ◆ Configure the settings boot devices and other devices. Figure 5.19. Boot Configuration Table 5.24. Boot Configuration Item Option Description Set the standby time for BIOS Setup Setup Prompt Timeout <DEL> or <F2> input. Unit : [second] Bootup NumLock Set the NumLock status when the State system starts.
  • Page 70 In the Boot Option #x device list, the same device may be displayed as follows. (1) USB Disk (2) UEFI: USB Disk In such cases, if (1) is selected, a legacy boot is performed under the assumption the disk is MBR-formatted.

  • Page 71: Save & Exit

    Save & Exit ◆ Load/save setup items and exit the setup menu. Figure 5.20. Save & Exit menu PT-S959SDLX / PT-S959SDLXC Series User’s Manual...

  • Page 72: 6．Appendix

    6 ． Appendix POST Codes Table 6.1. POST Codes < 1 / 3 > POST (hex) Description < Security (SEC) phase > Power ON. The detection of the reset kind (Hard/Soft) Initialize the microcode load previous AP Initialize the microcode load previous North Bridge Initialize the microcode load previous South Bridge Initialize the microcode load previous OEM Microcode load...
  • Page 73 Table 6.1. POST Codes < 2 / 3 > Description POST (hex) South Bridge runtime services installation CPU DXE installation start 64h - 67h CPU DXE installation start (Specific CPU module) PCI host bridge installation North Bridge DXE initialization starts North Bridge DXE SMM initialization starts 6Bh - 6Fh North Bridge DXE initialization (Specific North Bridge module)
  • Page 74 Table 6.1. POST code < 3 / 3 > Description POST (hex) System reset USB hotplug PCI bus hot plug NVRAM cleanup Configuration reset (Reset the NVRAM settings) B8h - BFh For future AMI codes reserved C0h - CFh OEM BDS initialization code ACPI/ASL Checkpoints S1 sleep system during migration.

  • Page 75: Serial I/O Address And Register Function

    SERIAL I/O Address and Register Function The following table lists the I/O addresses in case of SERIAL A. Table 6.2. I/O Port Addresses I/O address DLAB Read/Write Register 03F8H Transmitter holding register Receive buffer register Divisor latch register (LSB) 03F9H Divisor latch register (MSB) Interrupt enable register 03FAH...
  • Page 76 Table 6.3. Function of Each Register < 1 / 4 > I/O address Description 03F8H THR: Transmitter Holding Register [DLAB=0] Register dedicated to write transmitted data to 03F8H RBR: Reciever Buffer Register [DLAB=O] Register dedicated to read received data from 03F8H DLL: Divisor Latch (LSB) [DLAB=1] Baud rate setting register (LSB)
  • Page 77 Table 6.3. Function of Each Register < 2 / 4 > I/O address Description 03FAH IIR : Interrupt Identification Register 03FBH LCR : Line Contror Regester PT-S959SDLX / PT-S959SDLXC Series User’s Manual...
  • Page 78 Table 6.3. Function of Each Register < 3 / 4 > I/O address Description 03FCH MCR: Modem Control Register 03FDH LSR: Line Status Regester PT-S959SDLX / PT-S959SDLXC Series User’s Manual...
  • Page 79 Table 6.3. Function of Each Register < 4 / 4 > I/O address Description 03FEH MSR : Modem Status Register 03FFH SCR : Scratchpad Register This is an 8-bit, readable/writable register which is available to the user to allow data to be saved temporarily. PT-S959SDLX / PT-S959SDLXC Series User’s Manual...
  • Page 80 Baud Rate Settings A baud rate is set by software by dividing the clock input (1.8432MHz). The baud rate in terms of hardware can be set to a maximum of 115,200 bps for SERIALA, B. The baud rates available in practice depend on the operating environment (cable, software, etc.).

  • Page 81: Watch-Dog-Timer

    Watch-Dog-Timer The watchdog timer serves as a safeguard against possible system lock-up in your industrial computer system. In most industrial environments, there are heavy equipment, generators, high-voltage power lines, or power drops that have adverse effects on your computer system. For instance, when a power drop occurs, it could cause the CPU to come to a halt state or enter into an infinite loop, resulting in a system lock-up.
  • Page 82 <WDT Initial> =============== .MODEL SMALL .STACK 100h .386p .Code IO_Port ;--- The WDTT value of an example is 5 seconds ;--- If the WDTT value is 0, the WDT is stop. WDTT BEGIN: ;--- Init NCT610xD IO --- dx,IO_Port al,087h dx,al dx,al ;--- Set Logical Device 8 ---...
  • Page 83 dx,al dx,IO_Port+1 al,dx cl,al Get_IO Endp Set_IO Proc Near dx,IO_Port al,ch dx,al dx,IO_Port+1 al,cl dx,al Set_IO Endp END BEGIN The timer’s intervals have a tolerance of ± 2 seconds PT-S959SDLX / PT-S959SDLXC Series User’s Manual...

  • Page 84: Battery

    Battery Battery Specification This product uses the following battery. - Type Lithium primary battery - Model : BR-1/2AA - Maker : Panasonic - Nominal voltage - Nominal capacity : 1000mAh - Lithium content : 1g or less Removing the battery Remove the battery according to the following figure.

  • Page 85: 7．List Of Optional Product

    If a product other than our option is used, need to used below 40℃surroundings, or the normal operation may be impaired or the functions may be limited. *Visit Contec website regarding information on the optional products. PT-S959SDLX / PT-S959SDLXC Series User’s Manual...
  • Page 86 PT-S959SDLX / PT-S959SDLXC Series User’s Manual CONTEC CO., LTD November 2019 Edition 3-9-31, Himesato, Nishiyodogawa-ku, Osaka 555-0025, Japan Japanese http://www.contec.co.jp/ English http://www.contec.com/ Chinese http://www.contec.com.cn/ All rights reserved. This product and this document are protected by copyright law. Unauthorized copying, duplication, reproduction, and tampering are prohibited.
