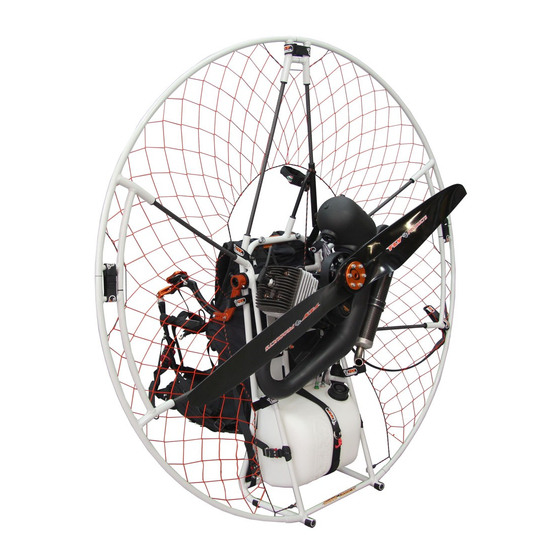

- Page 1 ASSEMBLY MANUAL VERSION 1.1 – 01/2013 Products © s.r.l. Copyright by Via Perù n. 30 63013 GROTTAMMARE (AP) - ITALY tel./fax +39.735.632486 www.flyproducts.com fly@flyproducts.com...
-
Page 2: Table Of Contents
ASSEMBLY MANUAL REL . 1.1 INDEX FRAME ASSEMBLY HARNESS SIZE ADJUSTMENT FITTING THE HARNESS HIGH ATTACK FITTING THE HARNESS LOW ACTIVE ATTACK (ACTIVE LOW HANG POINT) OPTIONAL FITTING THE HARNESS FIXED (FIXED HANG POINT) OPTIONAL PROP MOUNTING MULTIFUNCTION HANDGRIP WARRANTY ___________________________________________________________________________ PRODUCTS ©... -
Page 3: Frame Assembly
ASSEMBLY MANUAL REL . 1.1 FRAME ASSEMBLY Photo frame Assembly common to paramotors: Thrust, Race c, Kompress, Sprint, Jet. • Step 1: assembling the outer frame Starter manual section Supports Support Assembly (only manual starter) Step 2: Assembling the top section of the external frame... - Page 4 ASSEMBLY MANUAL REL . 1.1 Punto 3 : Bloccaggio dei velcri Hook network cord on both Upper Velcro sides Tighten the bottom with velcro tape on both sides Tighten the upper with velcro tape on both sides ___________________________________________________________________________ PRODUCTS © Copyright by s.r.l.
-
Page 5: Harness Size Adjustment
ASSEMBLY MANUAL REL . 1.1 HARNESS SIZE ADJUSTMENT Find the most suited to your needs and verify in the Simulator Cut along the dotted line to get size M. Adjusting harness zip size M. Zip harness adjustment size L. A Position the harness shallower. B position the harness deeper ___________________________________________________________________________ PRODUCTS... -
Page 6: Fitting The Harness High Attack
ATTENTION Mount the plate as is indicated on the sticker of your paramotor Asymmetric distance bar for: Rider Thrust. Anti clockwise rotation of the propeller Asymmetric distance bar for: Rider Jet, Rider Race C,... - Page 7 ASSEMBLY MANUAL REL . 1.1 Assembly of the distance bars Insert the distance bar into the square slot located on the Central frame and close the Velcro straps. Lateral belt attachment Fasten the webbing at maximum length 4) Fastening shoulder webbing Attach the webbing to the right and left of the frame ___________________________________________________________________________...
- Page 8 ASSEMBLY MANUAL REL . 1.1 ASSEMBLY OF (LOW ACTIVE HANG POINT) The harness is fastened to the frame on three anchor points: at the top with two Butterfly bolts sideways with two distance bar and bottom with three belts. 1) Upper hooks harness with two Butterfly bolts Attach the harness to the chassis with the plate and tighten the two bolts with the butterflies.
- Page 9 ASSEMBLY MANUAL REL . 1.1 Configuration for: Rider Sprint, Rider Race C, Rider Jet. Clockwise rotation of the propeller Configuration for: Rider Thrust. Anti clockwise rotation of the propeller ___________________________________________________________________________ PRODUCTS © Copyright by s.r.l. Pag. 9...
- Page 10 ASSEMBLY MANUAL REL . 1.1 ASSEMBLY OF: (FIXED HANG POINT) The harness is fastened to the frame on three anchor points: at the top with two Butterfly bolts sideways with two distance bar and bottom with three belts. 1) Upper hooks harness with two Butterfly bolts Attach the harness to the chassis with the plate and tighten the two bolts with the butterflies.
- Page 11 Punto 3: Bottom bracket of the frame with three straps Configuration for: Rider Sprint, Rider Race C, Rider Jet. Rotazione oraria dell’elica Configuration for: Rider Thrust. Anti clockwise rotation of the propeller ___________________________________________________________________________ PRODUCTS © Copyright by s.r.l. Pag. 11...
-
Page 12: Prop Mounting
The red arrow in the illustration indicates the direction of rotation of the propeller. Fibreglass propeller mounting Propeller bolts draft sequence: Rider Jet Propeller bolts draft sequence: Rider Thrust, Rider Sprint, Rider Race C. ___________________________________________________________________________ PRODUCTS © Copyright by s.r.l. -
Page 13: Multifunction Handgrip
FLY PRODUCTS provides a guarantee on materials and workmanship defects for a period of twelve (12) months from the date of purchase. The warranty applies only to the normal use of the product. The dealer from which you purchased the product, or FLY PRODUCTS, will repair the product at no additional charge. - Page 14 ASSEMBLY MANUAL REL . 1.1 Products © s.r.l. Copyright by VERSIONE 2.2 – 01.11 Via Perù n. 30 63013 GROTTAMMARE (AP) - ITALY tel./fax +39.735.632486 www.flyproducts.com fly@flyproducts.com ___________________________________________________________________________ PRODUCTS © Copyright by s.r.l. Pag. 14...
