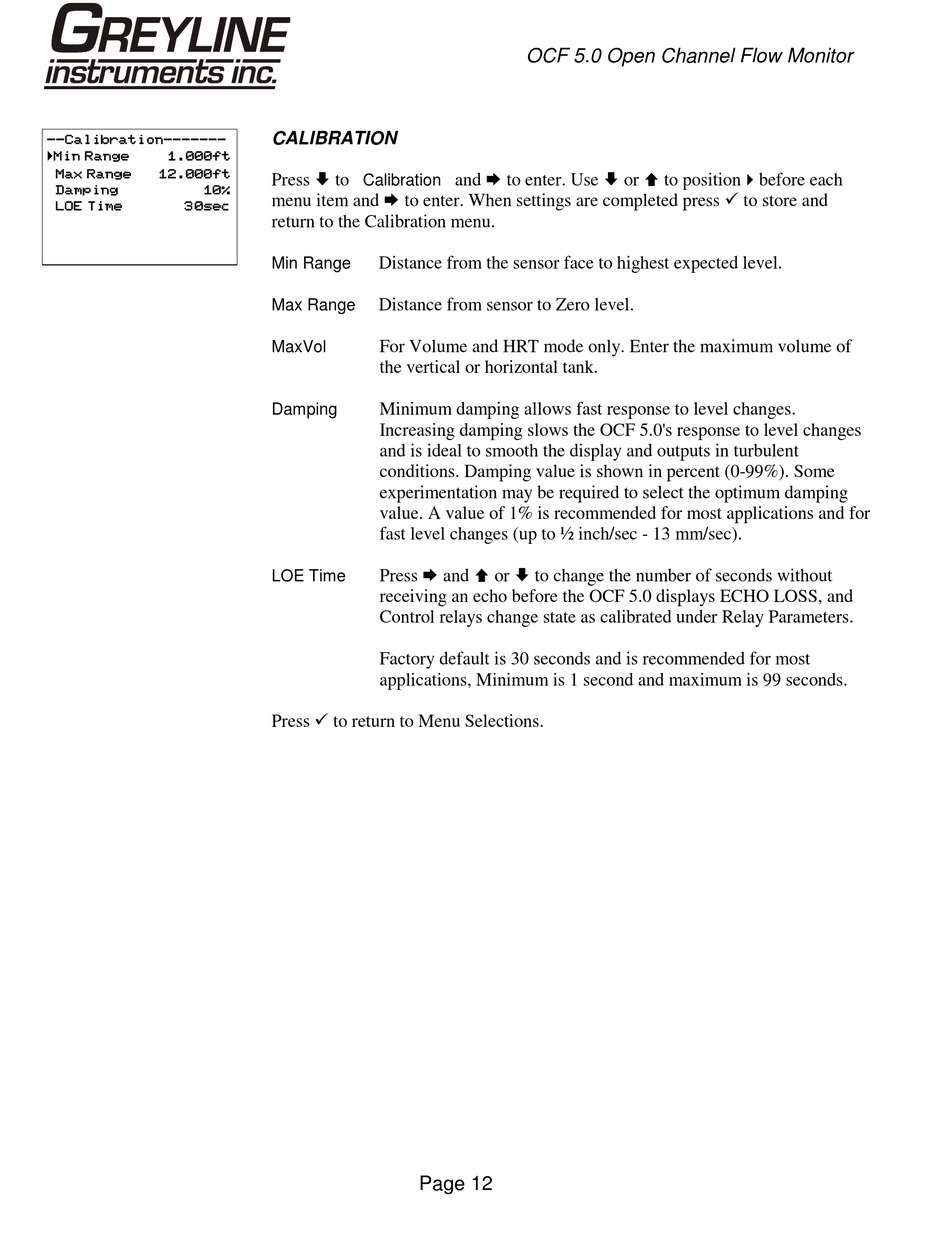

CALIBRATION

Press  to
Calibration
menu item and  to enter. When settings are completed press  to store and
return to the Calibration menu.
Min Range Distance from the sensor face to highest expected level.
Distance from sensor to Zero level.
Max Range
For Volume and HRT mode only. Enter the maximum volume of
MaxVol
the vertical or horizontal tank.
Damping Minimum damping allows fast response to level changes.
Increasing damping slows the OCF 5.0's response to level changes
and is ideal to smooth the display and outputs in turbulent
conditions. Damping value is shown in percent (0-99%). Some
experimentation may be required to select the optimum damping
value. A value of 1% is recommended for most applications and for
fast level changes (up to ½ inch/sec - 13 mm/sec).
Press  and  or  to change the number of seconds without
LOE Time
receiving an echo before the OCF 5.0 displays ECHO LOSS, and
Control relays change state as calibrated under Relay Parameters.
Factory default is 30 seconds and is recommended for most
applications, Minimum is 1 second and maximum is 99 seconds.
Press  to return to Menu Selections.
