Supermicro SUPERSERVER 5018D-MTLN4F User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Проконсультироваться и купить данное оборудование вы можете в компании «АНД-Системс»
адрес: 125480, г.Москва, ул.Туристская, д.33/1; site: https://andpro.ru тел: +7 (495) 545-4870 email: info@andpro.ru
При обращении используйте промокод AND-PDF и получите скидку.

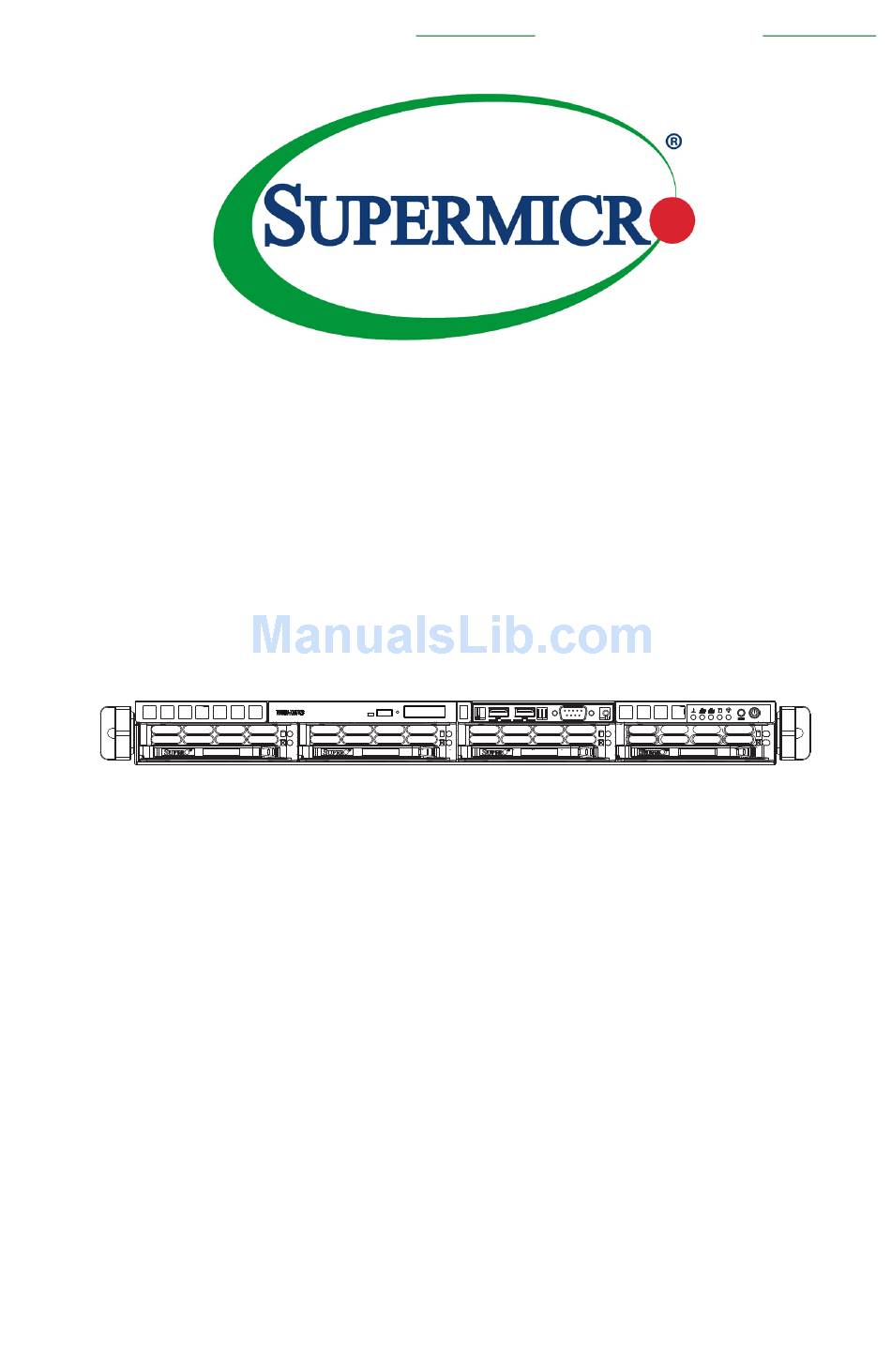

S
S
UPER
ERVER
®
5018D-MTLN4F
USER'S MANUAL
1.0a

Advertisement

Table of Contents
loading

Related Manuals for Supermicro SUPERSERVER 5018D-MTLN4F

Summary of Contents for Supermicro SUPERSERVER 5018D-MTLN4F

  • Page 1 Проконсультироваться и купить данное оборудование вы можете в компании «АНД-Системс» адрес: 125480, г.Москва, ул.Туристская, д.33/1; site: https://andpro.ru тел: +7 (495) 545-4870 email: info@andpro.ru При обращении используйте промокод AND-PDF и получите скидку. UPER ERVER ® 5018D-MTLN4F USER’S MANUAL 1.0a...
  • Page 2 This product, including software and docu- mentation, is the property of Supermicro and/or its licensors, and is supplied only under a license. Any use or reproduction of this product is not allowed, except as expressly permitted by the terms of said license.

  • Page 3: About This Manual

    About This Manual This manual is written for professional system integrators and PC technicians. It provides information for the installation and use of the SuperServer 5018D-MTLN4F. Installation and maintenance should be performed by experienced technicians only. The SuperServer 5018D-MTLN4F is a high-end server based on the SC813MTQ- 350CB 1U rackmount chassis and the Super X10SLM+-LN4F single processor motherboard.
  • Page 4 UPER ERVER 5018D-MTLN4F User's Manual Chapter 5: Advanced Motherboard Setup Chapter 5 provides detailed information on the X10SLM+-LN4F motherboard, including the locations and functions of connections, headers and jumpers. Refer to this chapter when adding or removing processors or main memory and when reconfiguring the motherboard.
  • Page 5 Preface Notes...

  • Page 6: Table Of Contents

    Server Chassis Features ................1-3 System Power ....................1-3 SATA Subsystem ..................... 1-3 Control Panel ....................1-3 Cooling System ....................1-3 Contacting Supermicro ..................1-5 Chapter 2 Server Installation Overview ......................2-1 Unpacking the System ..................2-1 Preparing for Setup ..................2-1 Choosing a Setup Location ................
  • Page 7 Table of Contents Reset ....................... 3-1 Power ......................3-1 Control Panel LEDs ..................3-2 Overheat/Fan Fail ................... 3-2 NIC1 ........................ 3-2 NIC2 ........................ 3-2 HDD ......................... 3-2 Power ......................3-3 Hard Drive Carrier LEDs ................. 3-3 Chapter 4 Standardized Warning Statements for AC Systems About Standardized Warning Statements ............
  • Page 8 UPER ERVER 5018D-MTLN4F User's Manual Memory Population Guidelines ..............5-10 Adding PCI Cards ..................5-11 Motherboard Details ..................5-12 X10SLM+-LN4F Quick Reference ..............5-12 Connector Definitions ................... 5-14 Jumper Settings .................... 5-20 5-10 Onboard Indicators ..................5-23 5-11 SATA Drive Connections ................5-24 5-12 Installing Software ..................

  • Page 9: Chapter 1 Introduction

    Chapter 1 Introduction Overview The SuperServer 5018D-MTLN4F is a high-end server comprised of two main sub- systems: the SC813MTQ-350CB 1U server chassis and the X10SLM+-LN4F single processor motherboard. Please refer to our web site for information on operating systems that have been certified for use with the system (www.supermicro.com).

  • Page 10: Motherboard Features

    ERVER 5018D-MTLN4F User's Manual Motherboard Features At the heart of the SuperServer 5018D-MTLN4F lies the X10SLM+-LN4F, a single processor motherboard based on the Intel® C224 chipset. Below are the main features of the X10SLM+-LN4F (see Figure 1-1 for a block diagram of the chipset).

  • Page 11: Server Chassis Features

    Chapter 1: Introduction Server Chassis Features The SC813MTQ-350CB is a 1U rackmount server chassis. The following is a general outline of the main features of the chassis. System Power When configured as a SuperServer 5018D-MTRF the SC813MTQ chassis includes a single 350W power supply. SATA Subsystem For the 5018D-MTLN4F, the SC813MTQ chassis was designed to support four SATA hard drives, which are hot-swappable units.

  • Page 12: System Block Diagram

    UPER ERVER 5018D-MTLN4F User's Manual Figure 1-1. Intel C224 Chipset: System Block Diagram BLOCK DIAGRAM Note: This is a general block diagram. Please see Chapter 5 for details. RoHS 6/6 DDR3 (CHA) DIMM1 DIMM2(Far) Intel PCIe3.0_x16 1600/1333MHz PCIe x16 SLOT 4 UDIMM Processor 8.0Gb...

  • Page 13: Contacting Supermicro

    Super Micro Computer, Inc. 980 Rock Ave. San Jose, CA 95131 U.S.A. Tel: +1 (408) 503-8000 Fax: +1 (408) 503-8008 Email: marketing@supermicro.com (General Information) support@supermicro.com (Technical Support) Web Site: www.supermicro.com Europe Address: Super Micro Computer B.V. Het Sterrenbeeld 28, 5215 ML...
  • Page 14 UPER ERVER 5018D-MTLN4F User's Manual Notes...

  • Page 15: Chapter 2 Server Installation

    Precautions in the next section. Preparing for Setup The box the SuperServer 5018D-MTLN4F was shipped in should include two sets of rail assemblies, six rail mounting brackets and the mounting screws you will need to install the system into the rack. Follow the steps in the order given to complete the installation process in a minimal amount of time.

  • Page 16: Warnings And Precautions

    UPER ERVER 5018D-MTLN4F User's Manual installation only in a Restricted Access Location (dedicated equipment rooms, service closets and the like). • This product is not suitable for use with visual display work place devices acccording to §2 of the German Ordinance for Work with Visual Display Units. Warnings and Precautions Rack Precautions •...

  • Page 17: Rack Mounting Considerations

    Chapter 2: Server Installation Rack Mounting Considerations Ambient Operating Temperature If installed in a closed or multi-unit rack assembly, the ambient operating tempera- ture of the rack environment may be greater than the ambient temperature of the room. Therefore, consideration should be given to installing the equipment in an environment compatible with the manufacturer’s maximum rated ambient tempera- ture (Tmra).

  • Page 18: Installing The System Into A Rack

    Identifying the Sections of the Rack Rails You may have received rack rail hardware with the SuperServer 5018D-MTLN4F. (Two front inner rails should already be attached to the chassis.) This hardware consists of two rear inner rails that secure to the chassis, one on each side just be- hind the preinstalled front inner rails.

  • Page 19: Installing The Rack Rails

    Figure 2-1. Installing Rear Inner Chassis Rails Installing the Rack Rails Determine where you want to place the SuperServer 5018D-MTLN4F in the rack (see Rack and Server Precautions in Section 2-3). Position the chassis rail guides at the desired location in the rack, keeping the sliding rail guide facing the inside of the rack.

  • Page 20: Installing The Server Into The Rack

    UPER ERVER 5018D-MTLN4F User's Manual Installing the Server into the Rack You should now have rails attached to both the chassis and the rack unit. The next step is to install the server into the rack. Do this by lining up the rear of the chassis rails with the front of the rack rails.

  • Page 21: Installing The Server Into A Telco Rack

    Chapter 2: Server Installation Installing the Server into a Telco Rack To install the SuperServer 5018D-MTLN4F into a Telco type rack, use two L-shaped brackets on either side of the chassis (four total). First, determine how far the server will extend out the front of the rack. Larger chassis should be positioned to balance the weight between front and back.
  • Page 22 UPER ERVER 5018D-MTLN4F User's Manual Notes...

  • Page 23: Chapter 3 System Interface

    Chapter 3: System Interface Chapter 3 System Interface Overview There are several LEDs on the control panel as well as others on the hard drive carriers to keep you constantly informed of the overall status of the system as well as the activity and health of specific components.

  • Page 24: Control Panel Leds

    UPER ERVER 5018D-MTLN4F User's Manual Control Panel LEDs The control panel located on the front of the SC813MTQ chassis has five LEDs. These LEDs provide you with critical information related to different parts of the system. This section explains what each LED indicates when illuminated and any corrective action you may need to take.

  • Page 25: Hdd

    Chapter 3: System Interface Channel activity for all HDDs. This light indicates hard drive activity on the 5018D- MTLN4F when flashing. Power Indicates power is being supplied to the system's power supply units. This LED should normally be illuminated when the system is operating. Hard Drive Carrier LEDs Each drive carrier has two LEDs.
  • Page 26 UPER ERVER 5018D-MTLN4F User's Manual Notes...

  • Page 27: About Standardized Warning Statements

    The following statements are industry standard warnings, provided to warn the user of situations which have the potential for bodily injury. Should you have questions or experience difficulty, contact Supermicro's Technical Support department for assistance. Only certified technicians should attempt to install or configure components.
  • Page 28 UPER ERVER 5018D-MTLN4F User's Manual Warnung WICHTIGE SICHERHEITSHINWEISE Dieses Warnsymbol bedeutet Gefahr. Sie befinden sich in einer Situation, die zu Verletzungen führen kann. Machen Sie sich vor der Arbeit mit Geräten mit den Gefahren elektrischer Schaltungen und den üblichen Verfahren zur Vorbeugung vor Unfällen vertraut.
  • Page 29 Warning Statements for AC Systems ‫جسذٌة‬ ‫اصابة‬ ً‫تتسبب ف‬ ‫حالة ٌوكي أى‬ ً‫اًك ف‬ ‫خطز‬ ًٌ‫ٌع‬ ‫هذا الزهز‬ !‫تحذٌز‬ ‫الذوائز‬ ‫بالوخاطز الٌاجوة عي‬ ‫ي على علن‬ ، ‫ك‬ ‫هعذات‬ ‫تعول على أي‬ ‫قبل أى‬ ‫الكهزبائٍة‬ ‫حىادث‬ ‫أي‬ ‫وقىع‬ ‫وٌع‬ ‫ل‬ ‫الىقائٍة‬...

  • Page 30: Installation Instructions

    UPER ERVER 5018D-MTLN4F User's Manual Installation Instructions Warning! Read the installation instructions before connecting the system to the power source. 設置手順書 システムを電源に接続する前に、 設置手順書をお読み下さい。 警告 将此系统连接电源前,请先阅读安装说明。 警告 將系統與電源連接前，請先閱讀安裝說明。 Warnung Vor dem Anschließen des Systems an die Stromquelle die Installationsanweisungen lesen. ¡Advertencia! Lea las instrucciones de instalación antes de conectar el sistema a la red de alimentación.

  • Page 31: Circuit Breaker

    Chapter 4: Warning Statements for AC Systems Circuit Breaker Warning! This product relies on the building's installation for short-circuit (overcurrent) protection. Ensure that the protective device is rated not greater than: 250 V, 20 A. サーキッ ト ・ ブレーカー この製品は、 短絡 （過電流） 保護装置がある建物での設置を前提としています。 保護装置の定格が250 V、...

  • Page 32: Power Disconnection Warning

    UPER ERVER 5018D-MTLN4F User's Manual 경고! 이 제품은 전원의 단락(과전류)방지에 대해서 전적으로 건물의 관련 설비에 의존합니다. 보호장치의 정격이 반드시 250V(볼트), 20A(암페어)를 초과하지 않도록 해야 합니다. Waarschuwing Dit product is afhankelijk van de kortsluitbeveiliging (overspanning) van uw electrische installatie. Controleer of het beveiligde aparaat niet groter gedimensioneerd is dan 220V, 20A.
  • Page 33 Chapter 4: Warning Statements for AC Systems ¡Advertencia! El sistema debe ser disconnected de todas las fuentes de energía y del cable eléctrico quitado de los módulos de fuente de alimentación antes de tener acceso el interior del chasis para instalar o para quitar componentes de sistema. Attention Le système doit être débranché...

  • Page 34: Equipment Installation

    UPER ERVER 5018D-MTLN4F User's Manual Equipment Installation Warning! Only trained and qualified personnel should be allowed to install, replace, or service this equipment. 機器の設置 トレーニングを受け認定された人だけがこの装置の設置、 交換、 またはサービスを許可 されています。 警告 只有经过培训且具有资格的人员才能进行此设备的安装、更换和维修。 警告 只有經過受訓且具資格人員才可安裝、更換與維修此設備。 Warnung Das Installieren, Ersetzen oder Bedienen dieser Ausrüstung sollte nur geschultem, qualifiziertem Personal gestattet werden.

  • Page 35: Restricted Area

    Chapter 4: Warning Statements for AC Systems Waarschuwing Deze apparatuur mag alleen worden geïnstalleerd, vervangen of hersteld door geschoold en gekwalificeerd personeel. Restricted Area Warning! This unit is intended for installation in restricted access areas. A restricted access area can be accessed only through the use of a special tool, lock and key, or other means of security.

  • Page 36: Battery Handling

    UPER ERVER 5018D-MTLN4F User's Manual ‫אזור עם גישה מוגבלת‬ !‫אזהרה‬ ‫יש להתקין את היחידה באזורים שיש בהם הגבלת גישה. הגישה ניתנת בעזרת‬ .)'‫כלי אבטחה בלבד (מפתח, מנעול וכד‬ ‫محظورة‬ ‫مناطق‬ ٍ‫نتركُبها ف‬ ‫هذه انىحذة‬ ‫تخصيص‬ ‫تم‬ ،‫أداة خاصت‬ ‫من خالل استخذاو‬ ‫فقط‬...
  • Page 37 Chapter 4: Warning Statements for AC Systems Warnung Bei Einsetzen einer falschen Batterie besteht Explosionsgefahr. Ersetzen Sie die Batterie nur durch den gleichen oder vom Hersteller empfohlenen Batterietyp. Entsorgen Sie die benutzten Batterien nach den Anweisungen des Herstellers. Attention Danger d'explosion si la pile n'est pas remplacée correctement. Ne la remplacer que par une pile de type semblable ou équivalent, recommandée par le fabricant.

  • Page 38: Redundant Power Supplies

    UPER ERVER 5018D-MTLN4F User's Manual Redundant Power Supplies Warning! This unit might have more than one power supply connection. All connections must be removed to de-energize the unit. 冗長電源装置 このユニッ トは複数の電源装置が接続されている場合があります。 ユニッ トの電源を切るためには、 すべての接続を取り外さなければなりません。 警告 此部件连接的电源可能不止一个，必须将所有电源断开才能停止给该部件供电。 警告 此裝置連接的電源可能不只一個，必須切斷所有電源才能停止對該裝置的供電。 Warnung Dieses Gerät kann mehr als eine Stromzufuhr haben. Um sicherzustellen, dass der Einheit kein trom zugeführt wird, müssen alle Verbindungen entfernt werden.

  • Page 39: Backplane Voltage

    Chapter 4: Warning Statements for AC Systems ‫امداد الطاقة‬ ‫بوحدات‬ ‫عدة اتصاالت‬ ‫جهاز‬ ‫ال‬ ‫يكون لهذا‬ ‫قد‬ ‫الكهرباء‬ ‫عن‬ ‫وحدة‬ ‫ال‬ ‫لعسل‬ ‫كافة االتصاالت‬ ‫يجب إزالة‬ 경고! 이 장치에는 한 개 이상의 전원 공급 단자가 연결되어 있을 수 있습니다. 이 장치에 전원을...

  • Page 40: Comply With Local And National Electrical Codes

    UPER ERVER 5018D-MTLN4F User's Manual ‫מתח בפנל האחורי‬ !‫הרה‬ ‫אז‬ ‫קיימת סכנת מתח בפנל האחורי בזמן תפעול המערכת. יש להיזהר במהלך‬ .‫העבודה‬ ‫اللىحة‬ ‫أوالطاقة المىجىدة على‬ ‫التيار الكهزبائي‬ ‫مه‬ ‫خطز‬ ‫هناك‬ ‫هذا الجهاس‬ ‫خدمة‬ ‫كه حذرا عند‬ ‫يعمل‬ ‫النظام‬ ‫عندما يكىن‬ 경고! 시스템이...

  • Page 41: Product Disposal

    Chapter 4: Warning Statements for AC Systems Attention L'équipement doit être installé conformément aux normes électriques nationales et locales. ‫תיאום חוקי החשמל הארצי‬ !‫אזהרה‬ ‫הציוד חייבת להיות תואמת לחוקי החשמל המקומיים והארציים‬ ‫התקנת‬ ‫المتعلقة‬ ‫المحلية والىطىية‬ ‫قىاويه‬ ‫يجب أن يمتثل لل‬ ‫الكهربائية‬...

  • Page 42: Hot Swap Fan Warning

    UPER ERVER 5018D-MTLN4F User's Manual Attention La mise au rebut ou le recyclage de ce produit sont généralement soumis à des lois et/ou directives de respect de l'environnement. Renseignez-vous auprès de l'organisme compétent. ‫סילוק המוצר‬ !‫אזהרה‬ .‫חוקי המדינה‬ ‫סילוק סופי של מוצר זה חייב להיות בהתאם להנחיות ו‬ ‫القىانين...
  • Page 43 Chapter 4: Warning Statements for AC Systems Warnung Gefährlich Bewegende Teile. Von den bewegenden Lüfterblätter fern halten. Die Lüfter drehen sich u. U. noch, wenn die Lüfterbaugruppe aus dem Chassis genommen wird. Halten Sie Finger, Schraubendreher und andere Gegenstände von den Öffnungen des Lüftergehäuses entfernt. ¡Advertencia! Riesgo de piezas móviles.

  • Page 44: Power Cable And Ac Adapter

    Electrical Appliance and Material Safety Law prohibits the use of UL or CSA -certified cables (that have UL/CSA shown on the code) for any other electrical devices than products designated by Supermicro only. 電源コードとACアダプター 製品を設置する場合、 提供または指定された接続ケーブル、 電源コードとACアダプター...
  • Page 45 Appareils électroménagers et de loi sur la sécurité Matériel interdit l'utilisation de UL ou CSA câbles certifiés qui ont UL ou CSA indiqué sur le code pour tous les autres appareils électriques que les produits désignés par Supermicro seulement.
  • Page 46 UPER ERVER 5018D-MTLN4F User's Manual Notes 4-20...

  • Page 47: Chapter 5 Advanced Motherboard Setup

    Chapter 5: Advanced Motherboard Setup Chapter 5 Advanced Motherboard Setup This chapter covers the steps required to install processors and heatsinks to the X10SLM+-LN4F motherboard, connect the data and power cables and install add- on cards. All motherboard jumpers and connections are described and a layout and quick reference chart are included in this chapter.

  • Page 48: Processor And Heatsink Installation

    CPU socket cap is in place and none of the socket pins are bent; otherwise, contact your retailer immediately. • Refer to the Supermicro web site for updates on CPU support. Installing an LGA1150 Processor 1. Gently press down the load plate handle and push it outward (to the right side) to unlock it.
  • Page 49 Chapter 5: Advanced Motherboard Setup 3. Once the load plate is open, use your thumb and your index finger to hold the CPU at the north center edge and the south center edge of the CPU. North Center Edge South Center Edge 4.
  • Page 50 UPER ERVER 5018D-MTLN4F User's Manual 7. Once the CPU is properly installed, use your thumb to gently push the load plat handle down to the handle lock and lock it. CPU properly installed Load Plate Handle is locked into place 8.

  • Page 51: Installing A Passive Cpu Heatsink

    Chapter 5: Advanced Motherboard Setup Installing a Passive CPU Heatsink 1. Do not apply any thermal grease to the heatsink or the CPU die; the required amount has already been applied. 2. Place the heatsink on top of the CPU so that the four mounting holes are aligned with those on the motherboard and the heatsink bracket underneath.
  • Page 52 UPER ERVER 5018D-MTLN4F User's Manual Figure 5-1. Installing the Heatsink Figure 5-2. Removing the Heatsink Loosen screws in the Screw #4 sequence shown Screw #1 Screw #2 Motherboard Screw #3...

  • Page 53: Connecting Cables

    Chapter 5: Advanced Motherboard Setup Connecting Cables Now that the processors are installed, the next step is to connect the cables to the motherboard. These include the data (ribbon) cables for the peripherals and control panel and the power cables. Connecting Data Cables The cables used to transfer data from the peripheral devices have been carefully routed in preconfigured systems to prevent them from blocking the flow of cooling...

  • Page 54: I/O Ports

    UPER ERVER 5018D-MTLN4F User's Manual Figure 5-1. Front Control Panel Header Pins (JF1) Ground Power LED HDD LED NIC1 LED NIC2 LED OverHeat/Fan Fail Reset Button Ground Power Button Ground I/O Ports The I/O ports on the motherboard are located at the rear of the system. See Figure 5-2 below for the locations of the various I/O ports.

  • Page 55: Installing Memory

    1600/1333 memory. Populating with a pair of memory modules of the same type and same size will result in interleaved memory, which will improve memory per- formance. Check the Supermicro web site for recommended memory modules. Figure 5-3. Installing DIMM into Slot...

  • Page 56: Memory Population Guidelines

    UPER ERVER 5018D-MTLN4F User's Manual Memory Population Guidelines Please follow the table below when populating the motherboard. DDR3 Unbuffered ECC (UDIMM) Memory DIMM Slots per DIMMs Populat- DIMM Type POR Speeds Ranks per DIMM (any Channel ed per Channel combination) Unbuffered 1333, 1600 Single Rank, Dual Rank...

  • Page 57: Adding Pci Cards

    Chapter 5: Advanced Motherboard Setup Adding PCI Cards PCI Expansion Slots One riser card is used to support a PCI expansion (add-on) card in the system. The 5018D-MTLN4F can accommodate one standard size (full height full length) PCI expansion card. When viewed from the chassis front, the card installs to the left rear of the system.

  • Page 58: Motherboard Details

    UPER ERVER 5018D-MTLN4F User's Manual Motherboard Details Figure 5-4. SUPER X10SLM+-LN4F Layout COM1 LAN4 LAN3 USB2/3(3.0) IPMI USB4/5 _LAN LAN2 LAN1 JPUSB1:USB4/5 WAKE UP 1-2:ENABLE 2-3:DISABLE COM2 JPL3 JPL4 JPL1 JPL2 DIMMA1 DIMMB1 DIMMA2 DIMMB2 JUSB1 NIC1 JBT1:CMOS CLEAR NIC2 I-SATA0 I-SATA3 I-SATA1...
  • Page 59 Chapter 5: Advanced Motherboard Setup Connector Description Fan A, System/CPU Fan Headers (Fan A: CPU Fan) Fan1~Fan4 Chassis Intrusion Header JPW1 24-pin ATX Main Power Connector (Required) JPW2 +12V 8-pin CPU power Connector (Required) JSD1 SATA DOM (Device On Module) Power Connector JSTBY1 Standby Power Header JTPM1...

  • Page 60: Connector Definitions

    UPER ERVER 5018D-MTLN4F User's Manual Connector Definitions ATX Power 24-pin Connector Pin Definitions (JPW1) Pin# Definition Pin # Definition Power Connectors +3.3V +3.3V The 24 - pin main power connector -12V +3.3V (JPW1) is used to provide power to the motherboard.
  • Page 61 Chapter 5: Advanced Motherboard Setup NIC1/NIC2 (LAN1/LAN2) The NIC (Network Interface Controller) LED connection for LAN port 1 is located LAN1/LAN2 LED Pin Definitions (JF1) on pins 11 and 12 of JF1, and the LED Pin# Definition connection for LAN Port 2 is on pins 9 9/11 3.3V Stby and 10.

  • Page 62: Serial Ports

    UPER ERVER 5018D-MTLN4F User's Manual Serial Port Pin Definitions (COM1/COM2) Serial Ports Pin # Definition Pin # Definition The COM1 port is located on the I/O backpanel. COM2 is a header located next to USB2/3. See the table on the right for pin definitions.

  • Page 63: Chassis Intrusion

    Chapter 5: Advanced Motherboard Setup Fan Headers Fan Header Pin Definitions The X10SLM+-LN4F has five fan headers Pin# Definition (Fan1 ~ Fan4 and FanA). These are 4-pin Ground (Black) fan headers and work with IPMI to moni- 2.5A/+12V (Red) tor and change fan speed as required Tachometer based on the system temperature.
  • Page 64 UPER ERVER 5018D-MTLN4F User's Manual Trusted Platform Module Header Trusted Platform Module Header Pin Definitions This header is used to connect a Trusted Pin # Definition Pin # Definition Platform Module (TPM), available sepa- LCLK rately from a third-party vendor. A TPM is LFRAME No Pin a security device that allows encryption...
  • Page 65 Color/State Status service. Blue: On Unit Identifier Note: The UID can also be triggered via IPMI on the motherboard. For more information on IPMI, please refer to the IPMI User's Guide posted on our website @http://www.supermicro.com. 5-19...

  • Page 66: Jumper Settings

    UPER ERVER 5018D-MTLN4F User's Manual Jumper Settings Explanation of Jumpers To modify the operation of the mother- board, jumpers can be used to choose Connector between optional settings. Jumpers cre- Pins ate shorts between two pins to change the function of the connector. Pin 1 is Jumper identified with a square solder pad on the printed circuit board.
  • Page 67 Chapter 5: Advanced Motherboard Setup PCI Slot SMB Enable PCI Slot SMB Enable/Disable Jumper Settings Use jumpers JI C1/JI C2 to enable PCI Setting Definition SMB (System Management Bus) support Closed Enabled to improve system management for the Open (Default) Disabled PCI slots.
  • Page 68 UPER ERVER 5018D-MTLN4F User's Manual Management Engine (ME) Recovery Use jumper JPME2 to select ME Firm- ware Recovery mode, which will limit ME Recovery Jumper Settings resource allocation for essential system Jumper Setting Definition operation only in order to maintain normal Pins 1-2 Normal (Default) power operation and management.

  • Page 69: 5-10 Onboard Indicators

    Chapter 5: Advanced Motherboard Setup 5-10 Onboard Indicators Link LED Activity LED LAN1/LAN2 LEDs The Ethernet ports (located beside the VGA port) have two LEDs. On each Gigabit LAN port, one LED indicates ac- LAN LED Connection Link Indication tivity when blinking while the other LED LED State Definition may be green, amber or off to indicate...

  • Page 70: 5-11 Sata Drive Connections

    UPER ERVER 5018D-MTLN4F User's Manual 5-11 SATA Drive Connections SATA Port Pin Definitions Pin # Definition SATA Ports Ground Four SATA 3.0 and two SATA 2.0 ports are included on the motherboard. See the tables on the right for more informa- Ground tion.

  • Page 71: 5-12 Installing Software

    Chapter 5: Advanced Motherboard Setup 5-12 Installing Software The Supermicro FTP site contains drivers and utilities for your system at ftp://ftp. supermicro.com. Some of these must be installed, such as the chipset driver. After accessing the FTP site, go into the CDR_Images directory and locate the ISO file for your motherboard.
  • Page 72 ERVER 5018D-MTLN4F User's Manual SuperDoctor® 5 The Supermicro SuperDoctor 5 is a program that functions in a command-line or web-based interface in Windows and Linux operating systems. The program moni- tors system health information such as CPU temperature, system voltages, system power consumption, fan speed, and provides alerts via email or Simple Network Management Protocol (SNMP).

  • Page 73: 5-13 Onboard Battery

    Chapter 5: Advanced Motherboard Setup 5-13 Onboard Battery Please handle used batteries carefully. Do not damage the battery in any way; a damaged battery may release hazardous materials into the environment. Do not discard a used battery in the garbage or a public landfill. Please comply with the regulations set up by your local hazardous waste management agency to dispose of your used battery properly.
  • Page 74 UPER ERVER 5018D-MTLN4F User's Manual Notes 5-28...

  • Page 75: Chapter 6 Advanced Chassis Setup

    Chapter 6: Advanced Chassis Setup Chapter 6 Advanced Chassis Setup This chapter covers the steps required to install components and perform mainte- nance on the SC813MTQ chassis. For component installation, follow the steps in the order given to eliminate the most common problems encountered. If some steps are unnecessary, skip ahead to the step that follows.

  • Page 76: Control Panel

    UPER ERVER 5018D-MTLN4F User's Manual Figure 6-1. Chassis Front View USB Ports COM2 Port Control Panel SATA Drives (4) Figure 6-2. Chassis Rear View Power Supply PCI Expansion Slot I/O Ports (see Figure 5-2) Control Panel The control panel (located on the front of the chassis) must be connected to the JF1 connector on the serverboard to provide you with system control buttons and status indicators.

  • Page 77: System Fans

    BIOS. System Fan Failure If a fan fails, you will need to have it replaced with the same type. Contact your vendor or Supermicro for information on replacement fans. Drive Bay Installation/Removal Removing the Front Bezel If your system has a front bezel (optional) attached to the chassis, you must first remove it to gain access to the drive bays.

  • Page 78: Sata Drive Installation

    Also, regardless of how many drives are installed, all four drive carriers must remain in the chassis to maintain proper airflow. Warning: Enterprise level hard disk drives are recommended for use in Supermicro chassis and servers. For information on recommended HDDs, visit the Supermicro Web site at http://www.supermicro.com/products/nfo/files/storage/SAS-1-CompList-110909.

  • Page 79: Sata Backplane

    Chapter 6: Advanced Chassis Setup Figure 6-4. Mounting a Drive in a Carrier SATA Backplane The SATA drives plug into a backplane that provides power, drive ID and bus termi- nation. A RAID controller can be used with the backplane to provide data security for the drives.
  • Page 80 UPER ERVER 5018D-MTLN4F User's Manual DVD-ROM Drive Installation The top cover of the chassis must be opened to gain full access to the DVD-ROM drive bay. The 5018D-MTLN4F accommodates only slim DVD-ROM drives. Side mounting brackets are needed to mount a slim DVD-ROM drive into the 5018D- MTLN4F server.

  • Page 81: Power Supply

    Chapter 6: Advanced Chassis Setup Power Supply The SuperServer 5018D-MTLN4F has a single 350 watt power supply. The power supply has the capability of operating at 100 - 240 input volts. Depress the main power button on the front of the chassis and then unplug the AC power cord to completely remove power from the system before removing the power supply.
  • Page 82 UPER ERVER 5018D-MTLN4F User's Manual Notes...

  • Page 83: Chapter 7 Bios

    When an option is selected in the left frame, it is highlighted in white. Often a text message will accompany it. (Note: the AMI BIOS has default text messages built in. Supermicro retains the option to include, omit, or change any of these text messages.) The AMI BIOS Setup Utility uses a key-based navigation system called "hot keys".

  • Page 84: How To Start The Setup Utility

    Flashing the wrong BIOS can cause irreparable damage to the system. In no event shall Supermicro be liable for direct, indirect, special, incidental, or consequential dam- ages arising from a BIOS update. If you have to update the BIOS, do not shut down or reset the system while the BIOS is updating.
  • Page 85 Day MM/DD/YY format. The time is entered in HH:MM:SS format. Note: The time is in the 24-hour format. For example, 5:30 P.M. appears as 17:30:00. The following BIOS items will also be displayed: Supermicro X10SLH-F/ X10SLM+-F Version Build Date Memory Information...

  • Page 86: Advanced Setup Configurations

    UPER ERVER 5018D-MTLN4F User's Manual Advanced Setup Configurations Use the arrow keys to select Boot Setup and press <Enter> to access the submenu items: Warning: Take Caution when changing the Advanced settings. An incorrect value, a very high DRAM frequency, or an incorrect DRAM timing setting may cause system to become unstable.

  • Page 87: Power Configuration

    Chapter 7: BIOS Bootup Num-Lock This feature selects the Power-on state for the Numlock key. The options are Off and On. Wait For 'F1' If Error Select Enabled to force the system to wait until the 'F1' key is pressed if an error occurs.

  • Page 88: Cpu Configuration

    UPER ERVER 5018D-MTLN4F User's Manual CPU Configuration  The following CPU information will be displayed: • Type of CPU • CPU Signature • CPU Stepping • Microcode Patch • Maximum CPU Speed • Minimum CPU Speed • CPU Speed • Processor Cores •...
  • Page 89 Chapter 7: BIOS Hyper-threading Select Enabled to support Intel Hyper-threading Technology to enhance CPU per- formance. The options are Enabled and Disabled. Active Processor Cores This feature determines how many CPU cores will be activated for each CPU. When all is selected, all cores in the CPU will be activated. (Please refer to Intel's web site for more information.) The options are All and 1.
  • Page 90 UPER ERVER 5018D-MTLN4F User's Manual CPU AES Select Enable to enable Intel CPU Advanced Encryption Standard (AES) Instruc- tions for CPU to enhance data integrity. The options are Enabled and Disabled. EIST EIST (Enhanced Intel SpeedStep Technology) allows the system to automatically adjust processor voltage and core frequency in an effort to reduce power consump- tion and heat dissipation.
  • Page 91 Chapter 7: BIOS 1-Core Ratio Limit (Available when "Turbo Mode" is set to Enabled) This feature increases (multiplies) 1 clock speed in the CPU core in relation to the bus speed when one CPU core is active. Press "+" or "-" on your keyboard to change this value.
  • Page 92 UPER ERVER 5018D-MTLN4F User's Manual C6 Latency (Available when "CPU C-States" is set to Enabled) Select Short to set a short delay time(period) during which the BIOS reports CPU C6 State (ACPI C3) to the operating system. Select Long to set a long delay time(period) during which the BIOS reports CPU C6 State (ACPI C3) to the operating system.

  • Page 93: Chipset Configuration

    Chapter 7: BIOS Chipset Configuration Warning: Setting the wrong values in the following sections may cause the system to malfunction. System Agent (SA) Configuration  This item displays the information for the system Agent. • System Agent Bridge Name • VT-d Capability VT-d Select Enabled to enable Intel's Virtualization Technology support for Direct I/O VT-d...

  • Page 94: Memory Configuration

    UPER ERVER 5018D-MTLN4F User's Manual Disabled, the PCI-E ASPM will be programmed before OpROM. The options are Enabled and Disabled. CPU SLOT6 PCI-E 3.0 x8/x16 ASPM/CPU SLOT5 PCI-E 3.0 x8 ASPM This feature configures the ASPM (Active State Power Management) settings for the PCI-E device installed on CPU SLOT6 or CPU SLOT5.
  • Page 95 Chapter 7: BIOS • CAS to RAS (tRCDmin) • Row Precharge (tRPmin) • Active to Precharege (tRASmin) Memory Frequency Limiter This feature sets the limit of memory frequency for DIMM modules installed on the the motherboard. The options are 1067 (MHz), 1333 (MHz), 1600 (MHz), and Auto.

  • Page 96: Sata Configuration

    UPER ERVER 5018D-MTLN4F User's Manual Legacy USB Support This feature enables support for legacy USB devices. Select Auto to disable legacy support if USB devices are not present. Select Disable to have USB devices available only for EFI applications. The options are Enabled, Disabled and Auto.
  • Page 97 Chapter 7: BIOS SATA RAID Option ROM/UEFI Driver This item enables either the on board SATA option ROM or the EFI driver. The options are Enabled or Disabled. If AHCI is selected in SATA Mode Selection above, the following items are displayed: Serial ATA Port 0~ Port 5 This item displays the information detected on the SATA device installed on a particular SATA port.
  • Page 98 UPER ERVER 5018D-MTLN4F User's Manual SATA Gen3 Port 0 ~ Port 5 Length Value Set this item to select a value for Gen3 length test. The values that can be selected ranges from [00 0000b] through [00 1111b]. SATA Gen2 Port 0 ~ Port 5 Length Value Set this item to select a value for Gen2 length test.
  • Page 99 Chapter 7: BIOS VGA Palette Snoop Select Enabled to support VGA palette register snooping which will allow a PCI card that does not contain its own VGA color palette to mimic the color palette of the video card installed on the motherboard for proper color display. The options are Disabled and Enabled.

  • Page 100: Acpi Settings

    UPER ERVER 5018D-MTLN4F User's Manual in a LAN port specified. Select Disabled to prevent system boot by using a device installed in a LAN port. The options are Disabled, PXE and iSCSI. VGA Priority This feature selects the priority between the onboard and first offboard video device that has been detected.

  • Page 101: Super Io Configuration

    Chapter 7: BIOS • ME FW Error Code • ME NM FW Status Value • BIOS Booting Mode • Cores Disabled • ME FW SKU Information • End-of-POST Status Super IO Configuration  Super IO Chip NCT6776D Serial Port 1 Configuration/Serial Port 2 Configuration ...
  • Page 102 UPER ERVER 5018D-MTLN4F User's Manual  Console Redirection Settings Configure the following options for the Console Redirection Settings. The most common settings are set as default: Terminal Type This feature allows the user to select the target terminal emulation type for Con- sole Redirection.

  • Page 103: Console Redirection Settings

    Chapter 7: BIOS VT-UTF8 Combo Key Support Select Enabled to enable VT-UTF8 Combination Key support for ANSI/VT100 terminals. The options are Enabled and Disabled. Recorder Mode Select Enabled to capture the data displayed on a terminal and send it as text messages to a remote server.
  • Page 104 UPER ERVER 5018D-MTLN4F User's Manual Terminal Type This feature allows the user to select the target terminal emulation type for Con- sole Redirection. Select VT100 to use the ASCII character set. Select VT100+ to add color and function key support. Select ANSI to use the extended ASCII character set.

  • Page 105: Event Logs

    Chapter 7: BIOS Event Logs Change SMBIOS Event Log Settings  Enabling/Disabling Options SMBIOS Event Log Change this item to enable or disable all features of the SMBIOS Event Logging during system boot. The options are Enabled and Disabled. Erase Settings Erase Event Log If this feature is set to Yes, all logged events will be erased.

  • Page 106: View Smbios Event Log

    UPER ERVER 5018D-MTLN4F User's Manual MECI The Multiple Event Count Increment (MECI) counter counts the number of oc- curences. A duplicate event must happen before the MECI counter is incremented. This is a numeric value. The default value is 1. METW Use the Multiple Event Time Window (METW) to define the length of time (in minute) it must pass before a duplicate log event entry is generated.

  • Page 107: Ipmi

    Chapter 7: BIOS IPMI System Event Log  IPMI Firmware Revision This item indicates the IPMI firmware revision used in your system. IPMI Status This item indicates the status of the IPMI firmware installed in your system. System Event Log ...

  • Page 108: Bmc Network Configuration

    UPER ERVER 5018D-MTLN4F User's Manual Select No to keep all system event logs after each system reboot. The options are No, Yes, On next reset, and Yes, On every reset. When SEL is Full This feature allows the user to decide what the BIOS should do when the system event log is full.
  • Page 109 Chapter 7: BIOS Station MAC Address This item displays the Station MAC address for this computer. Mac addresses are 6 two-digit hexadecimal numbers. Station IP Address This item displays the Station IP address for this computer. This should be in decimal and in dotted quad form (i.e., 192.168.10.253).

  • Page 110: Boot Settings

    UPER ERVER 5018D-MTLN4F User's Manual Boot Settings Use this feature to configure Boot Settings: Set Boot Priority This option prioritizes the order of bootable devices that the system to boot from. Press [ENTER] on each entry from top to bottom to select devices. •...
  • Page 111 Chapter 7: BIOS  UEFI Boot Drive BBS Priorities This feature allows the user to specify which devices are boot devices and appear as boot devices to the system. The settings are [any detected boot device] and Disabled.  Add New Boot Option This feature allows the user to add a boot device from which the systems will boot after power-on.

  • Page 112: Security Settings

    UPER ERVER 5018D-MTLN4F User's Manual Security Settings This menu allows the user to configure the following security settings for the system. Administrator Password Use this feature to set the Administrator Password which is required to enter the BIOS setup utility. The length of the password should be from 3 characters to 8 characters long.

  • Page 113: Save & Exit

    Chapter 7: BIOS Save & Exit Select the Exit tab from the BIOS Setup Utility screen to enter the Exit BIOS Setup screen. Discard Changes and Exit Select this option to exit the BIOS Setup without making any permanent changes to the system configuration, and reboot the computer.
  • Page 114 UPER ERVER 5018D-MTLN4F User's Manual Restore Optimized Defaults To set this feature, select Restore Defaults from the Exit menu and press <Enter>. These are factory settings designed to maximize system performance. Save As User Defaults To set this feature, select Save as User Defaults from the Exit menu and press <En- ter>.

  • Page 115: Appendix A Bios Error Beep Codes

    Appendix A: BIOS Error Beep Codes Appendix A BIOS Error Beep Codes During the POST (Power-On Self-Test) routines, which are performed each time the system is powered on, errors may occur. Non-fatal errors are those which, in most cases, allow the system to continue with bootup.
  • Page 116 UPER ERVER 5018D-MTLN4F User's Manual Notes...

  • Page 117: Appendix B System Specifications

    Appendix B: System Specifications Appendix B System Specifications Processors Single Intel Xeon E3-1200 v3/v4 and 4th Generation Core i3, Pentium, Celeron processors in an H3 (LGA1150) socket Note: Please refer to our web site for a complete listing of supported processors. Chipset Intel C224 BIOS...

  • Page 118: System Cooling

    UPER ERVER 5018D-MTLN4F User's Manual Weight Gross Weight: 30.4 lbs. (13.8 kg.) System Cooling Four 4-cm high performance fans System Input Requirements AC Input Voltage: 100-240V AC auto-range Rated Input Current: 4.2A (100V) to 1.8A (240V) Rated Input Frequency: 50 to 60 Hz Power Supply Rated Output Power: 350W (Part# PWS-351-1H) Rated Output Voltages: +3.3V (15A), +5V (18A), +12V (29A), -12V (.5A), +5Vsb...
  • Page 119 See www.dtsc.ca.gov/hazardouswaste/perchlorate” Disclaimer (continued from front) The products sold by Supermicro are not intended for and will not be used in life support systems, medical equipment, nuclear facilities or systems, aircraft, aircraft devices, aircraft/emergency com- munication devices or other critical systems whose failure to perform be reasonably expected to result in significant injury or loss of life or catastrophic property damage.
