USING GPIO & DATA WITH ZEPHYR IPORT PLUS

Using the Associated Data Channels

Configuring the Data Channels

Zephyr iPort PLUS provides three unidirectional user data channels per each audio direction. These are provided
typically to transport metadata (artist, song title, album and related info) associated with each audio stream.

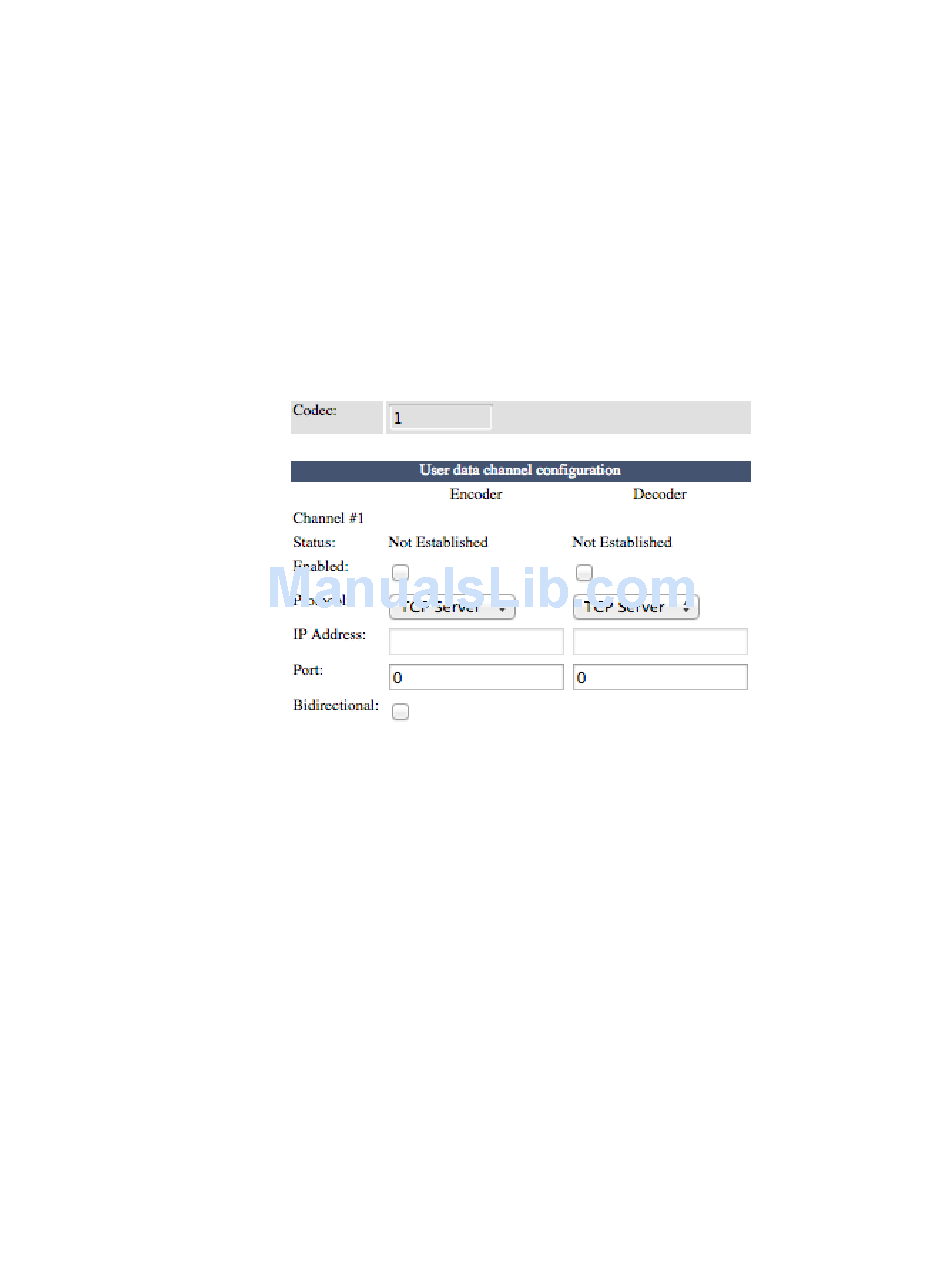

To configure these channels, go to the Codec Configuration page, click Options for the channel being set up. Scroll
to the bottom of that page and click Data Channels.
Set the Protocol dropdown for TCP Server, TCP Client or UDP.
Enter the IP address along with the correct port on your computer where the metadata connects from your
automation system or other source.
Do the same for the other two channels if needed, and don't forget to click Apply when you're done. If everything is
working correctly, you should see the status change from Not Established to Established.
What's Next?
This chapter has introduced you to the fundamentals of Zephyr iPort PLUS GPIO. The next chapter will cover
configuration and usage of the Zephyr iPort PLUS Content Delay option.
