Advaning L Series Replacement Instructions

L Series & S Series Arm Replacement Instructions

What you will need:

A. new replacement arm
B. Zip ties, Rope or Straps
C. Phillips head screw driver
D. Allen wrench
e. Socket wrench
F. 6 - 8 ft. Ladder/s

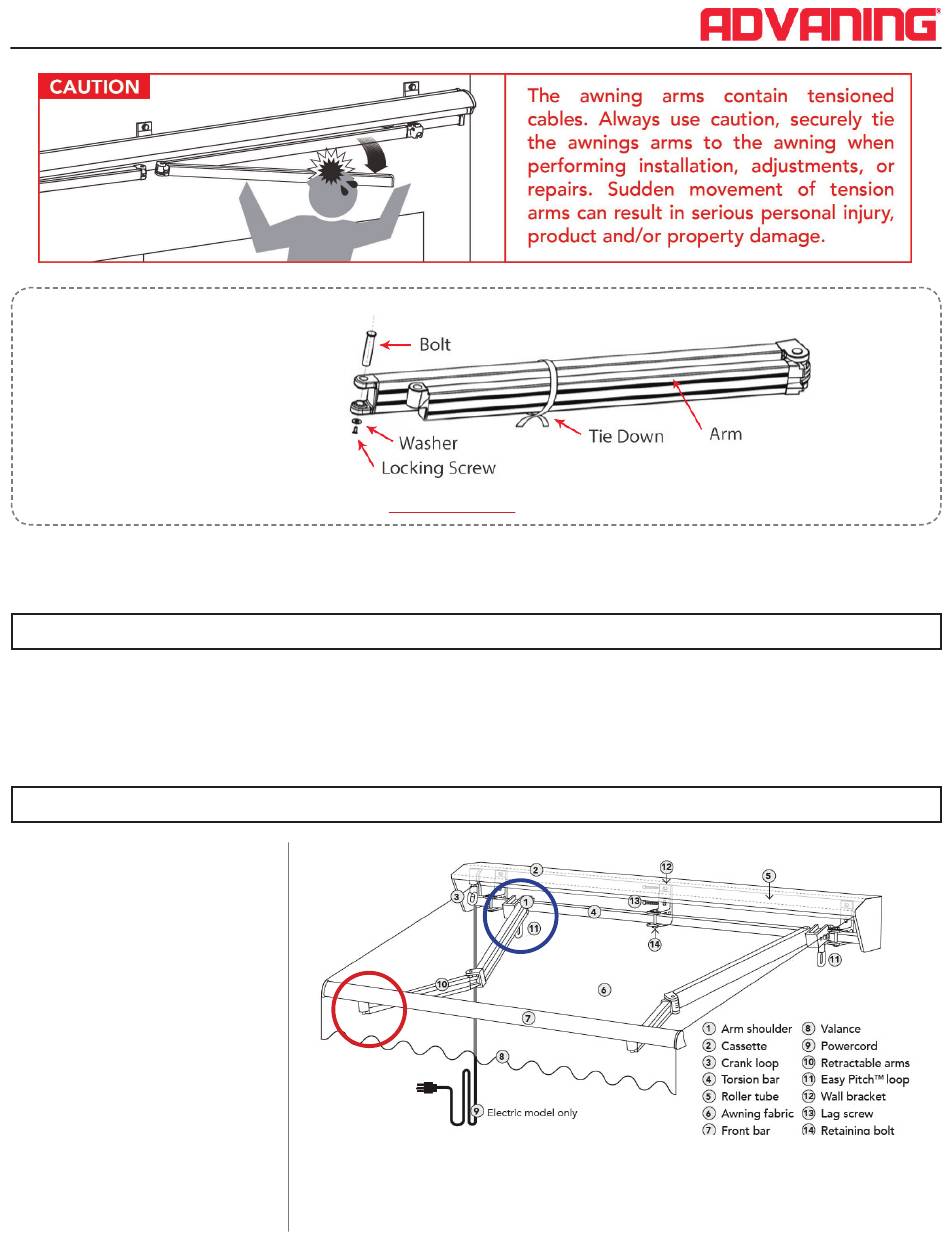

Your replacement arm will arrive securely tied together, Do not rEmoVE the tie down until the arm is securely fastened
We recommend having an assistant to help support the awning arm during the replacement.
note:
Electric models: Please disconnect from power source before proceeding with arm replacement.
1. Using a ladder, position yourself directly under the awning.
2. Secure the existing arm by wrapping it with the rope, tie downs, or bungee cords to prevent it from accidentally
springing open when removed. Leaving enough allowance for the awning to open approximately 5-7 inches.
3. Manually open the awning to 5-7 inches.
Important
Please take safety
precautions as the awning
arms are spring loaded
and can potentially cause
serious injury if not handled
properly.
replacement arm Kit

PRePARAtIon

ReMovIng the exIStIng ARM

Step3
Step1&2
to the awning.
