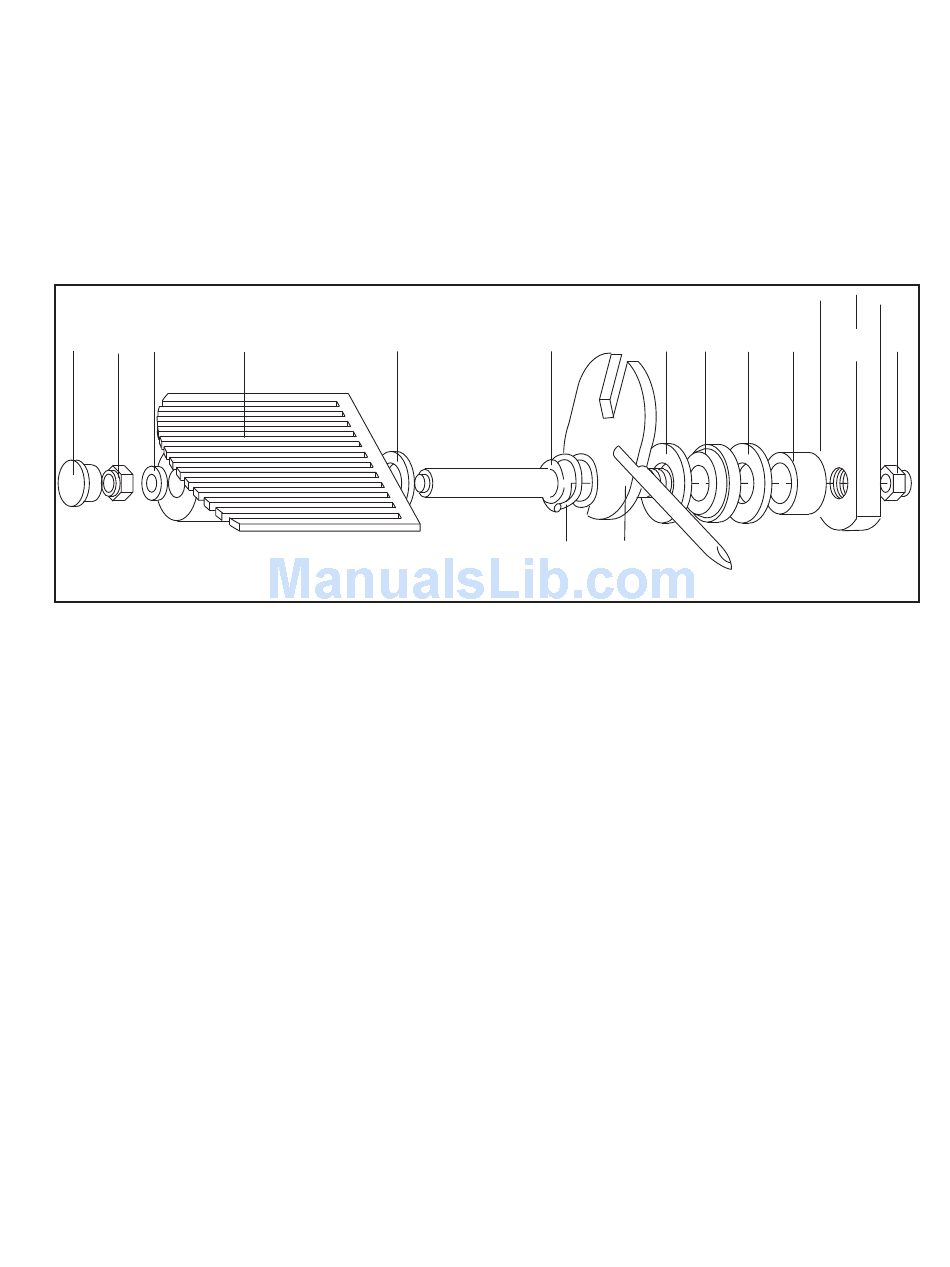

8. Hold one of the Pedal Shafts (38) with the included tool as shown—the tool must be between the coils of the
Pedal Spring (52). Using an adjustable wrench, remove the 1/2" Nylon Locknut (46) from the end of the Pedal
Shaft. Make sure that there is an 11/16" Spring Washer (51), a Pedal Spring (52), an 11/16" Washer (54), a
Pedal Bushing (55), a 9/16" Washer (56), and a 9/16" Pedal Spacer (62) on the Pedal Shaft.
Using the included tool, firmly tighten the Pedal Shaft (38), in a clockwise direction, into one arm of the Crank
(27). While holding the Pedal Shaft with the tool, use an adjustable wrench to tighten the 1/2" Nylon Locknut
(46) back onto the end of the Pedal Shaft. There is a 5/16" Washer (65) and a 5/16" Nut (49) on the other end
of the Pedal Shaft. Make sure that the 5/16" Nut (49) is flush with the end of the Pedal Shaft. Press a
Pedal Cap (50) into the Pedal (10).
Attach the other Pedal Shaft to the other arm of the Crank (not shown) in the same manner.
8
49 65
10
62
27
50
51
38
54
55
56
46
52
Tool
7
