Cisco TelePresence SX10 Quick Set

Introduction

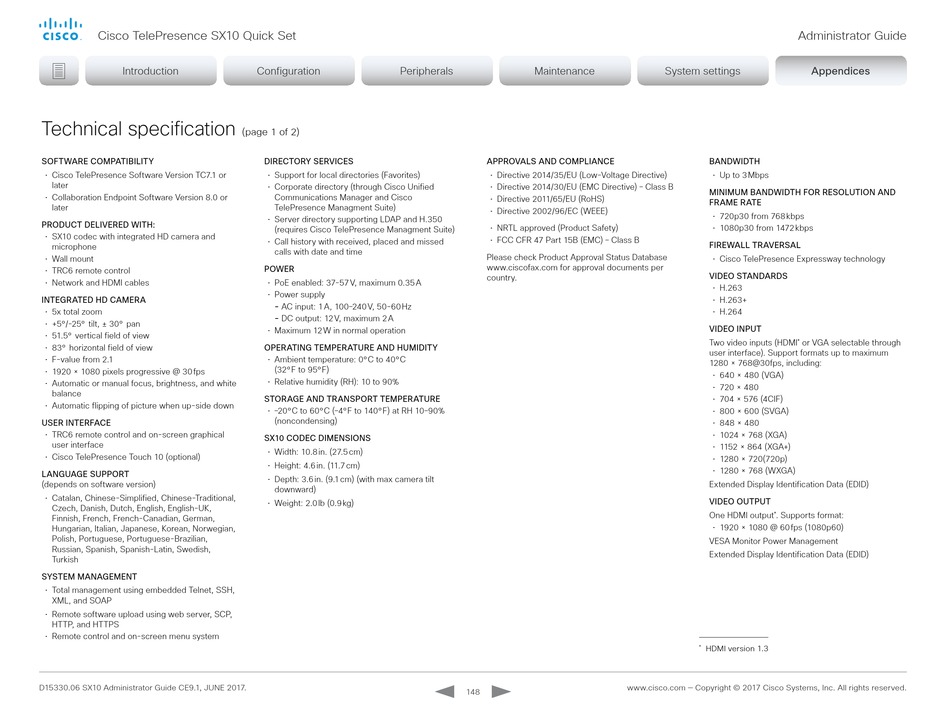

Technical specification

SOFTWARE COMPATIBILITY
• Cisco TelePresence Software Version TC7.1 or
later
• Collaboration Endpoint Software Version 8.0 or
later
PRODUCT DELIVERED WITH:
• SX10 codec with integrated HD camera and
microphone
• Wall mount
• TRC6 remote control
• Network and HDMI cables
INTEGRATED HD CAMERA
• 5x total zoom
• +5°/-25° tilt, ± 30° pan
• 51.5° vertical field of view
• 83° horizontal field of view
• F-value from 2.1
• 1920 × 1080 pixels progressive @ 30 fps
• Automatic or manual focus, brightness, and white
balance
• Automatic flipping of picture when up-side down
USER INTERFACE
• TRC6 remote control and on-screen graphical
user interface
• Cisco TelePresence Touch 10 (optional)
LANGUAGE SUPPORT
(depends on software version)
• Catalan, Chinese-Simplified, Chinese-Traditional,
Czech, Danish, Dutch, English, English-UK,
Finnish, French, French-Canadian, German,
Hungarian, Italian, Japanese, Korean, Norwegian,
Polish, Portuguese, Portuguese-Brazilian,
Russian, Spanish, Spanish-Latin, Swedish,
Turkish
SYSTEM MANAGEMENT
• Total management using embedded Telnet, SSH,
XML, and SOAP
• Remote software upload using web server, SCP,
HTTP, and HTTPS
• Remote control and on-screen menu system
D15330.06 SX10 Administrator Guide CE9.1, JUNE 2017.
Configuration Peripherals
(page 1 of 2)
DIRECTORY SERVICES
• Support for local directories (Favorites)
• Corporate directory (through Cisco Unified
Communications Manager and Cisco
TelePresence Managment Suite)
• Server directory supporting LDAP and H.350
(requires Cisco TelePresence Managment Suite)
• Call history with received, placed and missed
calls with date and time
POWER
• PoE enabled: 37-57 V, maximum 0.35 A
• Power supply
- AC input: 1 A, 100–240 V, 50-60 Hz
- DC output: 12 V, maximum 2 A
• Maximum 12 W in normal operation
OPERATING TEMPERATURE AND HUMIDITY
• Ambient temperature: 0°C to 40°C
(32°F to 95°F)
• Relative humidity (RH): 10 to 90%
STORAGE AND TRANSPORT TEMPERATURE
• –20°C to 60°C (–4°F to 140°F) at RH 10–90%
(noncondensing)
SX10 CODEC DIMENSIONS
• Width: 10.8 in. (27.5 cm)
• Height: 4.6 in. (11.7 cm)
• Depth: 3.6 in. (9.1 cm) (with max camera tilt
downward)
• Weight: 2.0 lb (0.9 kg)
Maintenance
APPROVALS AND COMPLIANCE
• Directive 2014/35/EU (Low-Voltage Directive)
• Directive 2014/30/EU (EMC Directive) – Class B
• Directive 2011/65/EU (RoHS)
• Directive 2002/96/EC (WEEE)
• NRTL approved (Product Safety)
• FCC CFR 47 Part 15B (EMC) – Class B
Please check Product Approval Status Database
www.ciscofax.com for approval documents per
country.
www.cisco.com — Copyright © 2017 Cisco Systems, Inc. All rights reserved.
148
Administrator Guide
System settings Appendices Appendices
BANDWIDTH
• Up to 3 Mbps
MINIMUM BANDWIDTH FOR RESOLUTION AND
FRAME RATE
• 720p30 from 768 kbps
• 1080p30 from 1472 kbps
FIREWALL TRAVERSAL
• Cisco TelePresence Expressway technology
VIDEO STANDARDS
• H.263
• H.263+
• H.264
VIDEO INPUT
Two video inputs (HDMI * or VGA selectable through
user interface). Support formats up to maximum
1280 × 768@30fps, including:
• 640 × 480 (VGA)
• 720 × 480
• 704 × 576 (4CIF)
• 800 × 600 (SVGA)
• 848 × 480
• 1024 × 768 (XGA)
• 1152 × 864 (XGA+)
• 1280 × 720(720p)
• 1280 × 768 (WXGA)
Extended Display Identification Data (EDID)
VIDEO OUTPUT
One HDMI output . Supports format:
*
• 1920 × 1080 @ 60 fps (1080p60)
VESA Monitor Power Management
Extended Display Identification Data (EDID)
HDMI version 1.3
*
