Quick Start Guide
00825-0200-4570, Rev AA
June 2017
Rosemount
5708 3D Solids Scanner

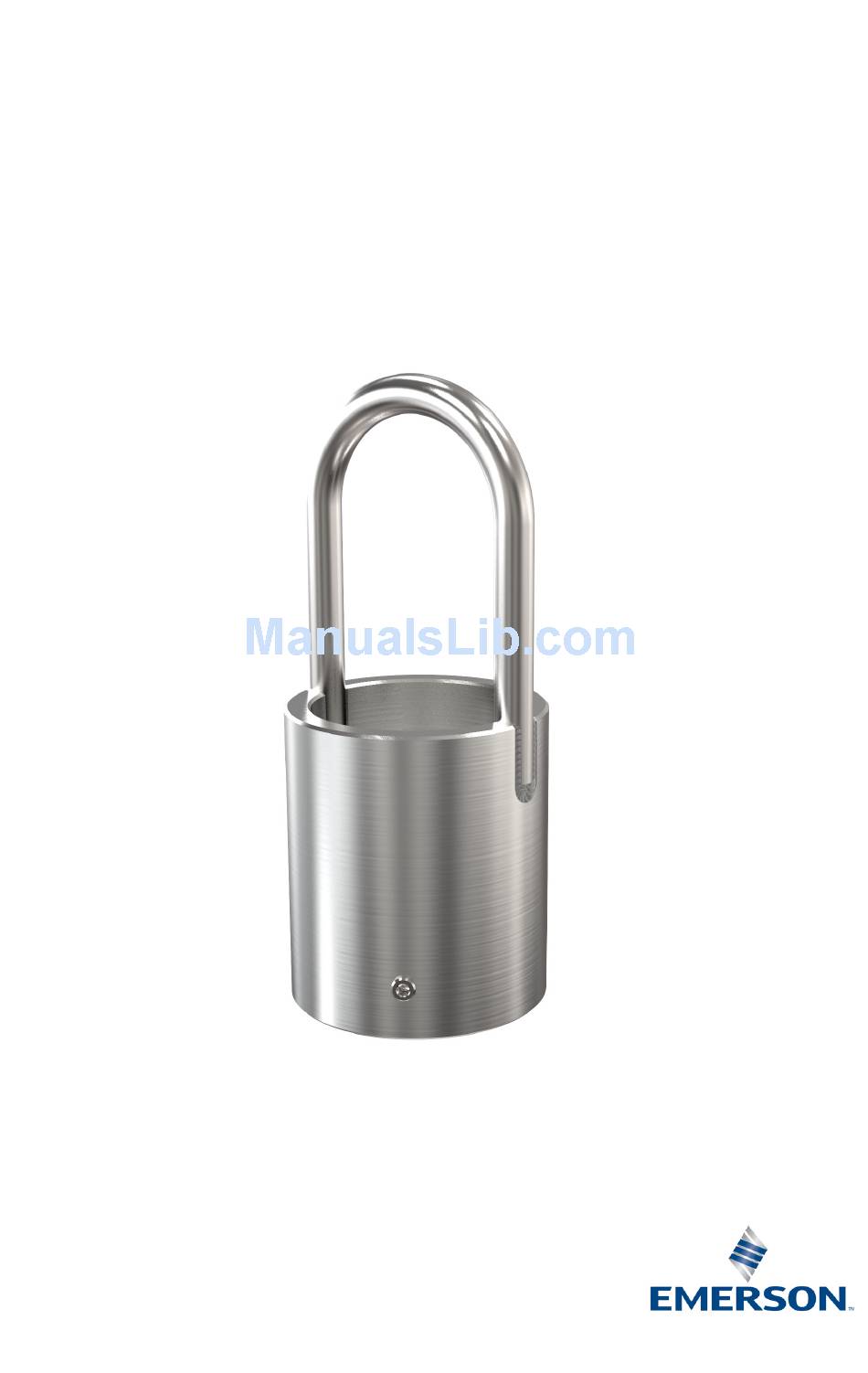

Manhole Mounting Tool Kit

Advertisement

loading
Need help?

Need help?

Do you have a question about the 5708 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Rosemount 5708

  • Page 1 Quick Start Guide 00825-0200-4570, Rev AA June 2017 ™ Rosemount 5708 3D Solids Scanner Manhole Mounting Tool Kit...
  • Page 2 June 2017 Quick Start Guide About this guide This guide provides instructions for installing the Rosemount 5708 3D Solids Scanner in small vessel connections using the manhole mounting tool kit. It does not provide instructions for mounting the scanner head, electrical installation, or configuration.
  • Page 3: Required Equipment

    Quick Start Guide June 2017 Manhole mounting tool kit Figure 1. Manhole Mounting Tool Kit (P/N 05708-3023-0001) 4.10 (104) Ø 1.73 (44) A. Installation adapter B. Set screw C. 2 mm hex key Dimensions are in inches (millimeters). Required equipment Standard tools (e.g.
  • Page 4 June 2017 Quick Start Guide Install the antenna Step 1: Verify the O-rings are in place Step 2: Remove the nut from the neck tube 60 mm...
  • Page 5 Quick Start Guide June 2017 Step 3: Mount the installation adapter on the antenna H2 mm Step 4: Place the mounting plate and nut on the scanner’s mounting hole Ø ≥ 2.05 in. (52 mm)
  • Page 6 June 2017 Quick Start Guide Step 5: Pull the rope through to the manhole Secure one end of the rope and pull the other end through the nut, mounting plate, and mounting hole to the manhole. Step 6: Tie the rope to the installation adapter Note Consider securing the antenna by tying an additional rope to the adapter from the manhole opening to prevent the scanner from hitting the side walls.
  • Page 7 Quick Start Guide June 2017 Step 8: Pull the rope until the neck of the antenna is outside the mounting hole Step 9: Hand-tighten the nut...
  • Page 8 June 2017 Quick Start Guide Step 10: Remove the installation adapter H2 mm Step 11: Tighten the mounting plate bolts...
  • Page 9 Quick Start Guide June 2017 Rotate the antenna toward vessel center Step 1: Slightly loosen the nut 60 mm Step 2: Rotate the antenna The notch on top of the thread must be directed toward the vessel center.
  • Page 10 June 2017 Quick Start Guide Step 3: Tighten the nut 60 mm Proceed with installation of scanner head. See Rosemount 5708 Quick Start Guide and Rosemount 5708 Reference Manual for further installation information.
  • Page 11 Quick Start Guide June 2017...
