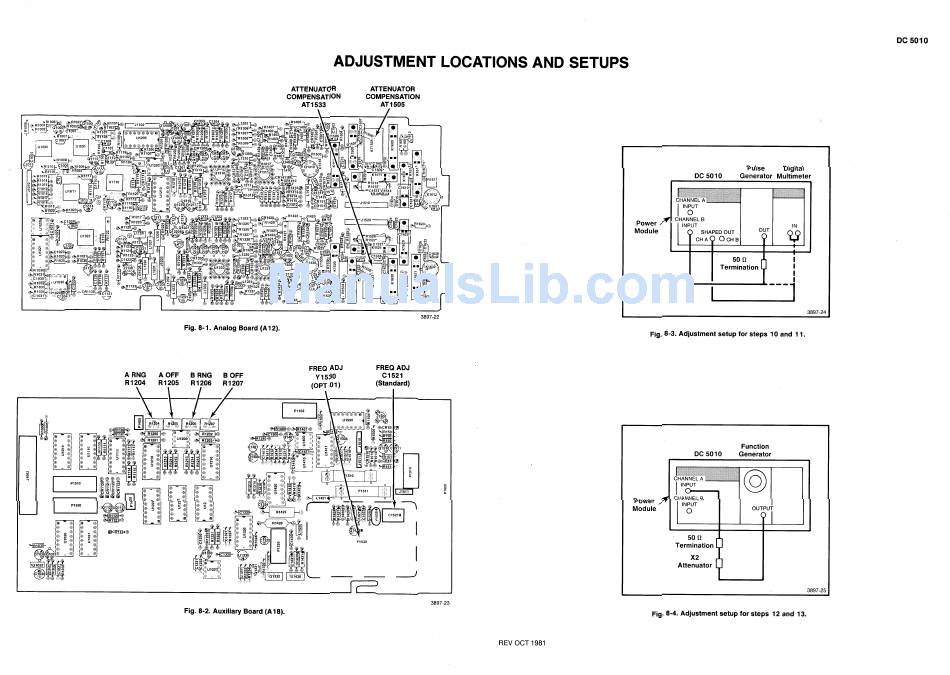

ADJUSTMENT LOCATIONS AND SETUPS
ATTENUATOR ATTENUATOR
COMPENSATION COMPENSATION
AT1 533 AT 1 505
Pulse Digital
DC 501 0 Generator Multimeter
I
Power
Module
CHANNEL B
I I
I
INPUT
0
SHAPED OUT
C H A O O C H B
.
1
50 Q I
Termination
I
I
I
3897-22
Fig. 8- 1. Analog Board (A 12).
Fig. 8-3. Adjustment setup for steps 10 and 11.
A RNG AOFF B RNG B OFF
R1204 R1205 R1206 R1207
\ I I /
FREQ ADJ FREQ ADJ
Y 1530 C1521
(OPT 0 1 ) (Standard)
I
Function
DC S O 10 Generator
Power
Module
INPUT
OUTPUT
Attenuator
Fig. 8-4. Adjustment setup for steps 12 and 13.
3897-23
Fig. 8-2. Auxiliary Board (A1 8).
REV OCT 1981
