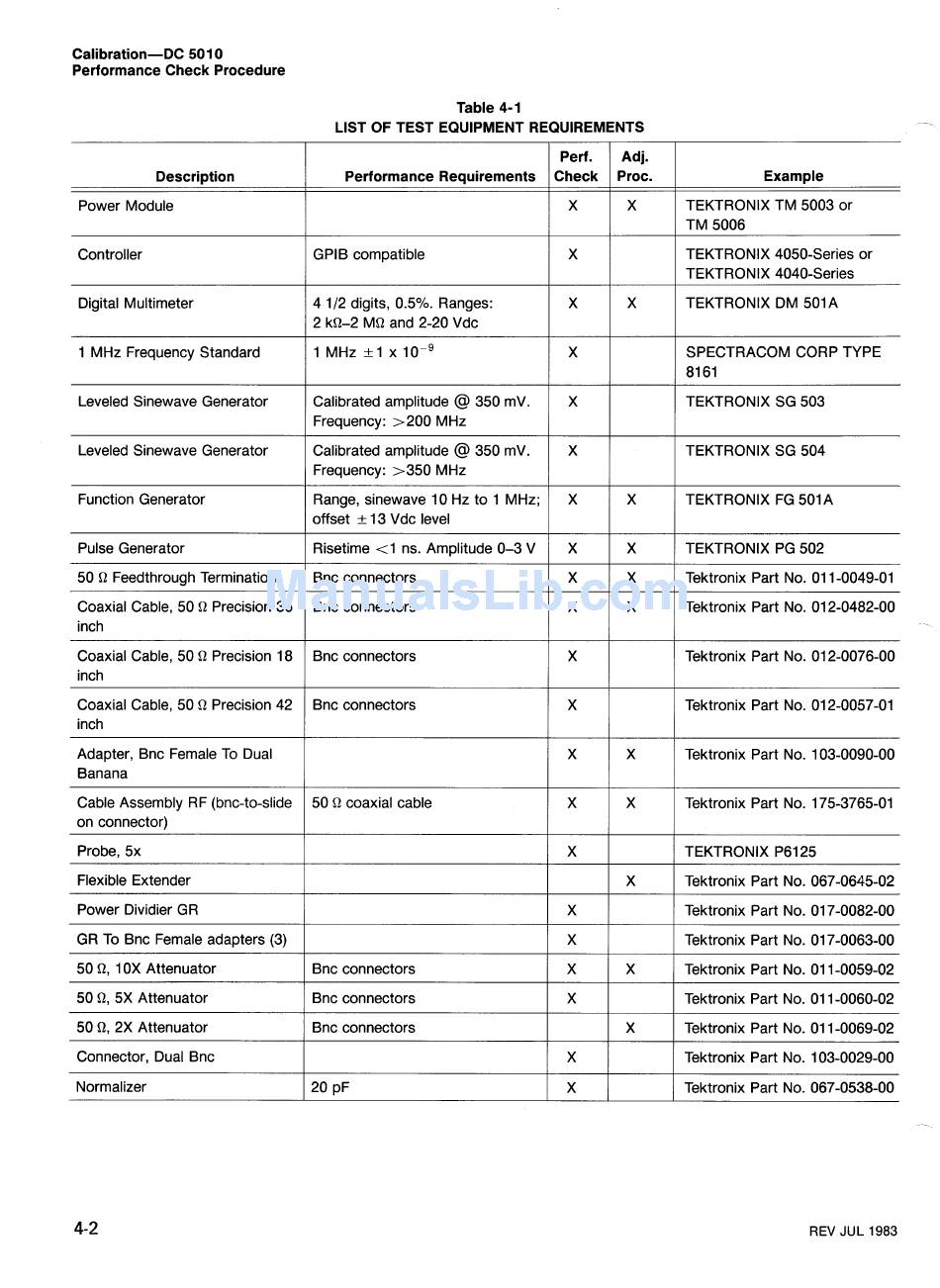

Tektronix DC5010 Instruction Manual page 256

Calibration-DC
501 0
Performance Check Procedure
Table 4-1
LIST OF TEST EQUIPMENT REQUIREMENTS
Perf. Adj.
I
Example
TEKTRONIX TM 5003 or
TM 5006
Description Performance Requirements
Power Module
Controller GPlB compatible
TEKTRONIX 4050-Series or
TEKTRONIX 4040-Series
Digital Multimeter 4 112 digits, 0.5%. Ranges:
2 kQ-2 MQ and 2-20 Vdc
TEKTRONIX DM 501A
1 MHz Frequency Standard 1 MHz +1 x
lo-'
SPECTRACOM CORP TYPE
81 61
Leveled Sinewave Generator Calibrated amplitude
@
350 mV.
Frequency: >200 MHz
TEKTRONIX SG 503
Leveled Sinewave Generator Calibrated amplitude
@
350 mV.
Frequency: >350 MHz
TEKTRONIX SG 504
Function Generator Range, sinewave 10 Hz to 1 MHz;
offset
+
13 Vdc level
TEKTRONIX FG 501A
Pulse Generator
50 R Feedthrough Termination
Coaxial Cable, 50
Q
Precision 36
inch
Coaxial Cable, 50 Q Precision 18
inch
Coaxial Cable, 50 Q Precision 42
inch
Risetime (1 ns. Amplitude 0-3 V TEKTRONIX PG 502
Bnc connectors
Bnc connectors
Tektronix Part No. 01 1-0049-01
Tektronix Part No. 01 2-0482-00
Tektronix Part No. 01 2-0076-00 Bnc connectors
Bnc connectors Tektronix Part No. 01 2-0057-01
Adapter, Bnc Female To Dual
Banana
Tektronix Part No. 103-0090-00
Cable Assembly RF (bnc-to-slide
on connector)
50
Q
coaxial cable
Tektronix Part No. 175-3765-01
Probe, 5x
Flexible Extender
TEKTRONIX P6125
Tektronix Part No. 067-0645-02
Tektronix Part No. 01 7-0082-00
Tektronix Part No. 01 7-0063-00
Power Dividier GR
GR To Bnc Female adapters (3)
50
Q,
1 O X Attenuator Bnc connectors
Tektronix Part No. 01 1-0059-02
50 R, 5X Attenuator Bnc connectors Tektronix Part No. 01 1-0060-02
50 R, 2X Attenuator
Bnc connectors Tektronix Part No. 01 1-0069-02
Connector, Dual Bnc
Normalizer
Tektronix Part No. 103-0029-00
Tektronix Part No. 067-0538-00
REV JUL 1983
