Summary of Contents for RCF C MAX 4110
- Page 1 OWNER MANUAL C MAX 4110 FULL RANGE HIGH POWER C MAX 4112 NEARFIELD MONITORS...
-
Page 3: Safety And Operating Precautions
RCF S.p.A. will not assume any responsibility for the incorrect installation and / or use of this product. - Page 4 10. Mechanical and electrical factors need to be considered when installing a professional audio system (in addition to those which are strictly acoustic, such as sound pressure, angles of coverage, frequency response, etc.). 11. Hearing loss Exposure to high sound levels can cause permanent hearing loss. The acoustic pressure level that leads to hearing loss is different from person to person and depends on the duration of exposure.

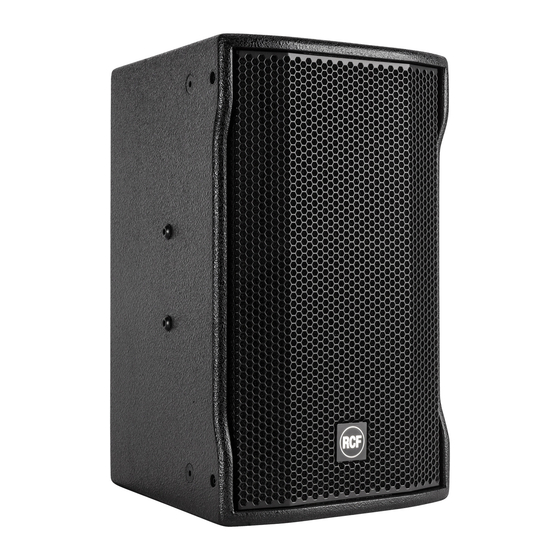

- Page 5 C MAX 4110 - FULL RANGE HIGH POWER NEARFIELD MONITOR C MAX 4110 is a passive two-way speaker featuring a 10” woofer and a 1” compression driver. It has been specifically voiced as a club system for entertainment.
-
Page 6: Mounting Points
MOUNTING POINTS MOUNTING POINTS For both C MAX, mounting points are 16 total: - 3 on top - 3 on bottom - 8 on sides (4 for each side) - 2 on back side C MAX 4110 C MAX 4112... - Page 7 CONNECTIONS WARNING: loudspeaker connections should be only made by qualified and experienced personnel having the technical know-how or sufficient specific instructions (to ensure that connections are made correctly) in order to prevent any electrical danger. To prevent any risk of electric shock, do not connect loudspeakers when the amplifier is switched on.
-
Page 8: Notes About Low Impedance Connections
NOTES ABOUT LOW IMPEDANCE CONNECTIONS - The total loudspeaker impedance must not be lower than the amplifier output impedance. Note: a loudspeaker total impedance equal to the amplifier output one permits to get the maximum deliverable power (but an higher loudspeaker impedance entails less power). -
Page 9: Specifications
SPECIFICATIONS C MAX 4110 C MAX 4112 Frequency Response 65 - 20000 Hz 60 - 20000 Hz Spl 1W/1M dB Horizontal Coverage 90° 90° Vertical Coverage 70° 70° Directivity Factor Q Max Spl 128 dB 130 dB Nominal Impedance 8 ohm... - Page 10 C MAX 4110 DIMENSIONS...
- Page 11 C MAX 4112 DIMENSIONS...
- Page 12 RCF SpA: Via Raffaello, 13 - 42124 Reggio Emilia - Italy tel. +39 0522 274411 - fax +39 0522 274484 - e-mail: rcfservice@rcf.it...
