M 1001 – M 1201
OWNER MANUAL
MANUALE D'USO
- 'MEDIA' SERIES
LOUDSPEAKERS
- DIFFUSORI ACUSTICI
DELLA SERIE "MEDIA"

Advertisement

loading
Need help?

Need help?

Do you have a question about the MEDIA Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for RCF MEDIA Series

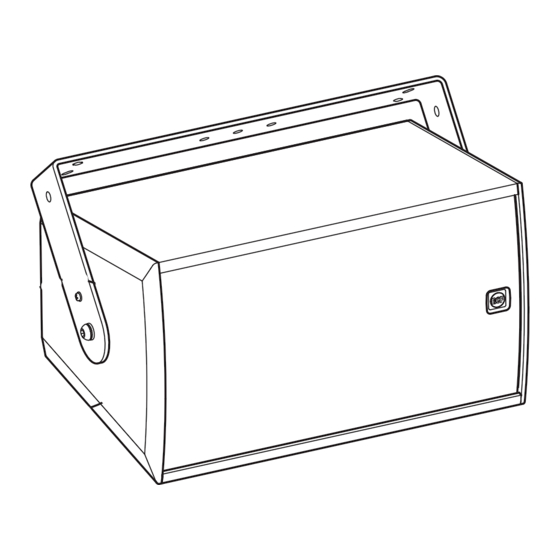

  • Page 1 OWNER MANUAL MANUALE D’USO M 1001 – M 1201 - ‘MEDIA’ SERIES LOUDSPEAKERS - DIFFUSORI ACUSTICI DELLA SERIE “MEDIA”...
  • Page 2: Safety And Operating Precautions

    RCF S.p.A. will not assume any responsibility for the incorrect installation and / or use of this product.
  • Page 3 10. Mechanical and electrical factors need to be considered when installing a professional audio system (in addition to those which are strictly acoustic, such as sound pressure, angles of coverage, frequency response, etc.). 11. Hearing loss Exposure to high sound levels can cause permanent hearing loss. The acoustic pressure level that leads to hearing loss is different from person to person and depends on the duration of exposure.
  • Page 4 RCF S.P.A. THANKS YOU FOR PURCHASING THIS PRODUCT, WHICH HAS BEEN DESIGNED TO GUARANTEE RELIABILITY AND HIGH PERFORMANCE. DESCRIPTION The new ‘Media’ series includes a wide range of high quality 2-way passive loudspeakers for fixed installations and is the ideal solution for small to medium size projects.
  • Page 5: Installation

    INSTALLATION Loudspeakers are to be install by qualified personnel, respecting all safety standards. Loudspeakers are to be installed securely. Make sure the support structure (walls / ceilings) has the necessary mechanical characteristics for the loudspeaker weight, without the risk of a fall that could damage things or cause an injury.
  • Page 6 B) MOUNTING WITH A SWIVEL BRACKET AC WM-C 50 mm Necessary optional accessory: AC WM-C Mount the fixed part of the AC WM-C accessory (shown in grey in the respective figure) to the wall through its corners with four M10 wall plugs. The central hole of the fixed part is useful to let pass the connecting cable from the wall outlet.
  • Page 7 CONNECTIONS WARNING: loudspeaker connections should be only made by qualified and experienced personnel having the technical know-how or sufficient specific instructions (to ensure that connections are made correctly) in order to prevent any electrical danger. To prevent any risk of electric shock, do not connect loudspeakers when the amplifier is switched on.
  • Page 8: Notes About Low Impedance Connections

    NOTES ABOUT LOW IMPEDANCE CONNECTIONS - The total loudspeaker impedance must not be lower than the amplifier output impedance. Note: a loudspeaker total impedance equal to the amplifier output one permits to get the maximum deliverable power (but an higher loudspeaker impedance entails less power).
  • Page 9: Specifications

    SPECIFICATIONS MODEL M 1001 M 1201 SYSTEM IMPEDANCE 8 Ω 8 Ω POWER (RMS) 300 W 300 W POWER (peak) 1200 W 1200 W RECCOMENDED AMPLIFIER 600 W 600 W PROTECTION DYN. ACTIVE MOSFET DYN. ACTIVE MOSFET FREQUENCY RESPONSE (–10 dB) 60 Hz ÷...
  • Page 10 M 1001 DIMENSIONS 100 [3.94”] [3.94”] [3.94”] 297,6 [11.72”] 160 [6.30”]...
  • Page 11 M 1201 DIMENSIONS 100 [3.94”] [3.94”] [3.94”] [3.94”] 271,86 [10.70”] [14.92”] [8.03”]...
  • Page 12 Except possible errors and omissions. RCF S.p.A. reserves the right to make modifications without prior notice. Salvo eventuali errori ed omissioni. RCF S.p.A. si riserva il diritto di apportare modifiche senza preavviso. HEADQUARTERS: RCF S.p.A. Italy tel. +39 0522 274 411 e-mail: info@rcf.it...
