Summary of Contents for RCF E MAX 3110

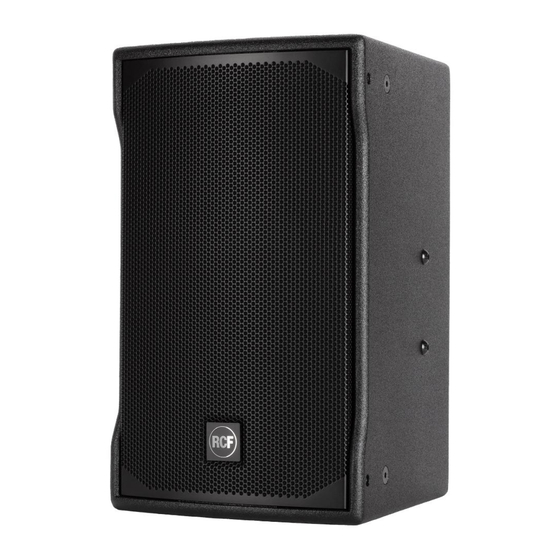

- Page 1 OWNER MANUAL E MAX 3110 FULL RANGE HIGH POWER E MAX 3112 NEARFIELD SPEAKER...
-
Page 3: Safety And Operating Precautions
RCF S.p.A. will not assume any responsibility for the incorrect installation and / or use of this product. - Page 4 10. Mechanical and electrical factors need to be considered when installing a professional audio system (in addition to those which are strictly acoustic, such as sound pressure, angles of coverage, frequency response, etc.). 11. Hearing loss Exposure to high sound levels can cause permanent hearing loss. The acoustic pressure level that leads to hearing loss is different from person to person and depends on the duration of exposure.
- Page 5 The E MAX 3112 AND E MAX 3110 are passive two-way speakers featuring high power woofers (12” woofer on E MAX 3112 and 10” woofer on E MAX 3110) and a 1” compression driver. They have been specifically voiced as a club systems for entertainment.
-
Page 6: Mounting Points
MOUNTING POINTS MOUNTING POINTS For both E MAX, mounting points are 19 total: - 4 on top - 4 on bottom - 8 on the sides (4 on each side) - 3 on back side E MAX 3110 E MAX 3112... - Page 7 CONNECTIONS WARNING: loudspeaker connections should be only made by qualified and experienced personnel having the technical know-how or sufficient specific instructions (to ensure that connections are made correctly) in order to prevent any electrical danger. To prevent any risk of electric shock, do not connect loudspeakers when the amplifier is switched on.
-
Page 8: Notes About Low Impedance Connections
NOTES ABOUT LOW IMPEDANCE CONNECTIONS - The total loudspeaker impedance must not be lower than the amplifier output impedance. Note: a loudspeaker total impedance equal to the amplifier output one permits to get the maximum deliverable power (but an higher loudspeaker impedance entails less power). -
Page 9: Specifications
SPECIFICATIONS E MAX 3110 E MAX 3112 Frequency Response 60 - 20000 Hz 55 - 20000 Hz Horizontal Coverage 90° 90° Vertical Coverage 70° 70° Directivity Factor Q Max Spl 128 dB 129 dB Nominal Impedance 8 ohm 8 ohm... - Page 10 E MAX 3110 DIMENSIONS...
- Page 11 E MAX 3112 DIMENSIONS...
- Page 12 RCF SpA: Via Raffaello, 13 - 42124 Reggio Emilia - Italy tel. +39 0522 274411 - fax +39 0522 274484 - e-mail: rcfservice@rcf.it...
