2.6

CPU Board

Audit
Jumper
JP4
JP5
JP6
Connectors
• Load cell (J1)
• DIO (J2)
• Comm 1 (J3)
• USB Micro Device (J4)
• USB Host (J5)
• Ethernet TCP/IP (J6)
• Opt Header (J8)
• Power Board (J7)
The Comm 1 port supports RS-232 or RS-485 communications; the port is configured using the SERIAL menu.
See Section 3.0.
J8
J1 J2
SW3

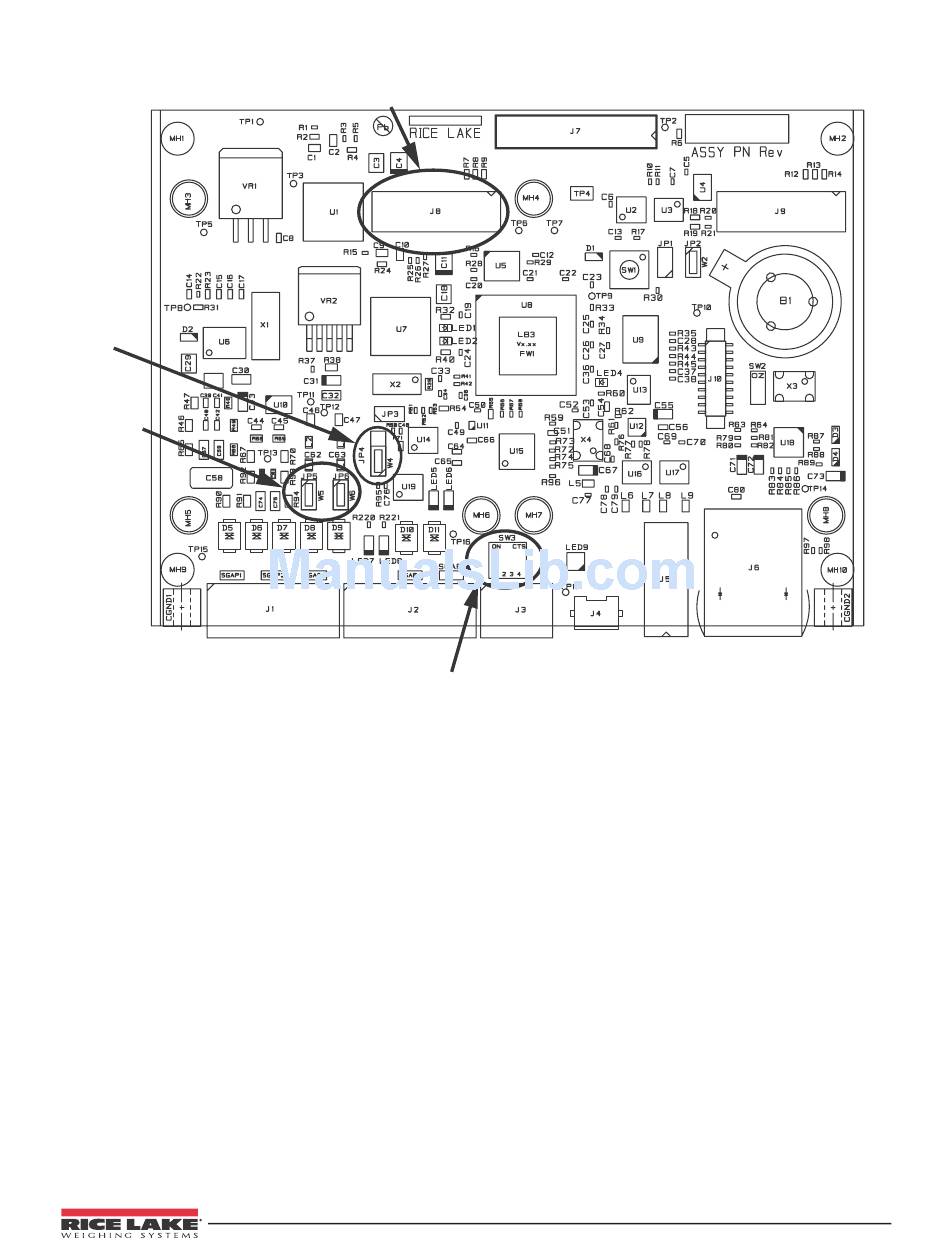

Figure 2-10. 880 CPU Board
J7
J3 J4 J5 J6
Installation 17
