2.5.2 Power Connections
Power connections to the 880 Panel Mount are shown below.
•
Part number 152334 is used to connect AC power to the power supply board.
•
Part number 15888 is used to connect DC power to the power supply board.
Attach the wires per the diagram shown below.
J1
J2
2.5.3 Serial Communications
Attach serial communications cables to external connector J3. Connector J3 provides connections for the Comm 1
port. Table 2-3 shows the pin assignments for RS-232 and RS-485.
For RS-232, all four switches on SW3 (see Figure 2-10) must be in the OFF position.
Note
For RS-485, all four switches on SW3 must be in the ON position.
2.5.4 USB Micro
USB connection for uploading/downloading to a PC.
2.5.5 USB Host Device
Not available at time of publication.
2.5.6 Ethernet Communications
Ethernet communications uses a RJ45 connector in port J6 (see Figure 2-10 for port location).
16
880 Installation Manual
J6
J3

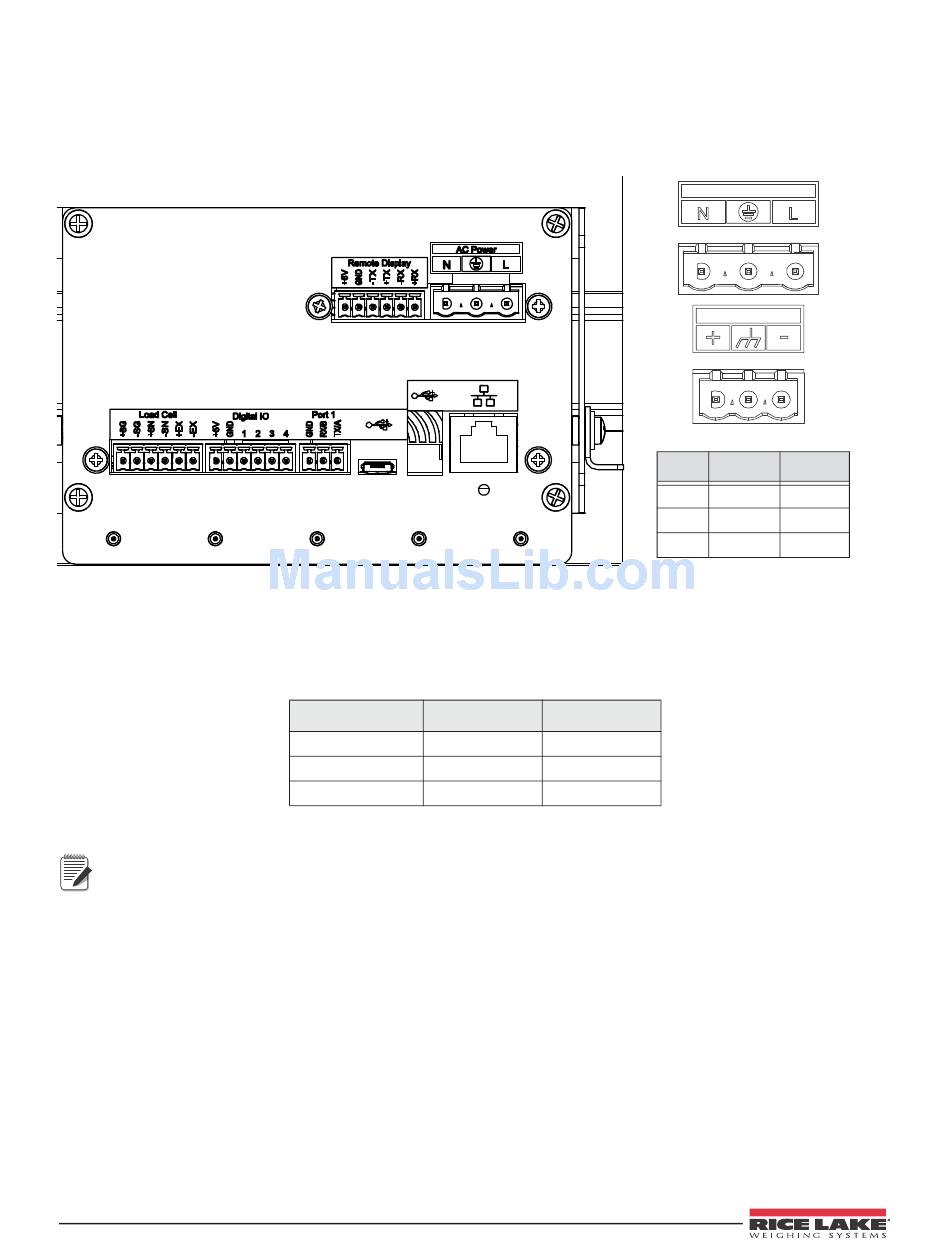

Figure 2-9. AC Power Cord Connection Location
Pin
1
2
3
Table 2-3. Serial Communications to Connector J7 Pin Assignments
RS-232
RS-485
GND
GND
RX
B
TX
A
AC Power
DC Power
Pin
AC
DC
1
N
+
2
GND
GND
3
L
–
