Important
Ensure gasket is seated
properly on display
assembly before
mounting.
Display Assembly
5. Connect the cable assembly to the controller assembly.
6. Place the controller assembly on the DIN rail as shown in Figure 2-4.
7. Secure to DIN rail by rotating the left and right hooks up connecting with the bottom rail.
Front of panel

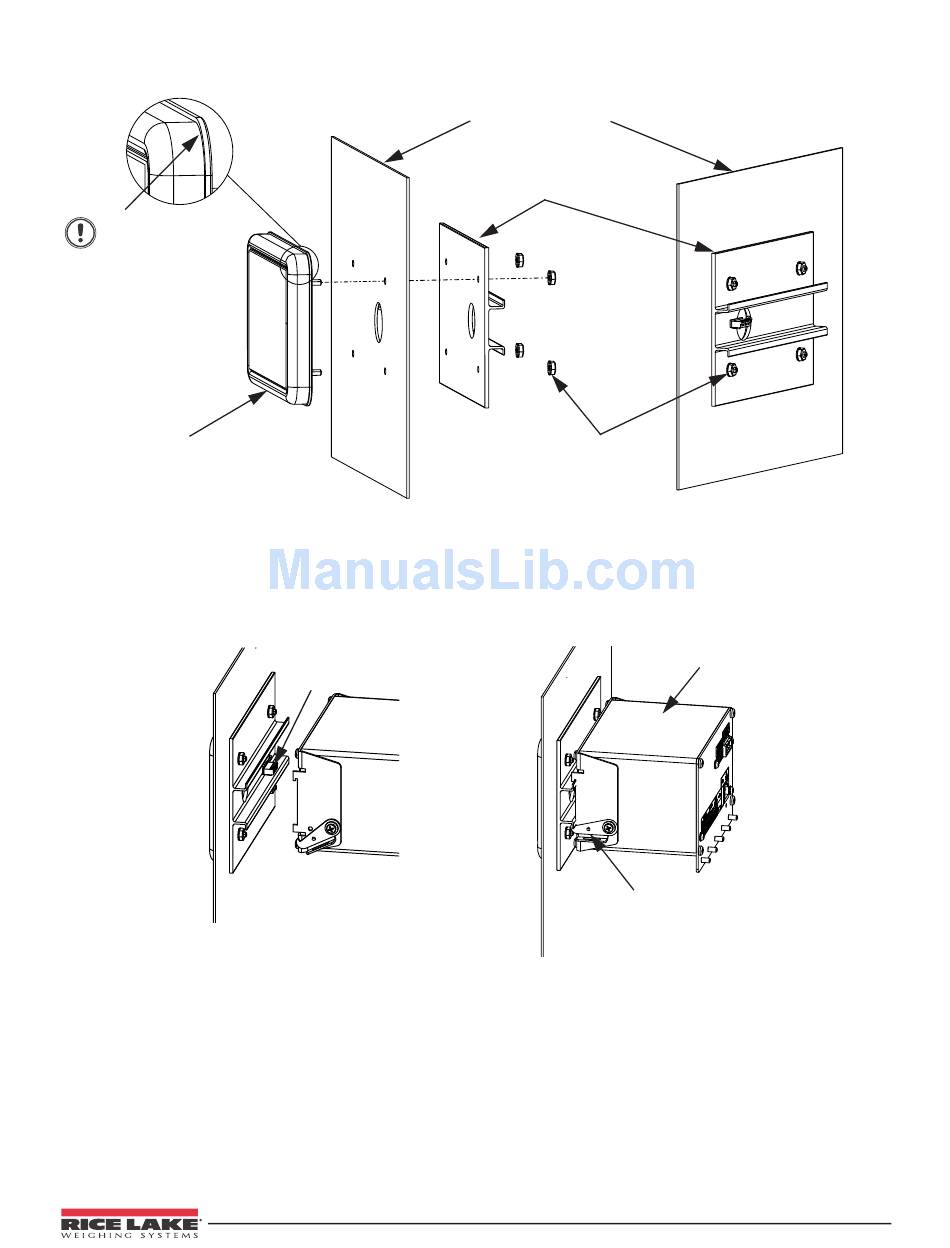

Figure 2-3. Mounting Display Assembly
Connect Cable assembly to
controller assembly
Figure 2-4. Install Controller Assembly
Panel for mounting
indicator
Din Rail Mounting Plate
6-32 Kep Nuts
Rotate hooks to secure
to bottom DIN rail
Back of panel
Controller
Assembly
Installation 11
