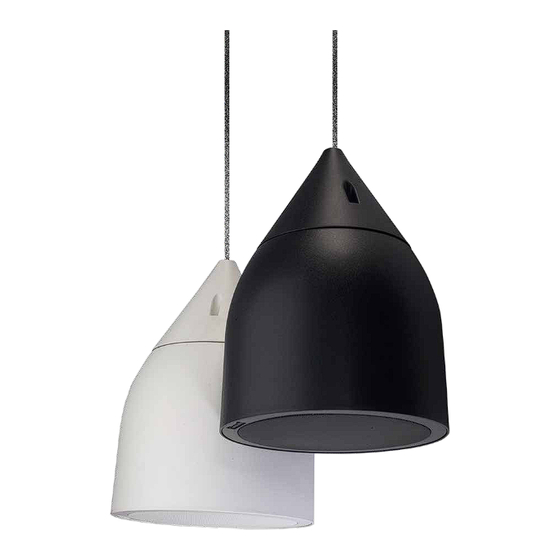

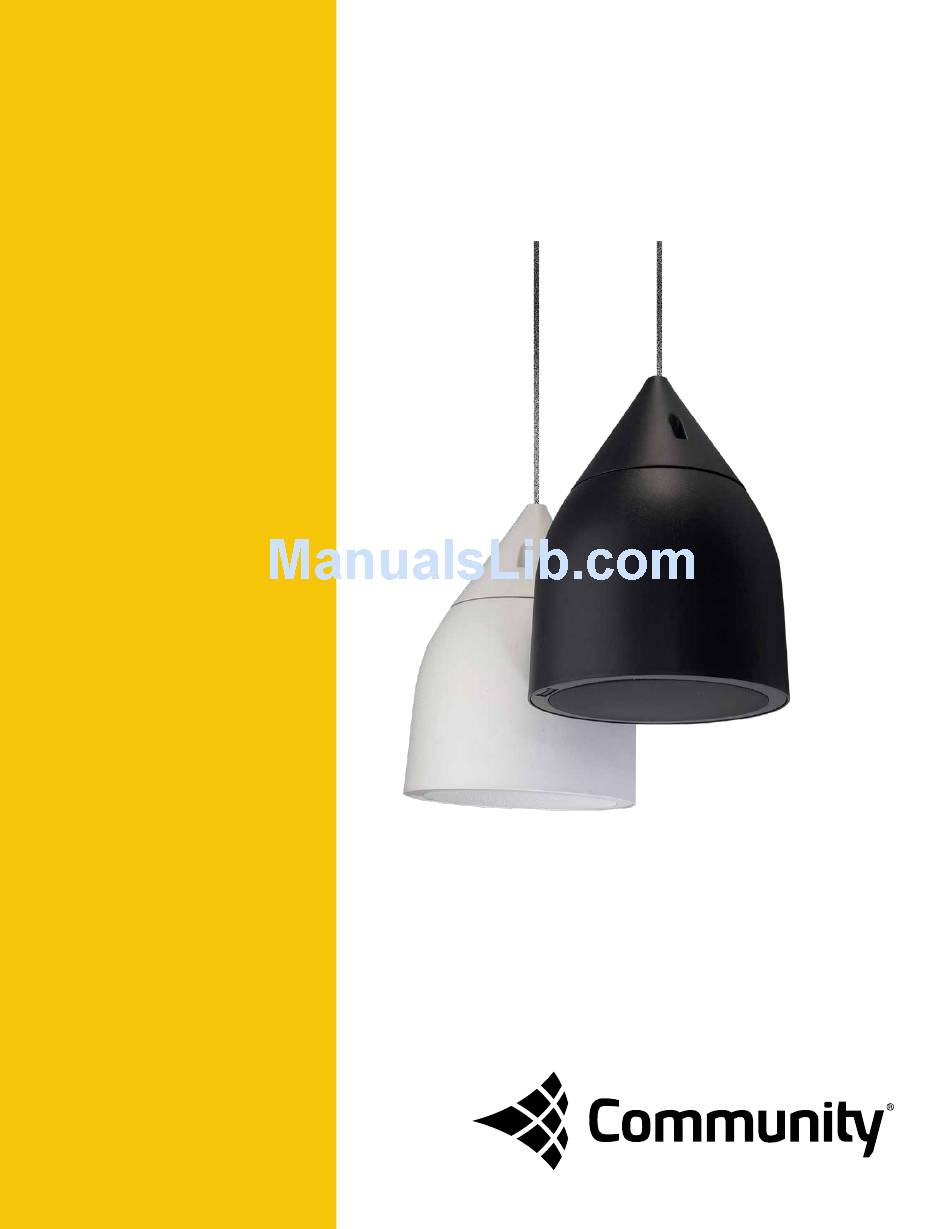

- Page 1 C SERIES Pendant Loudspeaker Installation Guide MODELS CP6 6.5" Full-Range...
-
Page 2: Important Safety Instructions
The terms caution, warning, and danger may be used in this manual to alert the reader to important safety considerations. If you have any questions or do not understand the meaning of these terms, do not proceed with installation. Contact your local dealer, distributor, or call Community directly for assistance. -
Page 3: Table Of Contents
Gripple, the cable and the pressed ferule. • The #2 Gripple products supplied have the suitable minimum load and the maximum SWL specifications to be used with Community’s pendant loudspeakers. CAUTION: Installation of CP6 • Do not use on coated wire rope. Prior to assembly, it is essential to strip off any coating on the length of cable to be inserted into the Gripple. -
Page 4: Installation And Wiring
Installation and Wiring Before inserting cables into the Gripples, attach both snap hooks to the suspension bracket atop the loudspeaker as shown in Figure 1. Attach the main cable to the center hole, and the safety cable to either of the two outer holes Safety Cable Main Cable depending on the desired orientation. - Page 5 Installation and Wiring (continued) Two 2-pole Euroblock connectors are Euroblock connector supplied and connect to a jack on the top of the loudspeaker as shown in Figure 4. Thread the audio cable down through the loudspeaker top cover, and then strip approximately 1/4-inch (4mm) of insulation from the cable’s inner wire conductors.
- Page 6 Installation and Wiring (continued) See Figure 7 To lower a loudspeaker which is already clamped by the Gripple. 1. Insert the setting key into the small hole in the bottom of the Gripple, which forces the internal locking wedges open, and then, 2.
-
Page 7: Painting The Loudspeaker
Painting the Loudspeaker These loudspeakers are easy to paint. It’s best to paint the baffle and enclosure 3. After cleaning, apply two or more before installation. two thin coats of either latex or oil- based paints. Latex paint will adhere Type of Paint better if an oil-based primer is used The loudspeaker’s ABS plastic baffle and enclosure accept almost any type of... -
Page 8: Transferable Warranty "(Limited)
Transferable warranty “(Limited)” valid in the USA only C SERIES Loudspeaker Systems are designed and backed by Community Professional Loudspeakers. For complete warranty information within the USA please refer to the Community website. Please call 610-876-3400 to locate your nearest Authorized Field Service Station.
