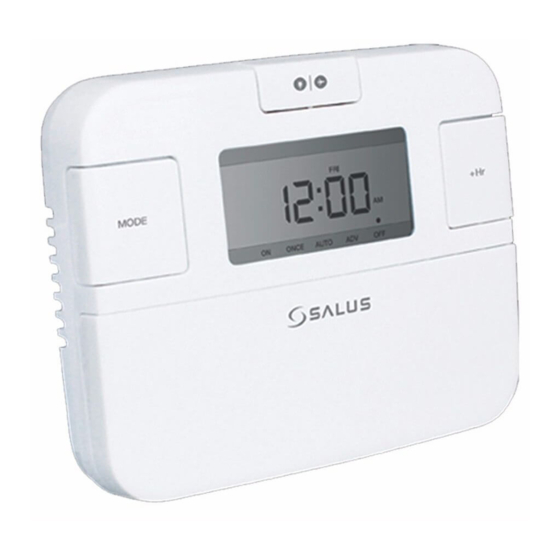

- Page 1 Model: EP110 Single channel programmable controller Installation Manual...
-
Page 2: Table Of Contents
Box content ........................3 Introduction ........................4 Features ..........................4 Installation ........................5 Button functions and LCD icons ................ 7 Operations ........................8 Functions ......................... 14 Factory Reset ......................... 16 Technical Info ........................ 17 Warranty ........................... 18 02 EP110 Installation Manual... -
Page 3: Product Compliance
Always isolate the AC Mains supply before installing or working on any components that require 230 VAC 50Hz supply. Box content The box includes the EP110 controller, 2X screws and plugs and the Quick Guide installation manual. EP110 Controller 2x screws and plugs... -
Page 4: Introduction
Single Channel Programmer for Central Heater or Hot Water • 12 or 24 hour clock format • 5+2 or 24 h individual program with 3 settings per day • Boost function • Holiday function • Advance function • Memory backup 04 EP110 Installation Manual... -
Page 5: Installation
Note: Please remove red link wire (like the one in the picture above) for this application. Volt Free Terminal Description Backplate Mains Neutral Mains Live Not Used N L 1 2 3 N L 1 2 3 Not Used Volt Free Connection Volt Free Connection Earth Parking (no electrical connection) EP110 Installation Manual... - Page 6 Note: Changes to the jumper settings should only be made by the engineer carrying out the installation or another qualified person. The installer should select the jumper positions required if changes need to be made to the factory default settings. These jumpers are found on the rear of the controller. 06 EP110 Installation Manual...
-
Page 7: Button Functions And Lcd Icons
Daylight Saving Time On/Off OFF Mode Active (controller is off ) AM/PM Program number ON Mode Active Holiday mode on (controller runs continually) ONCE Mode Active Days of the week (controller runs for 1 period a day) EP110 Installation Manual... -
Page 8: Operations
Status after Reset Operation Mode Normal mode Clock 12:00 AM AM/PM indicator Date January 1, 2016 Daylight Saving Time(DST) Program Factory default 5+2 Program Number indicator SET indicator PROG indicator Mode indicator(s) “Off“ Output Relay CH/HW indicator(s) 08 EP110 Installation Manual... - Page 9 When Daylight saving time is enabled, the clock will automatically change from Greenwich Mean Time (GMT) to British Summer Time (BST) on the last Sunday in March. The clock will automatically change back to GMT on the last Sunday in October. EP110 Installation Manual...
- Page 10 Operating Modes EP110 can operate in 5 different modes, described in the table below. EP110 can be set to control either the boiler OR the hot water. You can choose on which one of the channels you connect the controller. To access operating modes, please press Mode key.
- Page 11 12:00. If ADV occurred at 10:30 the relay will be ON from 10:00, OFF from 10:30 (ADV) to 14:00 if no +1Hr Override. During ADV, if at 10:45 +1Hr (Boost) is pressed, the relay will go ON again at 10:45 (boost starts), OFF at 11:45 (Boost ends) until ends at 14:00, then ON again at 14:00. EP110 Installation Manual...
- Page 12 Sat-Sun. Please follow the same steps for each of the 3 programs. Press SET at any time to confirm the setting and return for program set selection. Press Up or Down to set start time for prog 2. Press Select to confirm. 12 EP110 Installation Manual...
- Page 13 Please follow the same steps for each of the 3 programs. Press SET at any time to confirm the setting and return for program set selection. Press Up or Down to set start time for prog 2. Press Select to confirm. EP110 Installation Manual...
-
Page 14: Functions
MODE MODE SELECT SELECT 3 sec 1 sec Short press Mode while in ADV to Long press Mode while in exit mode back to auto or Once Auto or Once to enter ADV override Mode 14 EP110 Installation Manual... - Page 15 Press for 3 seconds. Controller in current mode. LCD Backlight If AC is powered, LCD backlight is activated when or any key is pressed. The backlight will be turned off in 15 seconds after all keys are released. EP110 Installation Manual...
-
Page 16: Factory Reset
If you want to return to the factory settings please press the Reset button once (use a pin for this action). MODE MODE SELECT SELECT Press reset button. LCD will turn OFF. MODE MODE SELECT SELECT All icons will be displayed. Software version. MODE SELECT Normal Mode. 16 EP110 Installation Manual... -
Page 17: Technical Info
Yes, max 9 hours(selectable by software) Holiday Override Yes, max 31 days (selectable by software) Clock Clock Format 12 or 24 hour (selectable by software) Clock Accuracy +/-1 min/month Daylight Saving Time (DST) Yes, Clock automatically adjusted if DST is enabled. EP110 Installation Manual... -
Page 18: Warranty
Warranty SALUS Controls warrants that this product will be free from any defect in materials or workmanship, and shall perform in accordance with its specification, for a period of two years from the date of installation. SALUS Controls sole liability for breach of this warranty will be (at its option) to repair or replace the defective product. - Page 19 SALUS Controls is a member of the Computime Group Maintaining a policy of continuous product development, SALUS Controls plc reserves the right to change specification, design and materials of products listed in this brochure without prior notice. For the latest PFD Instruction Manual, go to www.salus-manuals.com...
