Adjustment: Trailing edge registration
1. Change the setting value using the cursor right/left keys or numeric keys.
For copy example 1, increase the value. For copy example 2, decrease the value.
2. Press the start key. The value is set.
Completion
Press the stop key. The screen for selecting a maintenance item No. is displayed.
Original
Copy
example 1 example 2

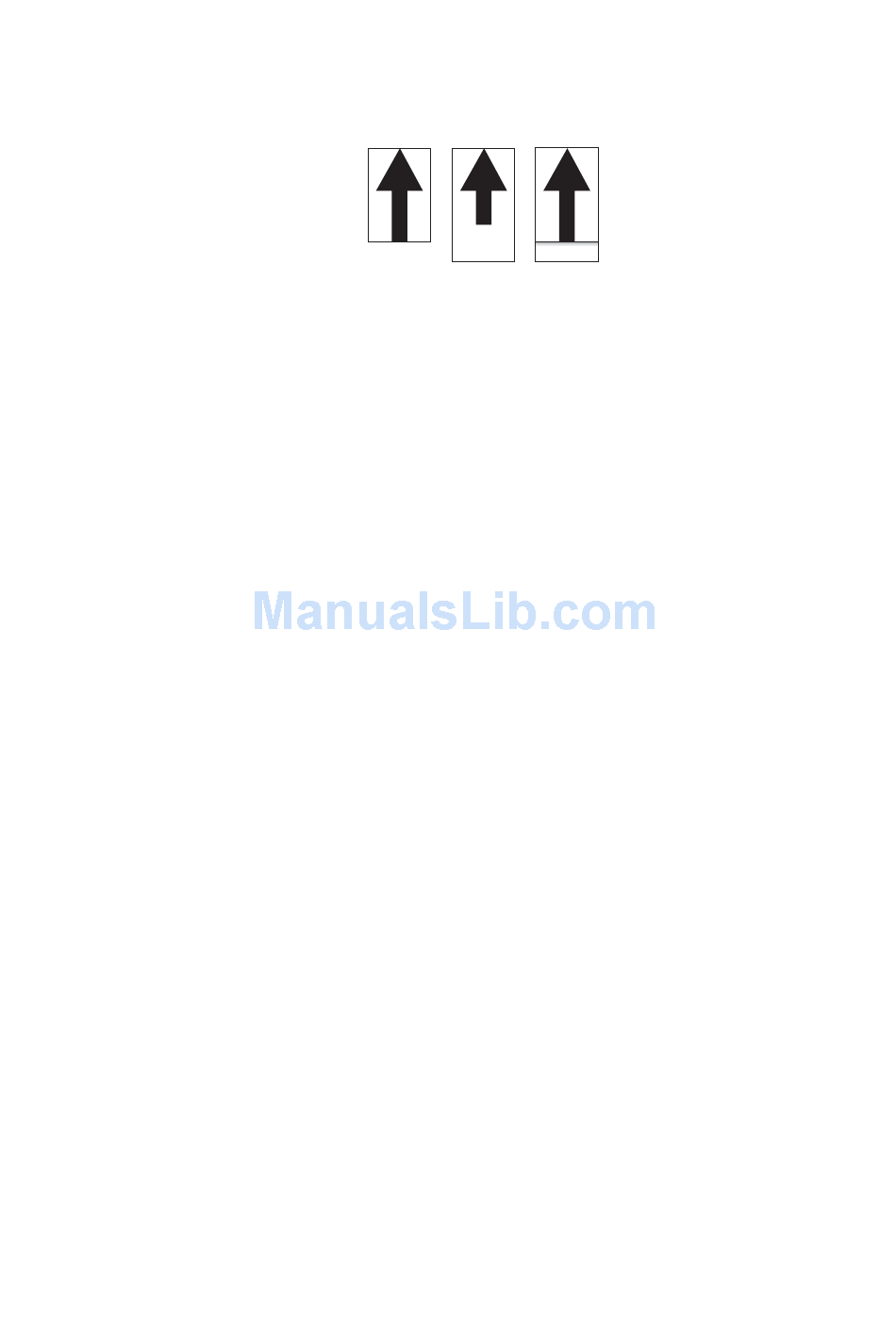

Figure 1-3-11
1-3-34
