Utax P-4030 MFP Service Manual page 436

10. Remove the front right cover forward.
11. Remove three connectors, two FFCs
and two USB connectors from the Con-
trol PWB.
12. Remove three screws and grounding
terminal from the image scanner unit.
13. Remove it by sliding the image scanner
unit backward and then takeing upward.
Screw
Grounding
terminal
2-2-38
2NM/2NX/2NY/2NZ/2P0/2P6

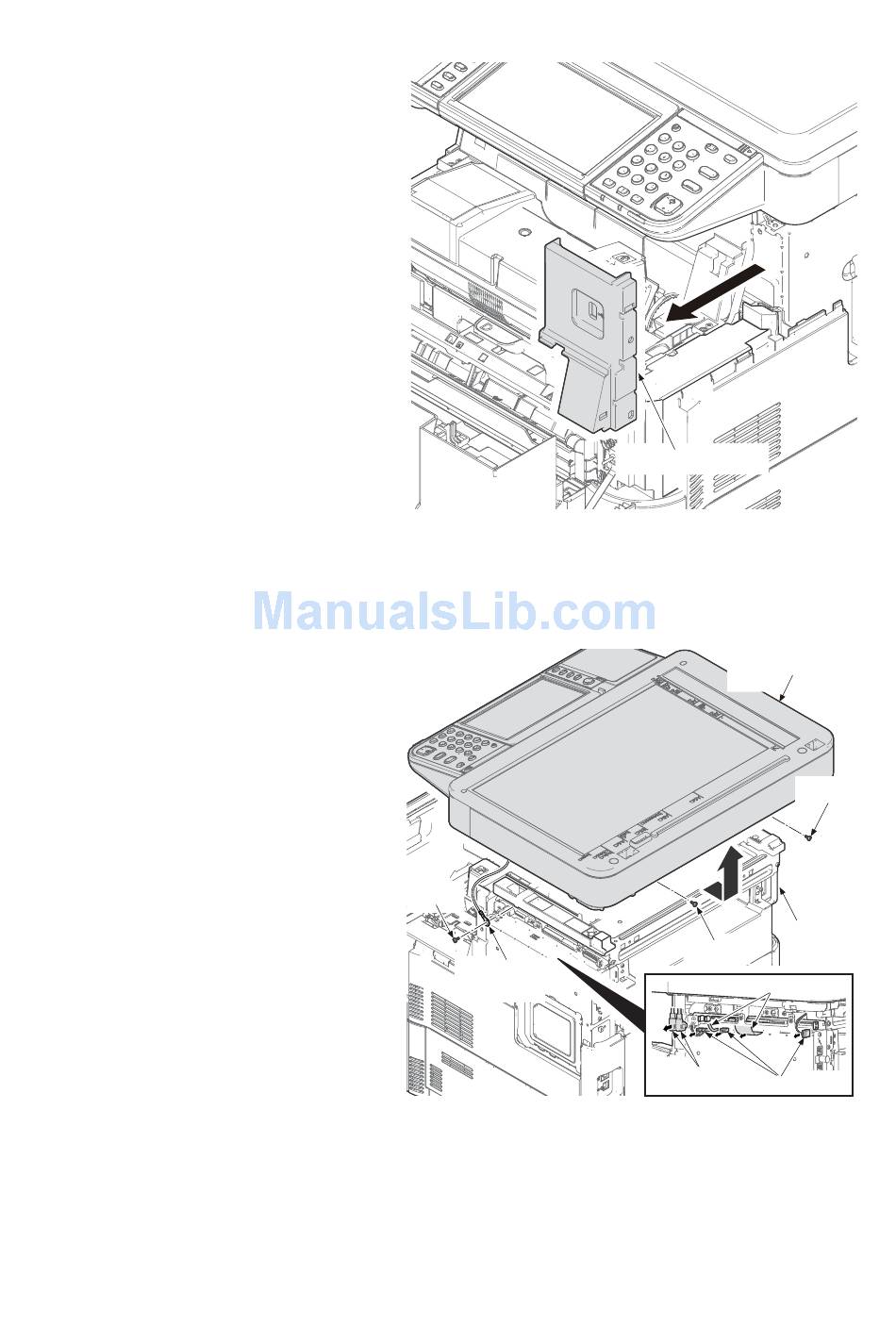

Front right cover
Figure 2-2-41
Image scanner
unit
Screw
FFCs
USB
connectors
Connectors
Figure 2-2-42
Screw
Main unit
