Utax P-4030 MFP Service Manual page 328

(2) 40 ppm model

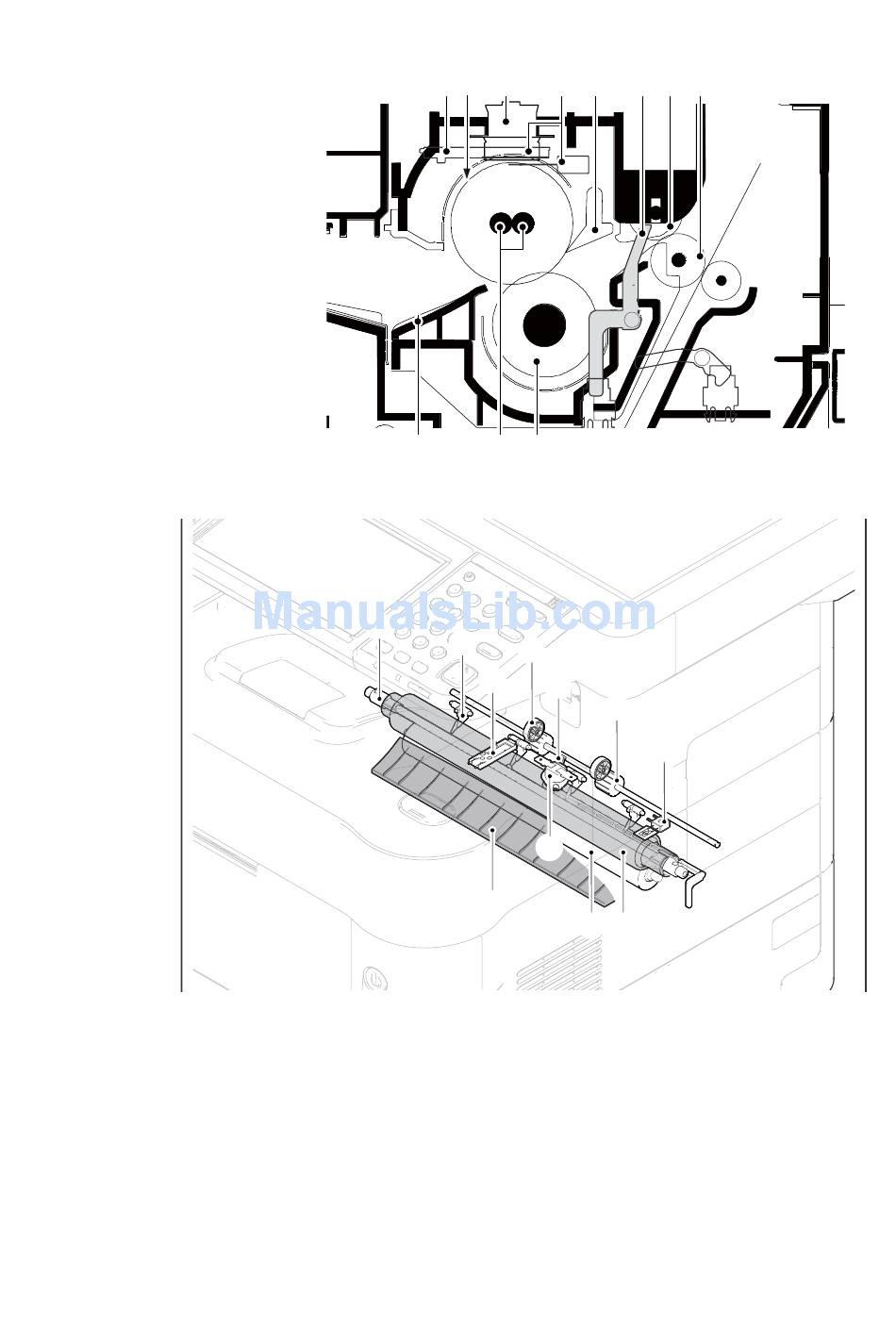

[Component formation]
1. Heat roller
2. Fuser heater (FUH)
3. Fuser thermostat (FUTS)
4. Fuser thermistor (FUTH)
5. Separators
6. Press roller
7. Actuater
(Eject sensor (ES))
8. Fuser eject roller
9. Fuser eject pulley
10. Fuser thermistor (FUTH2)
11. Fuser pre guide
1
10 3
11 2 6
Figure 1-5-69
2
5
9
10
11
Figure 1-5-70
1-5-42
2NM/2NX/2NY/2NZ/2P0/2P6
4 5 7 9 8
7
8
4
3
6 1
