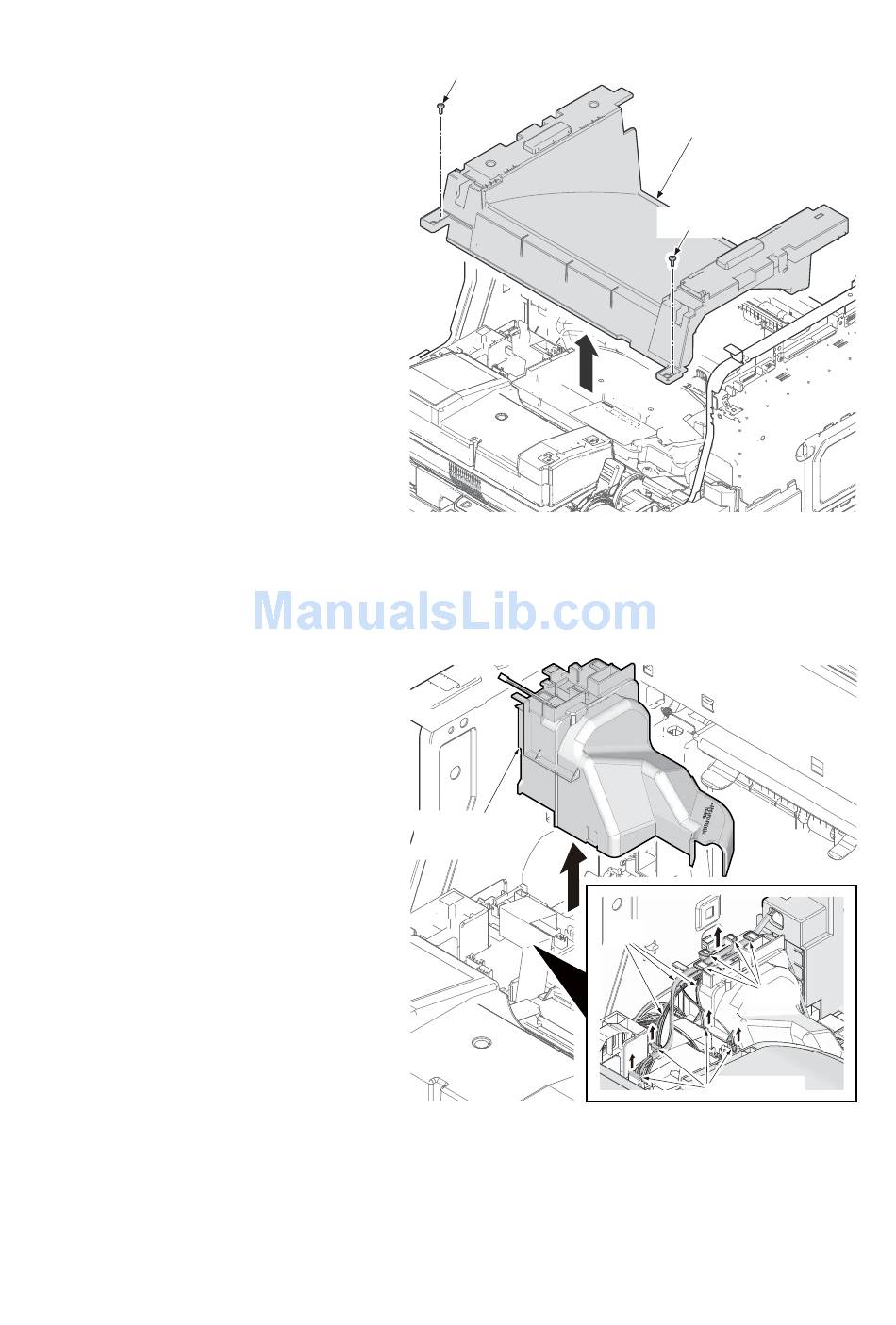

21. Remove two screws.
22. Remove the top tray cover upward.
23. Remove the connectors from the con-
nect left PWB and then release the
wires from the hooks.
24. Remove the LSU fan motor assembly
upward.
Screw
LSU fan motor
assembly
2-2-25
2NM/2NX/2NY/2NZ/2P0/2P6
Top tray cover
Screw
Figure 2-2-25
Wires
Hooks
Connectors
Figure 2-2-26
