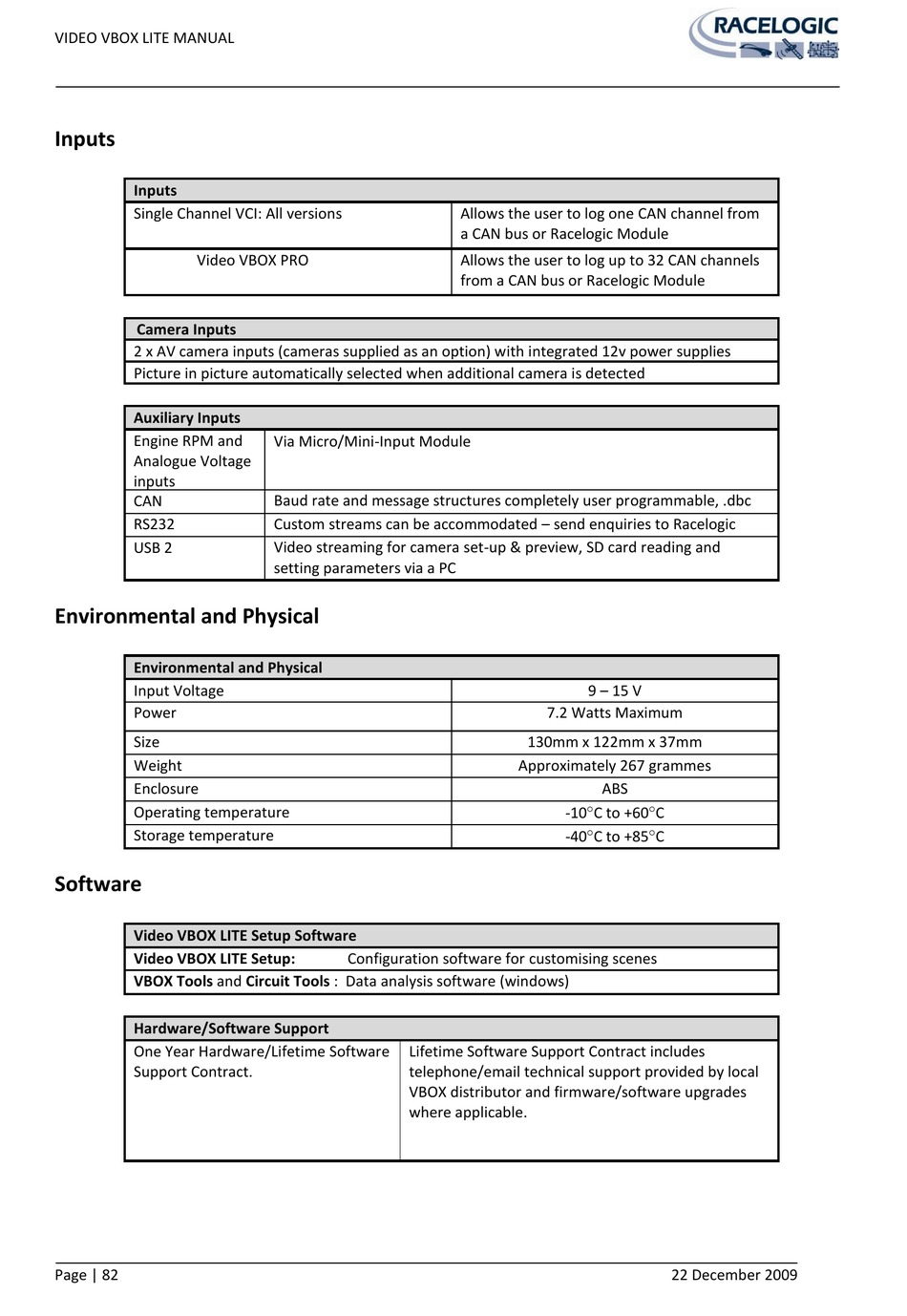

Inputs; Environmental And Physical; Software - Racelogic VBOX LITE Hardware & Software Manual

VIDEO VBOX LITE MANUAL

Inputs

Inputs
Single Channel VCI: All versions
Video VBOX PRO
Camera Inputs
2 x AV camera inputs (cameras supplied as an option) with integrated 12v power supplies
Picture in picture automatically selected when additional camera is detected
Auxiliary Inputs
Engine RPM and
Analogue Voltage
inputs
CAN
RS232
USB 2

Environmental and Physical

Environmental and Physical
Input Voltage
Power
Size
Weight
Enclosure
Operating temperature
Storage temperature

Software

Video VBOX LITE Setup Software
Video VBOX LITE Setup:
VBOX Tools and Circuit Tools : Data analysis software (windows)
Hardware/Software Support
One Year Hardware/Lifetime Software
Support Contract.
Page | 82
Via Micro/Mini-Input Module
Baud rate and message structures completely user programmable, .dbc
files available on request
Custom streams can be accommodated – send enquiries to Racelogic
Video streaming for camera set-up & preview, SD card reading and
setting parameters via a PC
Configuration software for customising scenes
Lifetime Software Support Contract includes
telephone/email technical support provided by local
VBOX distributor and firmware/software upgrades
where applicable.
Allows the user to log one CAN channel from
a CAN bus or Racelogic Module
Allows the user to log up to 32 CAN channels
from a CAN bus or Racelogic Module
9 – 15 V
7.2 Watts Maximum
130mm x 122mm x 37mm
Approximately 267 grammes
ABS
-10C to +60C
-40C to +85C
22 December 2009
