VIDEO VBOX LITE MANUAL

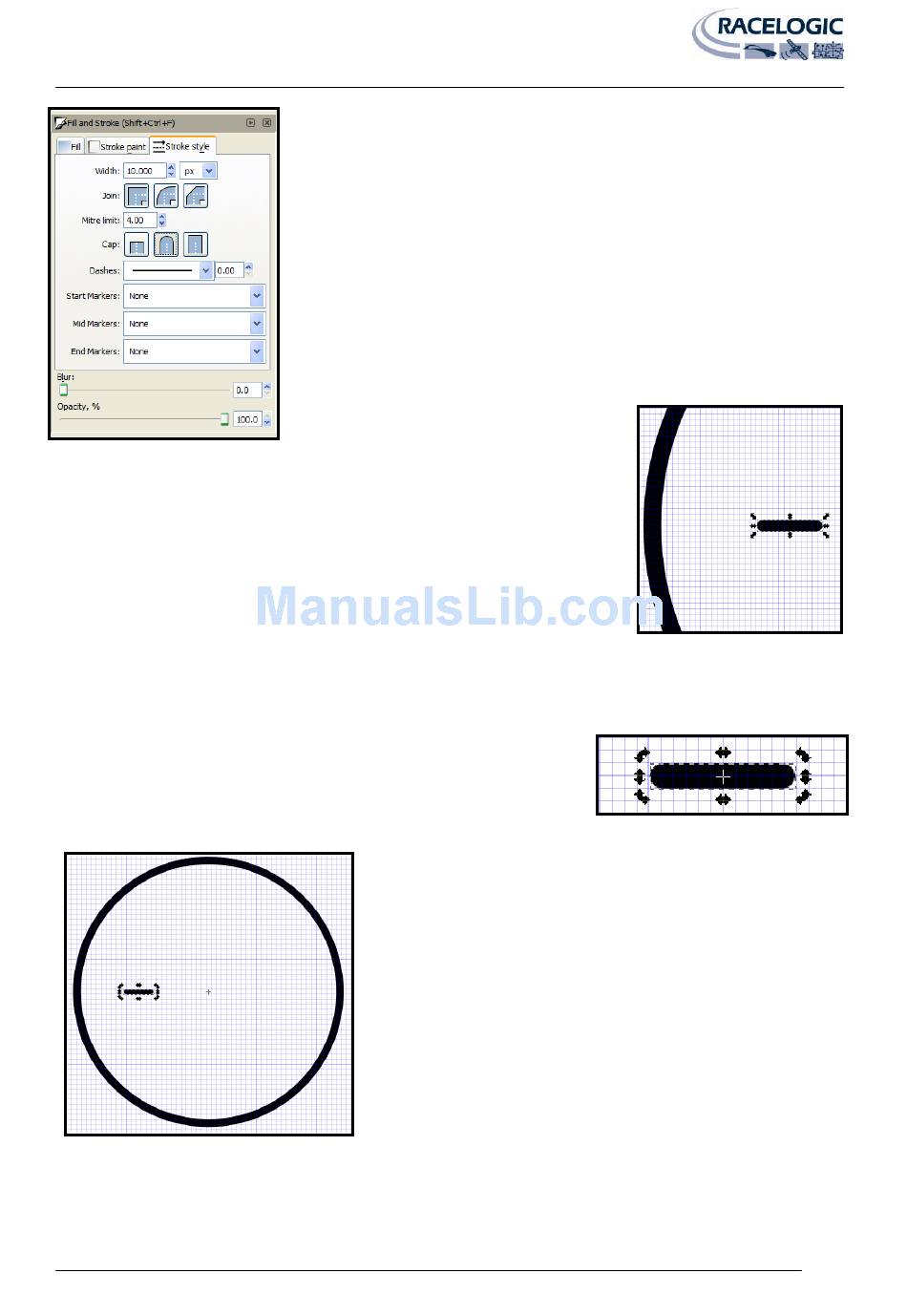

The marker should now look like the picture on the right.
So now we have created one marker we need to create the others for the dial. The easiest way to do this is to use the
duplicate and rotate feature of the software. Before we rotate the marker we have to select the rotation point for the
marker, which is also the centre point of the gauge.
Click twice on the marker until the corner arrows change to rotation arrows
and a cross appears in the centre of the line.
Page | 64
In the 'Stroke and Fill' menu, select the Stroke Style tab and enter a width of 10
and select the rounded Cap.
By clicking and dragging on the cross it is possible to move it to the
centre point of the circles. This is the rotation point for the gauge.
By alternately clicking on the circle then back on the marker it is
possible to move the rotation point for the marker to the same point as
the circle i.e. the centre of the gauge.
