NB: For the Video VBOX LITE to correctly see a 'Mini Input Module' or
'Micro input module' make sure the Mode is set to 'Racelogic' so the
'Send Acknowledge' pulse is turned on.

Setting up a MIM for use with the Video VBOX LITE

To ensure the Mini Input Module has the correct settings for use with the Video VBOX LITE the correct settings must
be uploaded into the MIM using the 'Stand Alone Setup Software' and loading in the 'MIMVideo.rms' configuration
file available from the software download section of the VBOX website.

Displaying Lap-Timing Parameters

The Video VBOX LITE has the capability of overlaying as a TEXT element any of the lap-timing parameters
See the 'Text' element section for a description of how to setup the lap-timing parameter display, and also how to use
the secondary parameter display.
Page | 24

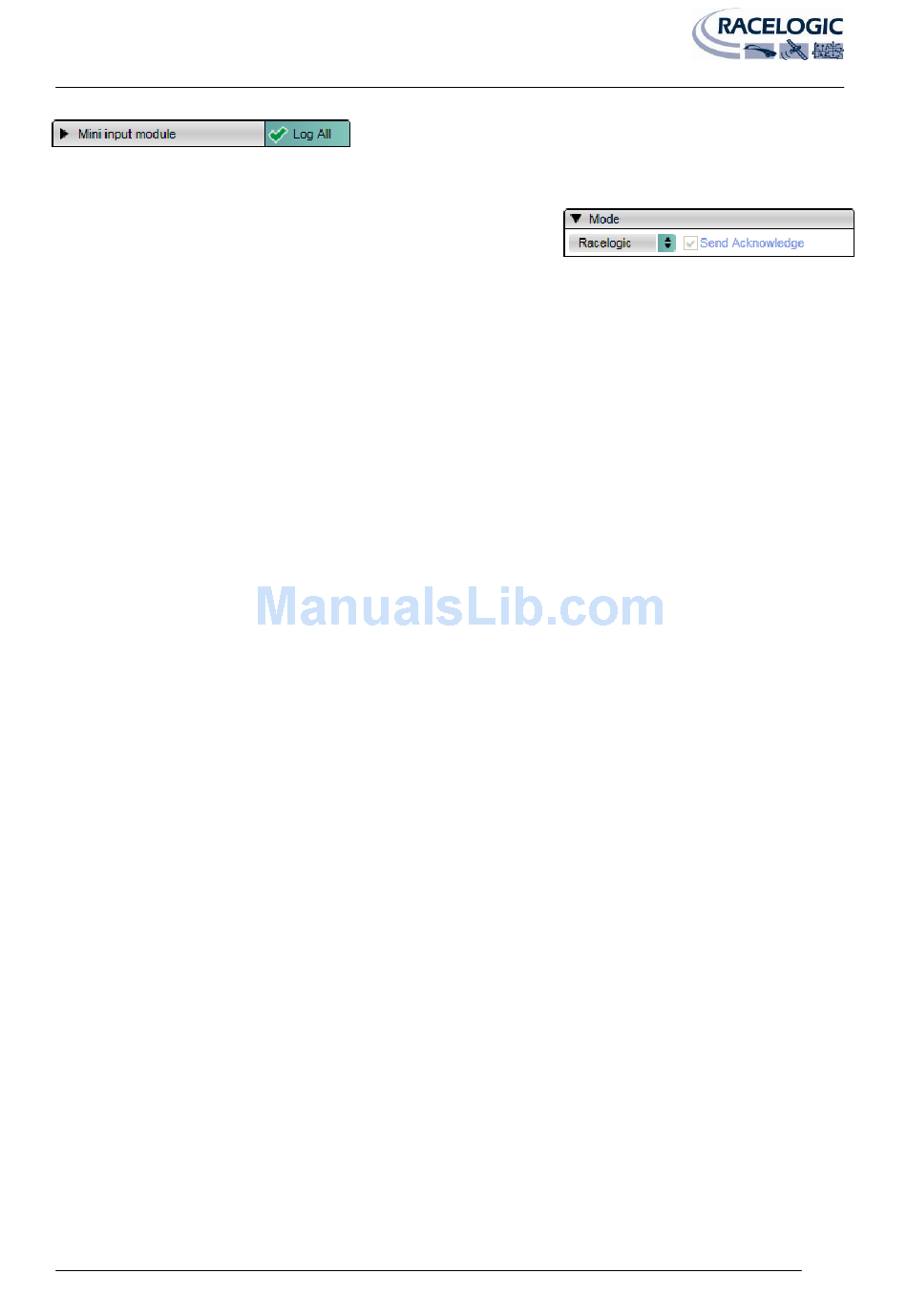

If the Input Module channels need to be logged but not used in a Scene,
clicking the 'Log All button' will log all channels regardless of whether or
not they are used with an Element.
