VIDEO VBOX LITE MANUAL

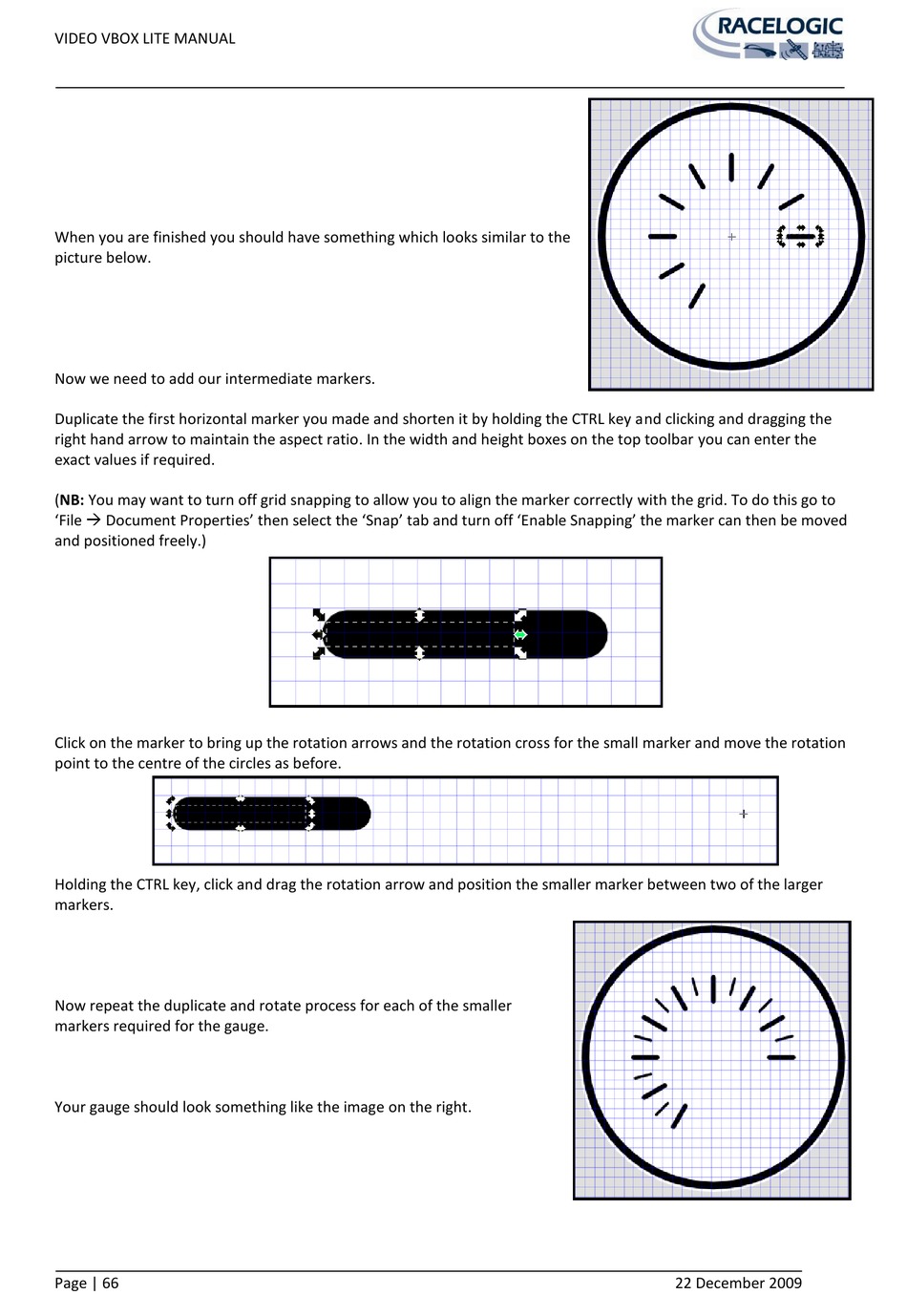

When you are finished you should have something which looks similar to the
picture below.
Now we need to add our intermediate markers.
Duplicate the first horizontal marker you made and shorten it by holding the CTRL key and clicking and dragging the
right hand arrow to maintain the aspect ratio. In the width and height boxes on the top toolbar you can enter the
exact values if required.
(NB: You may want to turn off grid snapping to allow you to align the marker correctly with the grid. To do this go to
'File  Document Properties' then select the 'Snap' tab and turn off 'Enable Snapping' the marker can then be moved
and positioned freely.)
Click on the marker to bring up the rotation arrows and the rotation cross for the small marker and move the rotation
point to the centre of the circles as before.
Holding the CTRL key, click and drag the rotation arrow and position the smaller marker between two of the larger
markers.
Now repeat the duplicate and rotate process for each of the smaller
markers required for the gauge.
Your gauge should look something like the image on the right.
